Model #WGD94HEAC1 Official Whirlpool 27" gas dryer

Here are the diagrams and repair parts for Whirlpool WGD94HEAC1 27" gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

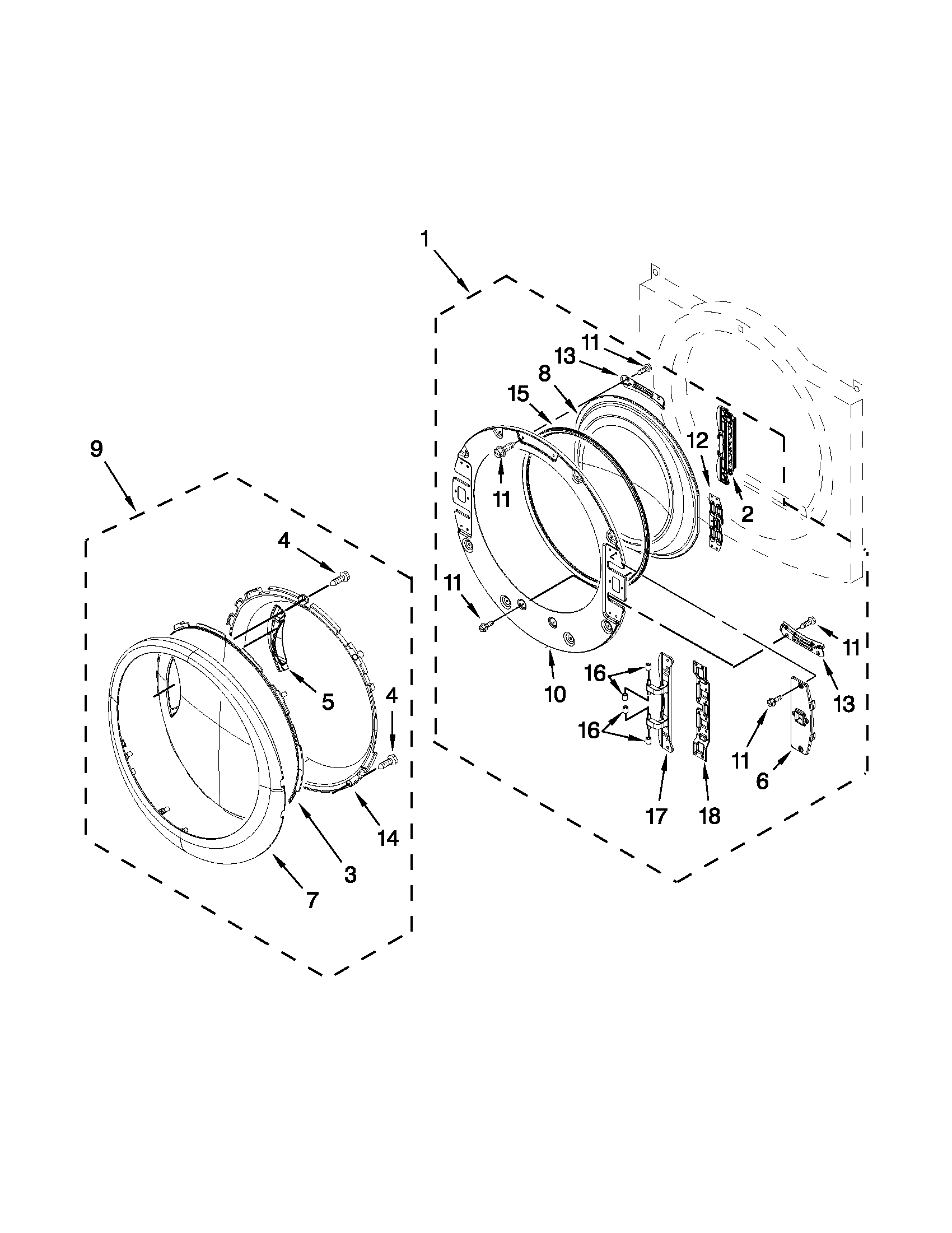

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual
Search within this model
Parts List

Showing 10 of 168 parts

Dryer Thermal Fuse, 195-degree F (replaces 3392519)#41

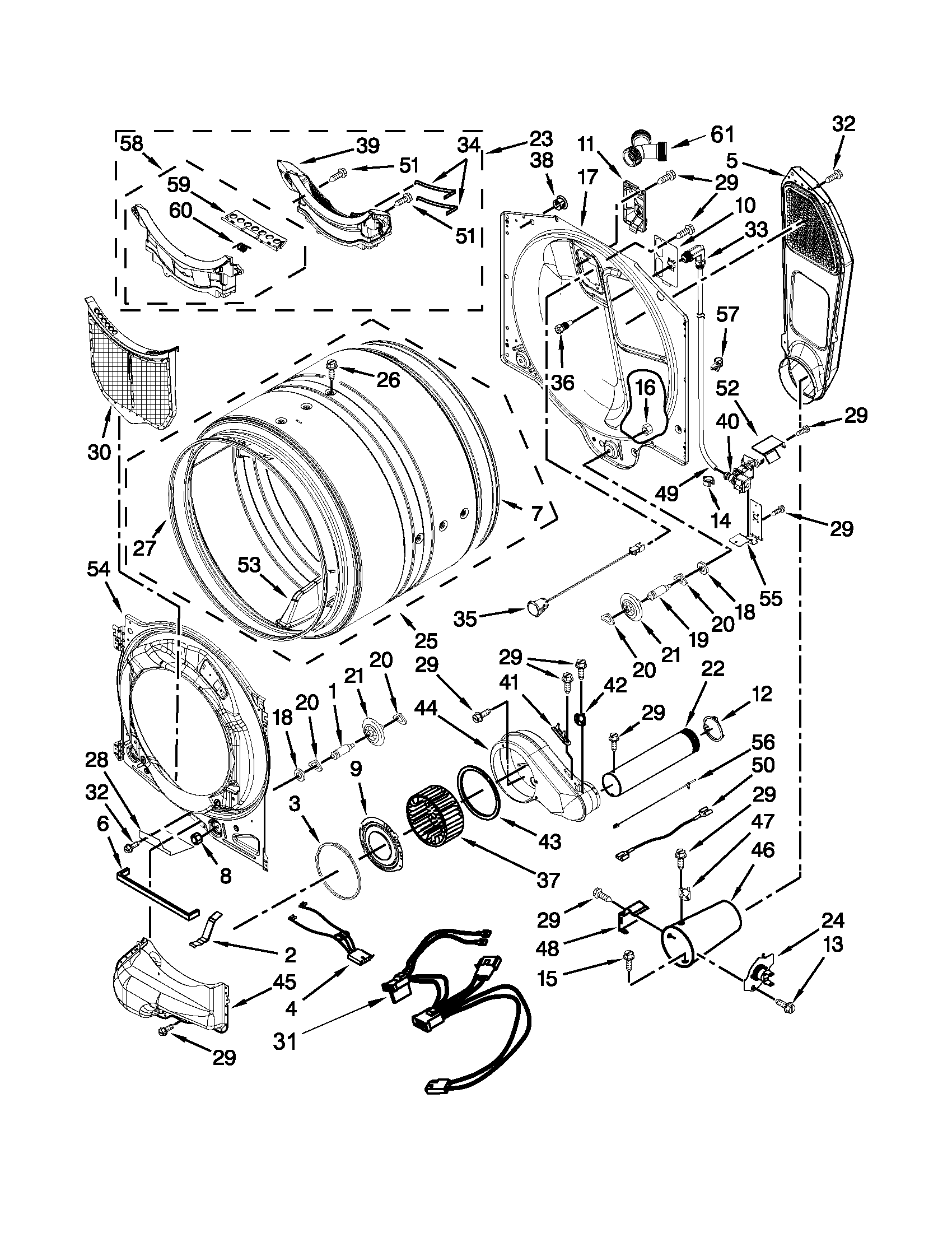

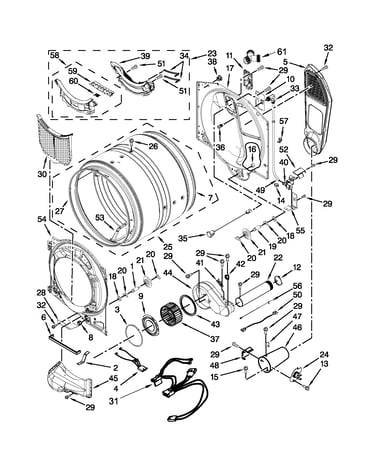

Bulkhead parts Diagram

Dryer thermal fuse

Part #3392519
Replaced by #WP3392519
?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
In Stock
$18.83 |
10% OFF
Phone Price: $20.83
Dryer Repair Kit (replaces 2015, 80047)#NI

Optional parts (not included) Diagram

Dryer repair kit

Part #80047
Replaced by #4392067
?
Manufacturer substitution
This part replaces 80047. Substitute parts can look different from the original.
BEST SELLER
In Stock
$51.38 |
9% OFF
Phone Price: $56.38
Dryer Thermistor (replaces 8577274)#42

Bulkhead parts Diagram

Dryer thermistor

Part #8577274
Replaced by #WP8577274
?
Manufacturer substitution
This part replaces 8577274. Substitute parts can look different from the original.
BEST SELLER
In Stock
$43.18 |
10% OFF
Phone Price: $48.18
Dryer Idler Pulley (replaces W10547287, W10547290)#13

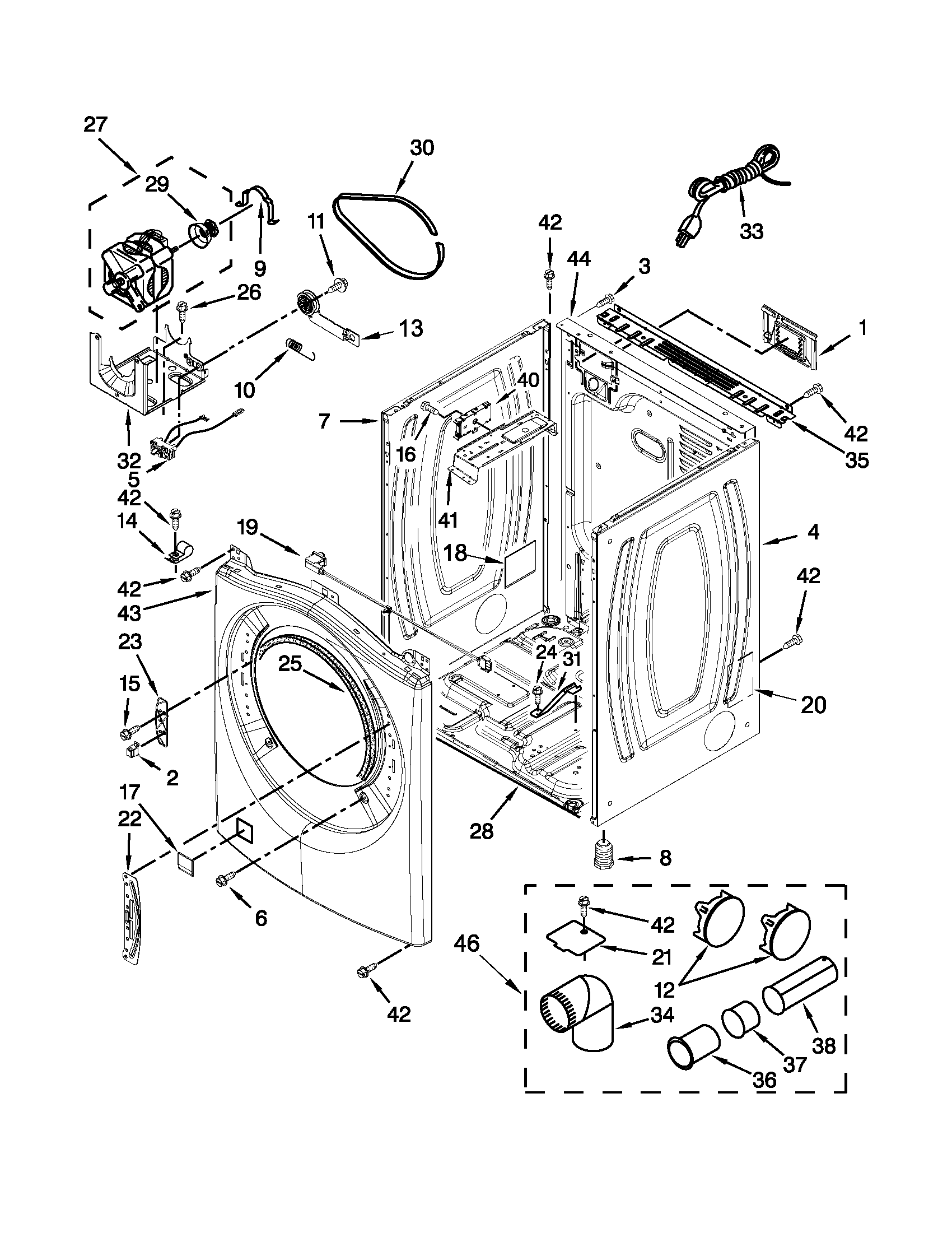

Cabinet parts Diagram

Dryer idler pulley

Part #W10547287
Replaced by #W10837240
?
Manufacturer substitution
This part replaces W10547287. Substitute parts can look different from the original.
BEST SELLER
In Stock
$19.42 |
19% OFF
MSRP: $24.00
Dryer Burner Igniter Kit (replaces 685211, 8113)#4

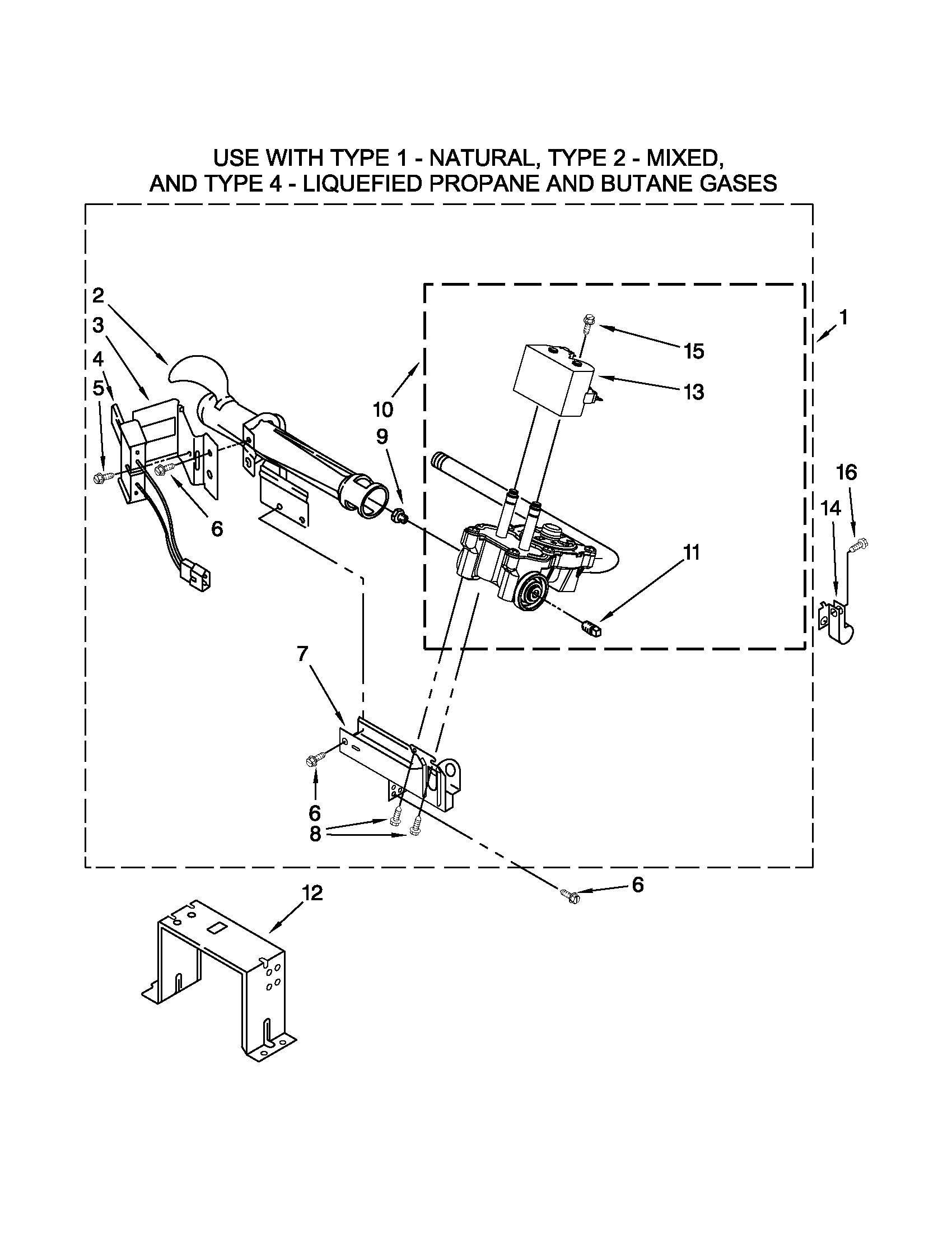

Burner assembly Diagram

Igniter

Part #686590
Replaced by #279311
?
Manufacturer substitution
This part replaces 686590. Substitute parts can look different from the original.
BEST SELLER
In Stock
$29.27 |
29% OFF
MSRP: $41.00
Dryer Drum Support Roller (replaces W10314173)#21

Bulkhead parts Diagram

Dryer drum support roller

Part #W10314171
Replaced by #WPW10314173
?
Manufacturer substitution
This part replaces W10314171. Substitute parts can look different from the original.
BEST SELLER
In Stock
$16.98 |
11% OFF
Phone Price: $18.98
Dryer Tri-Ring Retainer (replaces W10512946)#20

Bulkhead parts Diagram

Dryer support roller tri-ring washer

Part #W10512946
Replaced by #WPW10512946
?
Manufacturer substitution
This part replaces W10512946. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$5.82 |
30% OFF
MSRP: $8.30
Laundry Appliance Control Knob Clip (replaces 8536939)#14

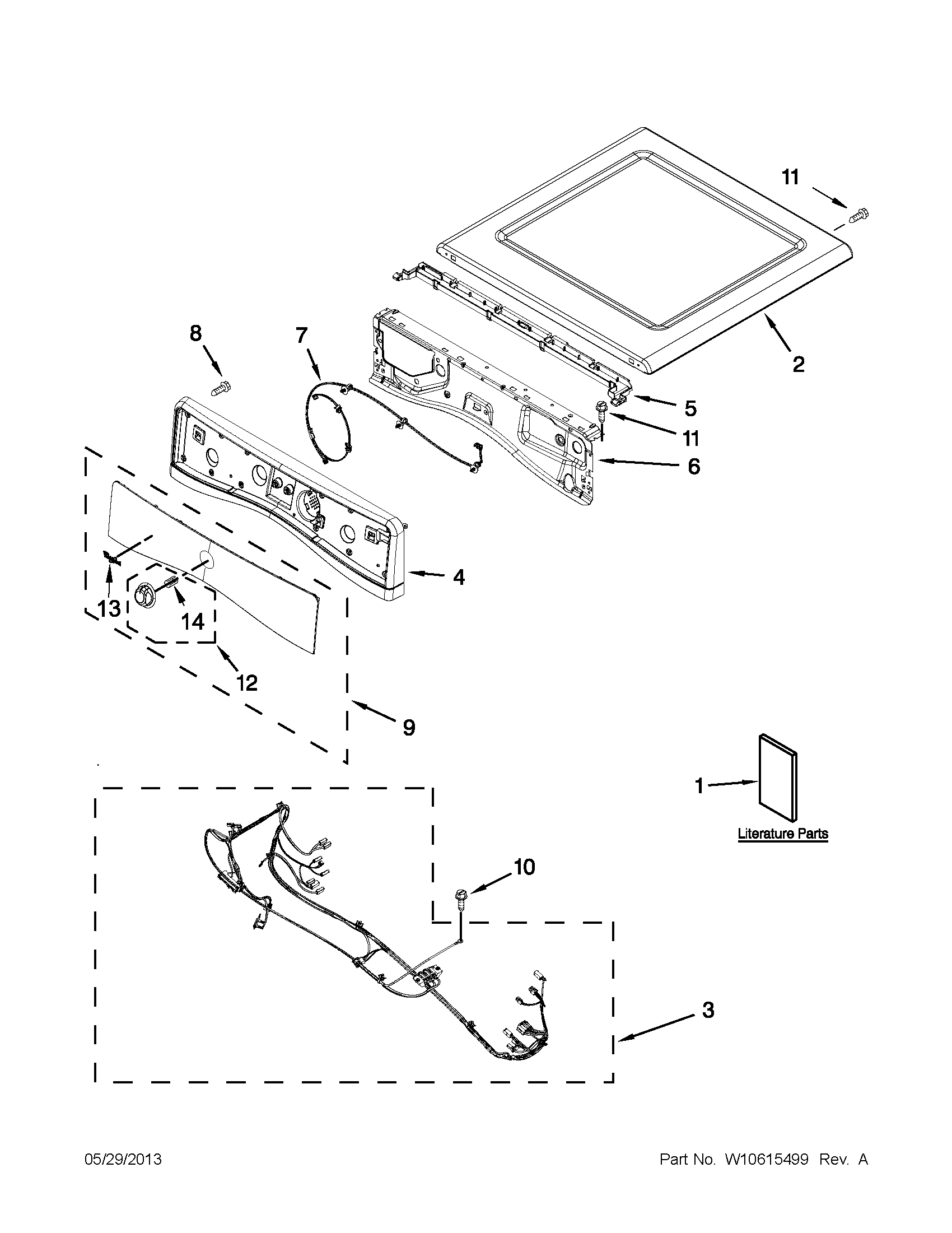

Top and console parts Diagram

Laundry appliance control knob clip

Part #8536939
Replaced by #WP8536939
?
Manufacturer substitution
This part replaces 8536939. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$6.39 |
14% OFF
Phone Price: $7.39
Appliance Touch-Up Paint, 0.6-oz (White) (replaces 21020, 72017R, 8006, W10813125, Y058028)#NI

Optional parts (not included) Diagram

In Stock
$8.29 |
11% OFF
Phone Price: $9.29
Appliance Spray Paint (White) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930)#NI

Optional parts (not included) Diagram

In Stock
$15.69 |
11% OFF
Phone Price: $17.69
