Kenmore
Microwave/Hood Combo

Model #72163684300 Kenmore microwave/hood combo

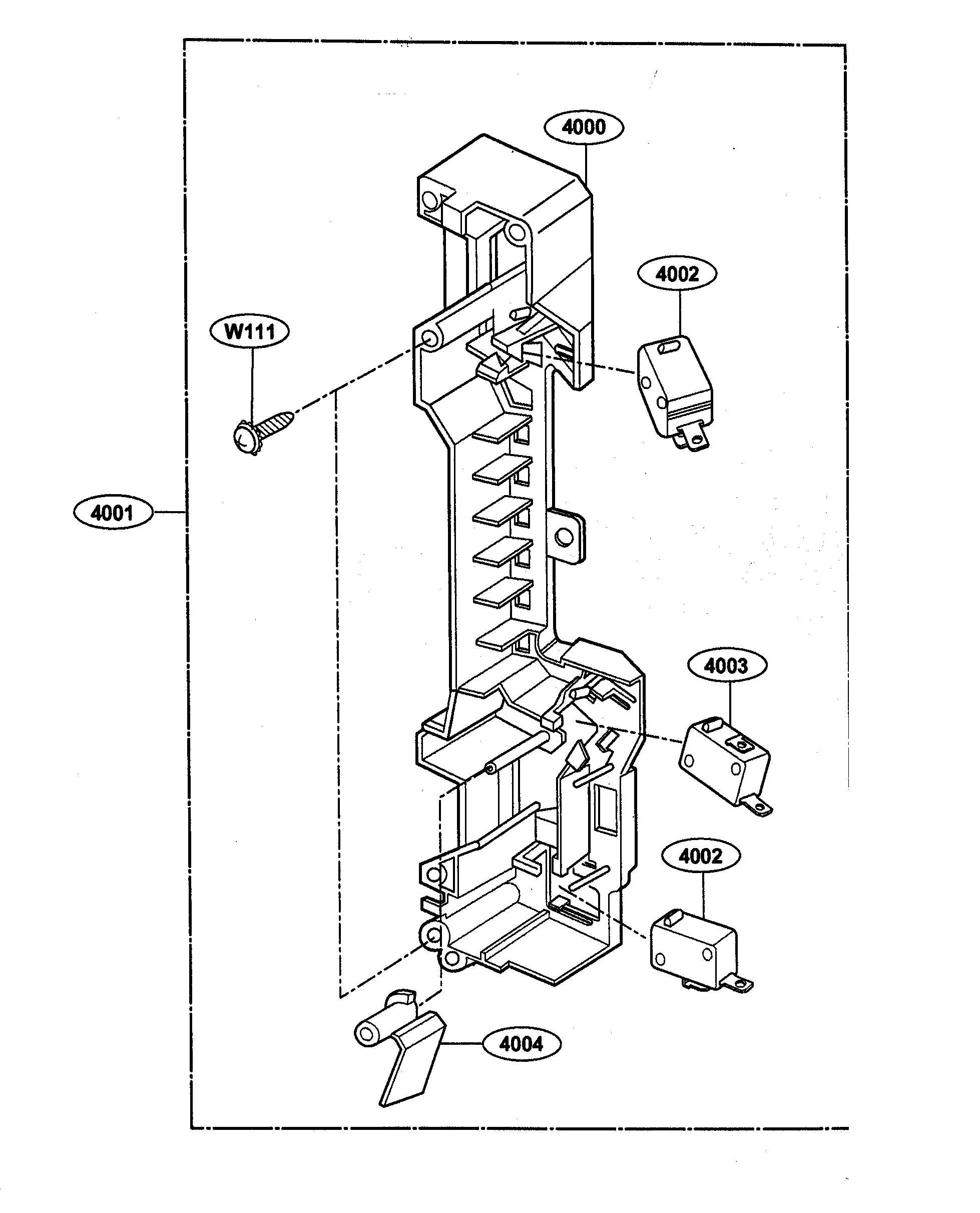

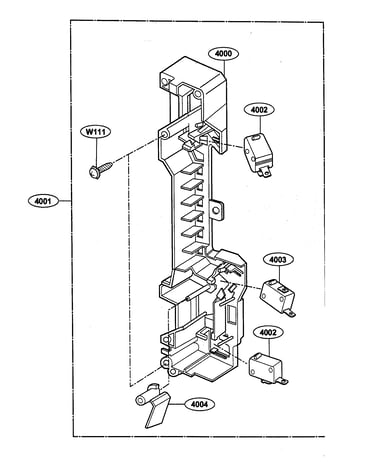

Here are the diagrams and repair parts for Kenmore 72163684300 microwave/hood combo, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 90 parts

Microwave Charcoal Filter

#5037

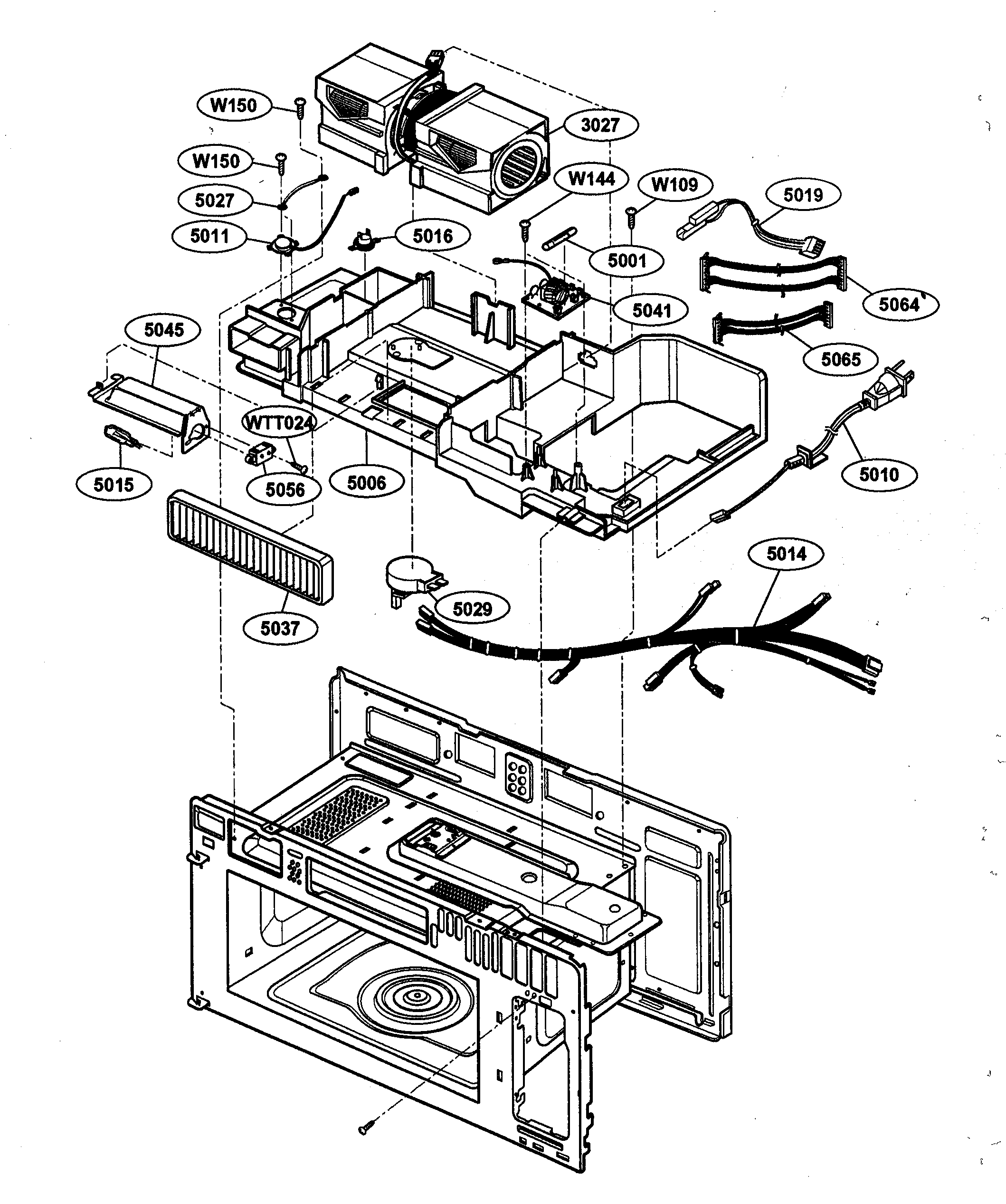

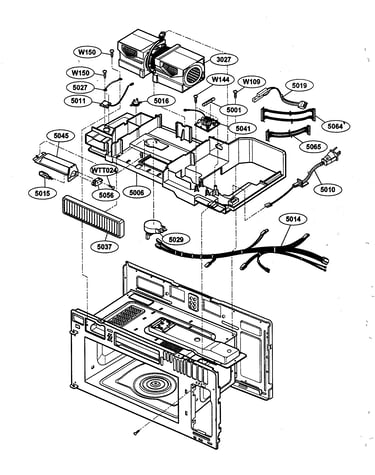

Interiot parts 2 Diagram

Microwave charcoal filter

Part #5230W1A003A
$26.34

In Stock

Microwave Door Latch Spring

#1007

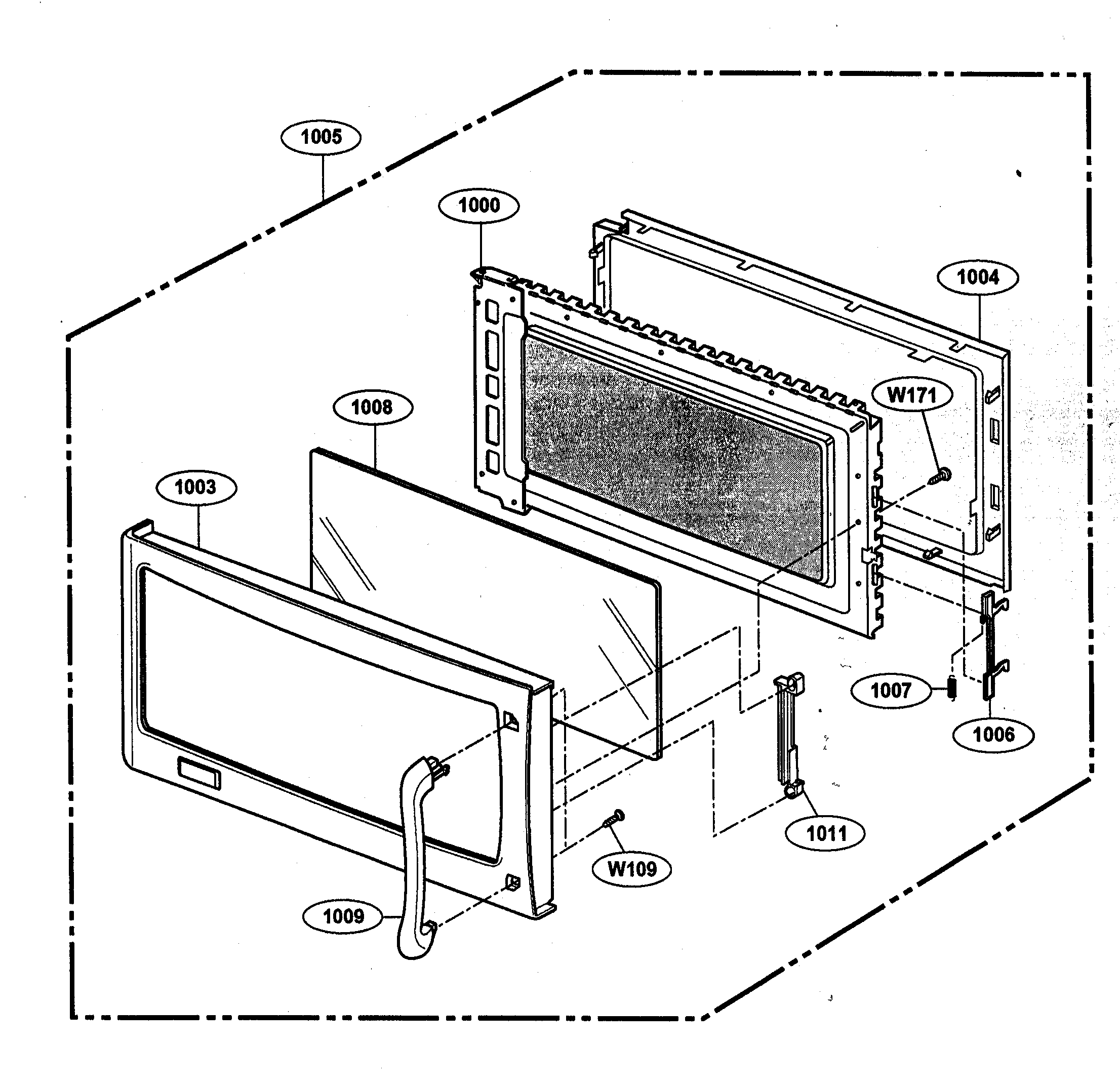

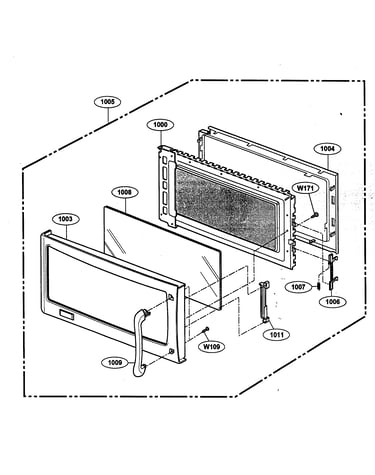

Door parts Diagram

Microwave door latch spring

Part #4970WRA001G
This item is not returnable
$4.02

In Stock

Microwave Screw, M4 x 12-mm

#W138

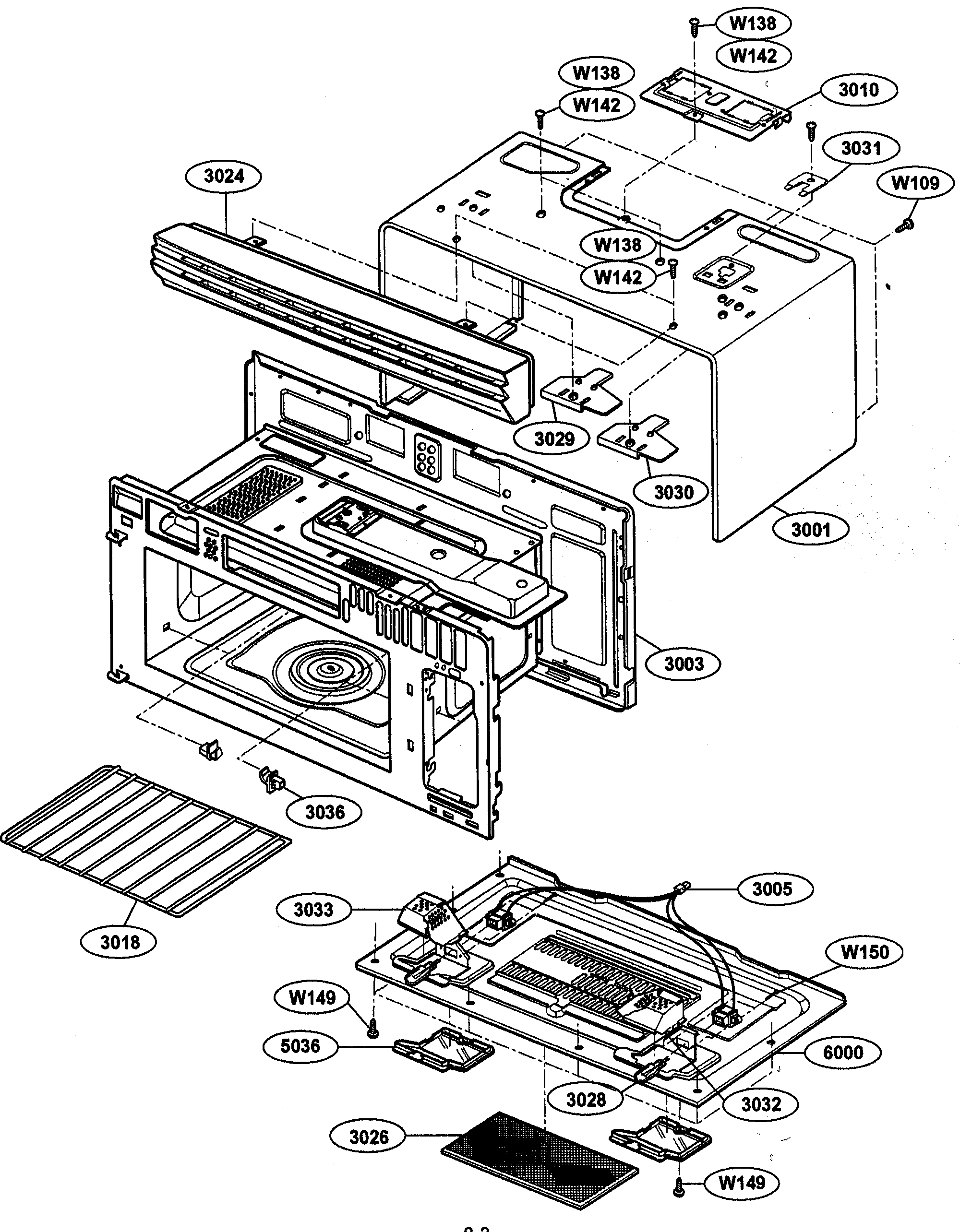

Oven cavity Diagram

Microwave screw, m4 x 12-mm

Part #1TTL0402816
This item is not returnable
$3.81

In Stock

Microwave Screw

#W109

Door parts Diagram

Microwave screw

Part #1TTL0402818
This item is not returnable
$3.82

In Stock

Screw

#W114

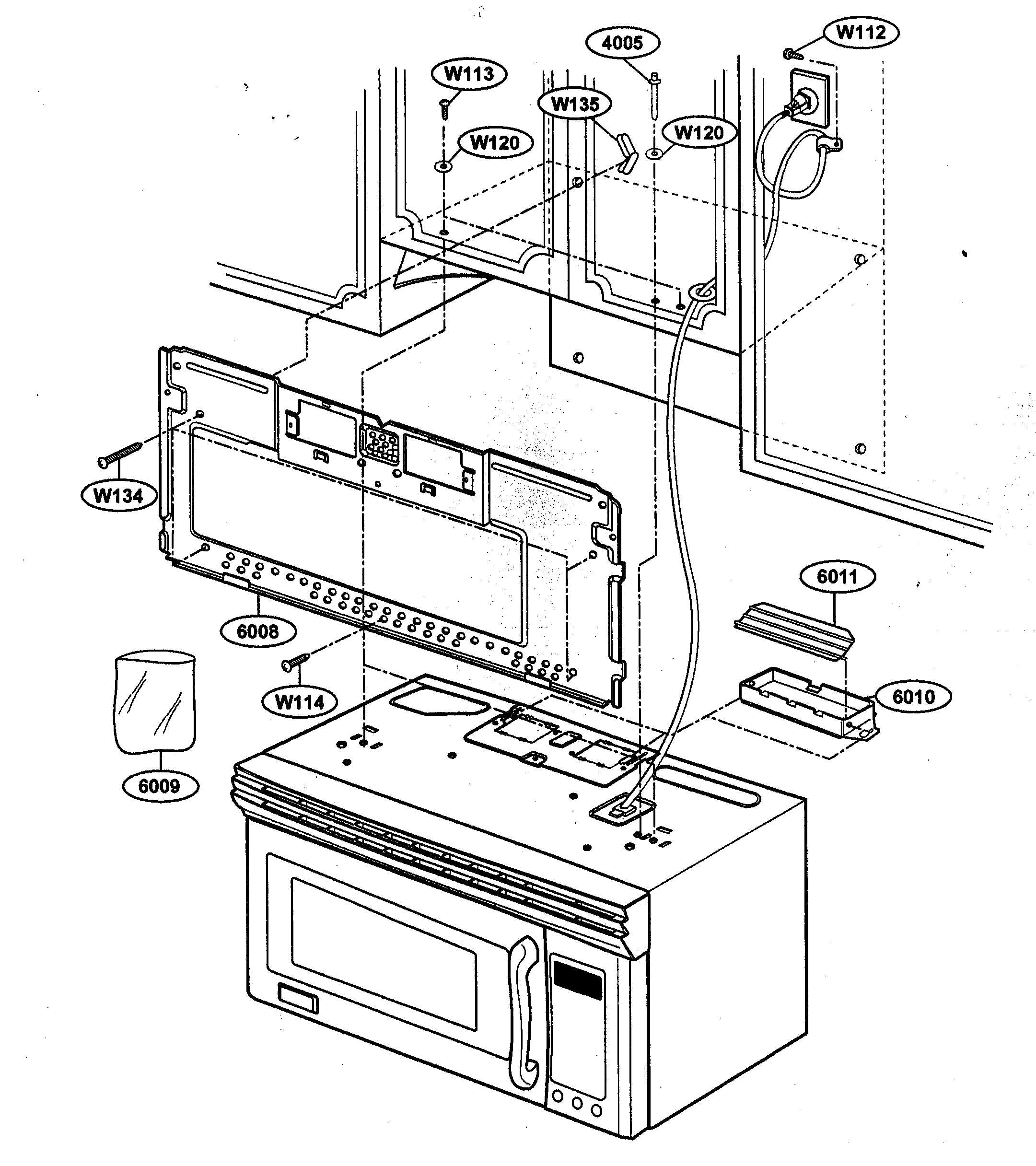

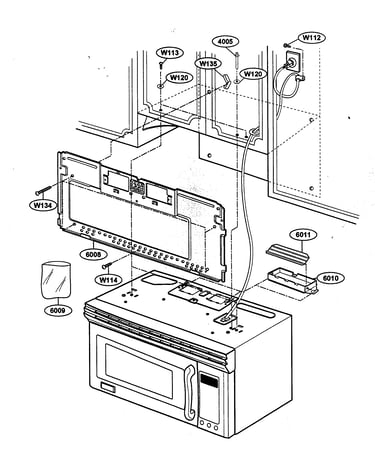

Instalation parts Diagram

Screw

Part #4B73243A
This item is not returnable
$2.49

In Stock

Screw

#W149

Oven cavity Diagram

Screw

Part #1TTL0402622
This item is not returnable
$4.15

In Stock

Motor

#5029

Interiot parts 2 Diagram

Motor

Part #6549W1S002G
$16.93

In Stock

Microwave Mounting Bolt

#W135

Instalation parts Diagram

Microwave mounting bolt

Part #4B72059C
This item is not returnable
$2.54

In Stock

Microwave/Hood Button

#2007

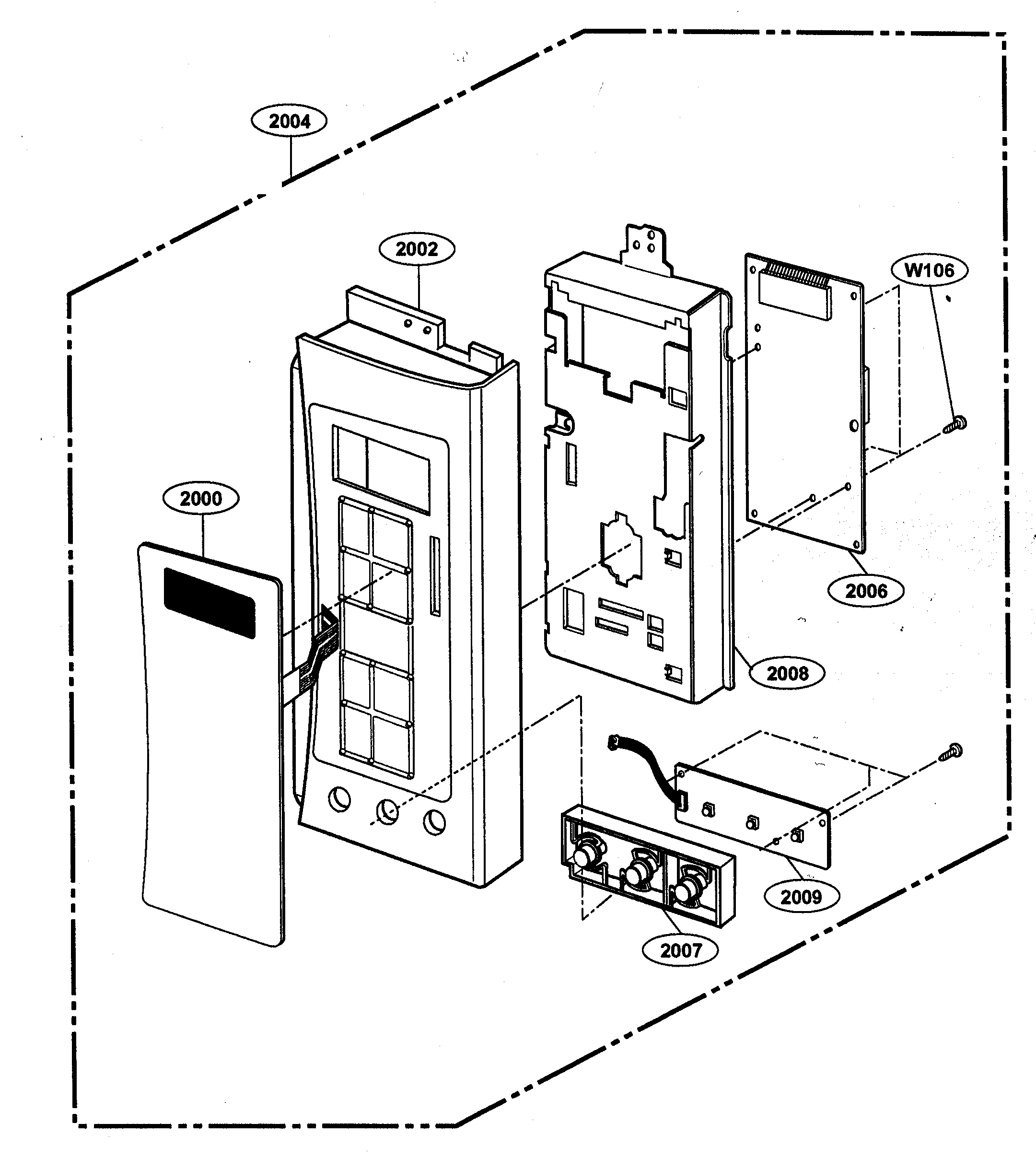

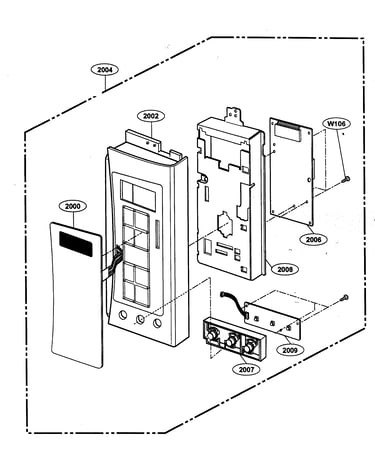

Controller parts Diagram

Microwave/hood button

Part #5020W1A139C
This item is not returnable
$3.99

In Stock

Microwave Turntable Motor

#3009

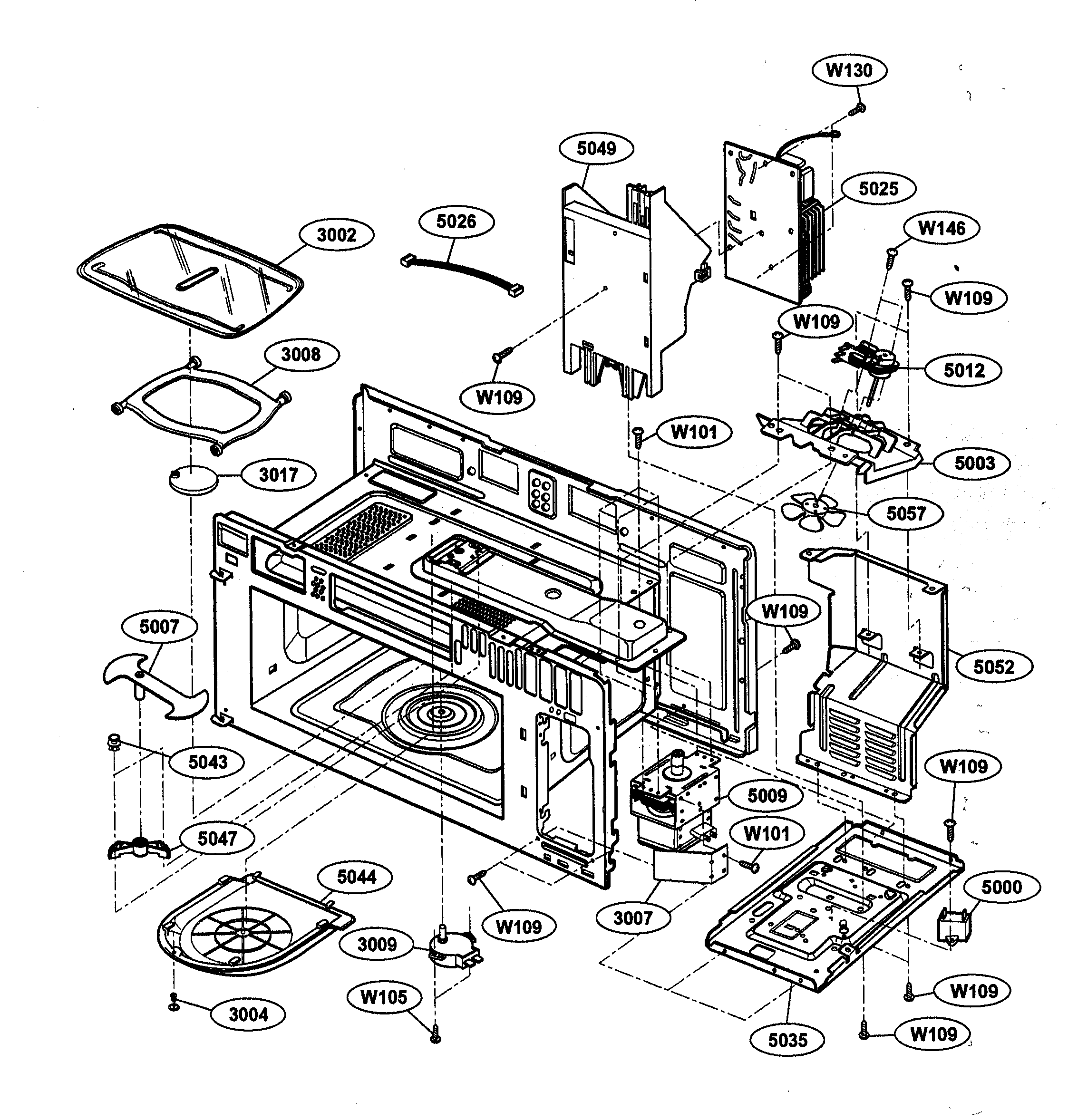

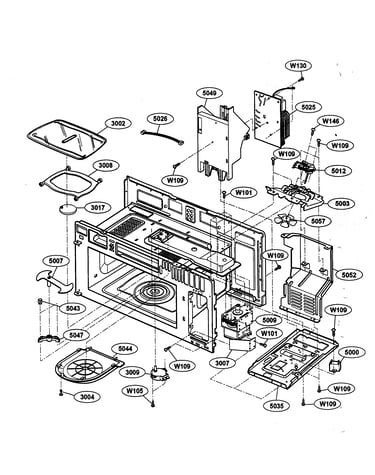

Interior parts 1 Diagram

Microwave turntable motor

Part #6549W1S013D
$14.96

In Stock
