Model # GI15NFLTS1 Official Whirlpool freestanding ice maker

Here are the diagrams and repair parts for Official Whirlpool GI15NFLTS1 freestanding ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

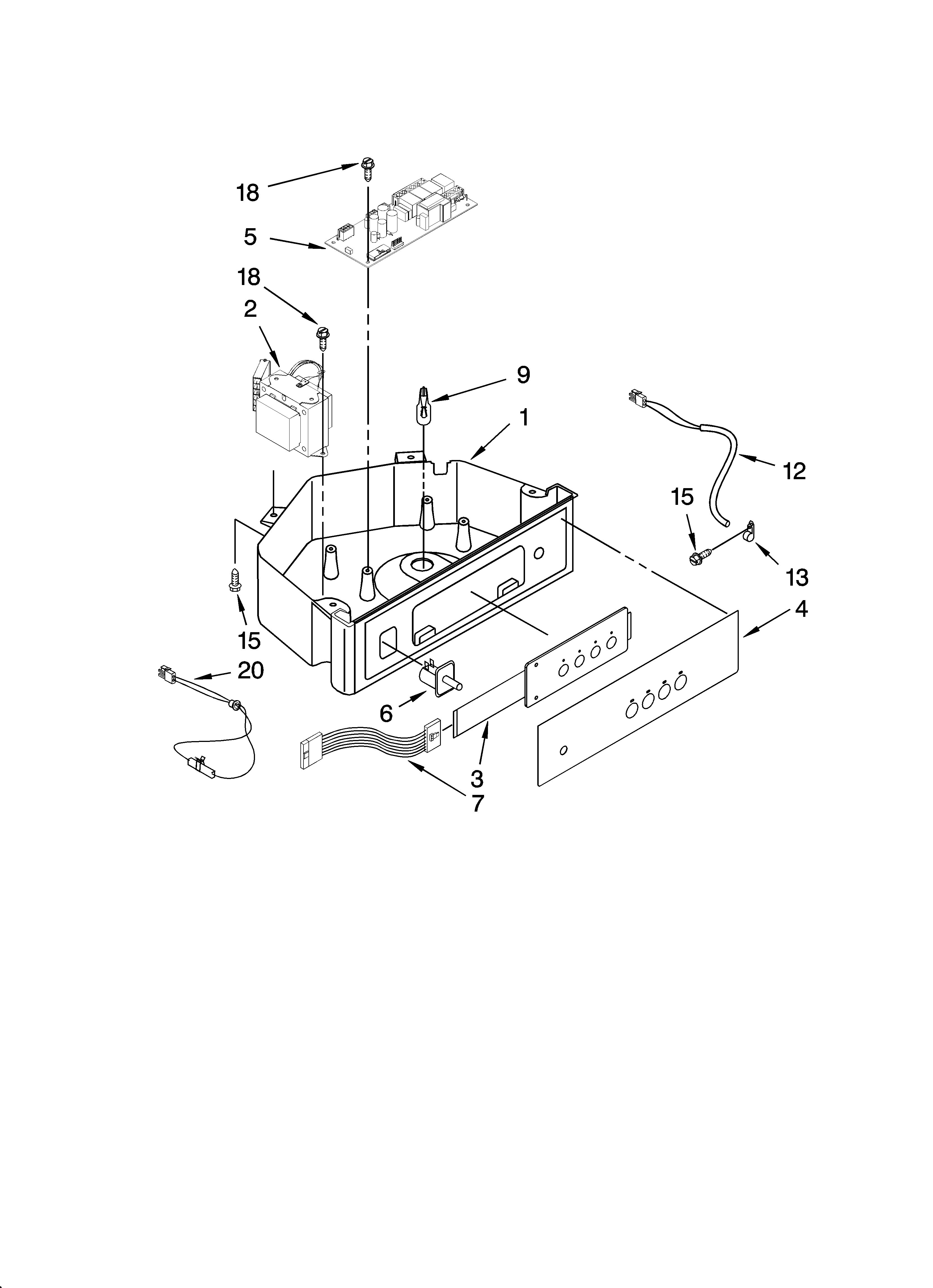

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Condenser Motor 2315558
#4

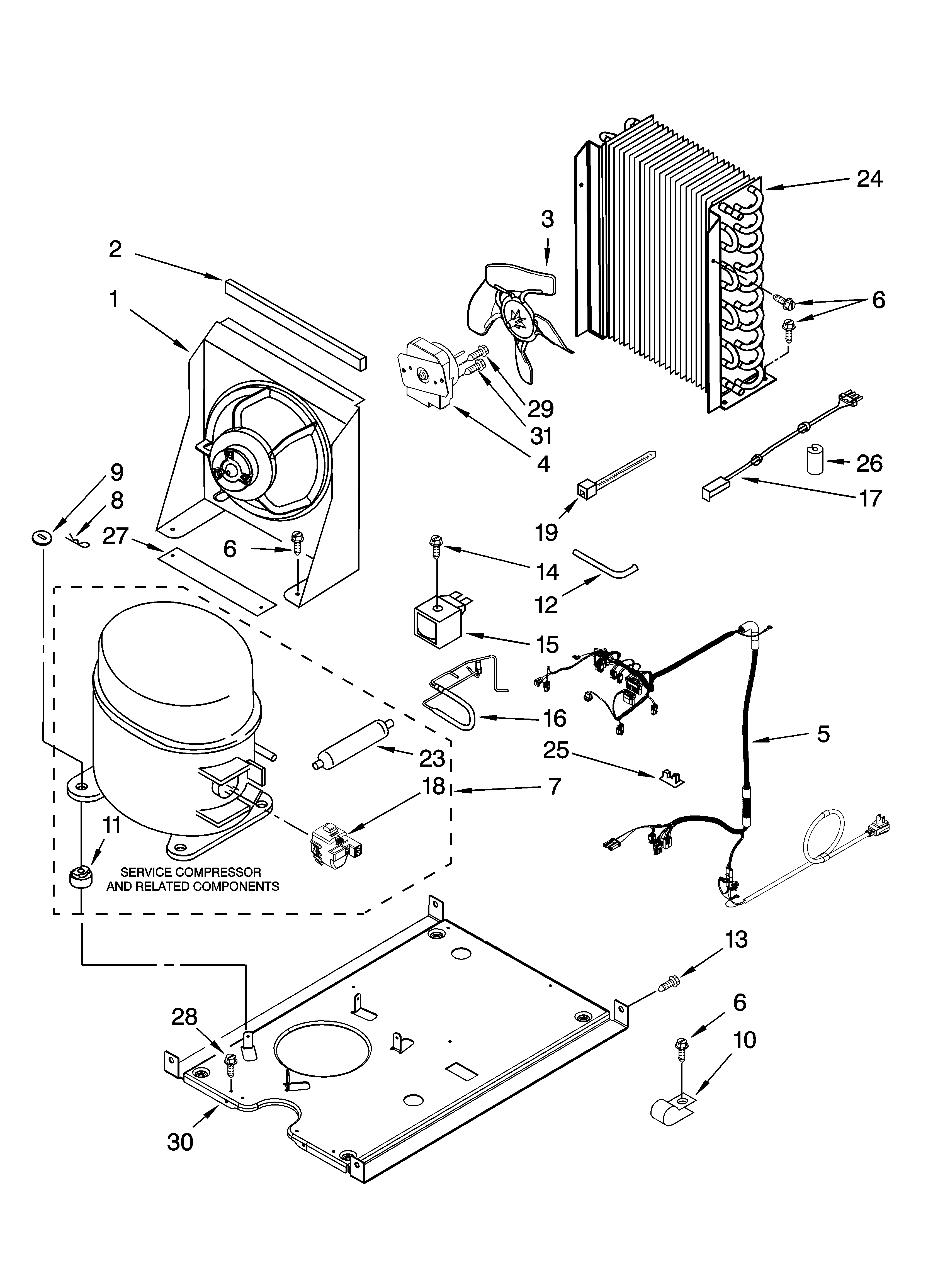

Unit parts, optional parts (not included) diagram

Condenser motor

Part #2315558

Replaced by #W10124096

?
Manufacturer substitution
This part replaces 2315558. Substitute parts can look different from the original.
BEST SELLER
$103.86 |
9% OFF Phone Price : $113.86
In Stock
Refrigerator Dryer Tube 4387019
#23A

Unit parts, optional parts (not included) diagram

Refrigerator dryer tube

Part #4387019

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4387019. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
31% OFF MSRP : $46.00
In Stock
Drier Tube 2319826
#23

Unit parts, optional parts (not included) diagram

Drier tube

Part #2319826

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2319826. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
31% OFF MSRP : $46.00
In Stock
Water Tube 2172593
#8

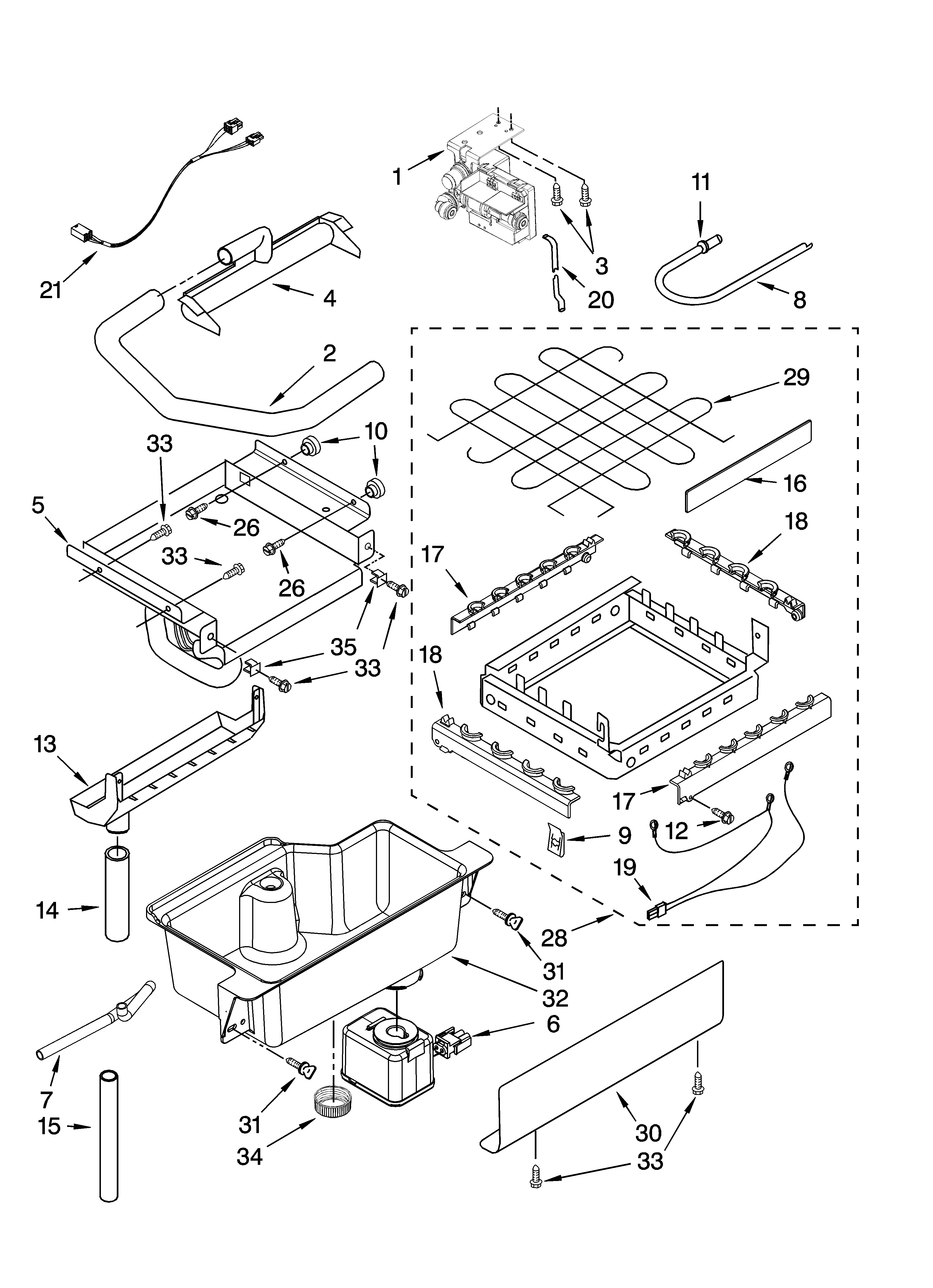

Evaporator, ice cutter grid and water parts diagram

Water tube

Part #2172593

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 2172593. Substitute parts can look different from the original.
BEST SELLER
$36.10 |
12% OFF Phone Price : $41.10
In Stock
Ice Maker Evaporator W10218037
#5

Evaporator, ice cutter grid and water parts diagram

Ice maker evaporator

Part #W10218037

Replaced by #WPW10218037

?
Manufacturer substitution
This part replaces W10218037. Substitute parts can look different from the original.
BEST SELLER
$377.14 |
20% OFF Was : $471.42
In Stock
Ice Maker Recirculation Pump (replaces Wp2313702) 2313702
#9

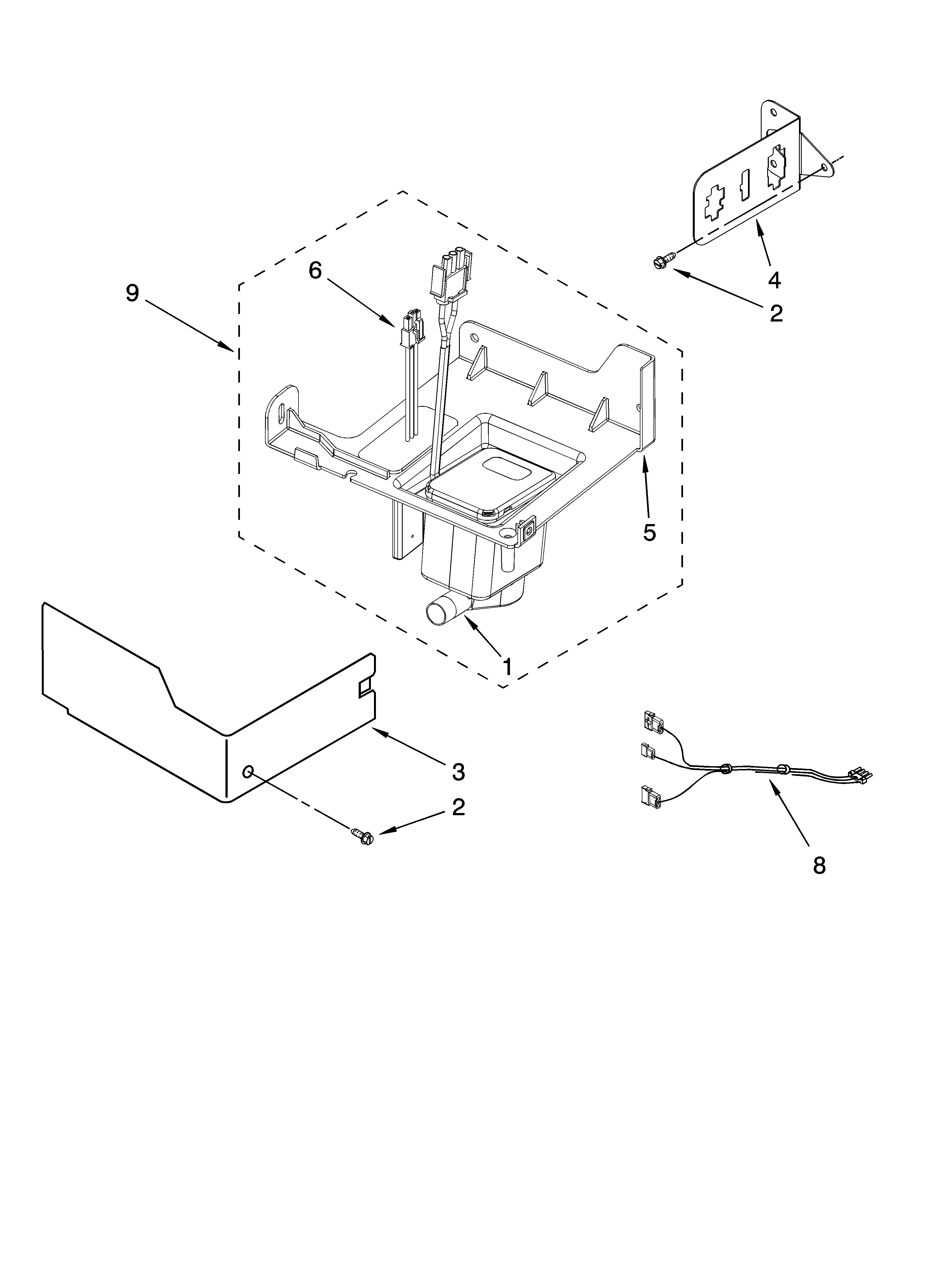

Pump parts diagram

Ice maker recirculation pump (replaces wp2313702)

Part #2313702

BEST SELLER
$142.49 |
7% OFF Phone Price : $152.49
In Stock
Scoop 585158
#29

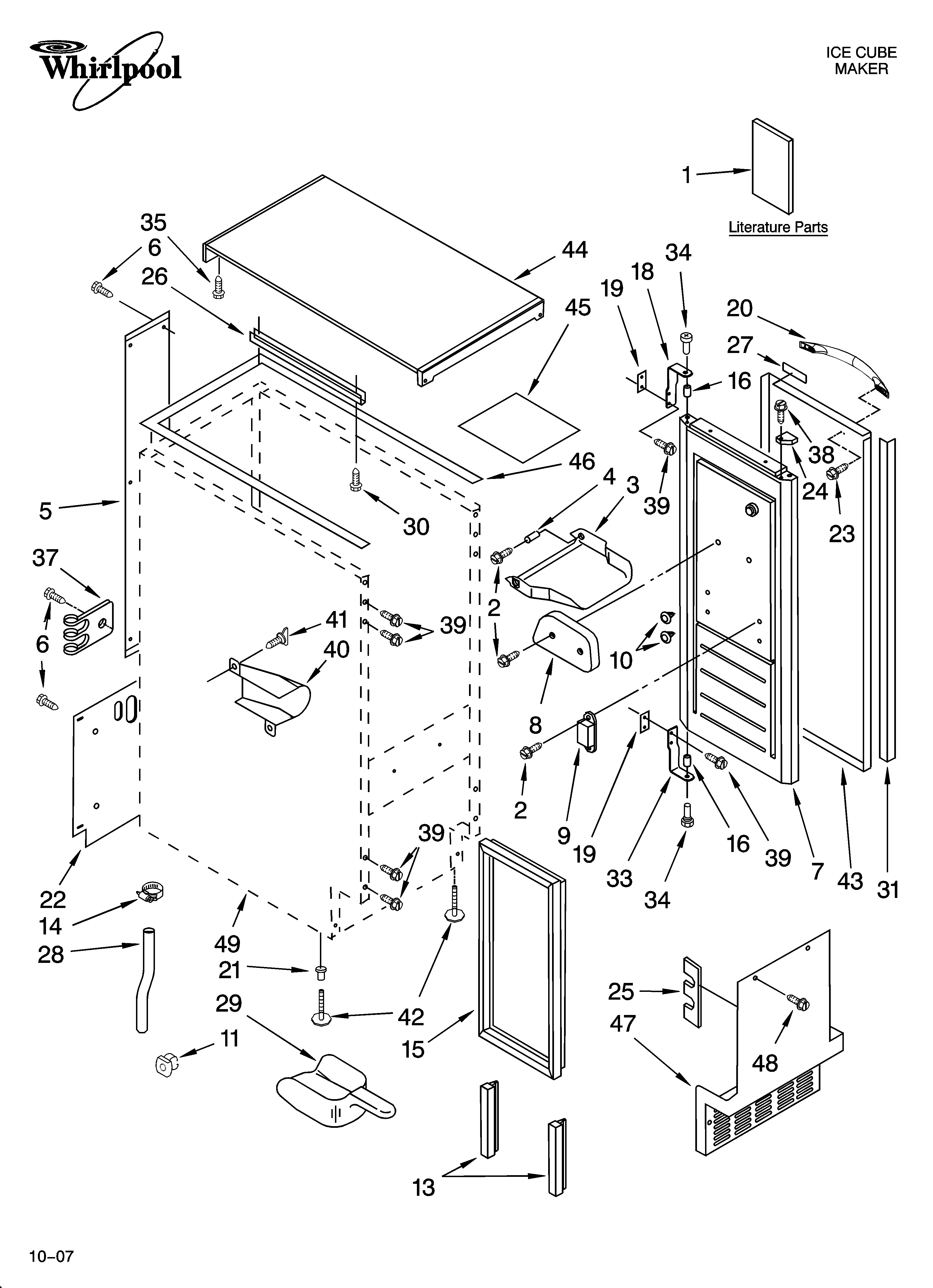

Cabinet liner and door parts diagram

Scoop

Part #585158

Replaced by #W11420408

?
Manufacturer substitution
This part replaces 585158. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.69 |
14% OFF Phone Price : $14.69
In Stock
Ice Maker Water Reservoir 2324334
#32

Evaporator, ice cutter grid and water parts diagram

Ice maker water reservoir

Part #2324334

Replaced by #WP2324334

?
Manufacturer substitution
This part replaces 2324334. Substitute parts can look different from the original.
$61.09 |
13% OFF MSRP : $70.00
In Stock
Refrigerator Permagum Sealer 212643
#NI

Unit parts, optional parts (not included) diagram

Refrigerator permagum sealer

Part #212643

This item is not returnable
$50.09 |
9% OFF Phone Price : $55.09
In Stock
Ice Maker Condenser Coil 2313624
#24

Unit parts, optional parts (not included) diagram

Ice maker condenser coil

Part #2313624

Replaced by #WP2313624

?
Manufacturer substitution
This part replaces 2313624. Substitute parts can look different from the original.
$238.00 |
$10.00 OFF Phone Price : $248.00
