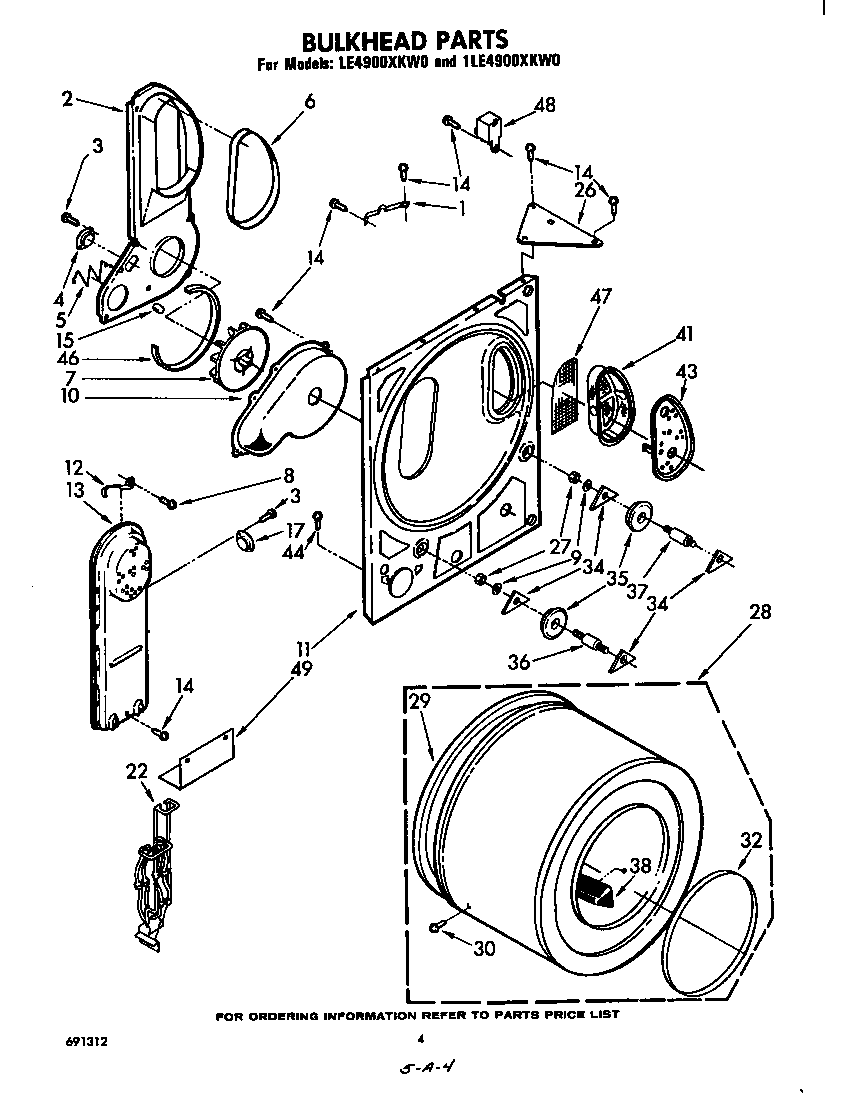

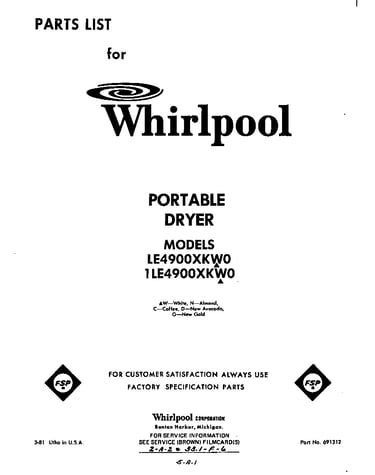

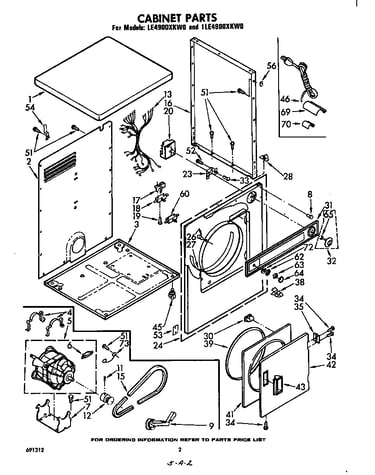

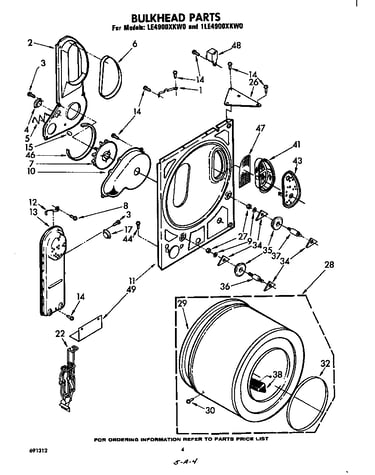

Whirlpool LE4900XKW0 dryer Parts

Yes. A 7.4 cu. ft. drum is considered large capacity for a clothes dryer; most standard dryers are roughly 5.0 to 7.0 cu. ft., so 7.4 cu. ft. gives you extra room for bulky loads like comforters and towels.

What “large capacity” means in real use

A larger drum helps clothes tumble more freely, which can improve drying performance and reduce wrinkles when you avoid overloading.

• Fits bulkier items (comforters, blankets, winter coats)
• Handles larger family loads with fewer cycles
• Helps airflow around items when the load is not packed tight
• Can shorten dry times compared to an overfilled smaller drum
• Still benefits from good venting and lint filter cleaning

Quick capacity guide

Dryer capacity	Common label	Best for
5.0 to 7.0 cu. ft.	Standard	Most everyday loads
Over 7.0 cu. ft.	Large capacity	Bulky items and bigger loads

Why it matters

With a Whirlpool dryer like model LE4900XKW0, capacity is only part of the story. If loads take too long or feel overly hot, airflow issues (lint buildup, crushed vent, long duct run) usually matter more than drum size. For maintenance habits that keep drying efficient, use our how to keep a dryer clean and economical guide.

Related parts that affect drying performance

If you are troubleshooting poor tumbling or long dry times, these common wear items can be involved:

• Drive belt 3394652 (drum turns)
• Pulley WP691366 (keeps belt tension)
• Heater element 279506 (electric heat source)

Last updated: February 2026

Common problems we see on Whirlpool dryers like model LE4900XKW0 include a dryer that will not start, a drum that will not tumble, no heat or weak heat, long dry times, and unusual noises. Most issues trace back to airflow restrictions, door-switch/starting circuits, or worn drive components.

Most common symptoms and what usually causes them

• Won’t start: tripped breaker, failed door switch, failed start circuit component
• Runs but won’t tumble: broken belt, seized drum support, failed motor
• No heat or low heat: failed heater, restricted venting, failed safety thermostat (varies by design)
• Takes too long to dry: clogged lint screen, crushed/blocked vent, heavy loads, low airflow
• Squealing or thumping: worn idler pulley, worn drum bearing surfaces, loose hardware

Quick checks we recommend first (fast, no parts)

1. Confirm the dryer has full power (electric dryers typically need two hot legs; a dryer can run but not heat if one leg is out).
2. Clean the lint screen and check the exhaust hood outside for strong airflow.
3. Make sure the door closes firmly and the latch engages.
4. Listen for motor hum with no drum movement (often belt or idler related).

Parts that commonly fix “won’t tumble” and “noise” complaints

Symptom	Common wear item	Example part for LE4900XKW0
Drum not turning	Belt	Drive belt 3394652
Squealing, chirping	Idler pulley	Pulley WP691366
Thumping, rubbing	Front bearing surface	Bearing ring WP3394508
Door won’t start dryer	Door switch	Dryer door switch W10820036

Why it matters

Dryer problems often start small (a weak door switch, a slipping belt, or poor venting) but can lead to overheating, repeated shutdowns, or premature motor and heater wear. Fixing airflow and worn drive parts early keeps drying times normal and reduces strain on the dryer.

For maintenance tips that prevent many of these issues, use how to clean and maintain your clothes dryer.

Last updated: February 2026

A Whirlpool dryer typically lasts 10 to 13 years. With consistent maintenance and normal household use, many Whirlpool dryers (including model LE4900XKW0) reach the upper end of that range by keeping airflow strong and fixing wear items before they strain the motor and drum.

Typical lifespan and what changes it

Most dryer life is determined by heat and airflow stress, plus drum support wear.

• 10 to 13 years: typical lifespan for a Whirlpool dryer
• Shorter lifespan: restricted venting, frequent overloading, high-heat cycles for every load
• Longer lifespan: clean lint path, correct vent length, prompt repair of squeaks, thumps, or burning smells

Maintenance that adds years (high impact)

These steps reduce overheating and mechanical strain.

• Clean the lint screen every load
• Inspect and clean the exhaust duct and outside hood regularly
• Avoid overloading; heavy loads stretch the belt and stress drum supports
• Stop using the dryer if you smell burning; check for lint buildup and worn moving parts
• Address drum noise early; a worn belt or pulley can damage other components

Parts that commonly limit dryer life

Wear parts are normal on a dryer; replacing them on time often prevents bigger failures.

Symptom	Common wear area	Example part for LE4900XKW0
Squealing or chirping	Idler pulley/belt path	Pulley WP691366
Drum not turning	Belt or drive system	Drive belt 3394652
Dryer will not start when door closes	Door switch/latch	Dryer door switch W10820036

Why it matters

A dryer that runs hot or struggles to turn the drum dries slower, uses more electricity, and wears out the drive motor and heater circuit faster. Keeping airflow clear and the belt path smooth is the simplest way to protect the dryer’s core components.

Last updated: February 2026

On your Whirlpool dryer model LE4900XKW0, the identifying information you need is on the model and serial tag, usually found around the door opening on the cabinet (often along the top or side of the opening). Use the model number from that tag to match the correct replacement parts.

Where to look on the LE4900XKW0

Check these common tag locations first (in order):

• Around the door opening on the front panel (top edge or side edge)
• On the inside face of the door
• On the cabinet frame near the door switch area
• On the rear panel of the dryer (less common, but possible)

What numbers you should write down

The tag typically includes several identifiers. For parts lookup, we use the model number first.

• Model number (example format: LE4900XKW0)
• Serial number (helps confirm production run when parts changed)
• Type or engineering code (sometimes listed; useful for exact matches)

Quick guide: which number to use

You see on the tag	What it’s used for	When it matters most
Model number	Finds the correct parts diagrams and lists	Always
Serial number	Confirms version changes within a model	When multiple part options appear
Part number	Identifies a specific component	When replacing a known failed part

Why it matters

Dryer parts can vary within the same brand and even within the same model family. Using the exact model number LE4900XKW0 helps ensure the right fit for items like a door switch, drive belt, or heater element.

Common parts people look up after finding the tag

If you’re diagnosing a symptom, these are frequent replacements for this Whirlpool dryer:

• Dryer door switch W10820036
• Drive belt 3394652
• Heater element 279506

Last updated: February 2026

Yes. For Whirlpool dryer model LE4900XKW0, searching by the full model number is the most reliable way to get compatible replacement parts because it filters results to the exact diagrams and part listings built for your dryer.

How to search by model number (best practice)

• Use the complete model number: LE4900XKW0 (match every letter and number).
• Start with the model’s parts list, then narrow by section (door, drum, motor, heater, etc.).
• Compare the part name and part ID to what you’re replacing.
• If your dryer has a label with a “type” or “series,” still use the full model number first.
• When in doubt, match by symptom, then confirm the part fits your model.

Common LE4900XKW0 parts customers look up by model

These are examples of parts you can quickly find once you search by model:

Symptom	Part to check first	Example part for this model
Dryer will not start	Door switch, start switch	Dryer door switch W10820036
Squealing or thumping	Belt, idler pulley	Drive belt 3394652, pulley WP691366
Door won’t stay closed	Latch/strike	Strike 279570
No heat (electric)	Heating element (plus thermostats, wiring)	Heater element 279506

Why it matters

Whirlpool often uses similar-looking parts across many dryer lines. Searching by LE4900XKW0 helps prevent ordering a look-alike part that mounts differently, has different terminals, or does not match your dryer’s wiring and drum support design.

Helpful DIY reading

For general maintenance and better drying performance, we recommend: how to clean and maintain your clothes dryer.

Last updated: February 2026
