Whirlpool LTG6234DQ5 stacked laundry center Parts
Here are the diagrams and repair parts for Whirlpool LTG6234DQ5 stacked laundry center, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes
By Schematic
By Part
SELECT DIAGRAM

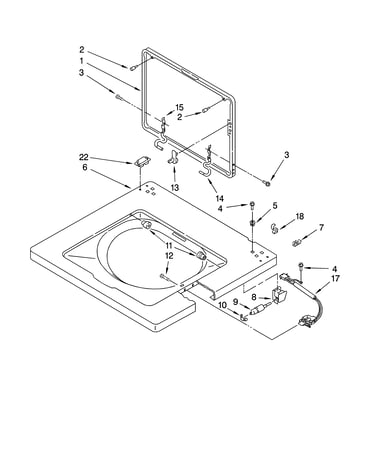

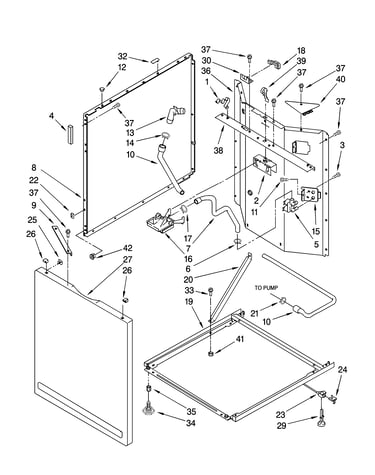

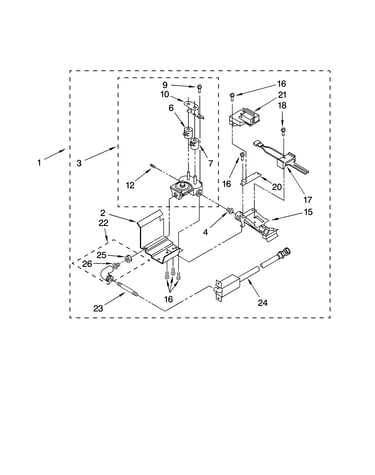

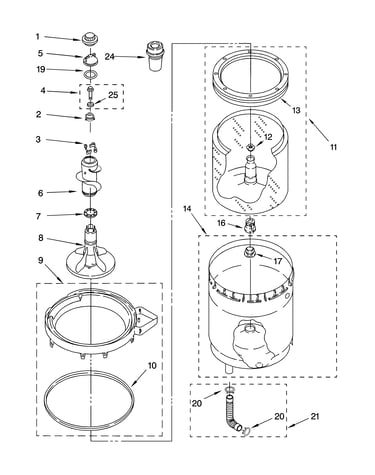

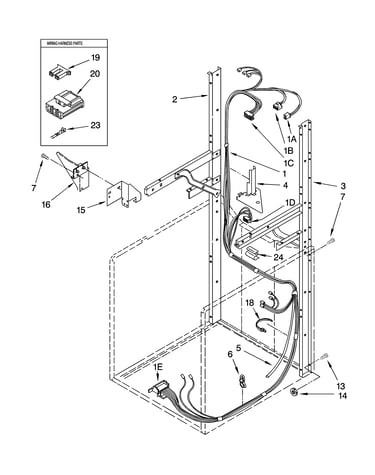

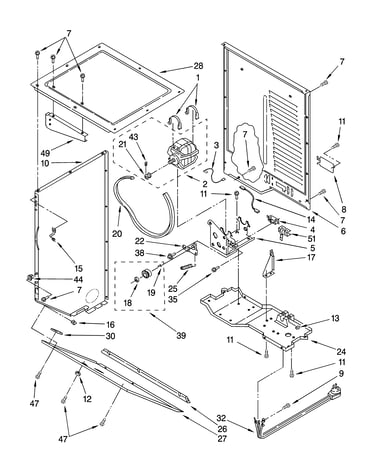

Browse Parts for LTG6234DQ5 Laundry Center

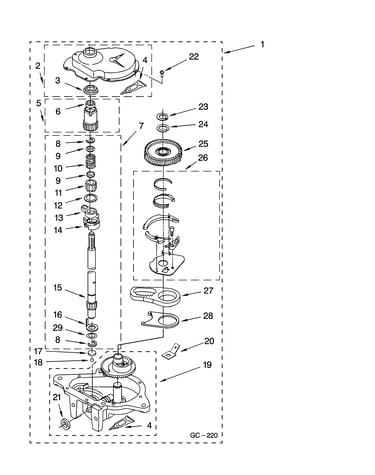

Gearcase parts diagram
Washer Agitator Drive Shaft
Part #285509Replaced by #WP389387
Manufacturer substitutionThis part replaces 285509. Substitute parts can look different from the original.In Stock$133.018% OFF Phone Price : $145.01
Qty

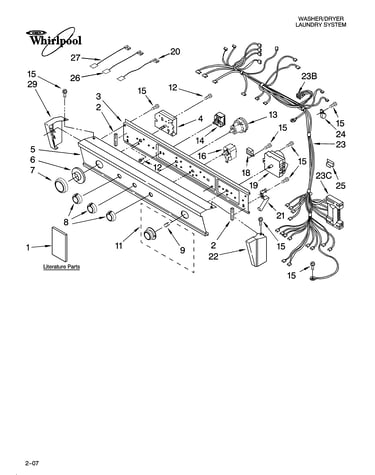

Washer/dryer control panel parts diagram
Washer Knob
Part #3957751Replaced by #WP3957751

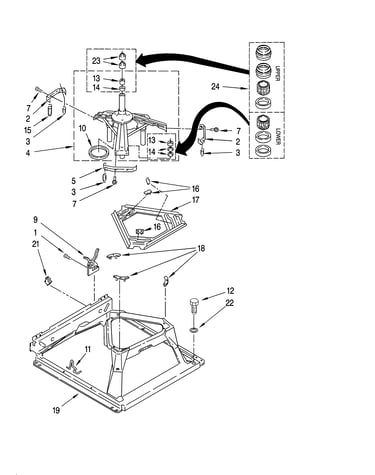

Manufacturer substitutionThis part replaces 3957751. Substitute parts can look different from the original.In Stock$97.81QtyMachine base parts diagram
Pad
Part #62568Replaced by #285219

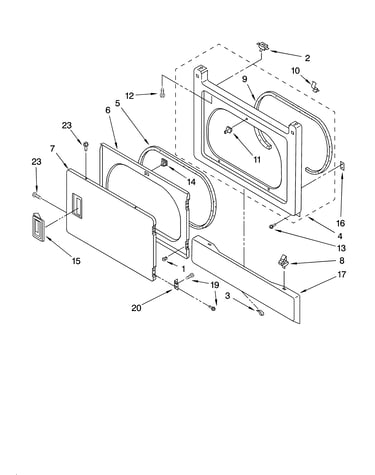

Manufacturer substitutionThis part replaces 62568. Substitute parts can look different from the original.In Stock$16.0811% OFF Phone Price : $18.08QtyDryer front panel and door parts diagram
Dryer Toe Panel Clip
Part #3388229Replaced by #WP3388229

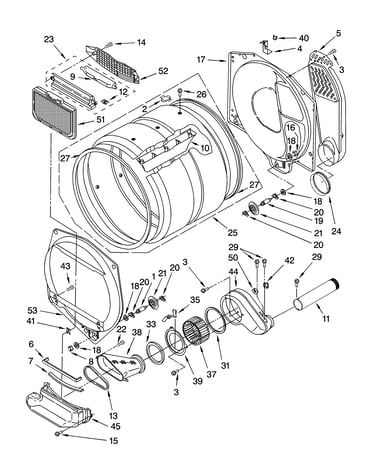

Manufacturer substitutionThis part replaces 3388229. Substitute parts can look different from the original.In Stock$8.1511% OFF Phone Price : $9.15QtyDryer bulkhead parts diagram
Cover Plate
Part #697366Replaced by #279780
Manufacturer substitutionThis part replaces 697366. Substitute parts can look different from the original.In Stock$47.8011% OFF Phone Price : $53.80QtyDryer Tri-ring Retainer
Part #690997Replaced by #WPW10512946
Manufacturer substitutionThis part replaces 690997. Substitute parts can look different from the original.In Stock$8.5310% OFF Phone Price : $9.53QtyDryer front panel and door parts diagram
Switch
Part #3391901Replaced by #WP3391902

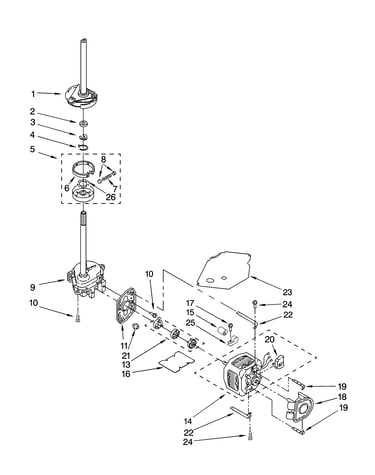

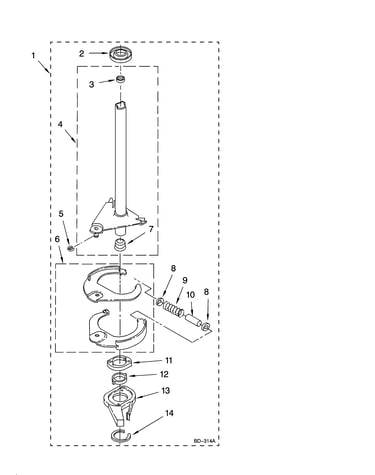

Manufacturer substitutionThis part replaces 3391901. Substitute parts can look different from the original.In Stock$40.5513% OFF Phone Price : $46.55QtyBrake, clutch, gearcase, motor and pump parts diagram
Coupling
Part #3364003Replaced by #285753A

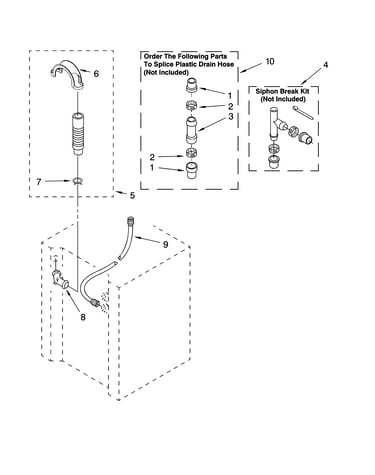

Manufacturer substitutionThis part replaces 3364003. Substitute parts can look different from the original.In Stock$20.4623% OFF Phone Price : $26.46QtyWater system parts diagram
Hose
Part #W10108350Replaced by #WPW10108350
Manufacturer substitutionThis part replaces W10108350. Substitute parts can look different from the original.In Stock$103.87QtyDryer bulkhead parts diagram
Door Trap
Part #3394984Replaced by #W11222846
Manufacturer substitutionThis part replaces 3394984. Substitute parts can look different from the original.In Stock$95.5011% OFF Phone Price : $107.50Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Danby Appliance Touch-up Paint, 0.6-oz (white)
In Stock
$8.46
11% OFF Phone Price : $9.46
Qty
Appliance Spray Paint (biscuit)
Part #4392901
This item is not returnable
In Stock
$32.75
15% OFF Phone Price : $38.75
Qty
Appliance Touch-up Paint, 0.6-oz (biscuit)
Part #4392899
This item is not returnable
In Stock
$15.11
12% OFF Phone Price : $17.11
Qty
Appliance Spray Paint (gray Primer)
In Stock
$52.57
10% OFF Phone Price : $58.57
Qty
Appliance Spray Paint (white)
Part #350930
This item is not returnable
In Stock
$26.00
19% OFF Phone Price : $32.00
Qty
Most common symptoms to help you fix your laundry centers
Choose a symptom to see related laundry center repairs.
Main causes: broken dryer drive belt, weak drive motor, binding drum seals…
Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown f…
Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad …
Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components…
Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control…
Main causes: clogged drain system, blocked drain hose, bad drain pump…
Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply pro…
Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring…
Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failur…
Most common repair guides to help fix your laundry centers
These step-by-step repair guides will help you safely fix what’s broken on your laundry center.
How to replace a laundry center washer lid lock switch
If the washer fills but won’t start the agitation cycle, the lid lock switch could be defective. …
Repair time and Difficulty
15 minutes or less
How to replace a laundry center washer timer
If the washer doesn't fill, spin or drain, the timer could be the problem. …
Repair time and Difficulty
15 minutes or less
How to replace a laundry center washer snubber ring
If the washer tub bangs the cabinet during the spin cycle even though the load is balanced, you might need to replace th…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your laundry centers
Use the advice and tips in these articles and videos to get the most out of your laundry center.
Tired of dull laundry? These 7 expert tips help you get cleaner clothes, brighten whites, and fix common washer mistakes…
Find out how to stay safe when repairing your appliances.…
Find out how to clean and flush household appliances once a boil water advisory is lifted.…
