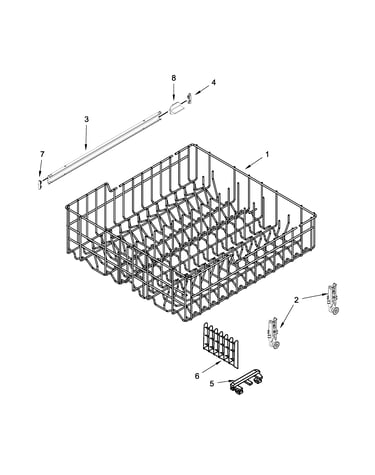

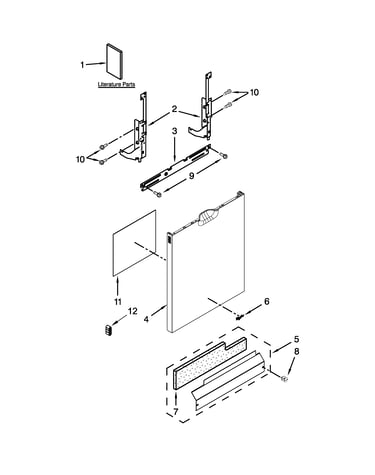

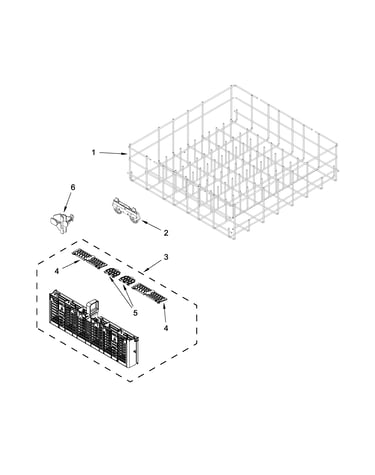

Whirlpool WDF520PADB5 dishwasher Parts

On the Whirlpool WDF520PADB5 dishwasher, PBA commonly means the printed board assembly, which is the main electronic control board that powers and coordinates functions like filling, washing, draining, and drying. If the dishwasher behaves erratically or won’t run, the PBA is one of the key components to check.

The PBA is the “brain” of the dishwasher; it sends power and timing signals to loads such as the water inlet valve, wash motor, drain pump, and heater.

Common PBA-related symptoms include:

• Dishwasher has power but won’t start a cycle
• Random stopping mid-cycle or not advancing
• Buttons respond inconsistently or cycles won’t select
• No heat or poor drying when other causes are ruled out
• Repeated error behavior after a reset

Before you assume the PBA is bad, we recommend these basic checks (power off at the breaker before accessing wiring):

• Confirm the door is fully closing and latching; a bad latch can mimic a control failure
• Try a reset sequence from the WDF520PADB5 owner’s manual
• Check for standing water and verify the unit can drain
• Inspect for loose connectors or corrosion at the control and door switch area
• Look for signs of moisture intrusion around the console

Replacing a control board is one of the higher-cost repairs, and many “control” complaints are actually caused by a door latch, fill problem, or drain problem. A few targeted checks can prevent replacing the wrong part.

Last updated: January 2026

For Whirlpool dishwashers like model WDF520PADB5, the most common customer-reported problems are poor cleaning and draining issues. In many cases, the root cause is simple maintenance (filter and spray-arm cleaning) or a worn pump, drain hose, or heating component.

• Not cleaning well (dirty dishes, grit left behind): clogged filter, blocked spray arms, low water fill, weak circulation
• Not draining: clogged filter area, kinked drain hose, failed drain pump
• Leaking: loose hose connections, worn gaskets, door not sealing
• Won’t start or stops mid-cycle: door not latching, control not responding, cycle not selected correctly
• Not drying: heater issue, rinse aid empty, venting problem

1. Clean the filter and the sump area; re-seat the filter correctly.
2. Spin spray arms by hand; clear any debris from the holes.
3. Confirm hot water supply to the dishwasher (typical target is about 120°F at the sink).

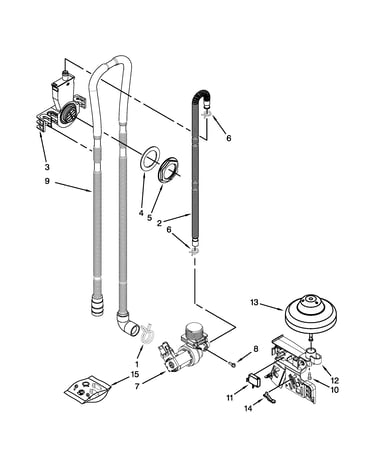

4. Check the drain path for kinks and clogs; verify the high loop/air gap setup.
5. Run a reset sequence using the steps in the WDF520PADB5 owner’s manual.

Dishwashers often “act broken” when water flow is restricted. Restoring normal flow (clean filter, clear spray arms, correct drain routing) prevents repeat clogs, improves cleaning, and reduces strain on the wash and drain pumps.

• The dishwasher hums but won’t drain after you clear the filter area
• You find standing water returning after a successful drain
• You hear grinding or rattling from the pump area
• You see consistent error behavior; use Whirlpool dishwasher error codes

Last updated: January 2026

WDF520PADB5 is a Whirlpool built-in dishwasher model number. We use it to match the correct replacement parts, diagrams, and service information for your exact dishwasher so you can fix issues like not draining, not heating, or not starting using the right components.

The model number WDF520PADB5 identifies a specific Whirlpool dishwasher configuration (console style, features, and compatible parts). It is the key detail we use to ensure parts like pumps, filters, and door latches fit and function correctly.

• Confirms the exact Whirlpool dishwasher version you own
• Ensures part compatibility (mounting, wiring, seals, and connectors)
• Helps narrow troubleshooting steps for symptoms and error codes
• Prevents ordering look-alike parts that do not fit

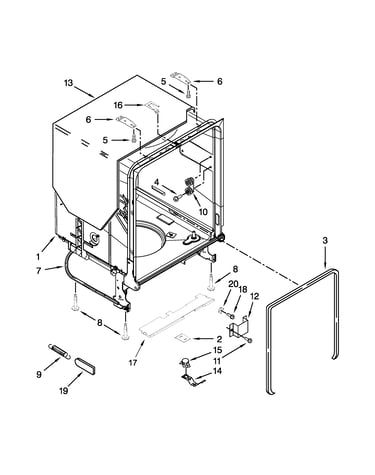

On most Whirlpool dishwashers, the model and serial tag is typically located on the tub frame area around the door opening (often along the side or top edge). Use the full model number exactly as shown.

If you are troubleshooting a problem on WDF520PADB5, these are some frequently replaced parts for performance issues:

• Heating problems: element assembly W10518394

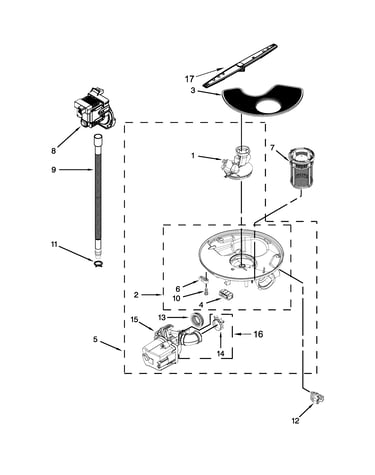

• Not draining: dishwasher drain pump W10876537 or a clogged drain path
• Poor cleaning: filter maintenance and wash system checks (circulation)

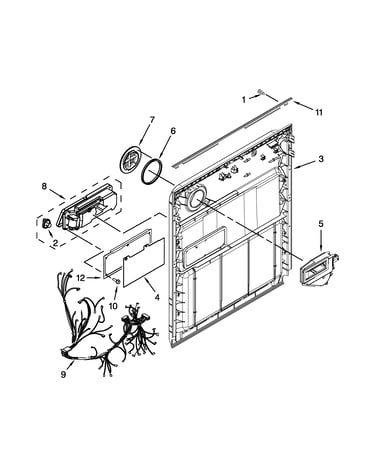

• Door won’t latch or won’t start: dishwasher door latch WPW10653840

Dishwasher parts are highly model-specific. Using WDF520PADB5 avoids mismatched electrical parts (like a control board), incorrect hose routing, and leaks from the wrong gasket or clamp.

For cycle options, operating steps, and care instructions, use the WDF520PADB5 owner's manual.

Last updated: January 2026

Most Whirlpool dishwashers, including model WDF520PADB5, typically last 10 to 12 years with normal household use. Regular cleaning, correct detergent use, and keeping water flow and draining healthy help you reach the upper end of that range; heavy use and hard water shorten it.

• Water hardness and scale buildup (heating and wash performance suffer over time)
• Filter and sump cleanliness (food debris strains the wash system)
• Drain health (slow draining overworks the drain pump)
• Door sealing and venting (moisture leaks can damage components)
• Load habits (overloading blocks spray and increases wear)

We recommend these habits for WDF520PADB5:

• Clean the filter area regularly; replace a worn filter if needed (example: dishwasher filter WPW10463906).
• Run a monthly cleaning cycle using a dishwasher cleaner.
• Use rinse aid to improve drying and reduce spotting.
• Keep the spray arms clear of labels, seeds, and debris.
• Check for slow draining and correct it early (kinks, clogs, or a weak pump).

A dishwasher near the 10 to 12 year mark can still be a great candidate for repair when the issue is a single wear part (filter, valve, latch, drain pump). Consistent maintenance reduces repeat failures and keeps cycles efficient.

For model-specific care and cleaning intervals, follow the WDF520PADB5 owner's manual.

Last updated: January 2026
