Model # S3527016 Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3527016 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |

Vacuum Bag, 3-pack 4010064S
#17

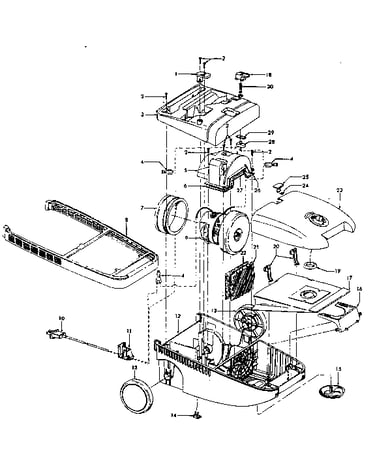

Mainhousing diagram

Vacuum bag, 3-pack

Part #4010064S

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38522065
#13

Mainhousing diagram

Vacuum wheel

Part #38522065

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Nozzle Roller 38521018
#15

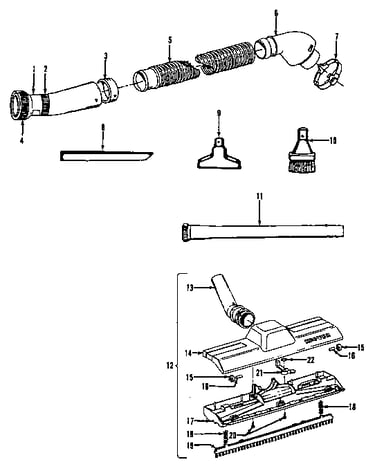

Hose, cleaningtools, rug_flrnozzle diagram

Vacuum floor nozzle roller

Part #38521018

The manufacturer no longer makes this part, and there's no substitute part

Hose Rel Lat 36153038
#7

Hose, cleaningtools, rug_flrnozzle diagram

Hose rel lat

Part #36153038

The manufacturer no longer makes this part, and there's no substitute part

Wrap 39442034
#1

Mainhousing diagram

Wrap

Part #39442034

The manufacturer no longer makes this part, and there's no substitute part

Screw 21429406
#11

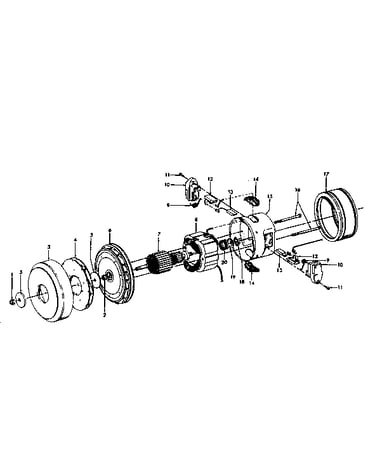

Motor assembly diagram

Screw

Part #21429406

The manufacturer no longer makes this part, and there's no substitute part

Torsion Spring 38351009
#24

Mainhousing diagram

Torsion spring

Part #38351009

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Start Switch Pedal 38422164
#18

Mainhousing diagram

Vacuum start switch pedal

Part #38422164

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447217
#2

Mainhousing diagram

Vacuum screw

Part #21447217

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Grip Lock Ring 36153009
#4

Hose, cleaningtools, rug_flrnozzle diagram

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part
