How do I remove the base grille on my Whirlpool refrigerator?

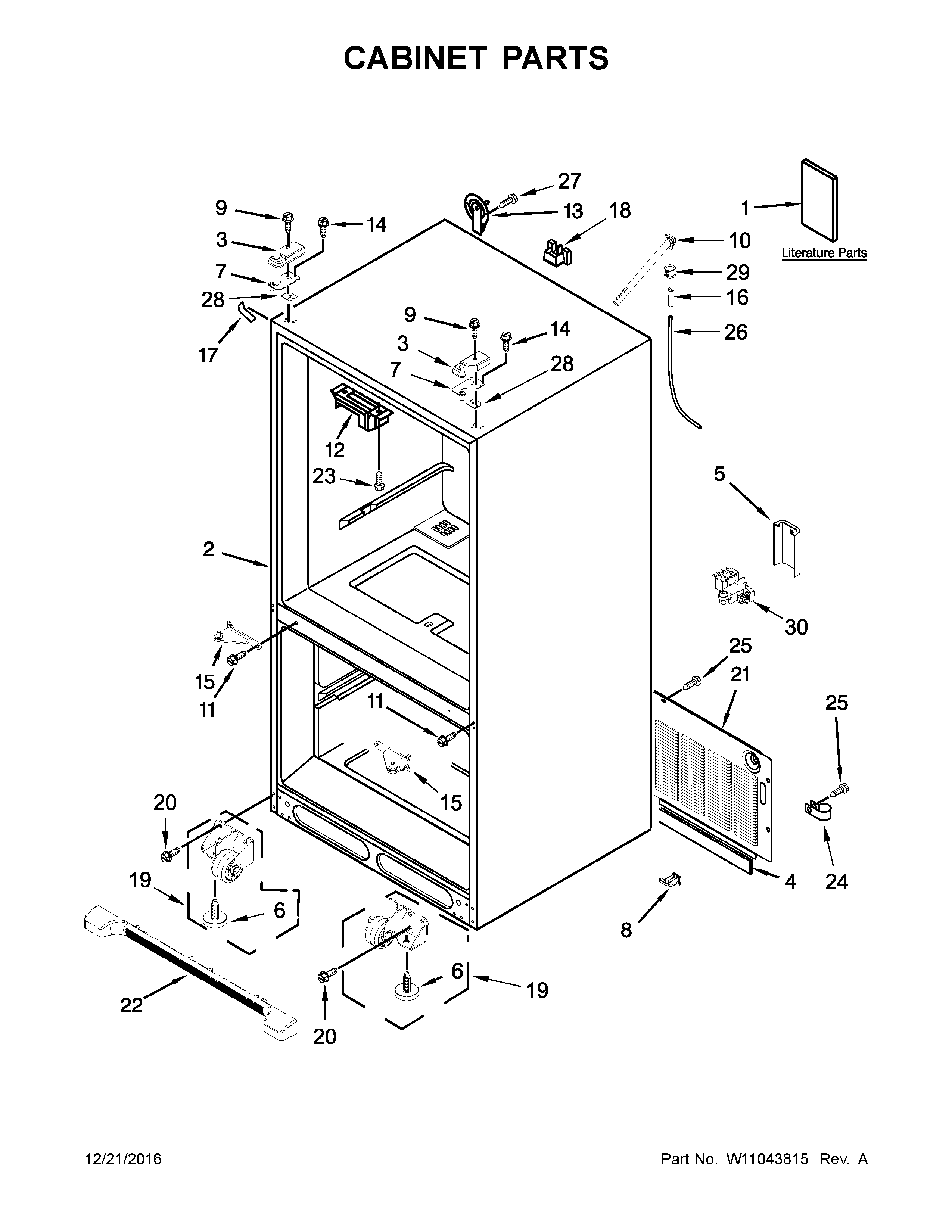

On the Whirlpool WRF535SWHZ00, we remove the base grille by grasping it firmly with both hands and pulling it straight toward you. Some versions of this model also use two mounting screws; if yours does, remove the screws first, then pull the grille forward (see the WRF535SWHZ00 owner's manual).
Steps to remove the base grille
- Unplug the refrigerator (recommended anytime you are working near wiring or moving the cabinet).
- Open the refrigerator doors for clearance.
- Look along the top edge of the base grille for fasteners.
- If you see two screws, remove them and set them aside.
- Grasp the grille with both hands and pull it toward you to release it.
- Set the grille aside so it does not get stepped on or warped.
What you will need
| Task | Typical tool | Notes |
|---|---|---|
| Remove grille screws (if equipped) | 1/4-inch hex driver | Common on Whirlpool base grilles |
| Pull grille off | Hands | Pull straight out to avoid cracking tabs |
| Clean behind grille (optional) | Vacuum with soft brush | Helps airflow and efficiency |
Why it matters

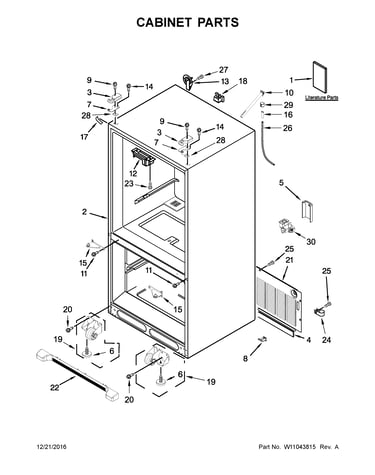

The base grille covers the leveling screws and roller assemblies at the bottom front of the cabinet. Removing it lets us access leveling adjustments for better door closing and gives access for cleaning dust from the front condenser area.
After removal: quick checks we recommend
- Vacuum dust from the grille and the open area behind it.
- Confirm the refrigerator is steady; adjust leveling screws if the unit rolls forward.
- Reinstall the grille by aligning it to the cabinet, then snapping it in or reinstalling the two screws (if used).
Last updated: February 2026
Do you remove cardboard from the bottom of a Whirlpool refrigerator?
For the Whirlpool WRF535SWHZ00, do not remove the cardboard-like bottom cover or rear lower cover panel. That panel is designed to protect critical components and help direct airflow for proper cooling performance; removing it can lead to overheating, noise, or poor temperatures.
What you should remove (and what you should leave)
- Remove shipping tape, foam blocks, and protective film from shelves, bins, and doors.
- Remove any cardboard used only as floor protection while moving the refrigerator.
- Leave in place the factory-installed bottom/rear cover (often looks like cardboard or fiberboard).
- Leave in place the base grille area parts unless you are leveling, aligning doors, or servicing.
- Follow the setup and care steps in the WRF535SWHZ00 owner's manual.
Quick check: is it packaging or a protective cover?
| What you see | Typical location | What to do |
|---|---|---|
| Loose cardboard sheet | Under the unit during delivery or moving | Remove after placement (it is just floor protection) |
| Firm panel attached with screws/clips | Rear bottom or underside | Leave installed (it is a protective/airflow cover) |
| Foam blocks/tape inside | Fresh food and freezer compartments | Remove before use |
Why it matters

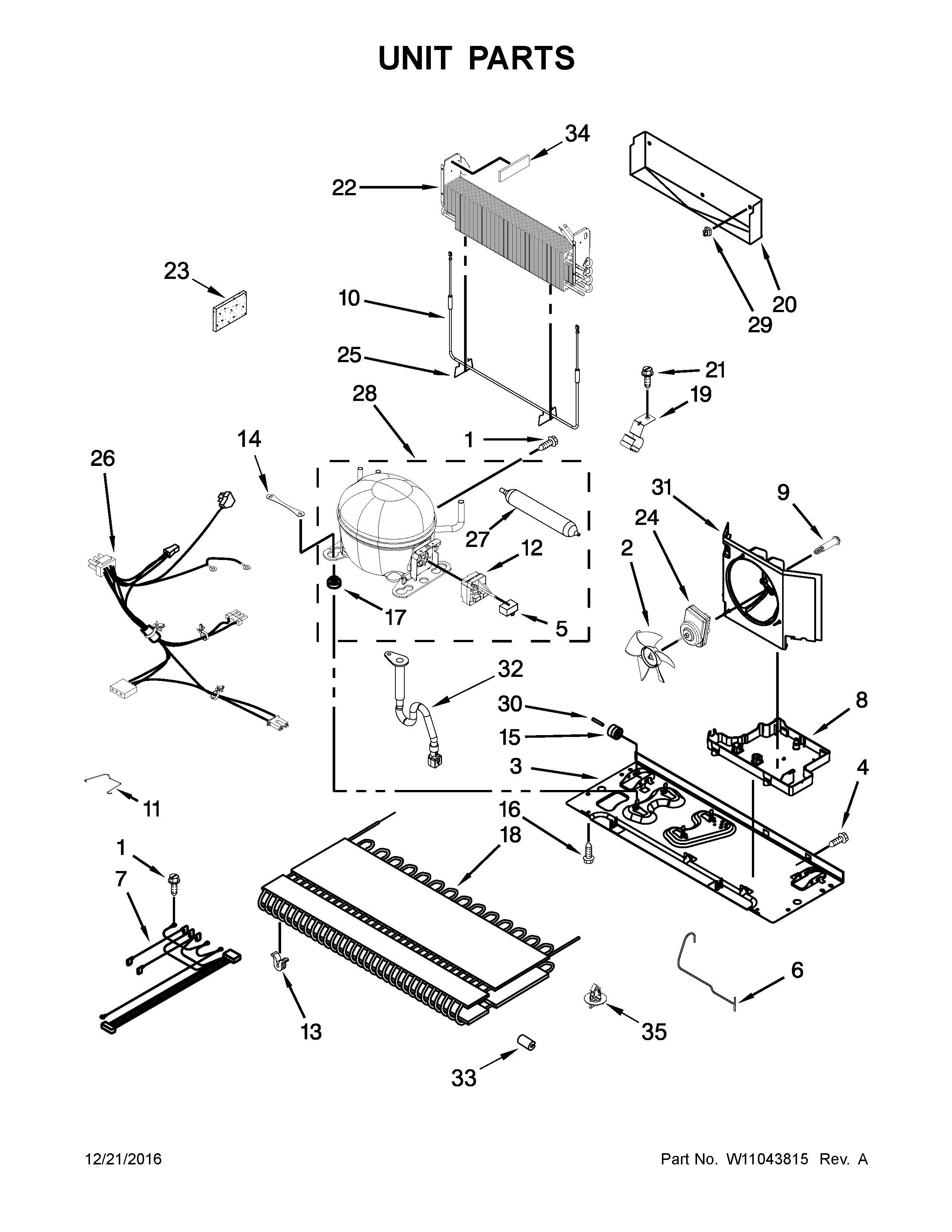

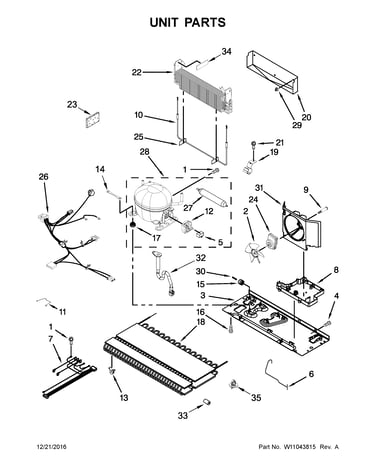

That bottom cover helps shield wiring and mechanical parts and supports correct airflow around the compressor and condenser area. Keeping it installed helps your Whirlpool refrigerator cool efficiently and reduces the chance of heat-related performance problems.
Related tip when moving the refrigerator
When pulling the refrigerator out for cleaning or service, we recommend protecting your floor with cardboard or hardboard and pulling straight out (do not “walk” it). This guidance is also covered in the WRF535SWHZ00 owner's manual.
Last updated: February 2026
What are the most commonly replaced parts in a refrigerator?
In a Whirlpool bottom-mount refrigerator like model WRF535SWHZ00, the most commonly replaced parts are the ones that wear out from daily use or affect cooling and sealing: water filters, door gaskets, ice maker components, fan motors, sensors, and control boards. These repairs often restore performance without major sealed-system work.
Most common replacement parts (and what they affect)
- Water filter: low water flow, bad taste or odor, reduced ice production (replace about every 6 months per the WRF535SWHZ00 owner's manual).

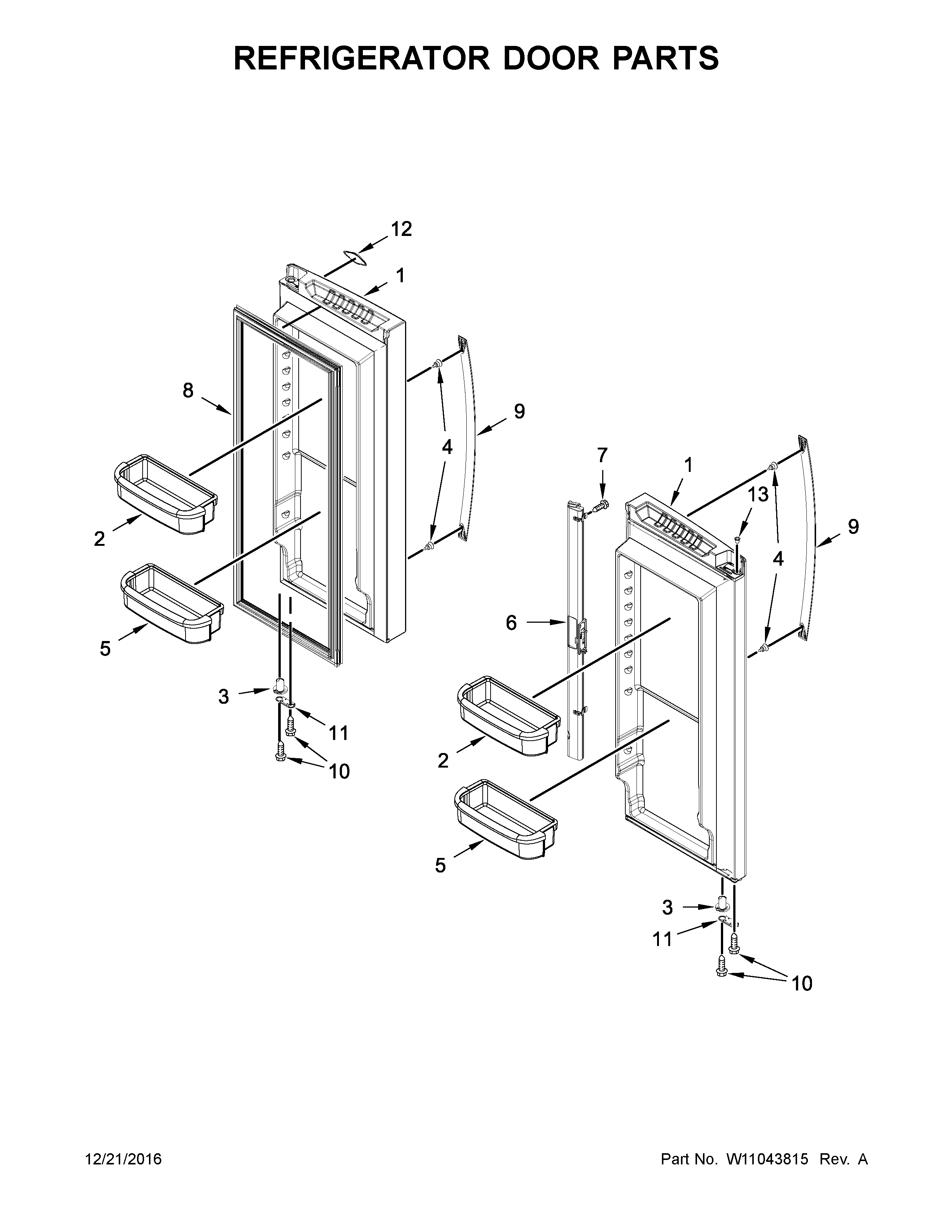

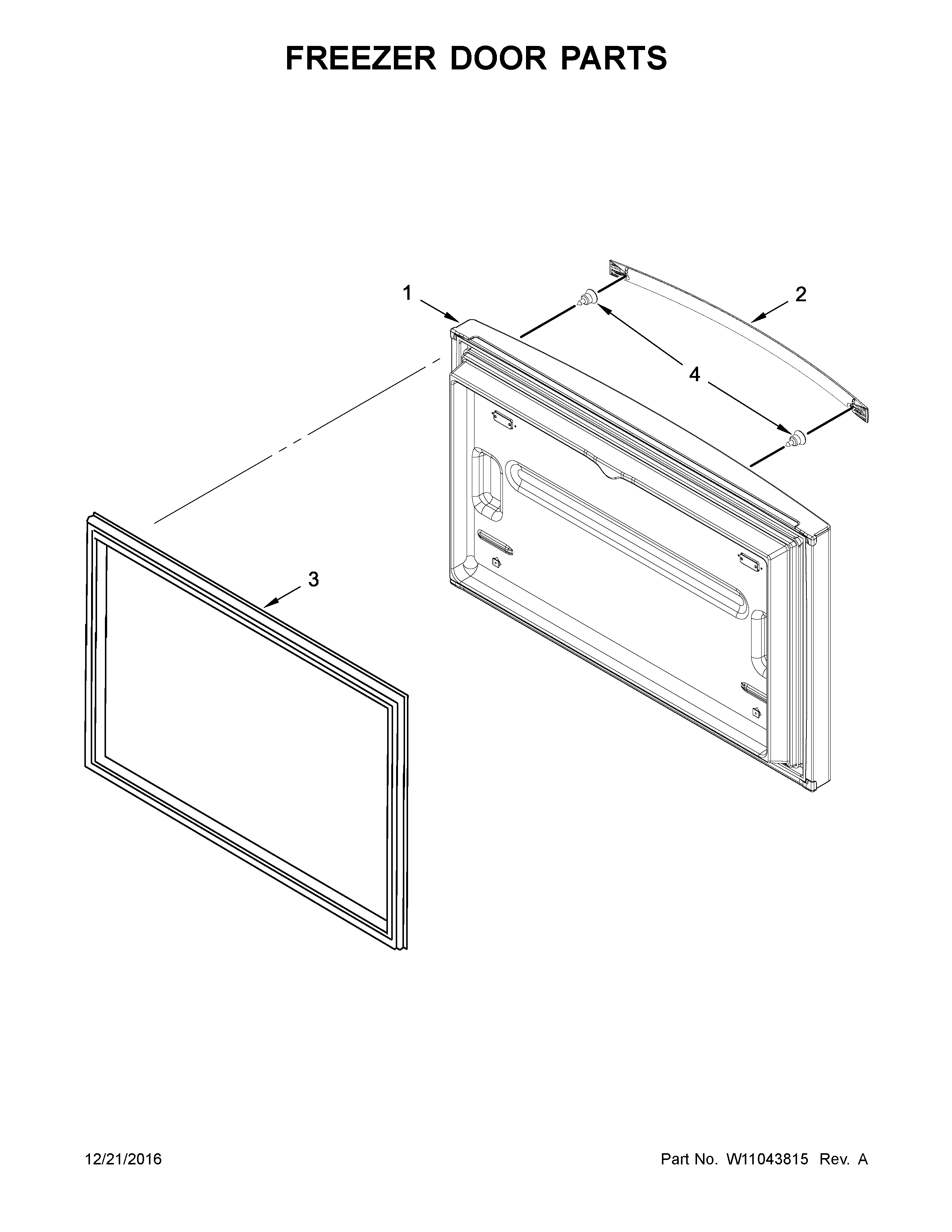

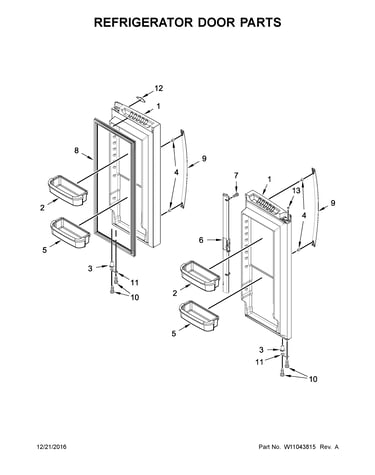

- Door gasket: warm fridge temps, frost buildup, moisture, higher energy use.

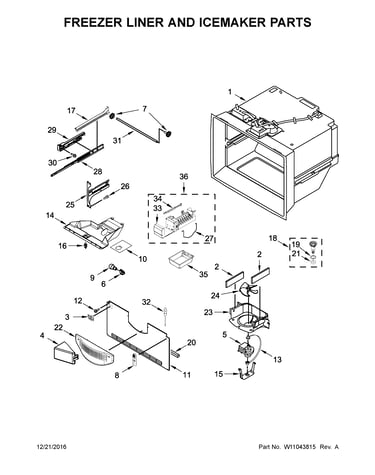

- Ice maker assembly: no ice, small cubes, leaking or jammed ice maker (example part: refrigerator ice maker W10884390).

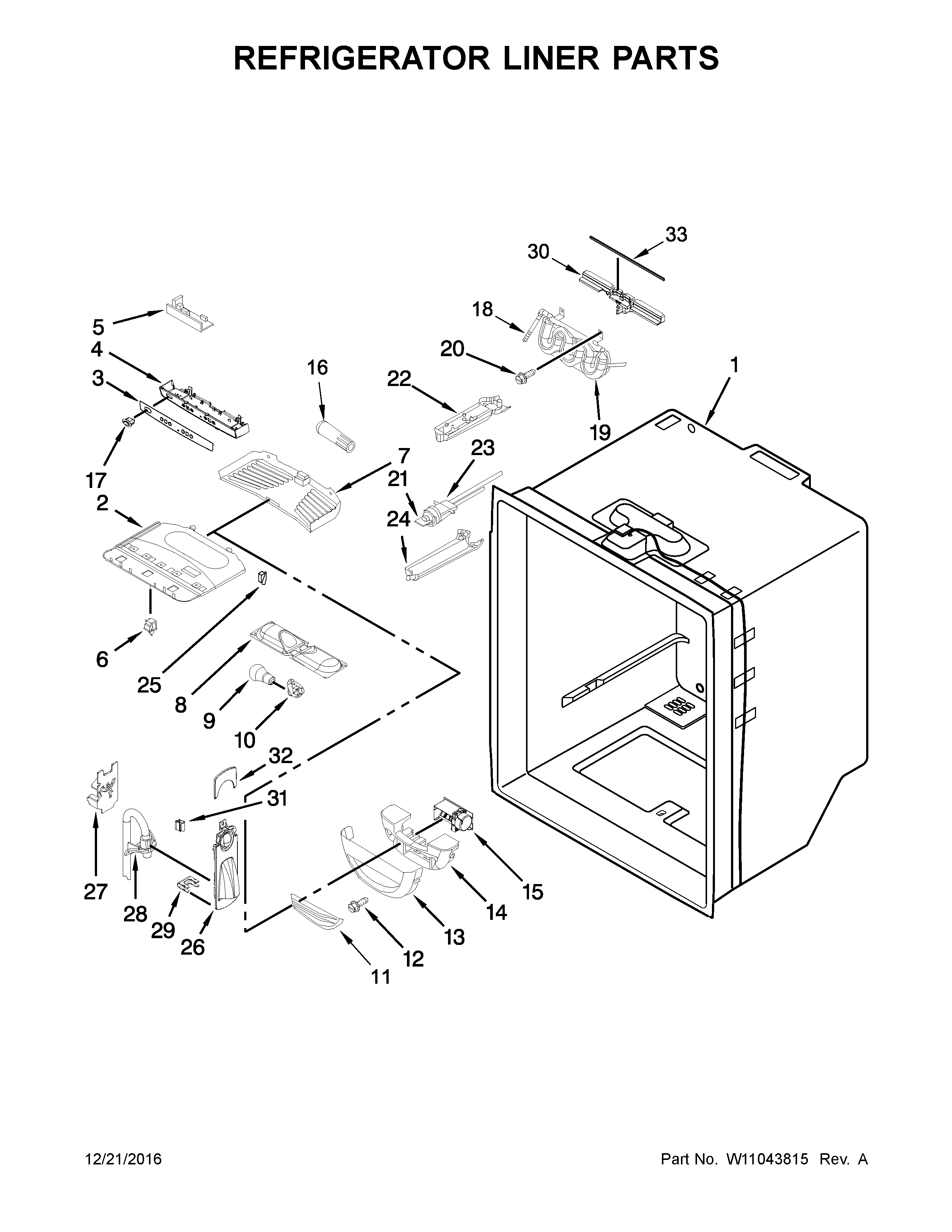

- Evaporator fan motor/blade: warm fresh food section, weak airflow, unusual fan noise (example part: refrigerator evaporator fan motor WPW10128551).
- Thermistor (temperature sensor): temps swing too warm or too cold, inconsistent cycling.
- Electronic control board: erratic operation, cooling issues, fan or defrost problems.
- Water inlet valve: no water to dispenser, slow fill, ice maker not filling.
Quick “symptom to part” guide
| Symptom | Most likely part category | Example part for WRF535SWHZ00 |
|---|---|---|
| Water dispenses slowly | Water filter, inlet valve | Water filter (see manual), WPW10420083 valve |
| Frost or sweating around doors | Door gasket, door alignment | W10443320 gasket |
| Fridge warm, freezer OK | Evaporator fan, airflow issue | WPW10128551 fan motor |
| No ice | Ice maker, water supply | W10884390 ice maker |
Why it matters
Replacing common wear parts early helps your Whirlpool refrigerator hold safe food temperatures, prevents frost and leaks, and reduces strain on major components like the compressor and evaporator.
Last updated: February 2026
Why is my Whirlpool refrigerator leaking from the bottom?
On a Whirlpool WRF535SWHZ00 bottom-mount refrigerator, leaking from the bottom is usually caused by water missing the drain pan (often from a clogged/iced defrost drain) or by the cabinet not being level so water runs forward and out. Use the WRF535SWHZ00 owner's manual to confirm the correct leveling procedure.
Quick checks we recommend first
- Look for a puddle after a defrost cycle; that points to a drain or drain tube issue.
- Check if the refrigerator tilts forward; a forward tilt can let water spill out of the drain pan.
- Inspect the freezer floor for a sheet of ice; that often indicates a blocked defrost drain.
- Verify doors close tightly; warm air can increase frost and lead to drain icing.
- If you have an ice maker, check the fill tube area for ice buildup and dripping.
Most common causes and what to do
| What you see | Most likely cause | What to do next |
|---|---|---|
| Water on floor near front | Refrigerator not level; drain pan overflow | Level the cabinet so it sits stable and slightly back; recheck after 24 hours |
| Ice on freezer bottom, then water later | Defrost drain clogged or frozen | Clear the drain opening and flush with hot water; confirm drain tube is open |
| Water only when ice maker runs | Water line or valve seep; fill tube icing | Inspect connections; test for slow drips; consider the refrigerator water inlet valve assembly WPW10420083 if the valve seeps |
| Condensation around door edges | Door gasket not sealing | Clean and warm the gasket to reshape; replace if torn (model-specific gasket options vary) |
Why it matters
Bottom leaks can damage flooring and also signal airflow or defrost-drain problems that lead to ice buildup, warmer temperatures, and heavier compressor run time.
When a part is commonly involved
If you confirm the leak happens during ice maker fills or you see dripping at the rear water connections, the inlet valve is a frequent culprit on many Whirlpool refrigerators. For this model, the matching part is the refrigerator water inlet valve assembly WPW10420083.
Last updated: February 2026
What is the most common problem with Whirlpool refrigerators?
The most common Whirlpool refrigerator problem is a cooling complaint (warm fresh food section, warm freezer, or temperature swings). On the Whirlpool WRF535SWHZ00, cooling issues are often tied to airflow problems, heavy run time in warm conditions, or a failed component such as the evaporator fan motor or a temperature sensor.
Most common symptoms customers notice
- Refrigerator section not cold enough but freezer seems OK
- Freezer not freezing hard or ice cream is soft
- Motor seems to run too much (especially after frequent door openings)
- New or intermittent noises from fans or the compressor
- Frost buildup that reduces airflow
Quick checks we recommend first (no parts)
Use these steps before replacing anything; they solve a large share of “not cooling” calls.
- Confirm the controls are turned on and set to normal temperatures
- Allow a full 24 hours after a new installation or major temperature change for the unit to stabilize
- Make sure doors are closing fully and not being held open by bins or food packages
- Reduce frequent door openings and avoid overloading shelves (air needs to circulate)
- Verify the outlet has power and the cord is fully plugged in
For model-specific operating and troubleshooting steps, follow the WRF535SWHZ00 owner's manual.
When it’s likely a part problem
If temperatures stay off after the checks above, these are common failure points on bottom-mount designs:
| Symptom | Common cause | Example part for WRF535SWHZ00 |
|---|---|---|
| Warm refrigerator, freezer OK | Weak/no evaporator airflow | Refrigerator evaporator fan motor WPW10128551 |
| Temperature swings or odd readings | Faulty sensor input | Refrigerator thermistor 12002355 |
| Ice maker not making ice | Ice maker failure or water supply issue | Refrigerator ice maker W10884390 |
| Random behavior, not responding correctly | Control issue | Refrigerator electronic control board WPW10503278 |
Why it matters
A refrigerator cools by moving air across the evaporator and controlling run time with sensors and electronics. When airflow is restricted or a control input is wrong, the compressor and fans can run longer, temperatures drift, and food quality suffers.
Last updated: February 2026
Can I replace fridge parts myself?
Yes. On the Whirlpool WRF535SWHZ00 refrigerator, we can safely replace many “bolt-on” parts ourselves (handles, gaskets, switches, ice maker) as long as we disconnect power first and follow the steps in the WRF535SWHZ00 owner's manual. For sealed-system and water-line work, we use a qualified technician.
Good DIY repairs vs. technician-only repairs
DIY-friendly (typical):
- Door gasket and door alignment adjustments
- Ice maker assembly swaps (after power is disconnected)
- Light and door switch replacements

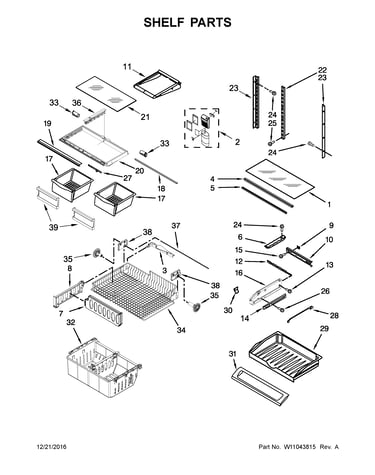

- Drawer/basket/rail and handle replacements
- Cleaning and basic airflow checks (vents, condenser area)
Technician-only (recommended):
- Sealed refrigeration system work (compressor, evaporator, refrigerant lines)
- Water line installation and some ice maker water-supply work
- Electrical diagnosis beyond simple part swaps (control board testing)
Safety steps we follow first
- Unplug the refrigerator (disconnect power before servicing).
- Turn off the water supply if working on the ice maker or inlet valve.
- Protect floors; use two people for moving doors or the freezer drawer.
- Reinstall all panels and covers before plugging back in.
- Do not use extension cords or adapters.
Common parts customers replace on this model
| Symptom | Likely DIY part | Example part for WRF535SWHZ00 |
|---|---|---|
| No ice or poor ice production | Ice maker assembly | Refrigerator ice maker W10884390 |
| Door not sealing, frost, warm spots | Door gasket | Whirlpool refrigerator door gasket (gray) W10443320 |
| Clicking or no water to ice maker | Water inlet valve assembly | Refrigerator water inlet valve assembly WPW10420083 |
Why it matters
DIY repairs can save time and money, but refrigerators combine electricity, moving parts, and sometimes pressurized water. Following the manual’s safety steps helps prevent shocks, leaks, and repeat failures.
Last updated: February 2026
Can I use a generic filter in my Whirlpool?

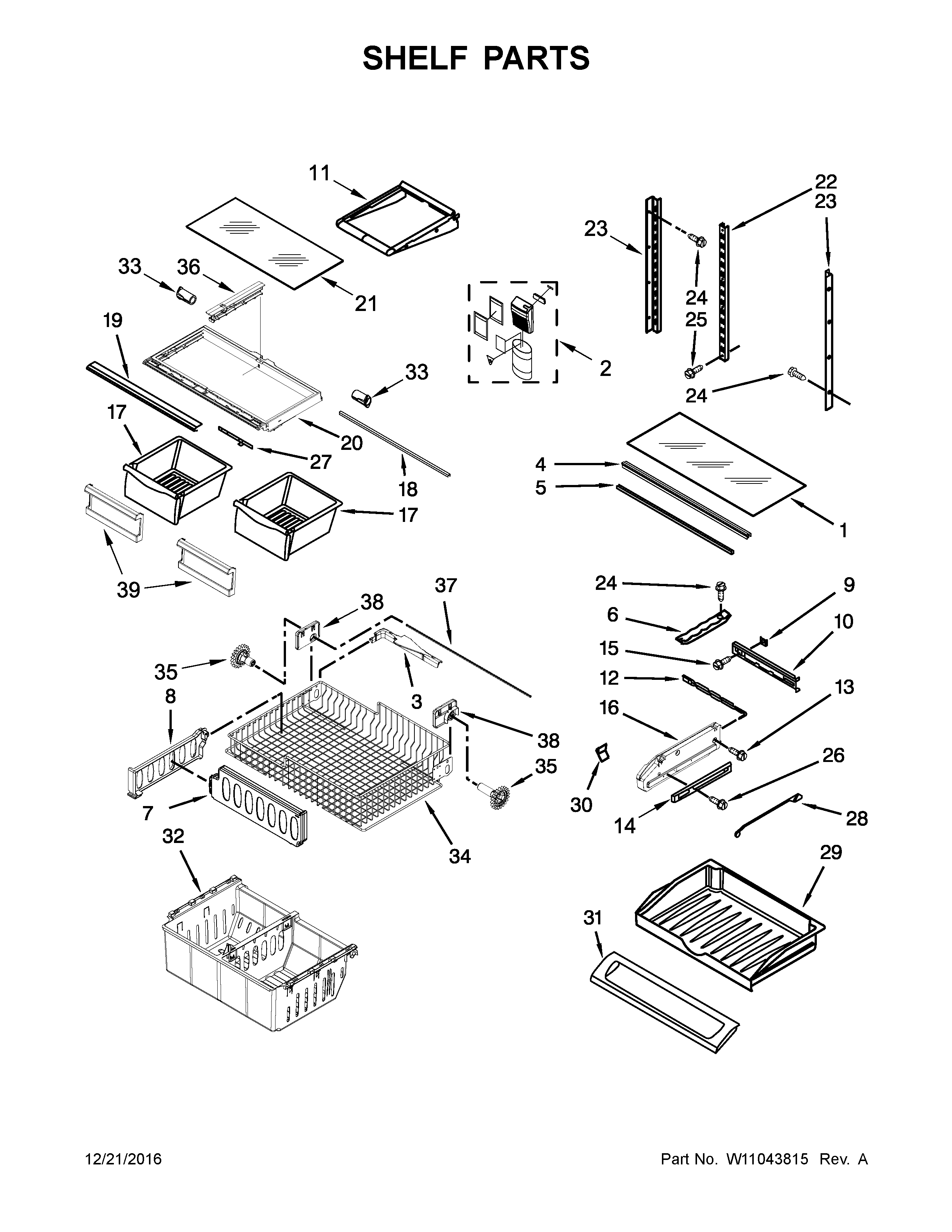

Yes, you can use a generic water filter in your Whirlpool WRF535SWHZ00 refrigerator if it is certified and explicitly listed as compatible with your exact model. A mismatched filter can leak, reduce filtration, or restrict water flow to the dispenser and ice maker; use the WRF535SWHZ00 owner's manual for the correct filter type and replacement steps.
What to check before buying a generic filter
- Exact model match: the packaging should list WRF535SWHZ00 (not just a similar Whirlpool model).
- NSF/ANSI certification: choose certifications that match your goals (taste and odor, lead, cysts).
- Proper fit and seals: it should insert and lock without forcing; no wobble after installation.
- Water pressure: most Whirlpool refrigerators need household pressure in a normal range; low pressure can cause slow dispensing and small ice cubes.
- Return policy: keep the receipt and packaging in case you see leaks or poor flow.
Quick decision guide
| Priority | Best choice | What you avoid |
|---|---|---|
| Best fit and lowest leak risk | OEM or model-listed certified replacement | Poor sealing, bypass, drips |
| Lowest cost | Certified generic that lists WRF535SWHZ00 | Paying for a filter that does not fit |
| Best taste and odor | Filter certified for chlorine reduction | Persistent chlorine taste/smell |
After you install the filter
- Dispense and discard several batches of water to purge air and carbon fines.
- Check the filter housing and connections for drips for the next 24 hours.
- If flow is slow, reseat the filter and purge again; trapped air is common after a change.
- If the ice maker output drops, confirm the filter is fully locked in place.
Why it matters
A filter that does not match the WRF535SWHZ00 spec can reduce water flow, affect ice production, and create leaks that damage internal components and flooring. Matching certification and fit protects water quality and the refrigerator’s water system.
Last updated: February 2026
