Craftsman
Gas Line Trimmer

Model # 316795010 Official Craftsman brushwacker gas line trimmer

Here are the diagrams and repair parts for Official Craftsman 316795010 brushwacker gas line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |

Mid Hand Cap
#10

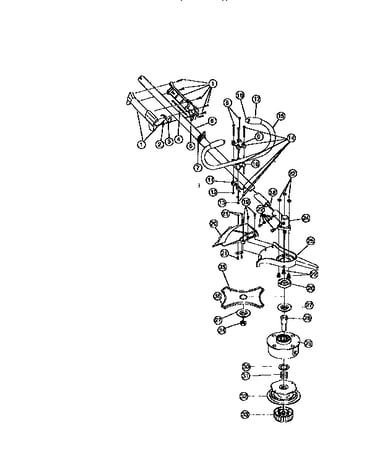

Lower boon diagram

Mid hand cap

Part #181813

The manufacturer no longer makes this part, and there's no substitute part

2 Cycle Oil

#NI

All parts diagram

2 cycle oil

Part #71-36549

The manufacturer no longer makes this part, and there's no substitute part

Module Assembly
#42

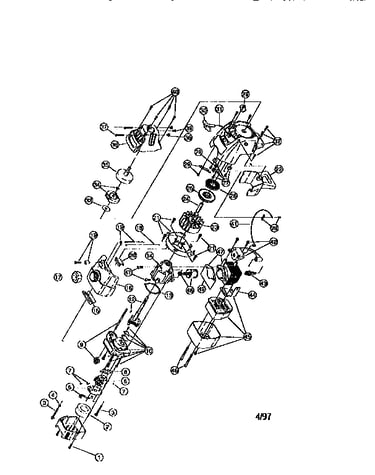

Engine diagram

Module assembly

Part #683390

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut
#34

Lower boon diagram

Lock nut

Part #181699

The manufacturer no longer makes this part, and there's no substitute part

Arrestor

#NI

All parts diagram

Arrestor

Part #180030

The manufacturer no longer makes this part, and there's no substitute part

Driver
#26

Lower boon diagram

Driver

Part #147489

The manufacturer no longer makes this part, and there's no substitute part

Cable
#5

Lower boon diagram

Cable

Part #180127

The manufacturer no longer makes this part, and there's no substitute part

Screw
Screw

Part #145569

The manufacturer no longer makes this part, and there's no substitute part

Gearbox
#24

Lower boon diagram

Gearbox

Part #147488

The manufacturer no longer makes this part, and there's no substitute part

Service
#14

Engine diagram

Service

Part #180026

The manufacturer no longer makes this part, and there's no substitute part
