Kenmore 10670203990 top-mount refrigerator Parts

Top-mount refrigerators like Kenmore 10670203990 typically make fresh-food access less convenient because the refrigerator section sits lower, and they often offer fewer premium organization and dispenser features than many bottom-freezer designs.

Common drawbacks you may notice

• More bending for daily use: fresh food is below the freezer, so you reach down more often.
• Less “eye-level” organization: produce drawers and lower shelves can be harder to see and keep sorted.
• Fewer built-in features on many models: external water and ice dispensers are less common on top-mount styles.
• Door-swing clearance matters: you may need extra side clearance for doors to open fully.
• Airflow can be easier to block: overpacking can block vents and cause temperature and moisture issues.

What to do if performance seems worse than expected

If the “disadvantage” feels like uneven cooling or moisture problems (not just layout), we recommend these quick checks from the owner's manual:

• Keep freezer and refrigerator air vents clear (don’t pack food tight against vents).
• Start with mid-setting temperature controls, then adjust in small steps.
• Wait at least 24 hours between temperature adjustments.
• Avoid frequent door openings when loading groceries.

Quick comparison: top-mount vs bottom-freezer

Feature	Top-mount refrigerator	Bottom-freezer refrigerator
Fresh-food access	Lower, more bending	Higher, easier access
Freezer access	Eye-level	Lower drawer/basket
Typical feature set	Often simpler	Often more “premium”
Space needs	Needs door-swing clearance	Also needs clearance; varies by design

Why it matters

Most households use the fresh-food section far more than the freezer. With a top-mount layout, that can mean more bending and more “out of sight, out of mind” food storage, even when the refrigerator is cooling correctly.

Last updated: February 2026

A Kenmore 10670203990 top-mount refrigerator typically lasts 10 to 15 years. You will usually reach the higher end of that range when the condenser coils stay clean, the door gaskets seal tightly, and the sealed refrigeration system (compressor and tubing) is kept under low strain.

Typical lifespan and what affects it

Most refrigerator life is determined by heat removal and how hard the compressor has to work.

• Condenser coil condition: dusty coils raise temperatures and run time
• Door seal quality: air leaks cause frost, moisture, and longer run cycles
• Room temperature and ventilation: hot garages and tight enclosures shorten life
• Ice maker and water system health: leaks or low water flow can create secondary problems
• Defrost performance: poor defrosting can lead to ice buildup and warm temps

Quick maintenance checklist (best ROI)

Use these habits to extend the service life of your Kenmore 10670203990.

• Vacuum and brush condenser coils every 6 to 12 months
• Keep freezer at 0°F and fresh food at 37°F to 40°F
• Confirm doors close on their own and do not “bounce” open
• Clean and inspect gaskets; replace if torn, warped, or hardened
• Keep vents inside the compartments unblocked

Common “end-of-life” symptoms vs. fixable issues

Symptom	Often fixable?	Common next step
Warm fridge, freezer OK	Yes	Check airflow and defrost system; review owner's manual
Frost/ice buildup on back wall	Yes	Inspect defrost components and door sealing
Constant running, poor cooling	Sometimes	Clean coils; check gasket seal; evaluate compressor health
Water leaking	Yes	Inspect water line and inlet valve

Why it matters

Knowing the 10 to 15 year lifespan range helps you decide when routine maintenance is enough versus when a major repair (especially sealed-system work) is no longer cost-effective.

Last updated: February 2026

Yes. We still carry replacement parts for Kenmore refrigerators, including model 10670203990; you can match parts by model number and then choose the exact component you need (for example, ice maker, door gasket, defrost timer, or water inlet valve). For diagrams, part locations, and maintenance guidance, use the 10670203990 owner's manual.

How to find the right part for your Kenmore 10670203990

Use your model number to avoid ordering a look-alike part that will not fit.

• Confirm the full model number on the refrigerator’s rating label (inside the fresh food section)
• Use the parts list for 10670203990 to identify the exact part name and ID
• Compare your original part’s markings (numbers, wire plugs, mounting holes) to the listing
• If you are replacing a sealing part, verify door color and hinge side before ordering
• Keep your serial number handy in case there are production variations

Commonly replaced parts we stock for this model

These are frequent fixes for cooling, leaking, and ice maker issues on top-mount refrigerators.

Symptom	Likely part to check	Example part for this model

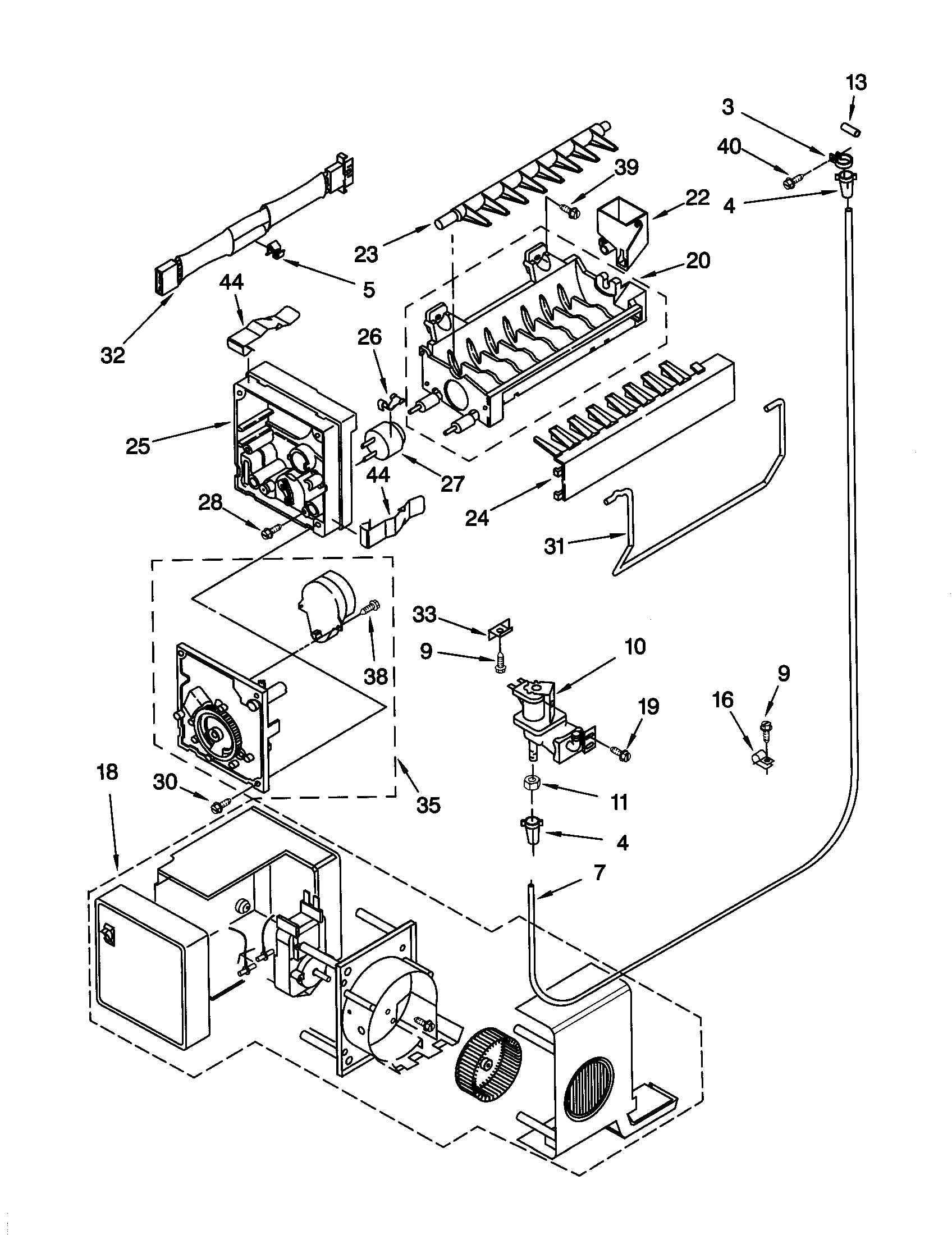

No ice or small cubes	Ice maker or water supply components	Ice maker assembly - refrigerator ice maker by whirlpool 4317943
Frost buildup, warm fridge	Defrost system components	Refrigerator defrost timer W10822278 or refrigerator defrost bi-metal WP4387503
Water not dispensing or no ice fill	Water inlet valve or tubing	Refrigerator inlet valve WP2315576 or refrigerator water tube W10823511
Door not sealing, moisture, warm spots	Door gasket	Refrigerator door gasket 2159061

Why it matters

Using the correct Kenmore 10670203990 part helps restore proper temperatures (about 37°F in the refrigerator and 0°F in the freezer), prevents food spoilage, and reduces compressor run time and energy use.

Quick tip before you order

If your issue is a door that will not close or seems misaligned, the manual’s door closing and alignment guidance can save you from replacing parts that are still good. Check the 10670203990 owner's manual first.

Last updated: February 2026

For Kenmore model 10670203990, the best place to start for discontinued refrigerator parts is the model-specific parts list for your refrigerator and the diagrams that identify the exact replacement by location. If an item is no longer available, we recommend matching by part function and model fit using the information in the owner's manual.

Best ways to find a replacement when a part is discontinued

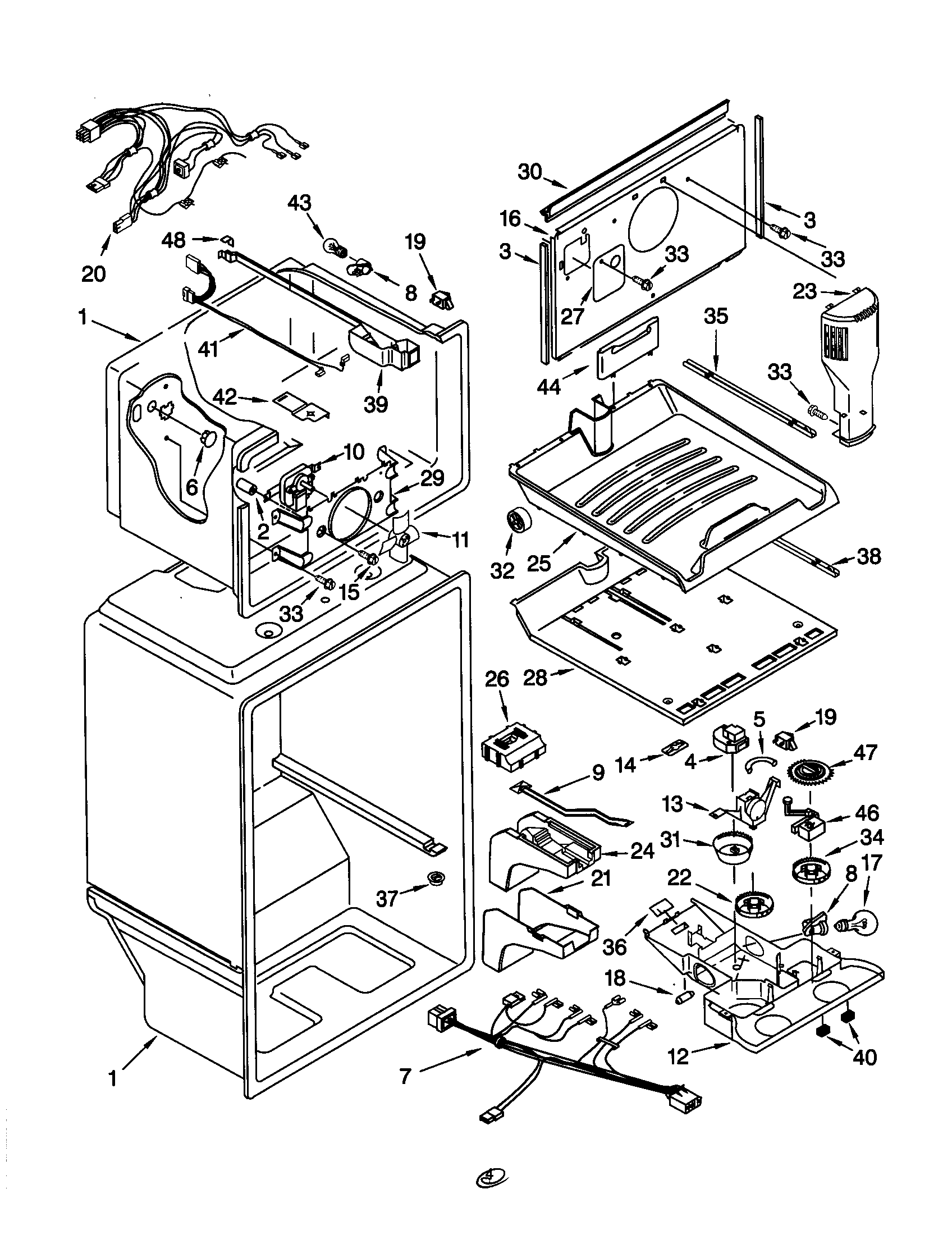

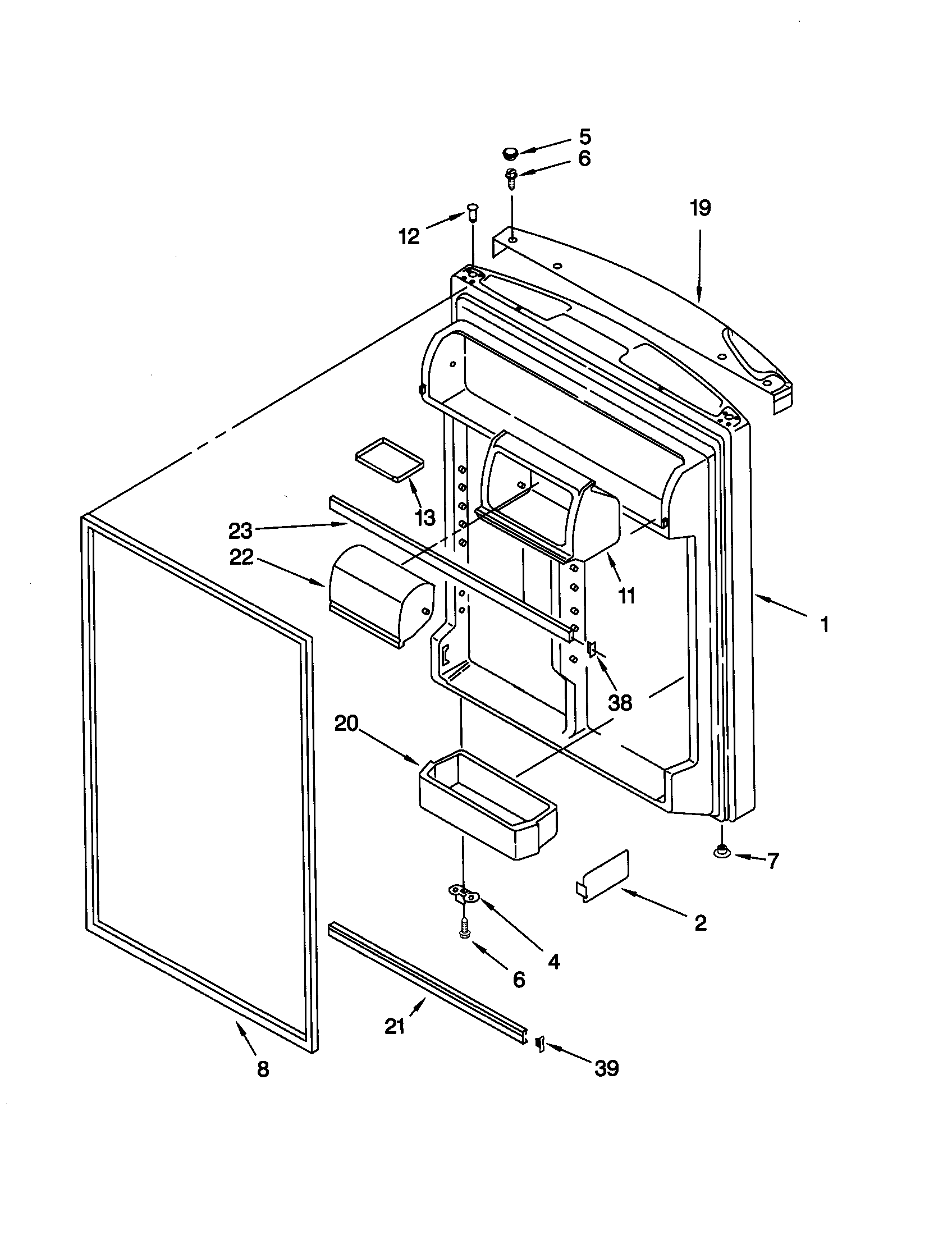

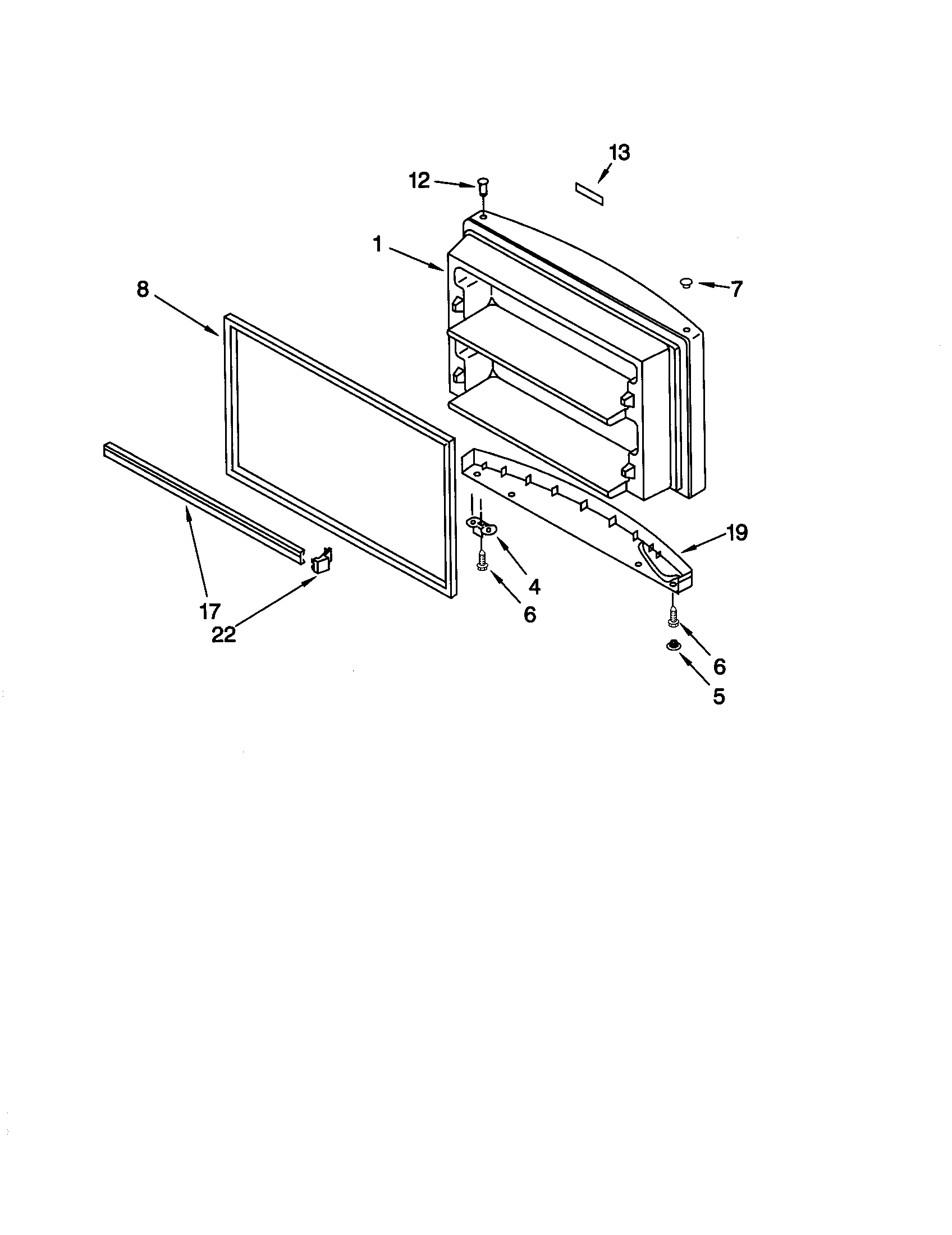

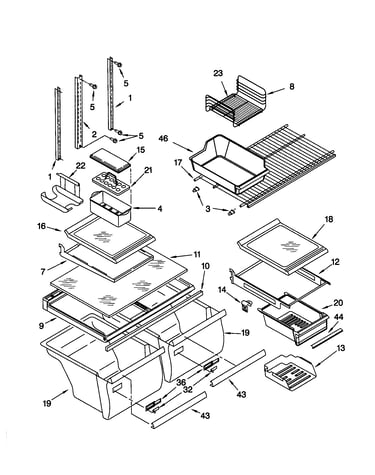

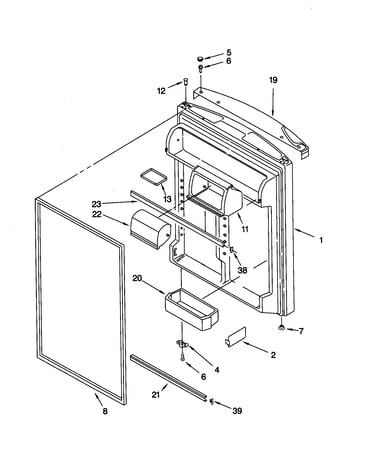

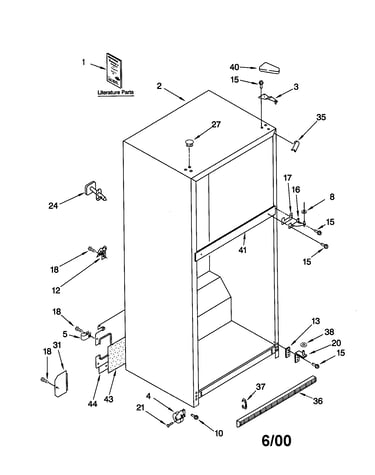

• Look up the part by section diagram (freezer door, fresh food door, icemaker, wiring, etc.) and confirm it fits 10670203990.
• Search by the original part number and compare the description to the replacement listing (many parts are superseded to a newer number).
• If the exact part is unavailable, match by function and mounting style (for example: gasket type, shelf style, valve style).
• For water and ice parts, confirm your refrigerator has the same features (icemaker installed, water line connected, etc.).
• Use your model and serial information from the rating label inside the refrigerator compartment to avoid ordering the wrong revision.

Common “still available” parts that solve frequent problems

If your goal is to fix a symptom (not replace a cosmetic piece), these parts are commonly used on this model and are often in stock:

Symptom	Part to check	Example part on this model
No ice or small cubes	Icemaker or water supply components	Ice maker assembly - refrigerator ice maker by whirlpool 4317943
Warm fridge or frost buildup	Defrost system timing/control	Refrigerator defrost timer W10822278
Water not dispensing or no ice fill	Water inlet valve	Refrigerator inlet valve WP2315576
Door not sealing, moisture, frost	Door gasket	Refrigerator door gasket 2159061

Why it matters

Discontinued parts are usually a problem of availability, not repairability. When we confirm the correct fit for 10670203990, a superseded part number or an equivalent functional replacement often restores cooling, sealing, or ice production without changing the refrigerator.

Last updated: February 2026

Common problems on the Kenmore 10670203990 top-mount refrigerator include warm refrigerator or freezer temperatures (often from blocked vents, door issues, or defrost trouble), long run times from dirty condenser coils, slow ice production, reduced water flow, interior moisture, and normal operating noises. Use the owner's manual for model-specific control settings and checks.

Most common symptoms and likely causes

• Too warm: controls set wrong, doors opened often, vents blocked, large warm food load
• Runs a lot: dirty condenser coils, doors not closing fully, warm room conditions
• Ice maker slow or not producing: freezer not cold enough, heavy ice usage, unit not fully cooled yet
• Water flow decreases: filter full or installed incorrectly, supply line kink
• Moisture buildup: humid room air, frequent door openings, unwrapped food, blocked vents

Quick checks we recommend first

• Adjust temperature controls one setting at a time; wait 24 hours between changes.
• Make sure doors close firmly and shelves or bins are not holding them open.
• Keep food packages away from interior air vents for proper circulation.
• Clean condenser coils to improve cooling and reduce run time.
• If the ice maker was recently installed or the fridge was warm, allow 72 hours for full ice production.

What “normal” can look like

Situation	What you may notice	What to do
Defrost cycle	Water in the drain pan	Normal; it evaporates over time
High humidity	Moisture inside, slower evaporation	Open doors less; wrap food
New install/restart	Longer run time, slow ice at first	Let temps stabilize; recheck in 24 hours

Parts often involved when a repair is needed

• Defrost timing issues: refrigerator defrost timer W10822278
• Ice production problems: ice maker assembly 4317943
• Water supply problems: refrigerator inlet valve WP2315576

Why it matters

Warm temps, moisture, and long run times are usually connected. Fixing airflow, door sealing, and coil cleanliness helps protect food, improves ice production, and reduces energy use.
