Craftsman 917250730 26" rear-engine riding lawn mower Parts
Here are the diagrams and repair parts for Craftsman 917250730 26" rear-engine riding lawn mower, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 917250730 Riding Mowers & Tractors

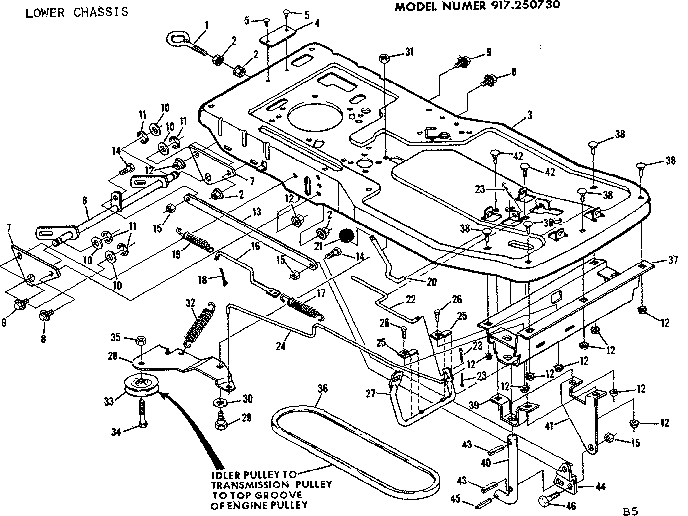

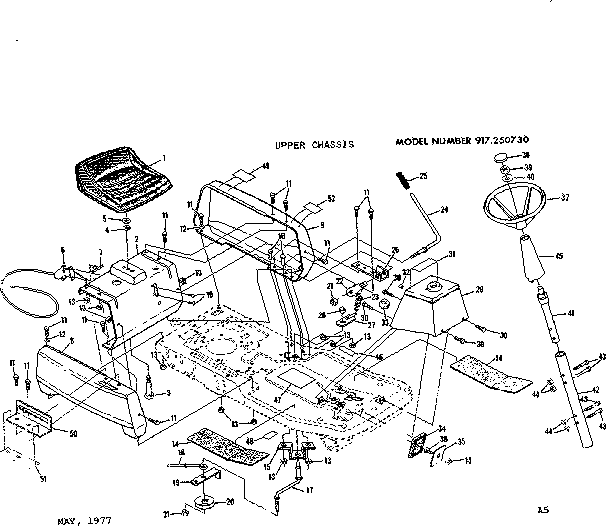

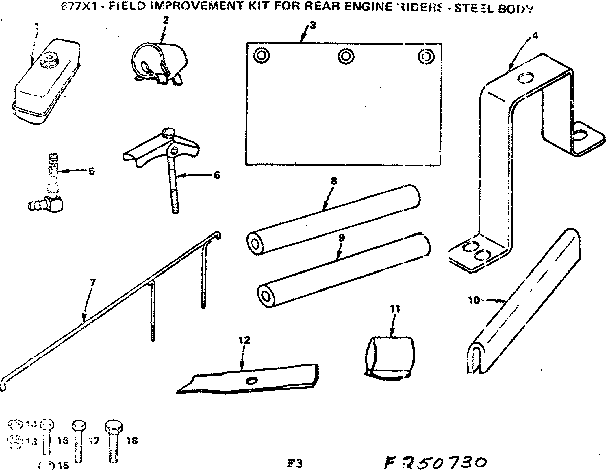

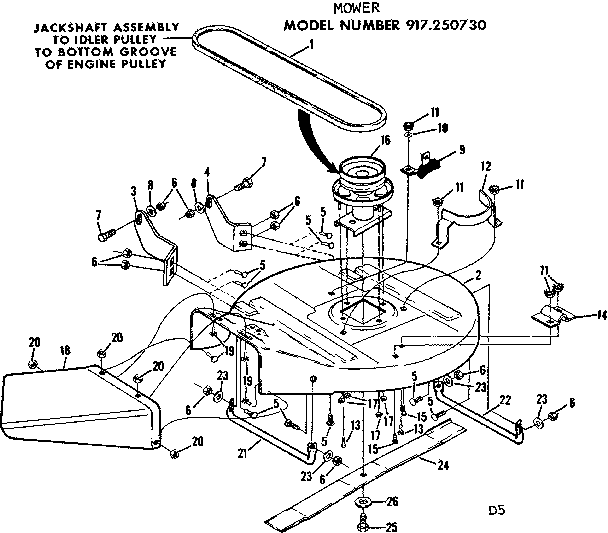

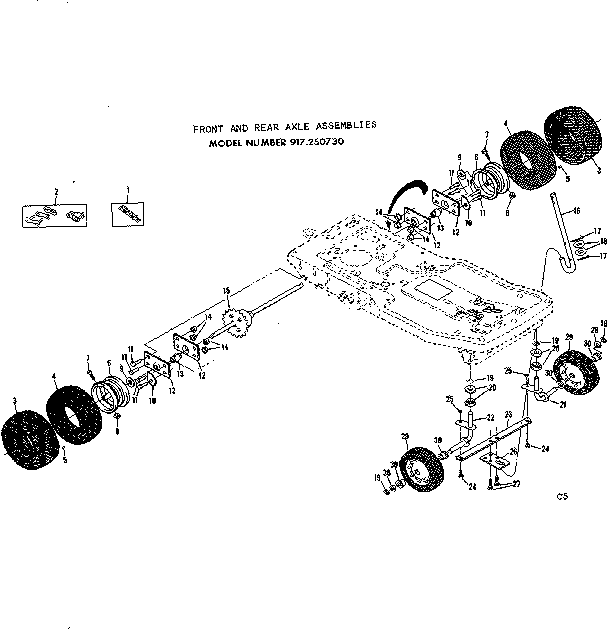

Replacement parts diagram
Chain
Part #786062Replaced by #786062A
Manufacturer substitutionThis part replaces 786062. Substitute parts can look different from the original.In Stock$27.29
Qty
Replacement parts diagram
Pinion
Part #778113Replaced by #778113A
Manufacturer substitutionThis part replaces 778113. Substitute parts can look different from the original.In Stock$32.4516% OFF Phone Price : $38.45

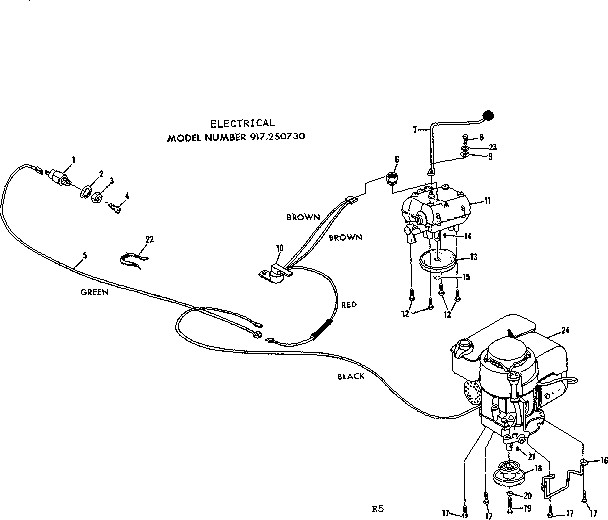

QtyElectrical diagram
Nut
Part #67759Replaced by #532124211
Manufacturer substitutionThis part replaces 67759. Substitute parts can look different from the original.In Stock$10.4916% OFF Phone Price : $12.49QtyReplacement parts diagram
Washer
Part #780109Replaced by #780109
Manufacturer substitutionThis part replaces 780109. Substitute parts can look different from the original.This item is not returnableIn Stock$4.60QtyReplacement parts diagram
Shaft
Part #776134Replaced by #776134
Manufacturer substitutionThis part replaces 776134. Substitute parts can look different from the original.In Stock$82.93QtyReplacement parts diagram
Sprocket
Part #786060Replaced by #786060
Manufacturer substitutionThis part replaces 786060. Substitute parts can look different from the original.In Stock$18.14QtyReplacement parts diagram
Gear
Part #778122Replaced by #778122A
Manufacturer substitutionThis part replaces 778122. Substitute parts can look different from the original.In Stock$33.04QtyReplacement parts diagram
Gear
Part #778129Replaced by #778129A
Manufacturer substitutionThis part replaces 778129. Substitute parts can look different from the original.In Stock$31.13QtyReplacement parts diagram
Key
Part #792089AReplaced by #792089B
Manufacturer substitutionThis part replaces 792089A. Substitute parts can look different from the original.In Stock$34.0315% OFF Phone Price : $40.03QtyReplacement parts diagram
Spring
Part #792079Replaced by #792079
Manufacturer substitutionThis part replaces 792079. Substitute parts can look different from the original.This item is not returnableIn Stock$3.8521% OFF Phone Price : $4.85Qty
