Kenmore Elite 66512776K314 dishwasher Parts

On the Kenmore Elite dishwasher model 66512776K314, the model number is printed on the rating label located just inside the door, typically along the left-hand side of the tub opening. Use that exact model number when ordering parts or checking instructions in the 66512776K314 owner's manual.

Where to look (fast checklist)

• Open the dishwasher door fully.
• Look along the inner edge of the tub opening (not the outer decorative door).
• Check the left-hand side first.
• Find the rating label (often a white or silver sticker/plate).
• Record both the model number and serial number.

What the label helps you do

Having the correct model number lets us match the right Kenmore parts and instructions for your exact build.

You need	Why it matters	Example for this page
Model number	Ensures correct part fit and diagrams	66512776K314
Serial number	Helps identify production variation	Printed on the same label
Brand line	Confirms product family	Kenmore Elite

If the label is hard to read

• Wipe the label gently with a damp cloth and dry it.
• Use a flashlight at an angle to reduce glare.
• Take a close-up photo and zoom in.
• If the label is damaged, use the model family shown in the 66512776K314 owner's manual to confirm you are in the right series.

Why it matters

Kenmore dishwashers can look similar across series, but parts like a door latch, rack adjuster, or drain pump can vary by model. Using the exact model number prevents wrong-part returns and speeds up troubleshooting.

Last updated: January 2026

To hard reset the Kenmore Elite dishwasher model 66512776K314, we reset the control by pressing and holding CANCEL/DRAIN twice, then selecting a new cycle and pressing START/RESUME to restart. This clears the current cycle and returns the control to a fresh start (see the 66512776K314 owner's manual).

Hard reset steps (control reset)

• Open the door slightly to pause the cycle; wait for spraying to stop.
• Open the door fully.
• Press and hold CANCEL/DRAIN twice to reset the control.
• Check the detergent dispenser: if it opened, refill detergent before restarting.
• Select the new cycle and options.
• Press START/RESUME and close the door.

If the dishwasher is unresponsive

These quick checks often restore operation without replacing parts:

• Make sure the door is fully closed and latched.
• Confirm the unit has power (breaker on, outlet powered).
• If water is standing in the tub, let the Cancel/Drain drain cycle finish (about 2 minutes).
• If the control panel lights flash after choosing an option, reselect a valid option for that cycle.

What to expect after a reset

What you see	What it means	What we do next
Cancel/Drain light turns on	Reset and drain sequence started	Close door and wait
Water drains out	Control is clearing the cycle	Let it finish completely
Cancel/Drain light turns off (about 2 minutes)	Reset is complete	Choose cycle, press Start

Why it matters

A hard reset clears a stuck cycle, cancels a drain condition, and helps recover from control confusion after a door opening or invalid option selection. If the door will not latch consistently, the dishwasher may not start until the latch is corrected (see dishwasher door latch WPW10653840).

Last updated: January 2026

On Kenmore Elite dishwasher model 66512776K314, the Start/Resume button usually will not respond when the controls are locked, the door is not fully latched, or the cycle is paused after the door was opened. Restoring normal operation typically takes a quick unlock, re-latch, and Start/Resume sequence from the 66512776K314 owner's manual.

Quick checks that fix most “Start button not working” issues

• Control Lock is on: When Locked is lit, all buttons are disabled and the dishwasher cannot start.
• Door not fully closed/latched: The dishwasher will not run unless the door is closed and latched.
• Start/Resume is blinking: Press START/RESUME and close the door within 3 seconds.
• Door opened during Delay start: If the door is opened for more than 5 seconds, press START/RESUME again to resume the delay countdown.
• Power interruption: Check the breaker or fuse; restore power, then reselect the cycle and press Start/Resume.

How to unlock and restart (model 66512776K314)

1. If Locked is lit, press and hold TOP RACK ONLY for 3 seconds to turn Control Lock off.
2. Select your wash cycle and options.
3. Press START/RESUME, then close the door firmly.

If the door won’t “click” shut

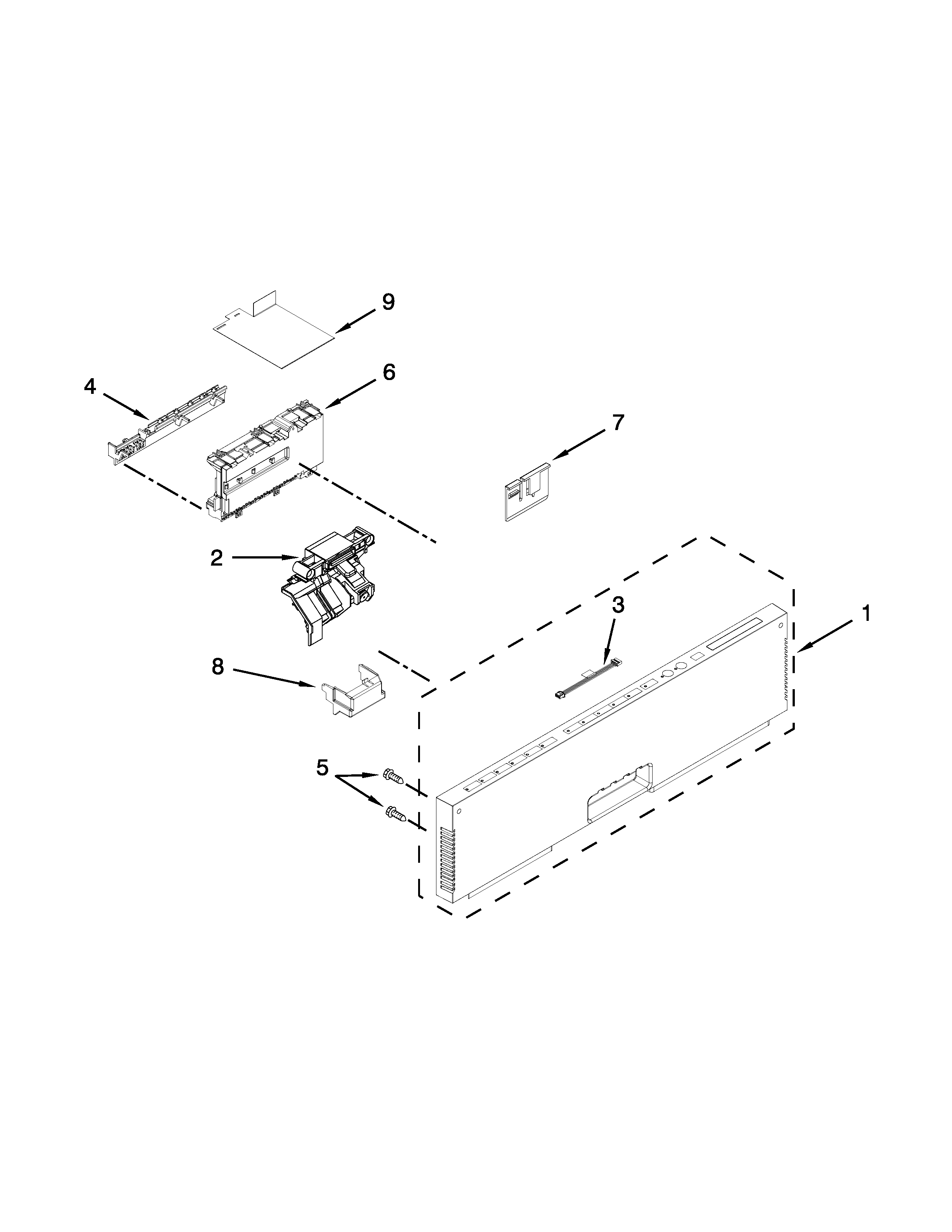

A worn latch can prevent the control from accepting Start. If the door feels loose or pops open, replacing the dishwasher door latch WPW10653840 is the most direct fix.

What the lights mean (fast reference)

What you see	What it usually means	What to do
Locked light on	Controls disabled	Hold TOP RACK ONLY 3 seconds
Start/Resume blinking	Needs a resume command	Press START/RESUME and close door within 3 seconds
Other lights blinking and won’t run	Control detected a fault	Follow troubleshooting steps in the manual

Why it matters

The Start/Resume circuit is designed to prevent running with an unlatched door or unintended button presses. Fixing the lock, latch, or resume condition prevents no-start complaints and avoids mid-cycle interruptions.

Last updated: January 2026

Common problems on Kenmore dishwashers like model 66512776K314 include not starting, not filling, not draining (water left in the tub), poor drying, long cycles, hard-water residue, odors, and noisy operation. Many of these trace back to door-latch issues, drain restrictions, loading interference, or maintenance needs outlined in the 66512776K314 owner's manual.

Most common symptoms and what usually causes them

• Won’t start or stops mid-cycle: door not fully latched, Start/Resume timing, power issue, or control lock.
• Water remains in tub / won’t drain: kinked drain hose, disposer knockout plug not removed, or food obstruction in drain/disposer.
• Won’t fill: household water supply issue or a failed inlet valve.
• Poor drying: rinse aid not used, cycle selection, or a heating problem.
• Hard-water film or spots: very hard water, not enough detergent, no rinse aid, filters not cleaned.
• Odors: buildup in filters and sump area, infrequent cleaning.

Quick checks we recommend first (fast, no tools)

1. Press START/RESUME and close the door within 3 seconds if the Start/Resume light is blinking.
2. Confirm the door closes without interference from tall items in the back of the rack.
3. Check the breaker or fuse if the dishwasher is completely dead.
4. If it won’t drain, inspect for a kinked drain hose and disposer connection issues.
5. For spotting, use rinse aid and clean the filters at least monthly.

Parts that commonly fix these problems

Symptom	Common part involved	Example part for this model
Won’t start	Door latch/switch not engaging	Dishwasher door latch WPW10653840

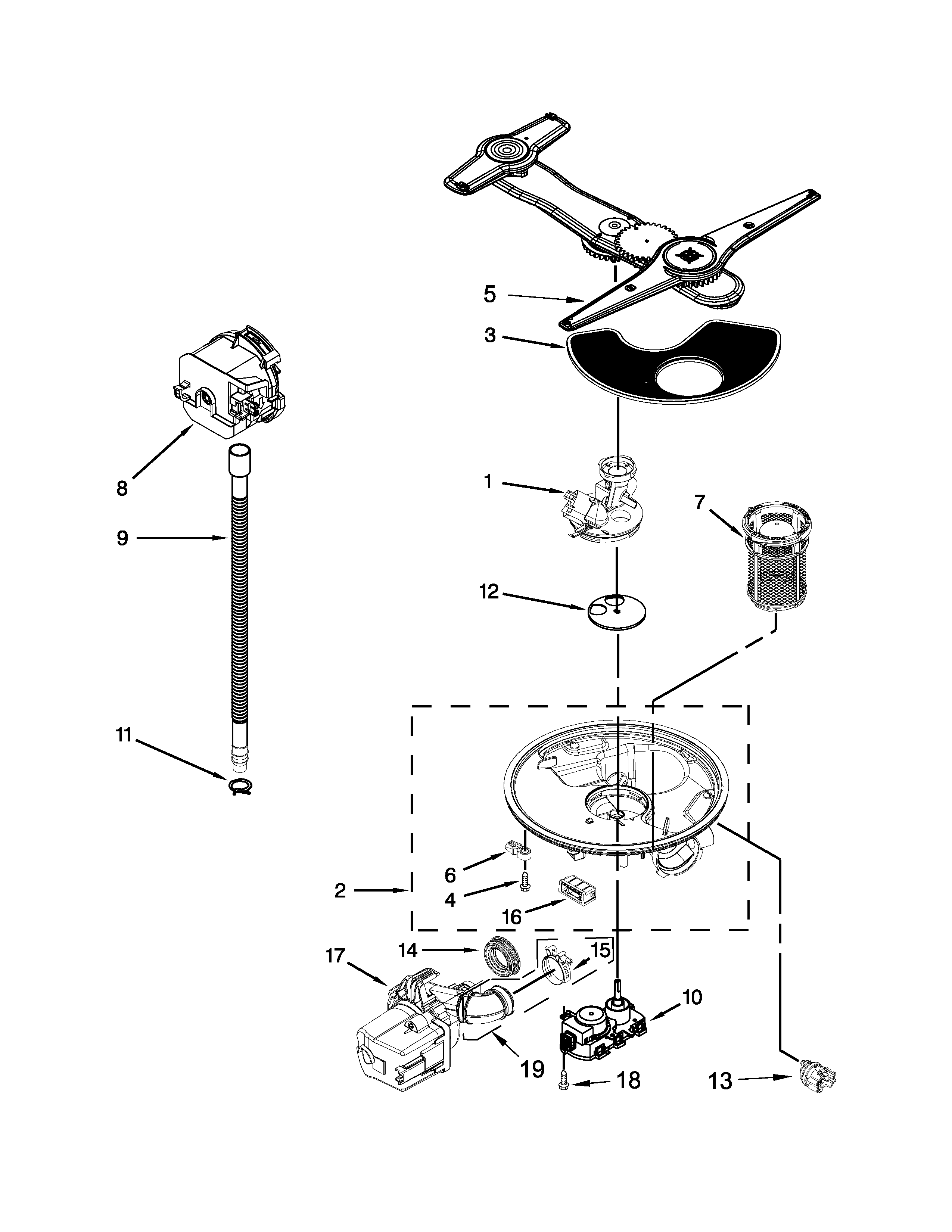

Won’t drain / water left	Drain pump weak or jammed	Dishwasher drain pump WPW10531320

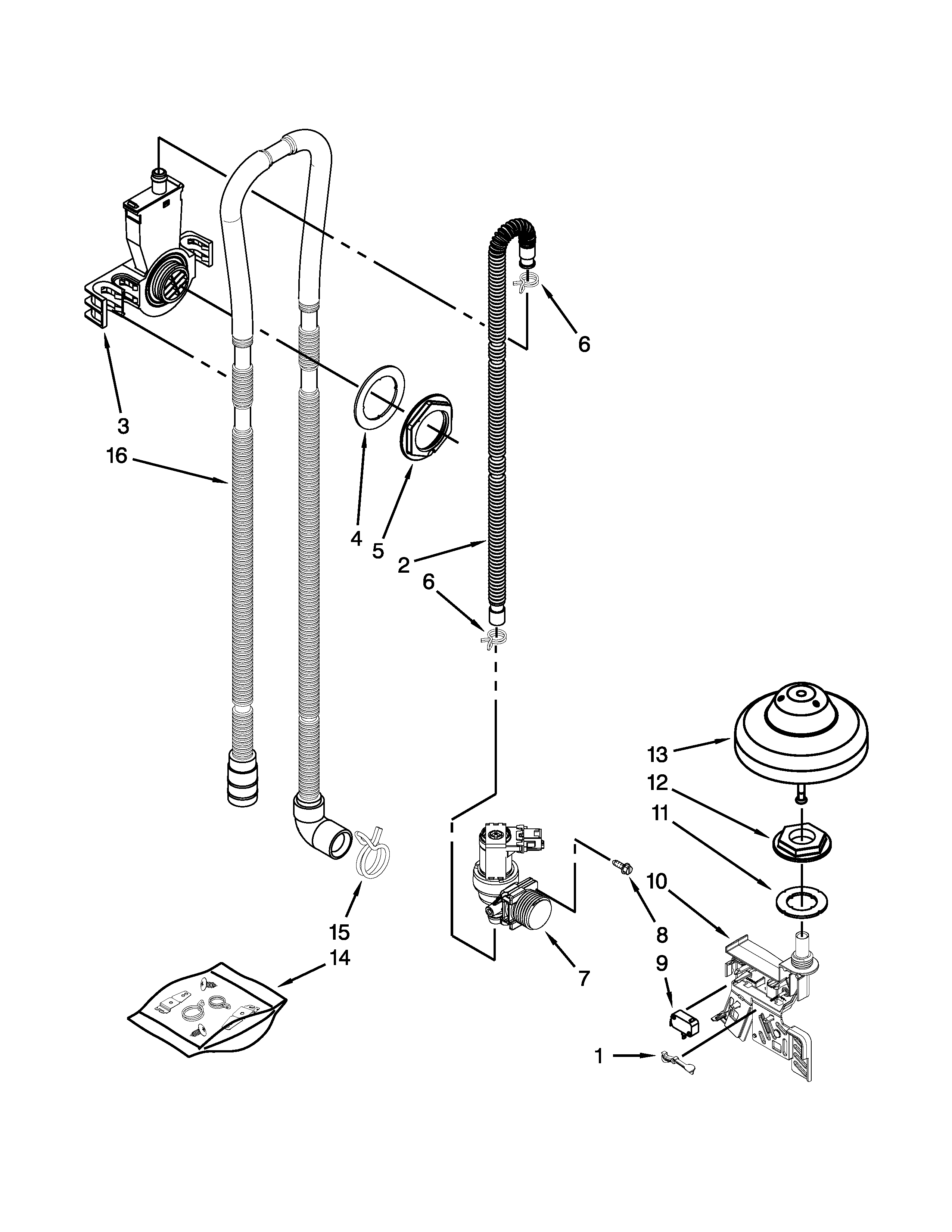

Won’t fill	Water inlet valve not opening	Dishwasher water inlet valve WPW10327249

Why it matters

Catching a drain restriction, latch problem, or hard-water buildup early helps prevent repeat cycle failures, poor cleaning, and unnecessary wear on the pump and wash system.

Last updated: January 2026
