Kenmore 66513493N411 dishwasher Parts

To identify your Kenmore dishwasher model, we look for the rating label on the inside edge of the door. On model 66513493N411, that label lists the model number and serial number, which you can use to match the correct parts and manual.

Where to find the model number label

Check these common spots first (in order):

• Inside the dishwasher door, along the left or right inner edge
• Around the tub opening (the frame you see when the door is open)
• Along the top edge of the door (near the control panel area)
• On the side wall of the tub near the front

For the exact label location and how it is shown for your series, use the 66513493N411 owner's manual.

What to write down (and why)

Record both numbers exactly as printed:

• Model number (example format: 665.1349xxx)
• Serial number (used to confirm production run and compatible revisions)
• Brand (Kenmore)

Why it matters

The model number is what ensures you get the right fit for parts like a rack adjuster, drain pump, or water inlet valve. A close model number can still use different racks, spray arms, or control components.

Quick check: model number vs. serial number

Item	What it tells us	Used for
Model number	The exact dishwasher design family	Correct parts diagrams and part compatibility
Serial number	When and where it was built	Version changes within the same model

If the label is hard to read

Try these steps to make it legible:

• Wipe the label gently with a damp cloth and mild dish soap
• Use a flashlight at an angle to reduce glare
• Take a close-up photo and zoom in
• Copy the characters carefully (watch for 0 vs O, 1 vs I)

Last updated: February 2026

Yes, repairing a Kenmore dishwasher is worth it when the problem is a common wear item (like a latch, valve, pump, or rack hardware) and the tub is in good shape; for Kenmore model 66513493N411, many key parts are available and repairs often restore full cleaning and draining performance.

Quick way to decide

We use these checkpoints before spending money on parts or service:

• It’s worth repairing if the dishwasher fills, washes, and drains but has one clear failure (leak, no heat, won’t latch, poor spray).
• It’s worth replacing if the tub is damaged, the unit has repeated major failures, or multiple expensive assemblies are needed at once.
• Start with the basics in the 66513493N411 owner's manual to confirm the symptom and any troubleshooting steps.

Common repairs that usually make sense

These are frequent, targeted fixes that typically cost far less than replacement:

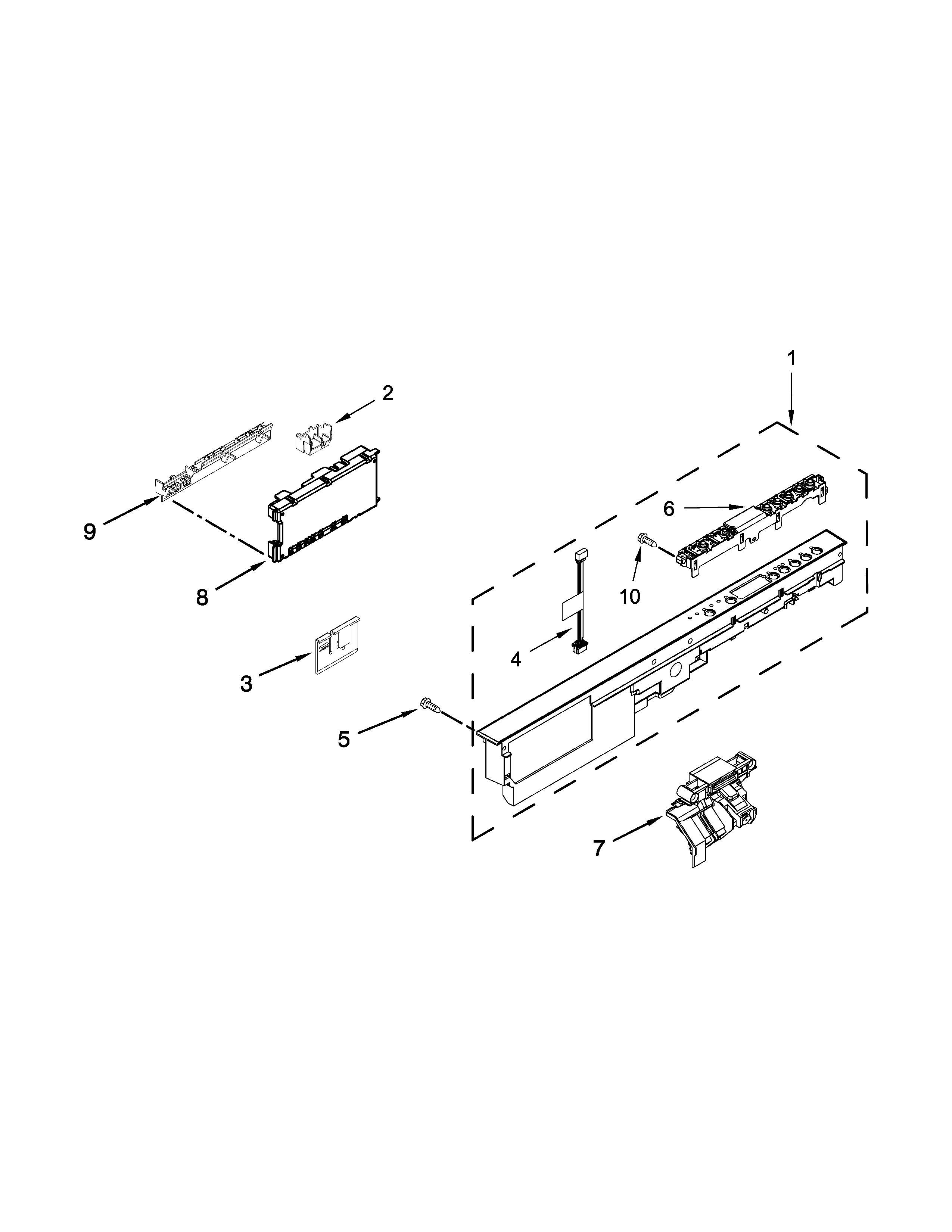

• Door won’t close or start: check the door latch (dishwasher door latch WPW10653840)
• Not draining or standing water: inspect the drain path and consider the drain pump
• Not filling or fills slowly: check the shutoff and the water inlet valve
• Poor cleaning on the bottom rack: clean spray arm ports and verify the lower spray arm spins freely
• Upper rack problems: broken adjusters or stops (rack hardware is a common wear area)

Parts examples for this model

Symptom	Likely area	Example part for 66513493N411
Won’t latch/start	Door switch/latch	Dishwasher door latch WPW10653840
No/poor drain	Drain pump, hose, air gap	Dishwasher drain pump WPW10348269
No heat/drying issues	Heater circuit	Element assembly W10518394
Upper rack won’t adjust	Rack adjusters	Dishwasher rack adjuster W10712395

Why it matters

A focused repair keeps your kitchen setup the same, avoids installation work, and gets you back to normal wash coverage (spray arm performance, heating, and proper draining) without replacing the entire appliance.

If you’re deciding based on an error code

Use the Kenmore 665 model dishwasher error codes guide to match the code to the most likely failure area before ordering parts.

Last updated: February 2026

For the Kenmore 66513493N411 dishwasher, the most commonly replaced parts are the ones that affect draining, washing performance, rack movement, and door closing. We typically see customers replace the drain pump, water inlet valve, heating element assembly, filters, and rack adjuster components; confirm symptoms and part locations in the owner's manual.

Commonly replaced parts for this model

These are frequent wear items or failure points that match common complaints like “won’t drain,” “not cleaning,” “not drying,” or “rack won’t slide”:

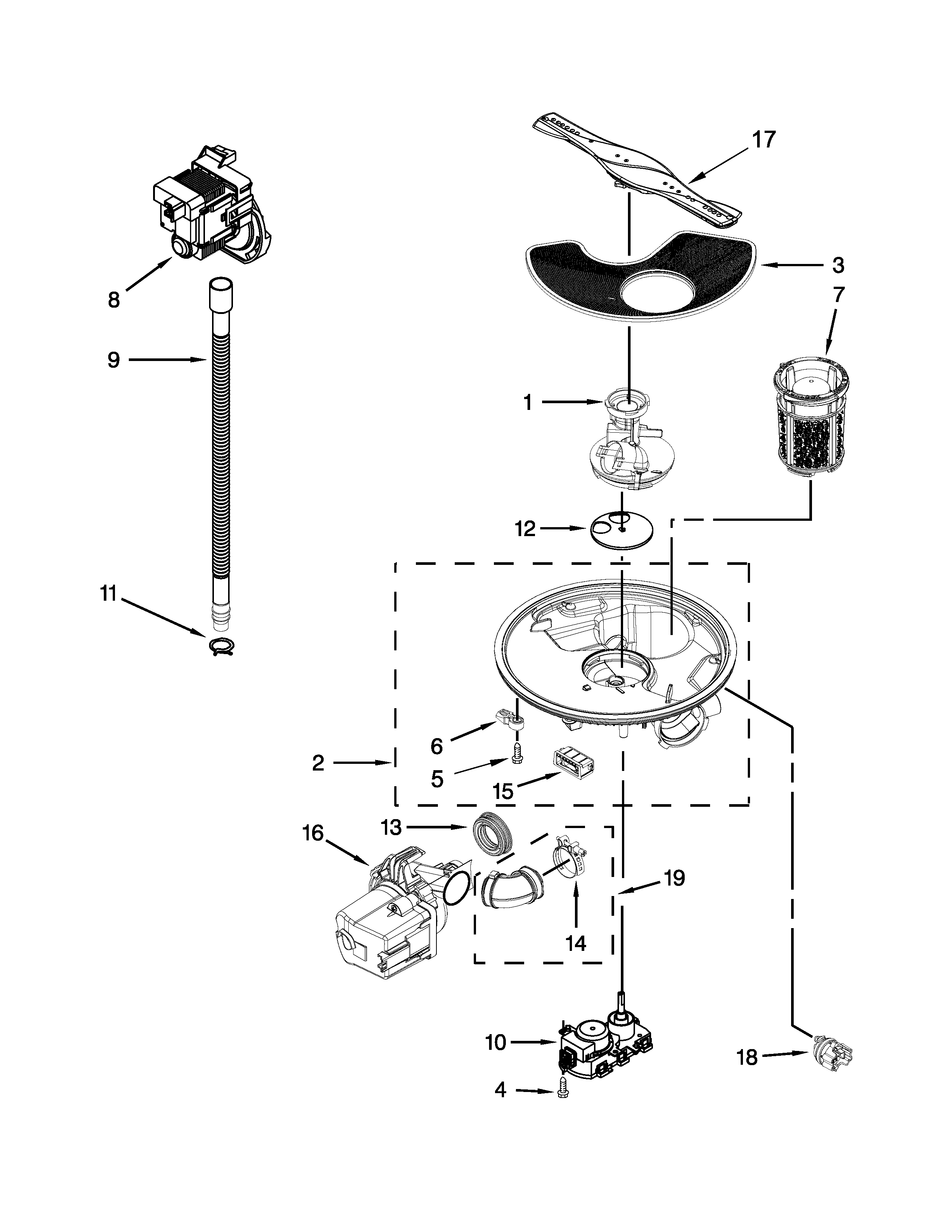

• Dishwasher drain pump WPW10348269 (standing water, slow drain, humming during drain)

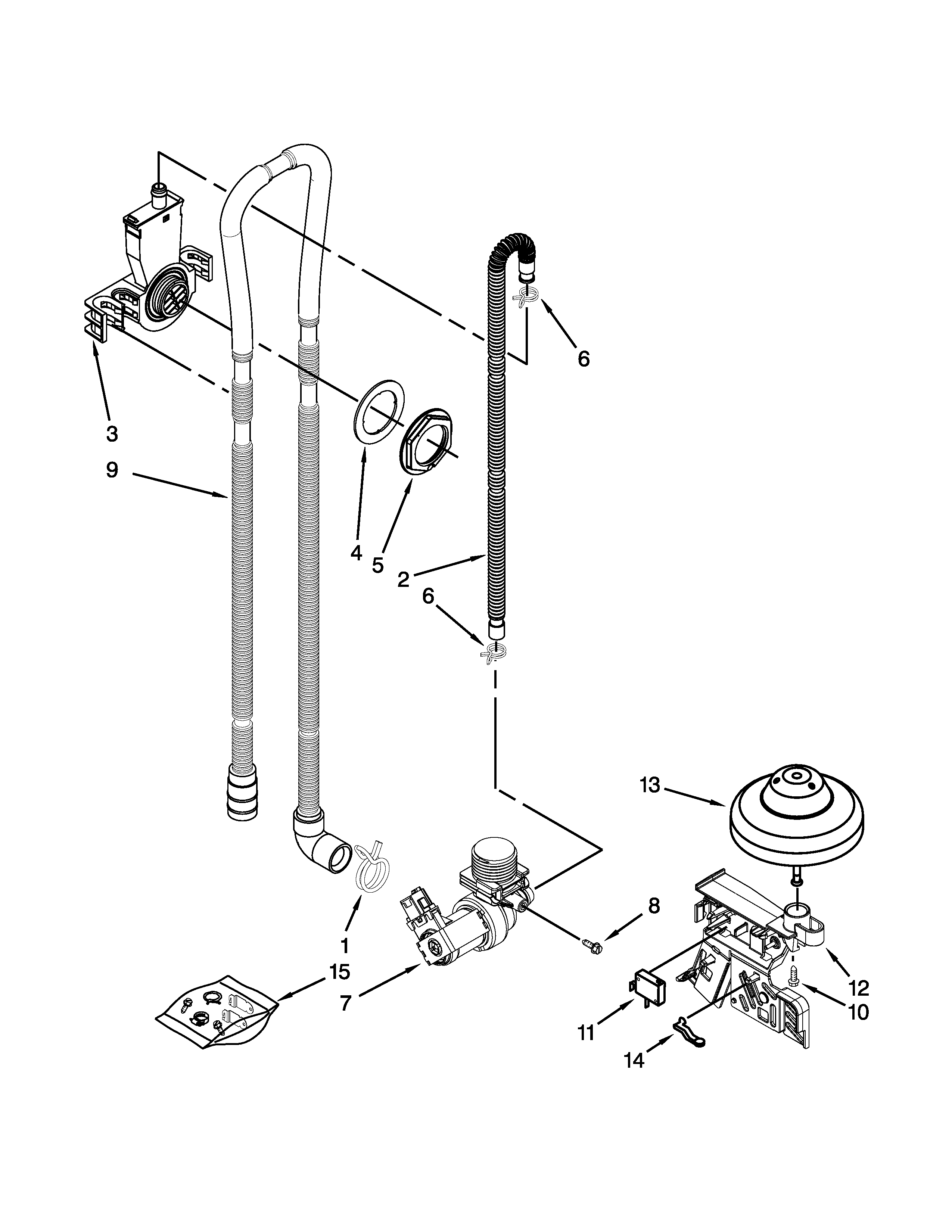

• Dishwasher water inlet valve W11175771 (no fill, weak fill, poor wash pressure)
• Element assembly W10518394 (poor drying, water not heating, long cycles)
• Dishwasher filter WPW10463906 (cloudy dishes, debris recirculating, odors)
• Dishwasher spray arm, lower W10849471 (poor cleaning, no spray pattern, clogged jets)

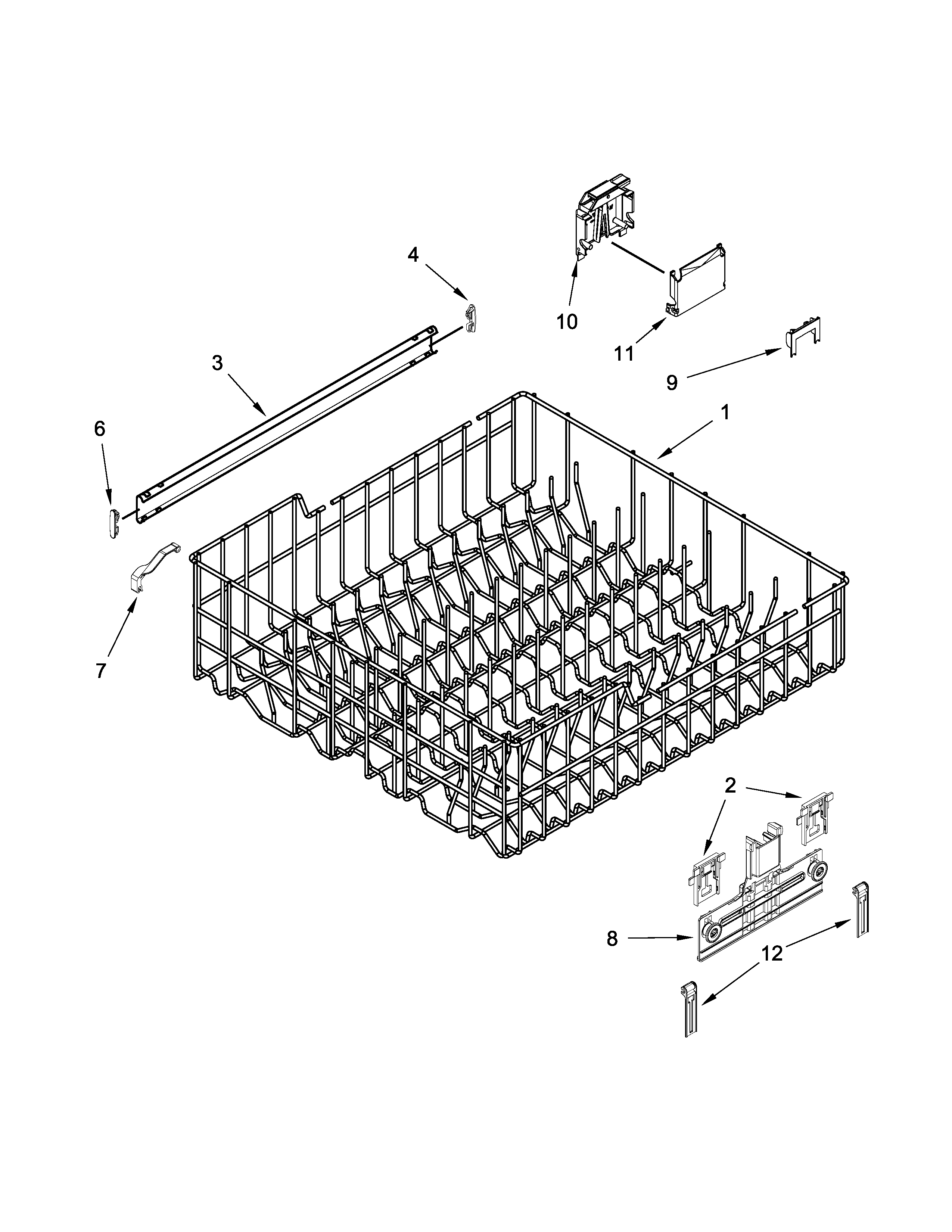

• Dishwasher rack adjuster W10712395 (upper rack drops, won’t adjust height)

Quick symptom-to-part guide

Symptom	Most likely part(s) to check	What you’ll notice
Won’t drain	Drain pump, drain hose	Water left in tub after cycle
Not filling	Water inlet valve	Little or no water at start
Not drying or heating	Element assembly	Dishes wet, cool water
Poor cleaning	Filter, lower spray arm, diverter motor	Food left on dishes
Door won’t latch	Door latch	Cycle won’t start or stops

Why these parts matter

Dishwashers rely on correct water fill, strong circulation, proper filtration, and reliable draining. When one of these systems is restricted or failing, you get repeat issues like dirty dishes, odors, leaks, or a dishwasher that stops mid-cycle.

Before you order a part

We recommend these fast checks first because they often solve the problem without replacing anything:

• Clean the filter and sump area; remove labels, glass, and food debris.
• Check the lower spray arm holes for clogs and confirm it spins freely.
• Verify the drain hose routing (no kinks, proper high loop) and clear the disposer inlet if newly installed.
• Make sure the door closes firmly; a weak latch can prevent starting.
• If you see an error code, match it to the troubleshooting steps in the manual.

Last updated: March 2026
