Model # MC17S5GTNA Official Gibson dehumidifier - g188115

Here are the diagrams and repair parts for Official Gibson MC17S5GTNA dehumidifier - g188115, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Protector WE711401
#5

Compressor parts diagram

Protector

Part #WE711401

Replaced by #3017698

?
Manufacturer substitution
This part replaces WE711401. Substitute parts can look different from the original.
$26.49
In Stock
Protector WE711501
#6

Compressor parts diagram

Protector

Part #WE711501

Replaced by #3017698

?
Manufacturer substitution
This part replaces WE711501. Substitute parts can look different from the original.
$26.49
In Stock
Switch-on/of W243C320H01

#NI

All parts diagram

Switch-on/of

Part #W243C320H01

Replaced by #5303012345

?
Manufacturer substitution
This part replaces W243C320H01. Substitute parts can look different from the original.
$39.35
In Stock
Switch-auto WE643101
#20

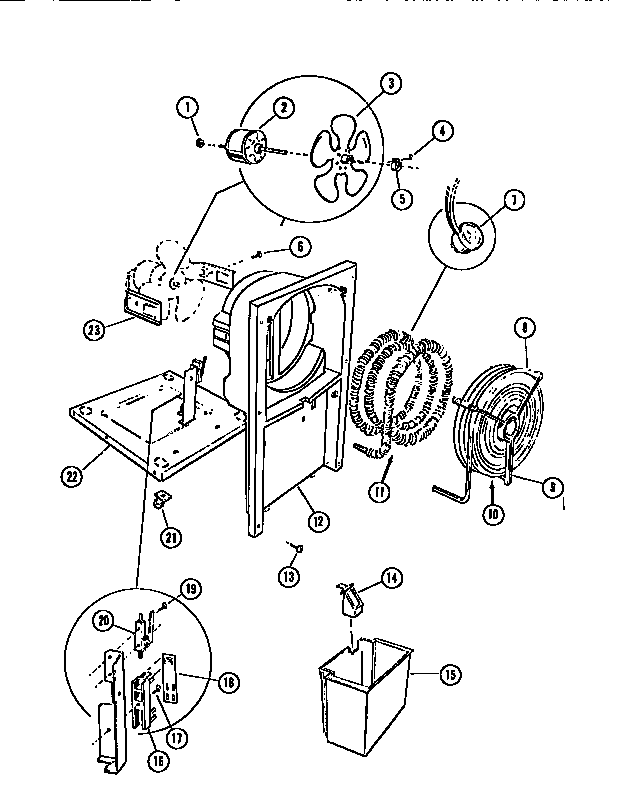

Air, water & condensing parts diagram

Switch-auto

Part #WE643101

The manufacturer no longer makes this part, and there's no substitute part

Clamp Evaporator WE807801
#9

Air, water & condensing parts diagram

Clamp evaporator

Part #WE807801

The manufacturer no longer makes this part, and there's no substitute part

Trim W743B516H01
#1

Cabinet & control parts diagram

Trim

Part #W743B516H01

The manufacturer no longer makes this part, and there's no substitute part

Cover - Terminal W243C036H01
#8

Compressor parts diagram

Cover - terminal

Part #W243C036H01

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube WA112122

#NI

All parts diagram

Capillary tube

Part #WA112122

The manufacturer no longer makes this part, and there's no substitute part

Plate WE810104
#7

Cabinet & control parts diagram

Plate

Part #WE810104

The manufacturer no longer makes this part, and there's no substitute part

Block WE642402
#16

Air, water & condensing parts diagram

Block

Part #WE642402

The manufacturer no longer makes this part, and there's no substitute part
