Kenmore 1197488882 gas range

Kenmore 1197488882 gas range Parts

Here are the diagrams and repair parts for Kenmore 1197488882 gas range, as well as links to manuals and error code tables, if available.

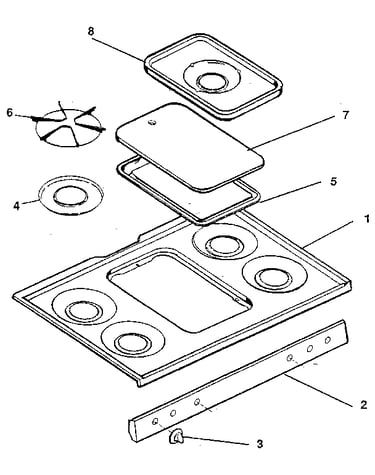

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for 1197488882 Ranges

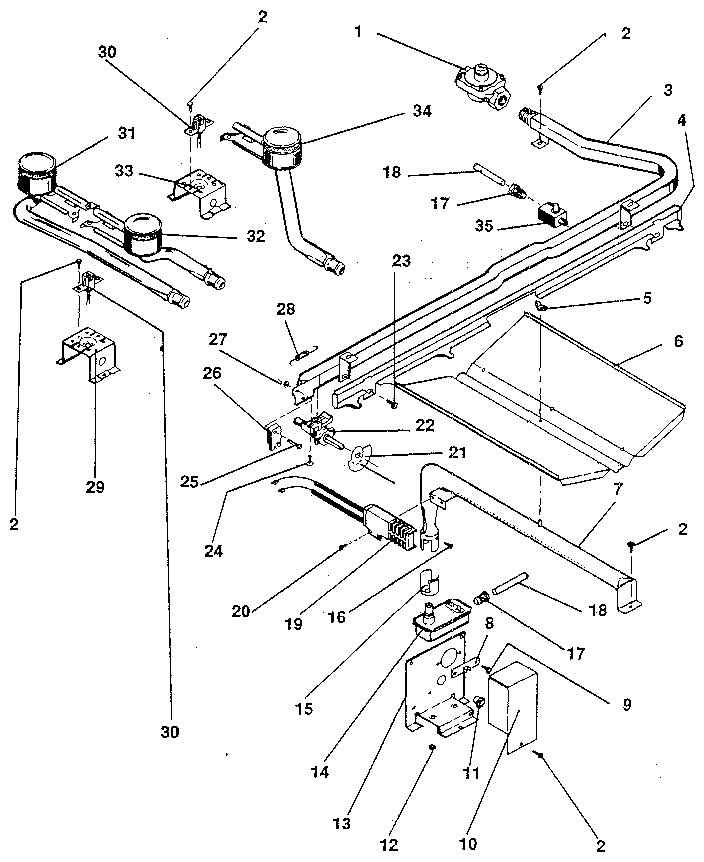

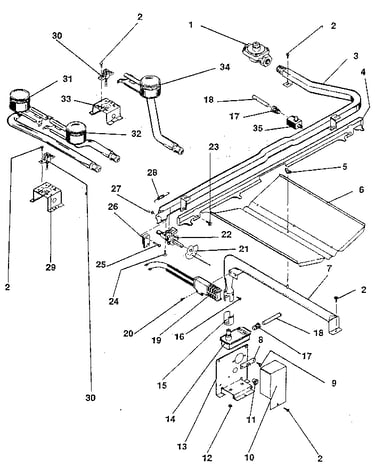

Oven & top burners section diagram
Igniter
Part #5308009420
Replaced by #5303935066
Manufacturer substitution
This part replaces 5308009420. Substitute parts can look different from the original.
In Stock
$21.50
22% OFF Phone Price : $27.50
Qty

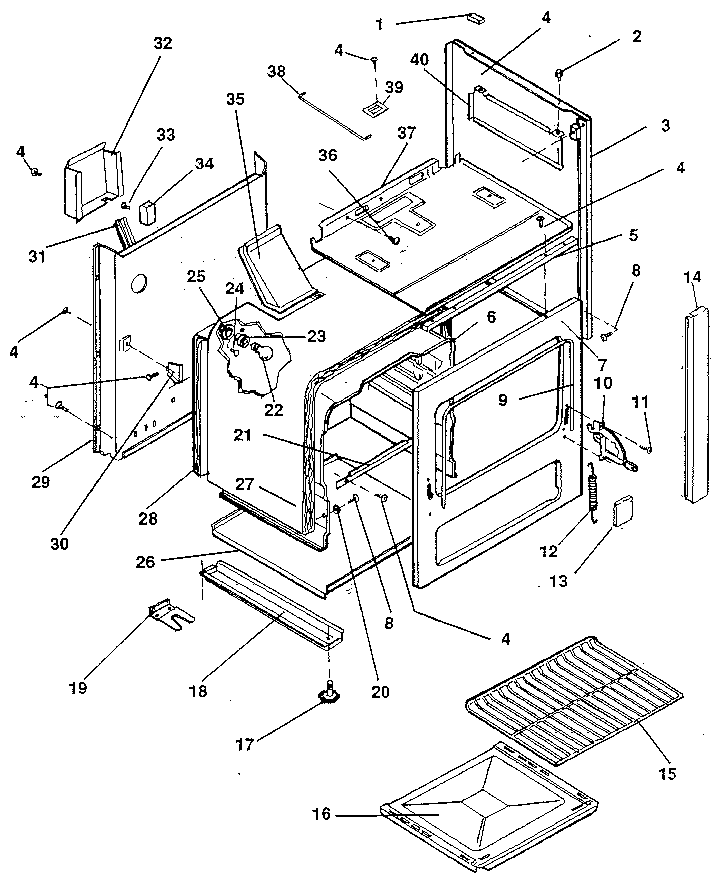

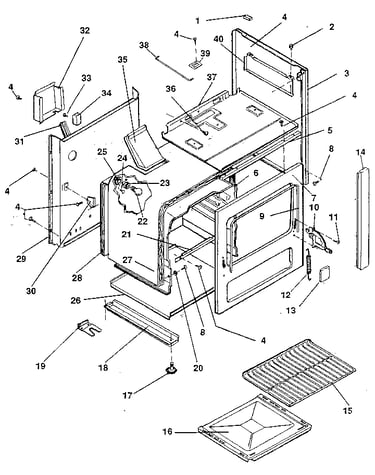

Body section diagram
Range Oven Light Bulb
Part #5303013071
Replaced by #316538904
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
In Stock
$18.45
10% OFF Phone Price : $20.45
Qty
Body section diagram
Receptacle
Part #5303009410
Replaced by #316116400
Manufacturer substitution
This part replaces 5303009410. Substitute parts can look different from the original.
In Stock
$51.09
11% OFF Phone Price : $57.09
Qty

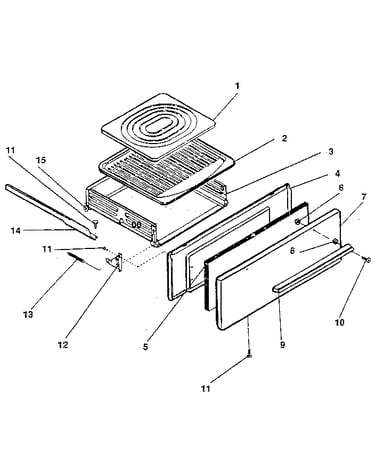

Broiler section diagram
Track
Part #5303051056
In Stock
$130.78
Qty
Oven & top burners section diagram
Range Pressure Regulator
Part #5308007974
In Stock
$213.00
5% OFF Phone Price : $225.00
Qty

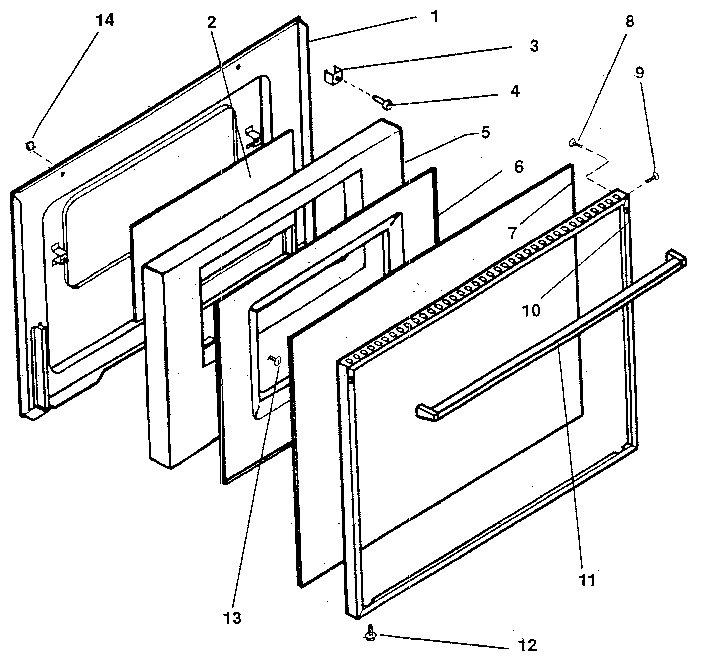

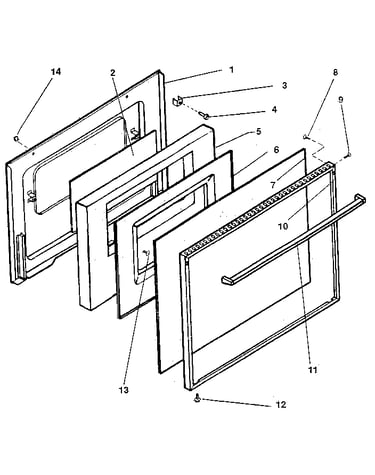

Oven door diagram
Screw
Part #5303131767
Replaced by #134156200
Manufacturer substitution
This part replaces 5303131767. Substitute parts can look different from the original.
This item is not returnable
In Stock
$39.22
Qty
Body section diagram
Shield
Part #5303131054
In Stock
$43.02
Qty

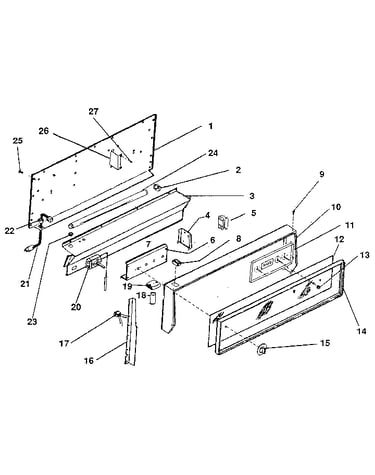

Backguard diagram
Range Analog Clock Knob
Part #3205788
In Stock
$96.08
Qty
Oven & top burners section diagram
Nut
Part #5303131064
In Stock
$41.38
Qty
Oven & top burners section diagram
Range Gas Shut-off Valve
Part #5303131099
In Stock
$110.98
Qty

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

Why isn't my range working?

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
