Kenmore 10658582891 side-by-side refrigerator Parts

On Kenmore side-by-side refrigerator model 10658582891, the model number is printed on the model and serial number label on the side wall inside the fresh food (refrigerator) compartment. The exact location is shown in the Parts and Features section of the 10658582891 owner's manual.

How to find the label quickly

• Open the refrigerator (fresh food) door, not the freezer door
• Look along the inside side wall near the front edge
• Check around the crisper and meat pan area where labels are commonly placed
• Use a flashlight; the label can be easy to miss in low light
• Write down both the model number and serial number exactly as shown

What you will see on the label

Most Kenmore refrigerators list both identifiers together. Use this table to know what to record:

Item on label	What it’s used for	Example format
Model number	Matching parts and diagrams to your exact unit	10658582891
Serial number	Identifying production details for service and records	Letters and numbers

Why it matters

We use the model number to match the correct parts for your exact refrigerator configuration (for example, the correct water filter, ice maker, or door gasket). Even small model differences can change which parts fit.

Last updated: February 2026

For Kenmore side-by-side refrigerator model 10658582891, the most reliable way to confirm cubic feet is to check the rating plate and the specifications section in the 10658582891 owner's manual. If you cannot access the rating plate, you can calculate an accurate estimate by measuring the interior and converting cubic inches to cubic feet.

Fast ways to find the capacity

• Check the rating plate: Look inside the fresh food compartment (often on a side wall) or behind the toe grille (kick plate). Capacity is commonly listed as “Cu. Ft.” or “Total volume.”
• Use the manual specs: The 10658582891 owner's manual is the best place to confirm the published capacity for your exact model.
• Measure and calculate: Useful if labels are missing or unreadable.

How to calculate cubic feet (simple method)

1. Empty the compartment enough to measure.
2. Measure the usable interior of the refrigerator section: height, width, depth (in inches).
3. Multiply: H x W x D = cubic inches.
4. Convert: cubic inches ÷ 1728 = cubic feet.

Quick conversion table

What you have	What to do	Result
Interior dimensions in inches	Multiply H x W x D	Cubic inches
Cubic inches	Divide by 1728	Cubic feet

What to measure (so your estimate is realistic)

• Measure inside wall to inside wall, not the outside cabinet.
• Measure to the front edge of shelves/bins, not to the door gasket.
• If shelves, ice bin, or crisper assemblies take up space, your calculated number reflects usable space, not marketing capacity.

Why it matters

Knowing cubic feet helps us match the right storage accessories and maintenance items, and it is especially useful when planning food storage, comparing refrigerator sizes, or estimating freezer needs during a power outage (the manual references dry ice amounts per cubic foot of freezer space).

Last updated: February 2026

Kenmore refrigerators with model numbers that start with 106 are Whirlpool-built; your Kenmore 10658582891 is in that Whirlpool-manufactured family. This matters because parts, layouts, and troubleshooting steps often follow Whirlpool design conventions for the same platform.

How to tell who built a Kenmore refrigerator

Kenmore uses a prefix system; the first three digits of the model number are the quickest identifier.

• Look at the model tag inside the fresh food section (usually on a side wall)
• Use the first three digits as the manufacturer prefix
• Match the prefix to the common builder family
• Then use the full model number to select exact parts (shelves, ice maker, water filter, gaskets)

Common Whirlpool-built Kenmore prefixes

These prefixes are widely used for Whirlpool-manufactured Kenmore appliances (including many refrigerators):

Kenmore prefix	Common builder	What it helps with
106	Whirlpool	Parts compatibility and service approach
110	Whirlpool	Often laundry, sometimes referenced for builder ID
665	Whirlpool	Common on dishwashers and some kitchen products

Why it matters for parts and repairs

Knowing the builder helps you choose the right replacement parts and follow the right diagnostic flow. For example, Whirlpool-built side-by-side designs commonly use a cartridge-style water filter and a modular ice maker assembly.

If you are ordering parts for Kenmore 10658582891, start with the diagrams and part list for your exact model, then confirm the procedure in the owner's manual.

Parts that commonly come up on Whirlpool-built 106 refrigerators

• Water filter and housing (water taste, slow dispenser flow)

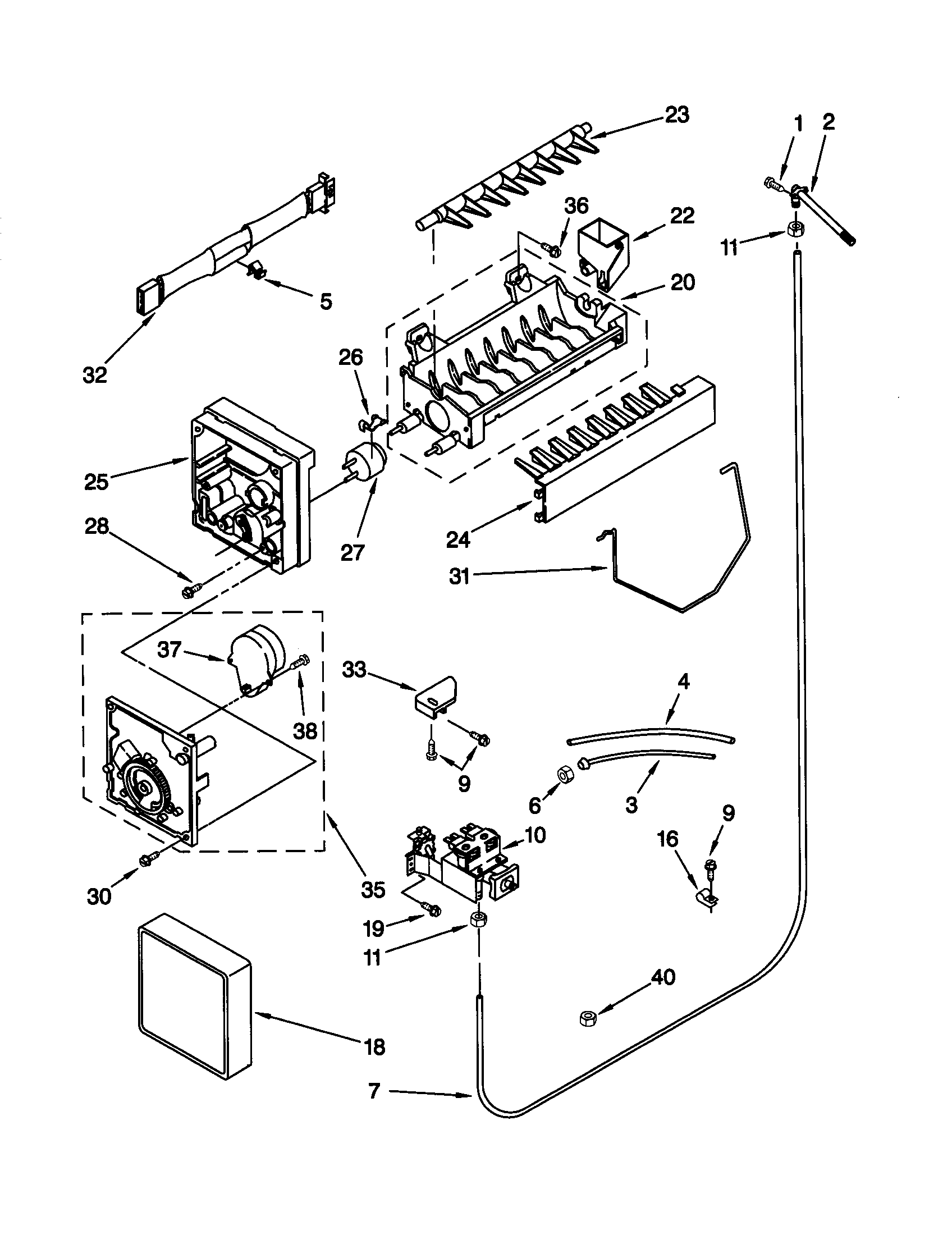

• Ice maker and ice bin (no ice, small cubes, jammed ice)
• Water inlet valve (no water to dispenser or ice maker)

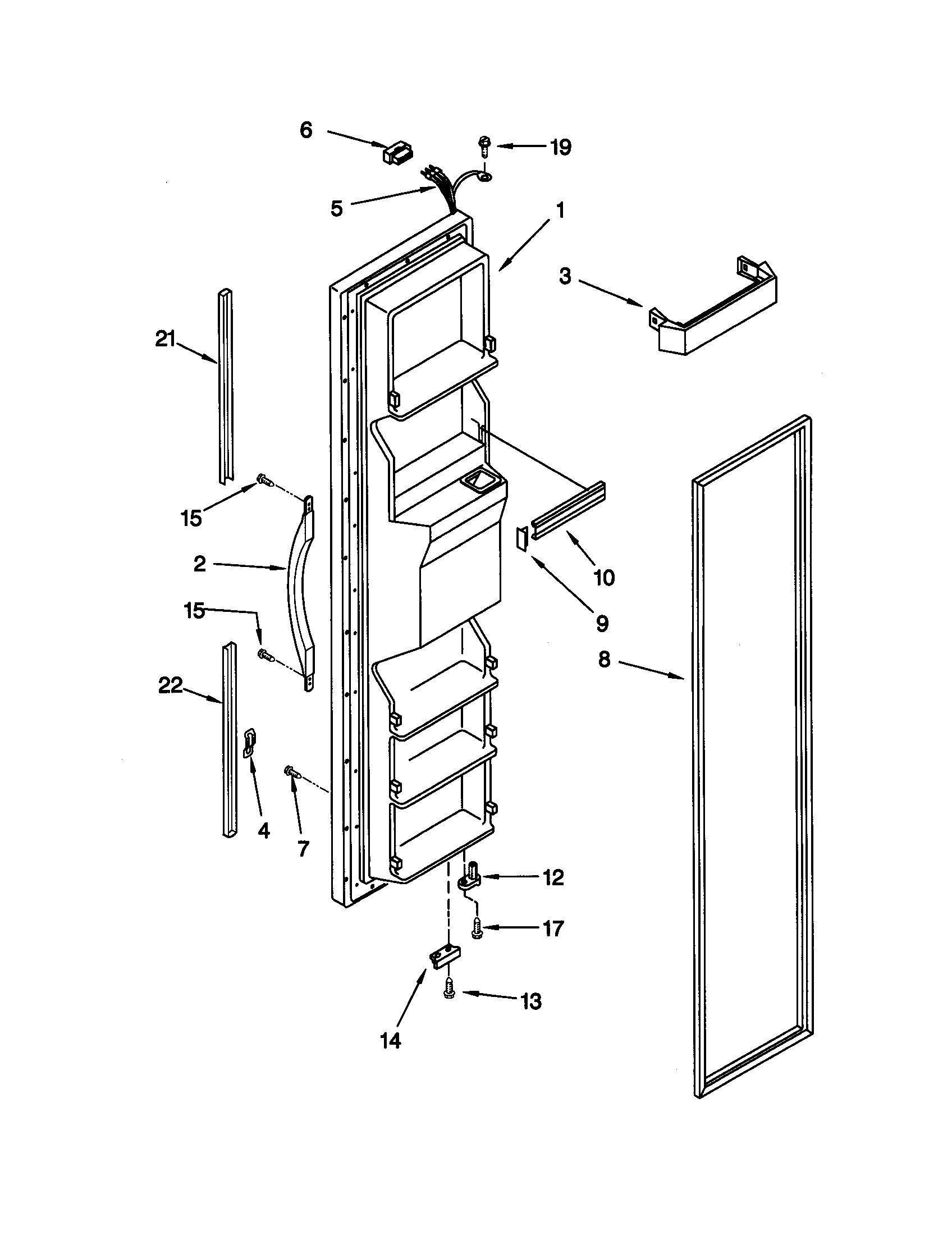

• Door gaskets and door closer cam (warm spots, sweating, doors not sealing)

Quick example for this model

If your water flow at the dispenser drops noticeably, a full or misinstalled filter is a common cause; replacing the refrigerator water filter EDR5RXD1 is a typical fix for this symptom.

Last updated: February 2026

A Kenmore side-by-side refrigerator model 10658582891 usually stops cooling because cold air is not circulating (blocked vents or door left open), the temperature controls are set incorrectly, or a cooling-system component such as the evaporator fan, condenser fan, or defrost system is not operating correctly. See the owner's manual for vent locations and control settings.

Quick checks we recommend first

• Confirm the refrigerator has power and the interior lights turn on.
• Make sure the temperature controls were not accidentally changed; adjust in small steps and wait 24 hours between changes.
• Check both compartments for blocked air vents; do not pack food in front of vents.
• Verify both doors close fully and seal all the way around.
• Listen for normal operating sounds (fan airflow, clicking during defrost, water valve buzz on ice maker fill).

Most common causes (and what to look for)

What you notice	Likely cause	What to do next
Freezer cold, fresh food warm	Airflow blocked or air balance set wrong	Clear vents; reset controls; wait 24 hours
Both sections warm	Fan not running, dirty condenser area, or sealed-system issue	Check for condenser fan airflow; clean coils; inspect for fan operation
Frost buildup, warming over time	Defrost problem	Check for heavy frost on freezer back wall; inspect defrost components
Warmer after loading groceries	Normal recovery time	Allow several hours to stabilize

Parts that commonly relate to “not cooling” symptoms

These parts are often involved when airflow or defrost issues cause warming:

• Refrigerator thermostat WP2198202 (control cycling and temperature regulation)
• Refrigerator defrost bi-metal WPW10225581 (defrost temperature sensing)
• Refrigerator heater WP2323198 (melts frost during defrost)

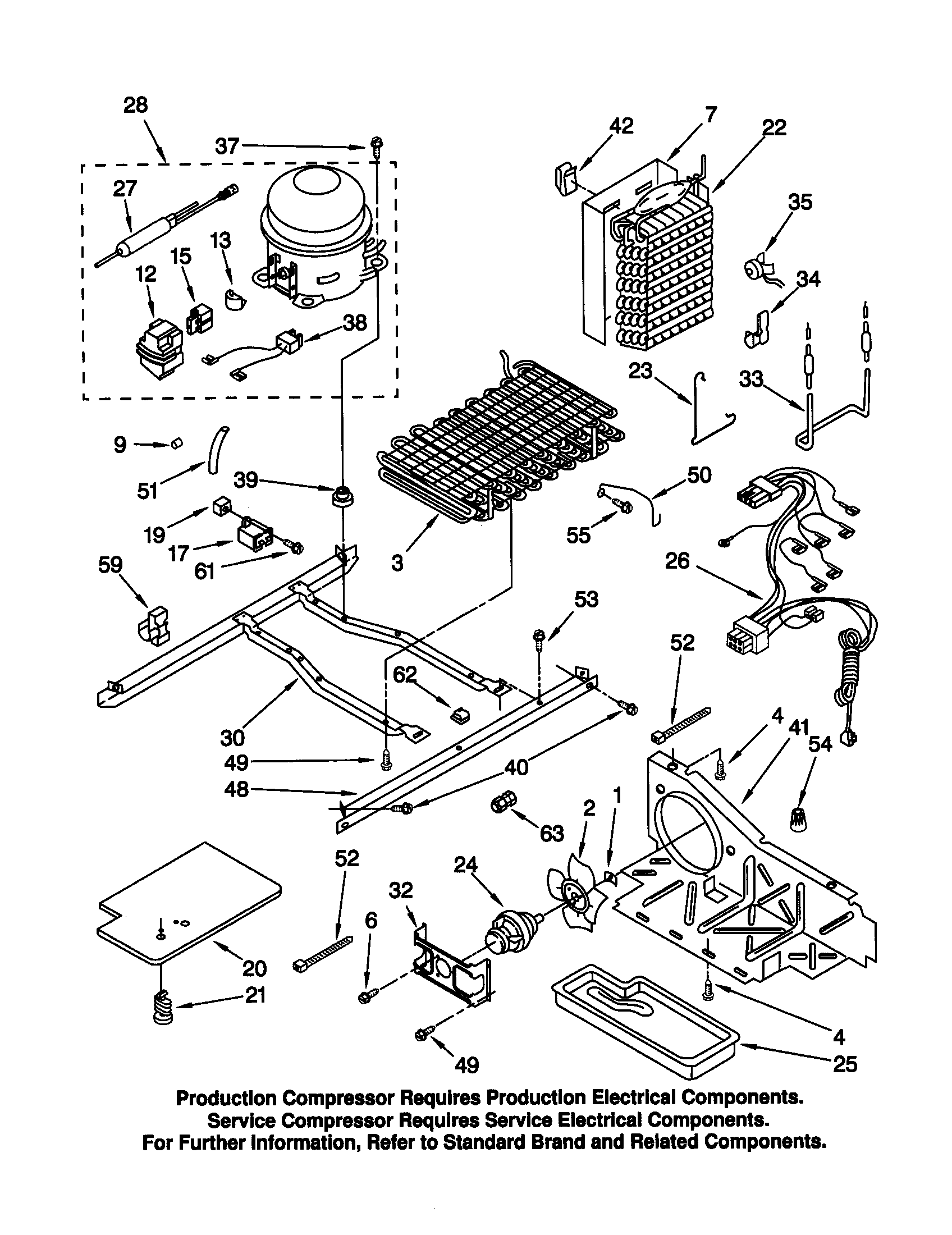

• Condenser motor W10822259 (moves air across the condenser coils)
• Refrigerator evaporator fan blade WP2169142 (helps circulate cold air inside)

Why it matters

This model relies on steady airflow between the freezer and refrigerator sections; when vents are blocked or a fan or defrost component fails, temperatures rise even if the compressor runs. Correct control settings and clear vents prevent many “stopped cooling” complaints.

Last updated: February 2026

For Kenmore model 10658582891 side-by-side refrigerators, the most common problems we see are weak or no cooling, ice maker not making ice, water dispenser or leak issues, excess frost from defrost problems, doors not sealing, and unusual noises. Many are caused by airflow restrictions, dirty condenser coils, or water supply issues.

Most common symptoms and what usually causes them

• Not cooling or warm temperatures: dirty condenser coils, controls not set for conditions, doors not fully closed, poor airflow inside
• Ice maker not producing ice: freezer not cold enough, ice maker shutoff arm in OFF position, water shutoff valve closed
• Water dispenser slow or no water: clogged water filter, restricted water line, weak inlet valve
• Water leaks or puddles: clogged/iced defrost drain, loose water line connections, cracked tubing
• Excess frost: defrost system issue (heater, defrost bi-metal, or defrost control), door left ajar
• Noisy operation: normal operating sounds, fan issues, or the unit running longer due to frequent door openings

Quick checks we recommend first (safe DIY)

1. Confirm both doors close fully and seal all the way around.
2. Clean the condenser coils (dust buildup makes the compressor work harder).
3. Verify temperature settings and allow 24 hours for temperatures to stabilize after changes.
4. If ice is the issue, confirm the freezer is cold enough and the shutoff arm is down.
5. Check the household water shutoff valve is fully open.

Parts that commonly solve these problems on model 10658582891

Problem area	Common fix	Example part for this model
Poor water flow, bad taste/odor	Replace filter	Refrigerator water filter EDR5RXD1
No ice, no water, weak fill	Test/replace inlet valve	Refrigerator inlet valve W10408179
Frost buildup, warm fridge section	Check defrost safety	Refrigerator defrost bi-metal WPW10225581
No ice production (mechanical failure)	Replace ice maker	Ice maker assembly 4317943

Why it matters

Cooling, ice, and water problems often share the same root causes: restricted airflow, dirty coils, or restricted water supply. Fixing those basics first prevents repeat failures and helps your Kenmore side-by-side refrigerator run more efficiently.

For model-specific operating details like control settings, cleaning steps, and ice maker operation, use the owner's manual.

Last updated: February 2026
