Kenmore 59661154101 refrigerator Parts
Here are the diagrams and repair parts for Kenmore 59661154101 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 59661154101 Refrigerators

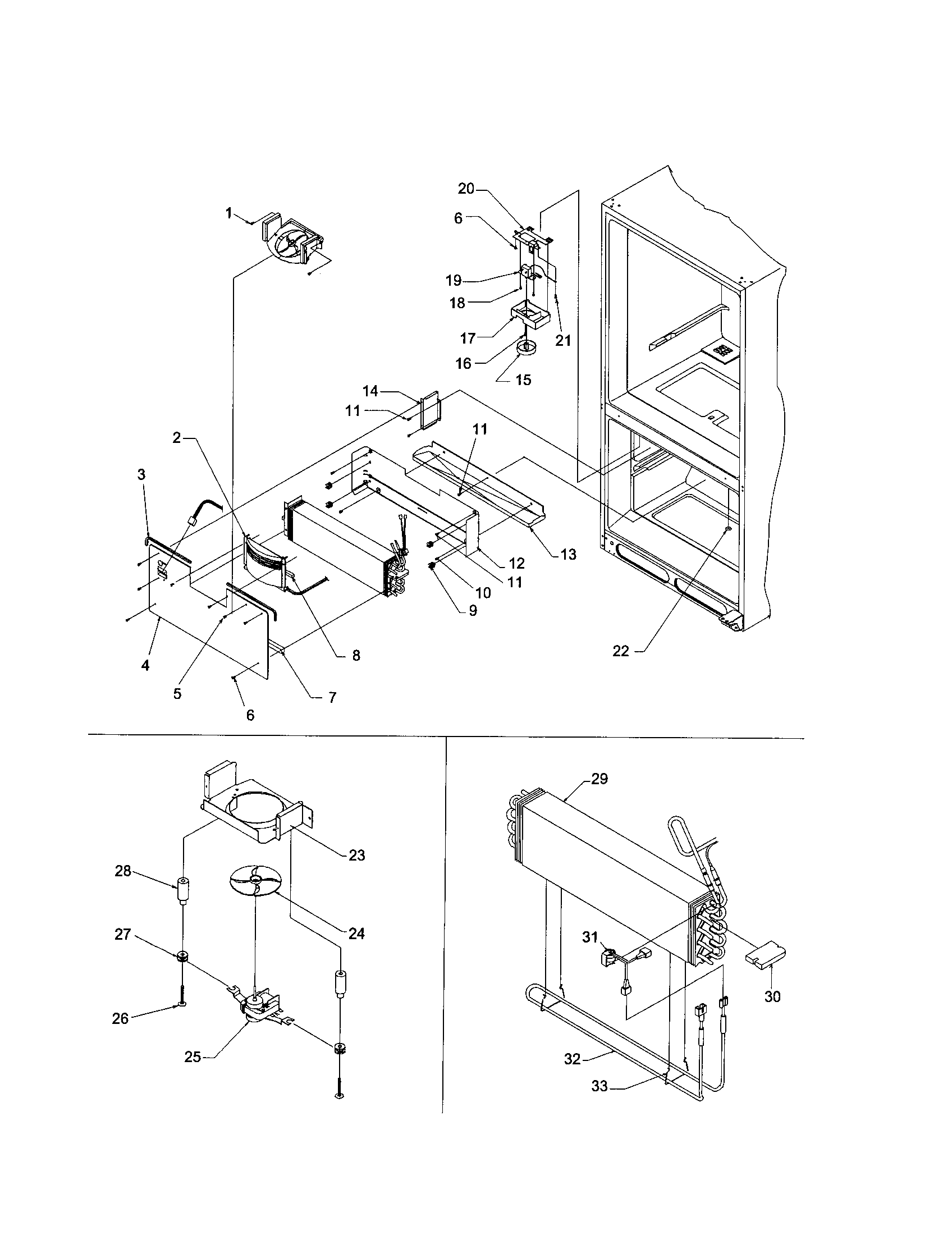

Evaporator/freezer control diagram
Refrigerator Blade
Part #12217201
The manufacturer no longer makes this part, and there's no substitute part

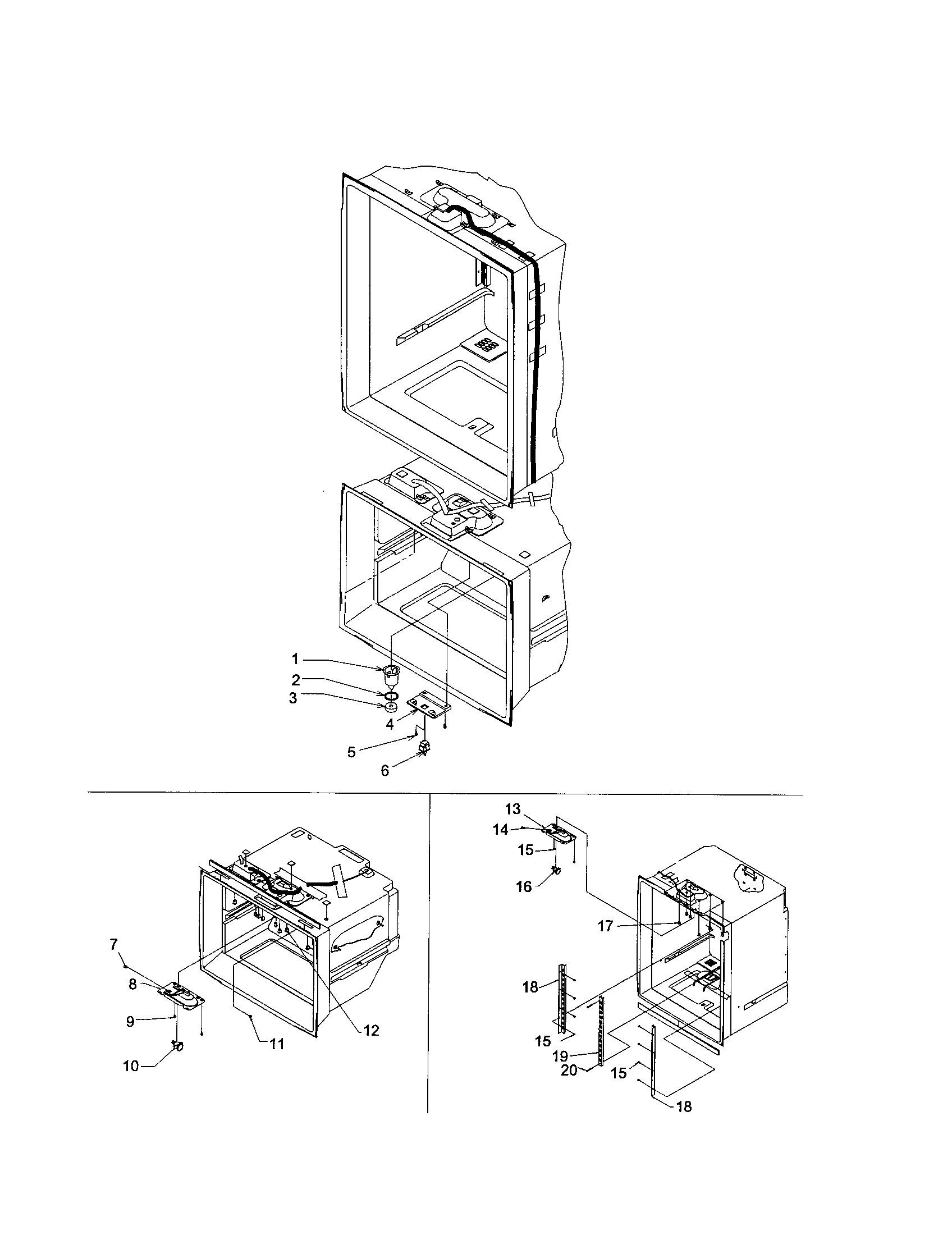

Refrigerator Switch
Part #C3680310
The manufacturer no longer makes this part, and there's no substitute part

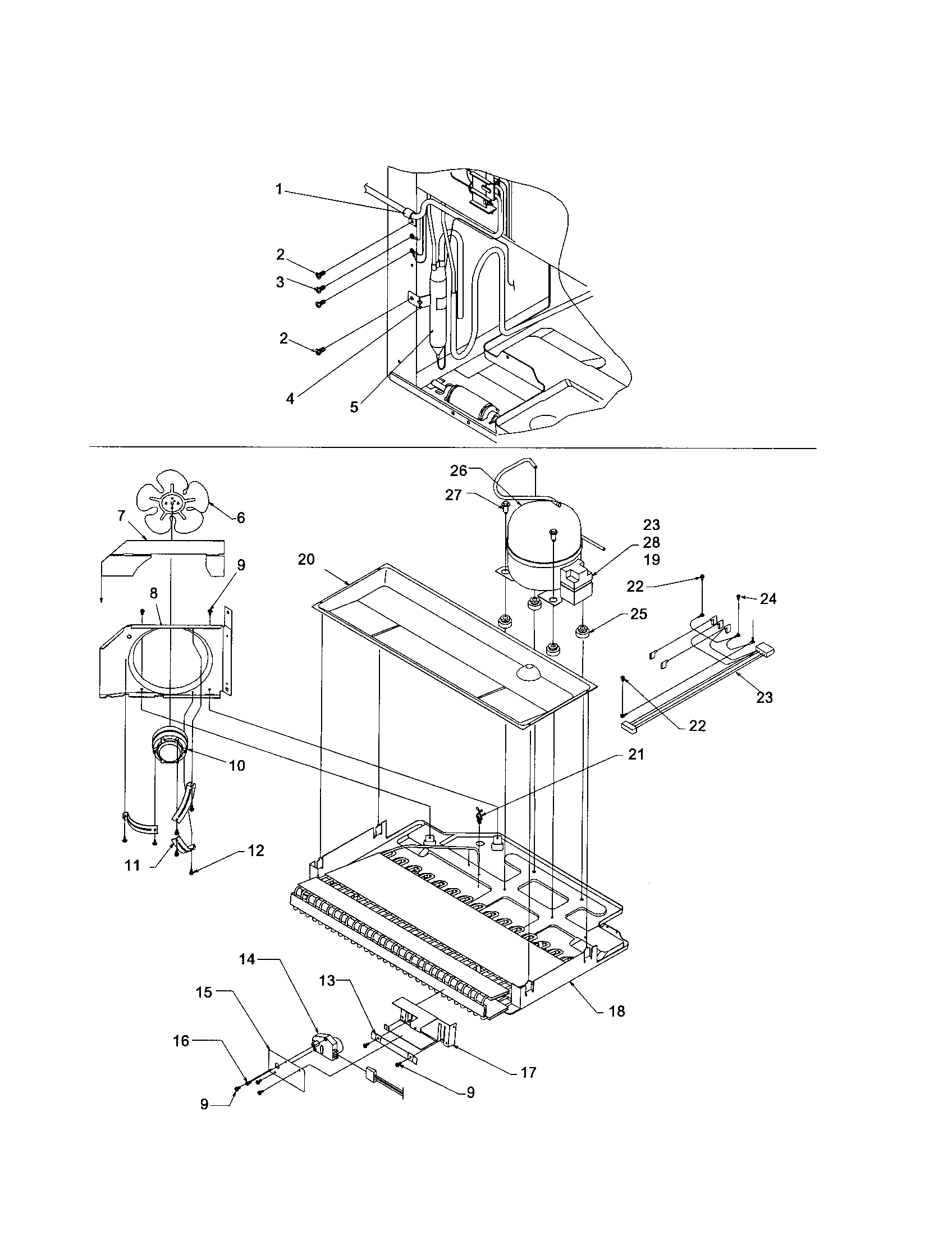

Machine compartment diagram
Condenser Motor
Part #10884507Replaced by #833697
Manufacturer substitutionThis part replaces 10884507. Substitute parts can look different from the original.In Stock$64.838% OFF Phone Price : $70.83
Qty
Machine compartment diagram
Refrigerator Capacitor
Part #C8931612Replaced by #WP65889-4
Manufacturer substitutionThis part replaces C8931612. Substitute parts can look different from the original.In Stock$62.529% OFF Phone Price : $68.52QtyDoor diagram

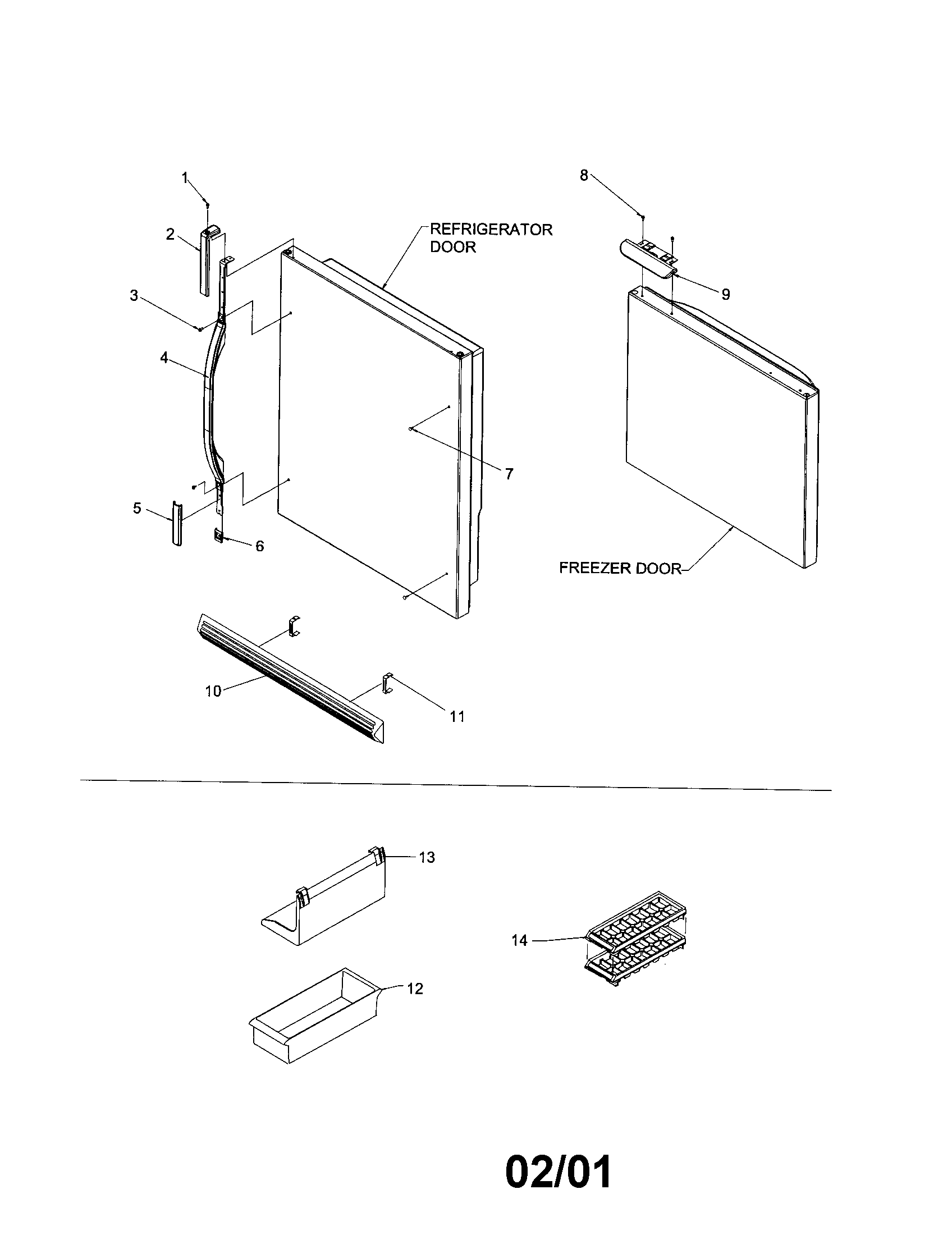

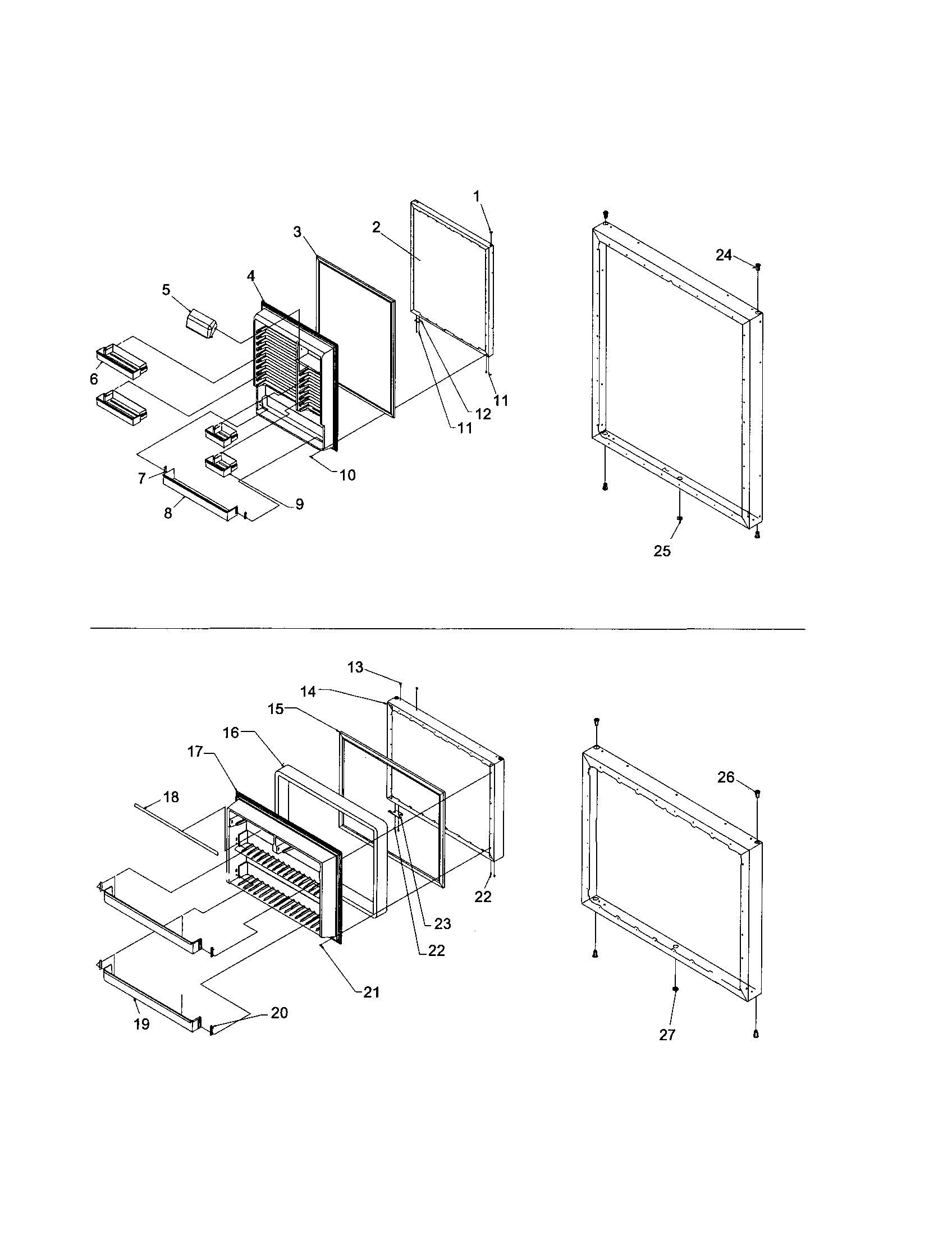

Refrigerator Freezer Door Gasket (white)
Part #12550116
The manufacturer no longer makes this part, and there's no substitute part
Refrigerator Screw
Part #M0211533Replaced by #WPW10348409
Manufacturer substitutionThis part replaces M0211533. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyInsulation and roller diagram

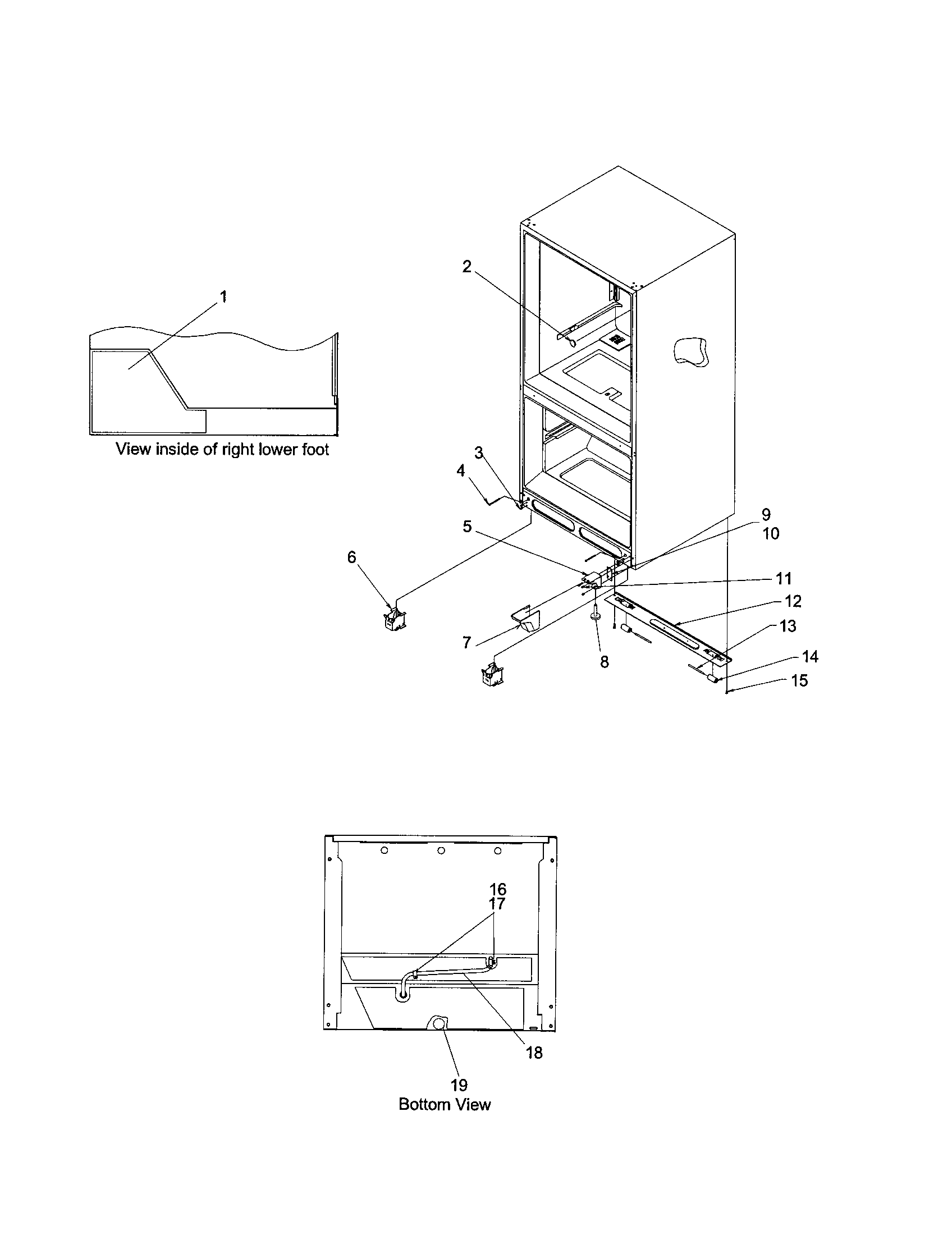

Screw-sm
Part #M0211031Replaced by #W11573574
Manufacturer substitutionThis part replaces M0211031. Substitute parts can look different from the original.In Stock$48.64QtyMachine compartment diagram
Drier
Part #B2150504Replaced by #WPB2150504
Manufacturer substitutionThis part replaces B2150504. Substitute parts can look different from the original.In Stock$96.9711% OFF Phone Price : $108.97QtyEvaporator/freezer control diagram
Refrigerator Screw
Part #M0216716Replaced by #WP90767
Manufacturer substitutionThis part replaces M0216716. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyMachine compartment diagram
Refrigerator Screw
Part #M0224416Replaced by #WP90767
Manufacturer substitutionThis part replaces M0224416. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88Qty
