White-Westinghouse KF330JDD3 electric range - lw32089050

White-Westinghouse KF330JDD3 electric range - lw32089050 Parts

Here are the diagrams and repair parts for White-Westinghouse KF330JDD3 electric range - lw32089050, as well as links to manuals and error code tables, if available.

By Schematic

By Part

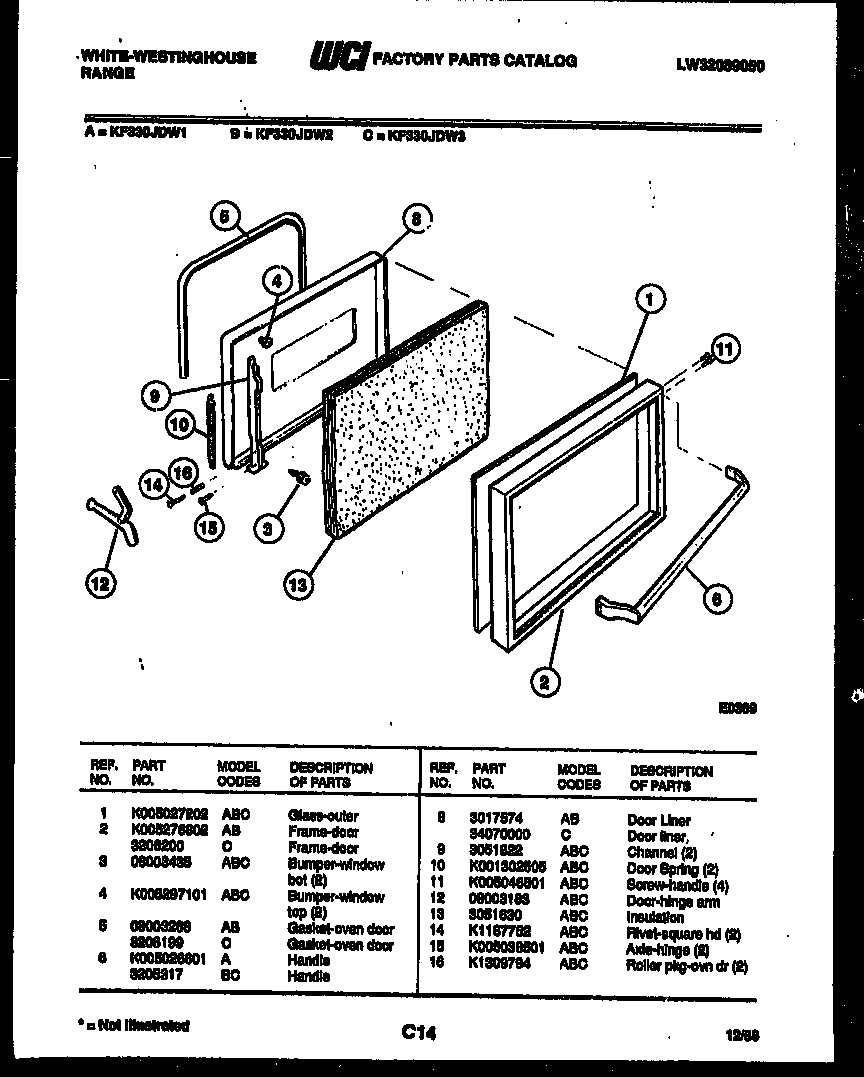

SELECT DIAGRAM

Browse Parts for KF330JDD3 Ranges

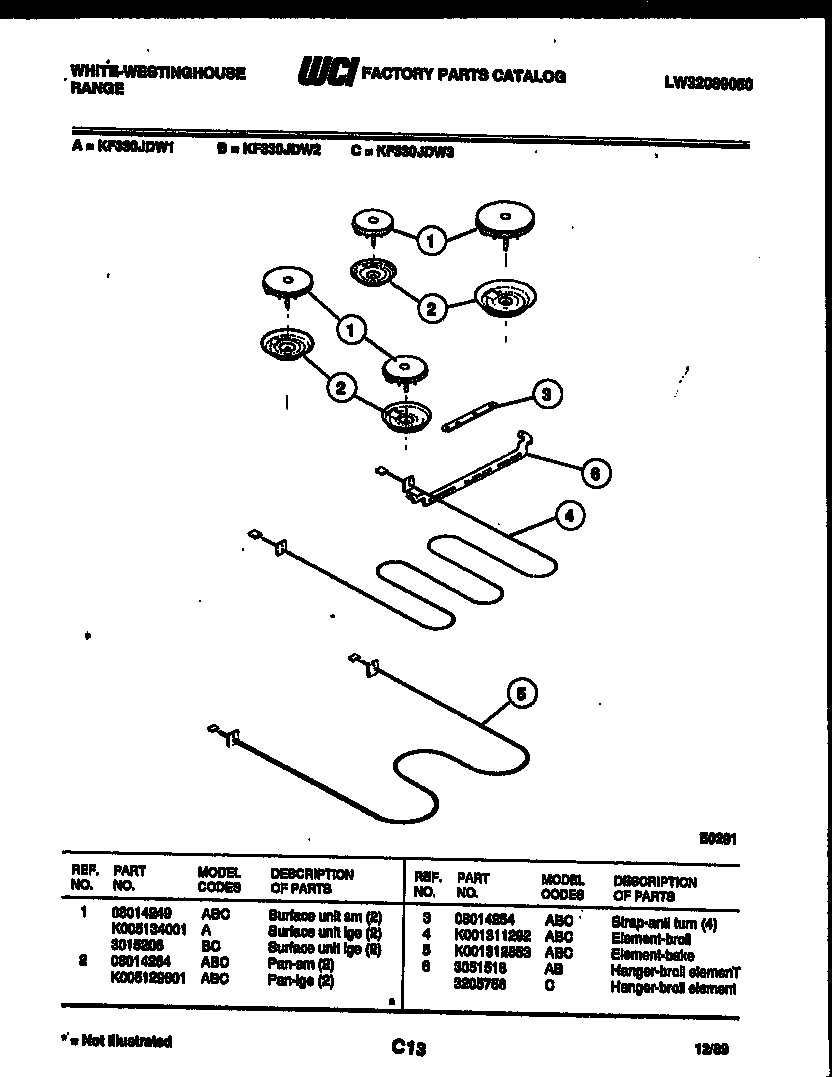

Broiler parts diagram
Bake Element
Part #K001312853
Replaced by #5303051519
Manufacturer substitution
This part replaces K001312853. Substitute parts can look different from the original.
In Stock
$31.93
16% OFF Phone Price : $37.93
Qty

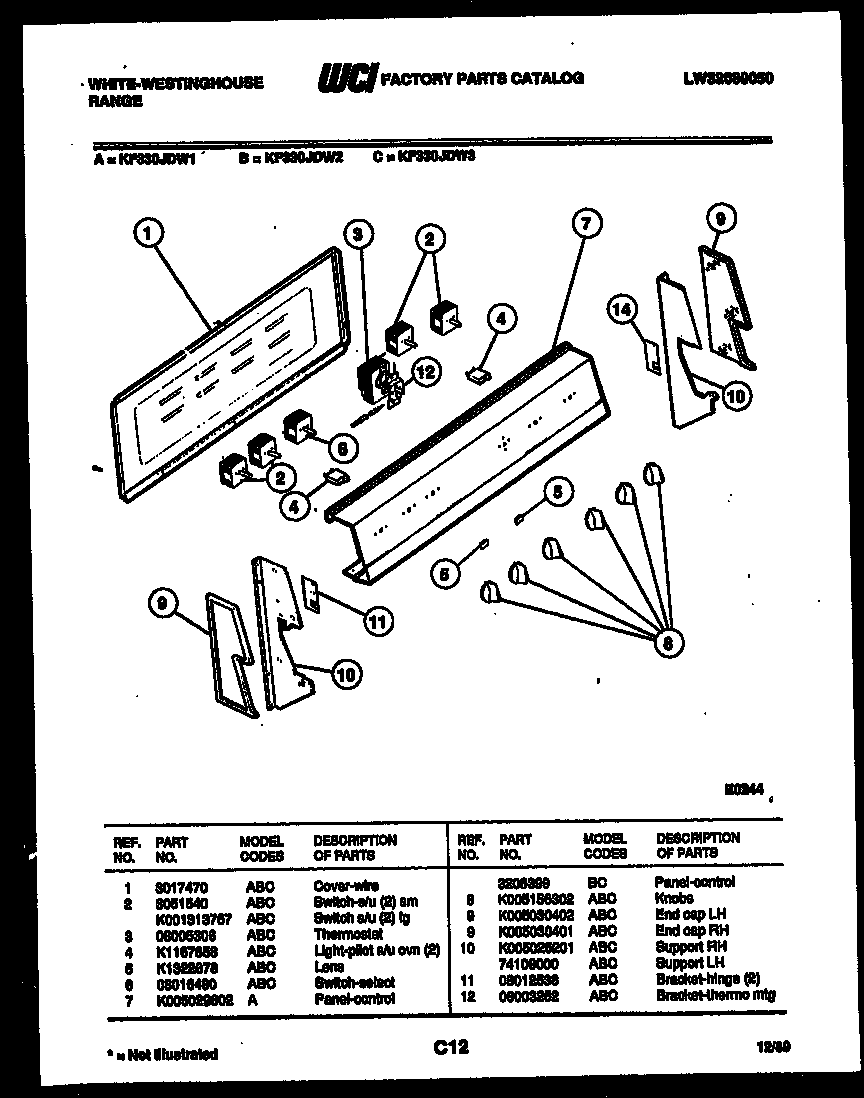

Control panel diagram
Surface Switch
Part #K001313767
Replaced by #5303935086
Manufacturer substitution
This part replaces K001313767. Substitute parts can look different from the original.
In Stock
$42.19
12% OFF Phone Price : $48.19
Qty
Control panel diagram
Switch
Part #3051540
Replaced by #5303935086
Manufacturer substitution
This part replaces 3051540. Substitute parts can look different from the original.
In Stock
$42.19
12% OFF Phone Price : $48.19
Qty

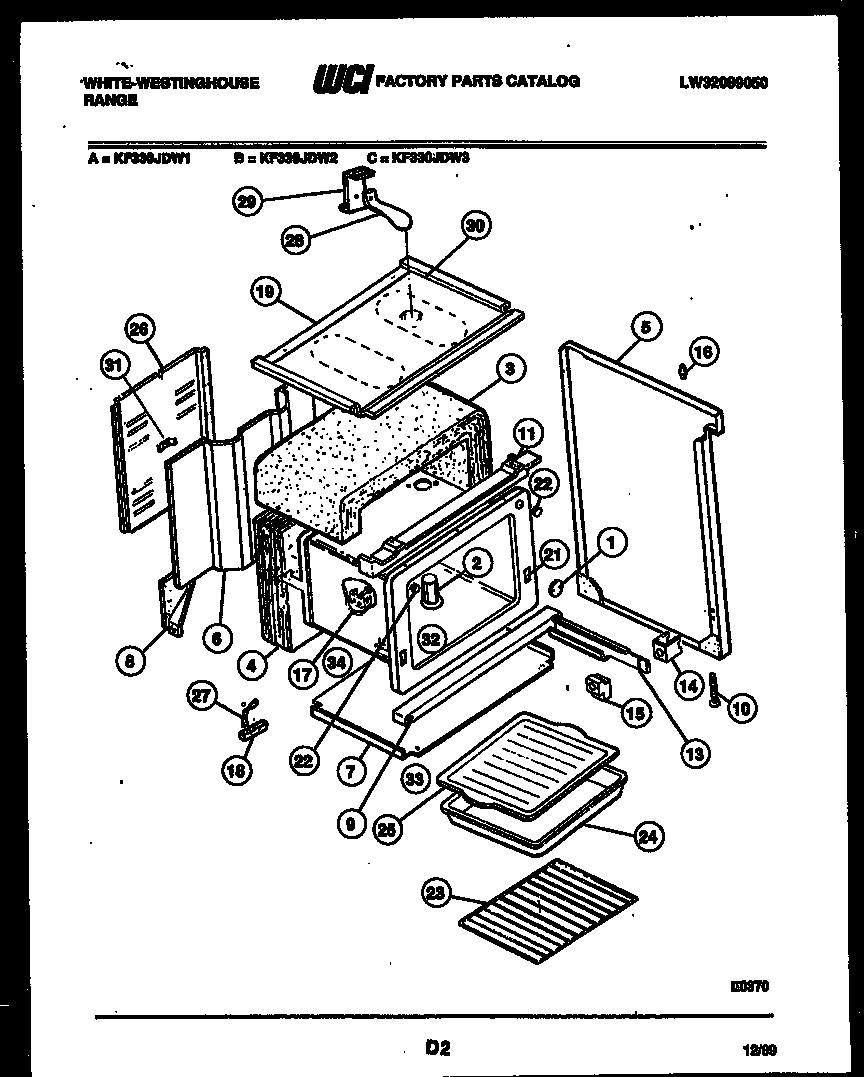

Body parts diagram
Bracket
Part #3051552
In Stock
$29.02
Qty
Body parts diagram
Main
Part #3205757
In Stock
$63.11
Qty
Control panel diagram
Bracket
Part #08003252
In Stock
$41.49
Qty

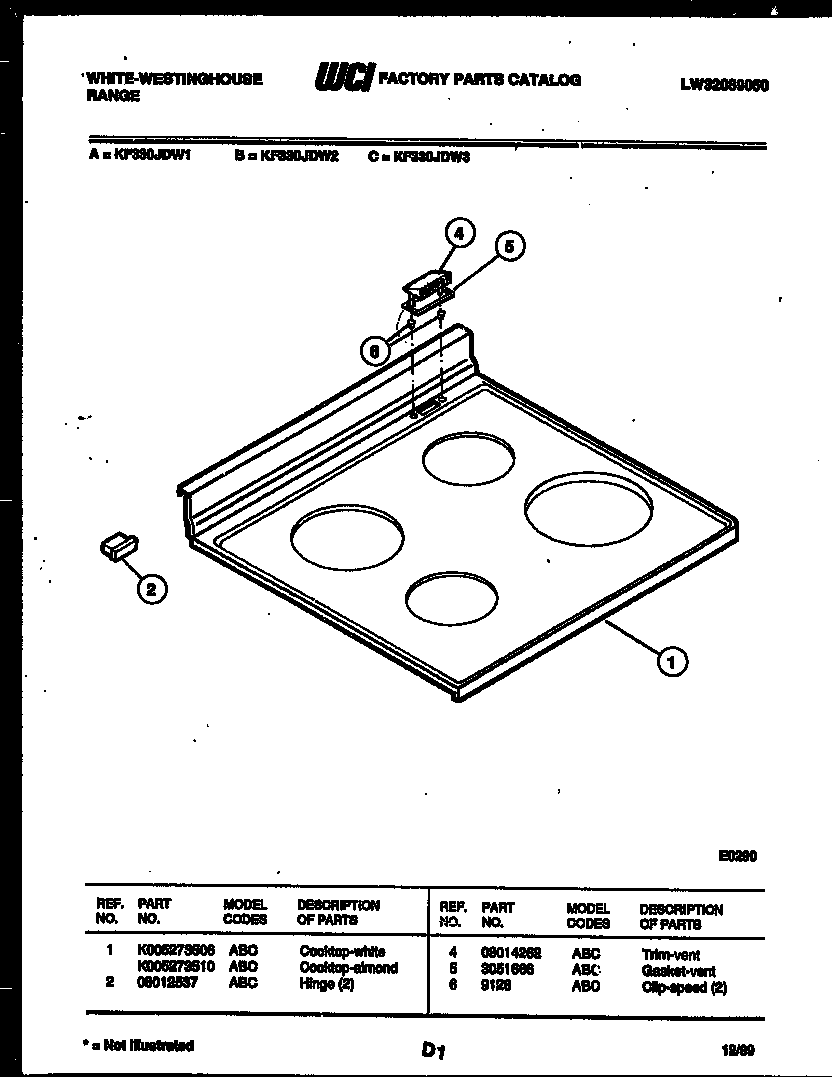

Cooktop parts diagram
Vent Gasket
Part #3051666
In Stock
$28.39
Qty
Body parts diagram
Insulator
Part #3051521
In Stock
$96.33
Qty
Cooktop parts diagram
Hinge Pin
Part #08012537
In Stock
$25.46
Qty

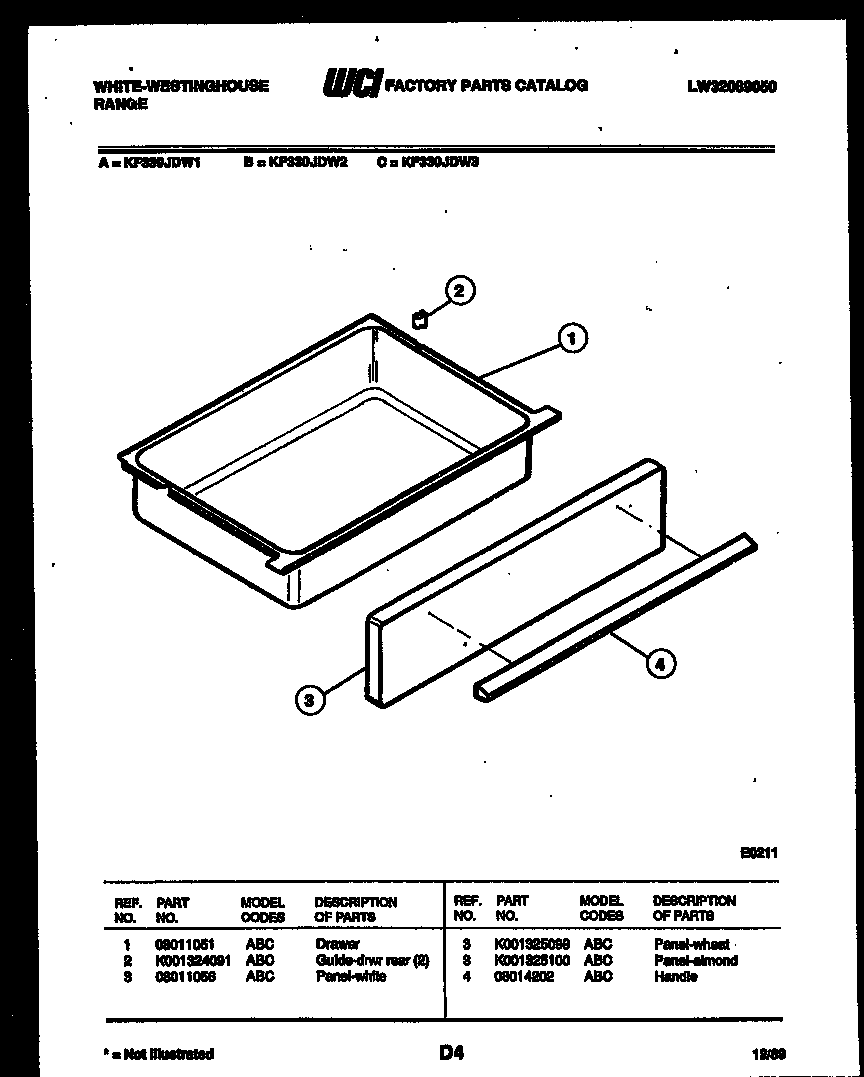

Drawer parts diagram
Drawer Panel
Part #K001325100
Replaced by #5301325100
Manufacturer substitution
This part replaces K001325100. Substitute parts can look different from the original.
In Stock
$147.58
Qty

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

Why isn't my range working?

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…

Why doesn't my range's oven broiler work?

Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…

Why won't my range's oven heat?

Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…

Why can't I unlock my range's oven door?

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…

Why is my range's oven temperature wrong?

Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…

Why won't my range's oven bake?

Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…

How do I get rid of streaks on my range's oven window?

Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…

Most common repair guides to help fix your ranges

These step-by-step repair guides will help you safely fix what’s broken on your range.

How to replace a range oven door switch

How to replace a range oven door switch

The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …

Repair time and Difficulty

30 minutes or less

How to replace a range oven door lock assembly

How to replace a range oven door lock assembly

Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…

Repair time and Difficulty

15 minutes or less

Effective articles & videos to help repair your ranges

Use the advice and tips in these articles and videos to get the most out of your range.

4 things you're doing wrong with your oven

4 things you're doing wrong with your oven

You might be surprised by these 4 tips for using your oven better.…

How to correct an oven's temperature setting

How to correct an oven's temperature setting

If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…

Quiz: Are you abusing your appliances?

Quiz: Are you abusing your appliances?

Take our quiz to see how well you treat your appliances. Then, find out what you can do to help them last longer.…
