Model #WDSR2080DBWW GE washer

Here are the diagrams and repair parts for GE WDSR2080DBWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 118 parts

Washer External Drain Hose

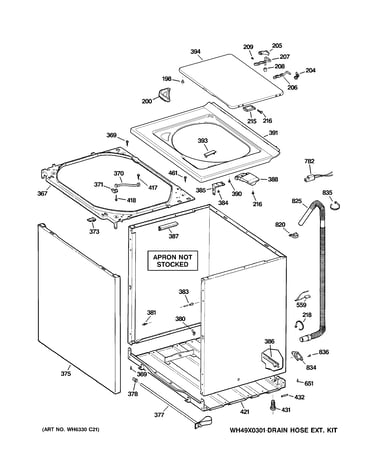

Cabinet, cover & front panel Diagram


In Stock

Washer Tub Mounting Hub

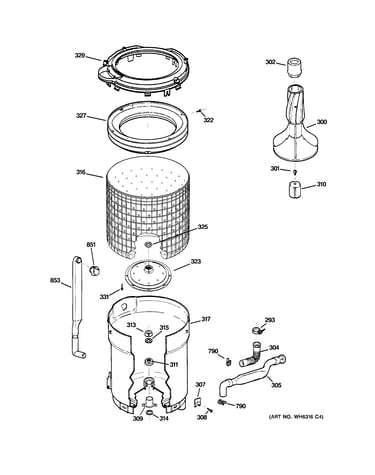

Tub, basket & agitator Diagram

Washer tub mounting hub

Part #WH45X10027

In Stock

Washer Gear Case and Brake Assembly


Suspension, pump & drive components Diagram

Washer gear case and brake assembly

Part #WH38X10002

The manufacturer no longer makes this part, and there's no substitute part

Washer Tub Fill Nozzle

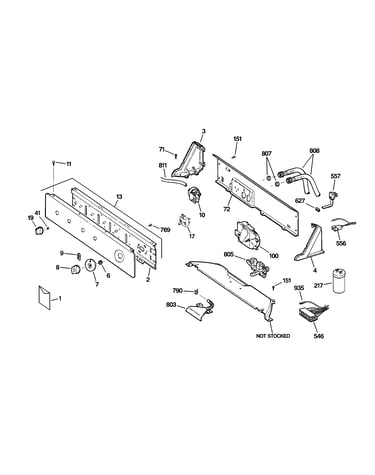

Controls & backsplash Diagram

Washer tub fill nozzle

Part #WH41X10077

In Stock

Washer Screw


Controls & backsplash Diagram

Washer screw

Part #WH02X10126
This item is not returnable

In Stock

Washer Agitator Cap


Tub, basket & agitator Diagram

Washer agitator cap

Part #WH43X10005

In Stock

Washer Lid Hinge Bushing


Cabinet, cover & front panel Diagram

Washer lid hinge bushing

Part #WH01X10025

In Stock

Washer Bleach Dispenser


Cabinet, cover & front panel Diagram

Washer bleach dispenser

Part #WH01X10057
This item is not returnable

In Stock

Scr 8-18 Ab


Controls & backsplash Diagram

Scr 8-18 ab

Part #WH02X10089
This item is not returnable

In Stock

Washer Control Knob Clip


Controls & backsplash Diagram

Washer control knob clip

Part #WH01X10106
This item is not returnable

In Stock

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
