Kenmore 25369822890 top-mount refrigerator Parts

The Kenmore top-mount refrigerator model 25369822890 is typically listed at about 32 in. wide, 65-3/4 in. high, and 26-5/8 in. deep, with an approximate 16.7 cu. ft. capacity. For the exact dimensions for your unit and configuration, confirm in the 25369822890 owner's manual.

Dimensions at a glance

Use these measurements for basic fit checks (doorway clearance, cabinet opening, and ventilation space):

• Width: ~32 in.
• Height: ~65-3/4 in.
• Depth: ~26-5/8 in.
• Capacity: ~16.7 cu. ft.
• Plan extra space behind and above the cabinet for airflow and easier installation

Quick fit checklist (before you move it)

• Measure the cabinet opening (width, height, depth) in at least 2 spots
• Measure doorways and hallways on the path to the kitchen
• Account for door swing and handle clearance
• Leave room for air circulation around the refrigerator
• If you are replacing a door seal, confirm the door closes squarely after leveling

Common measurement notes

These are the most common reasons “listed size” and “real-world fit” differ:

What you measure	What can change it	What to do
Depth	Handles, door curvature, rear cover	Measure from the wall to the front-most point
Height	Leveling legs, floor slope	Level the cabinet, then re-check height
Width	Side clearance needs	Leave a small gap on both sides for airflow

Why it matters

Correct sizing prevents poor cooling and moisture issues caused by restricted airflow, and it helps avoid door alignment problems that can lead to warm spots and frost.

Last updated: February 2026

Yes. We still offer replacement parts for Kenmore refrigerators, including the Kenmore 25369822890 top-mount refrigerator. Use your model number to match parts correctly, then choose the exact component you need (like a door gasket, thermostat, or light switch) from the parts list.

Best way to find the right part for model 25369822890

We recommend matching by model number first, then confirming the part name and ID before ordering.

• Look up parts using the exact model number 25369822890
• Compare the part name to what you are replacing (gasket, thermostat, timer, fan blade)
• Check whether the part is for the refrigerator section or freezer section

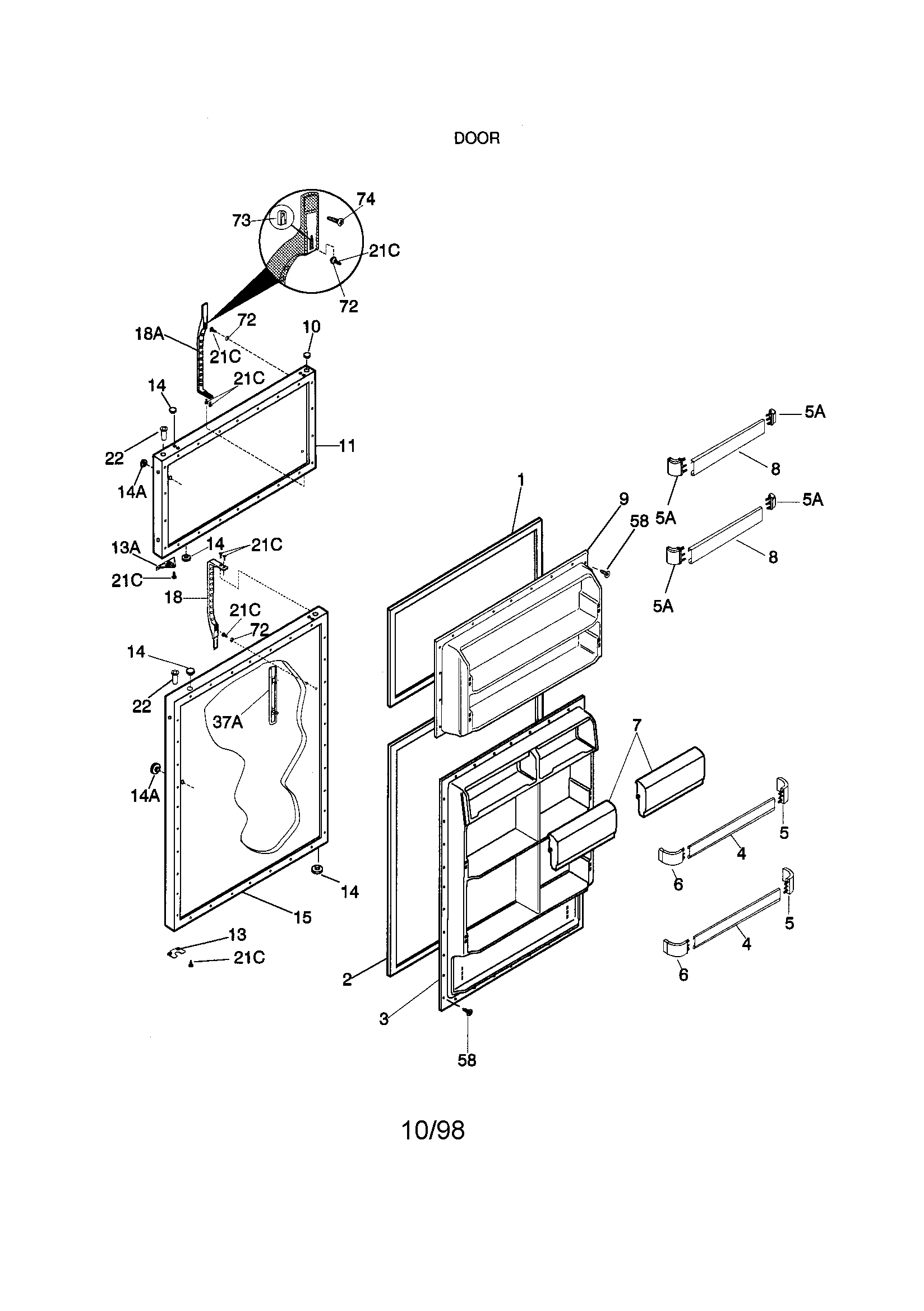

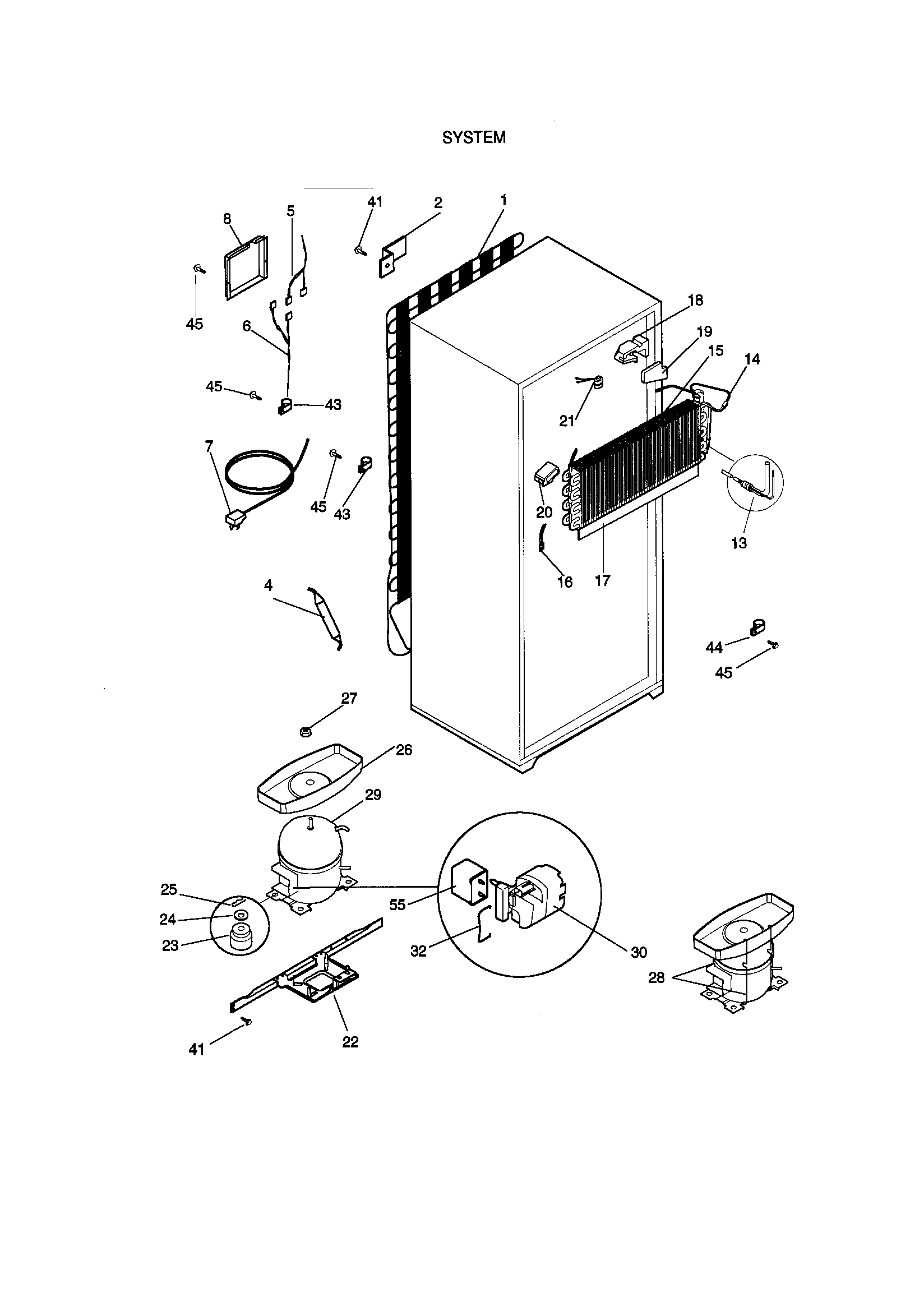

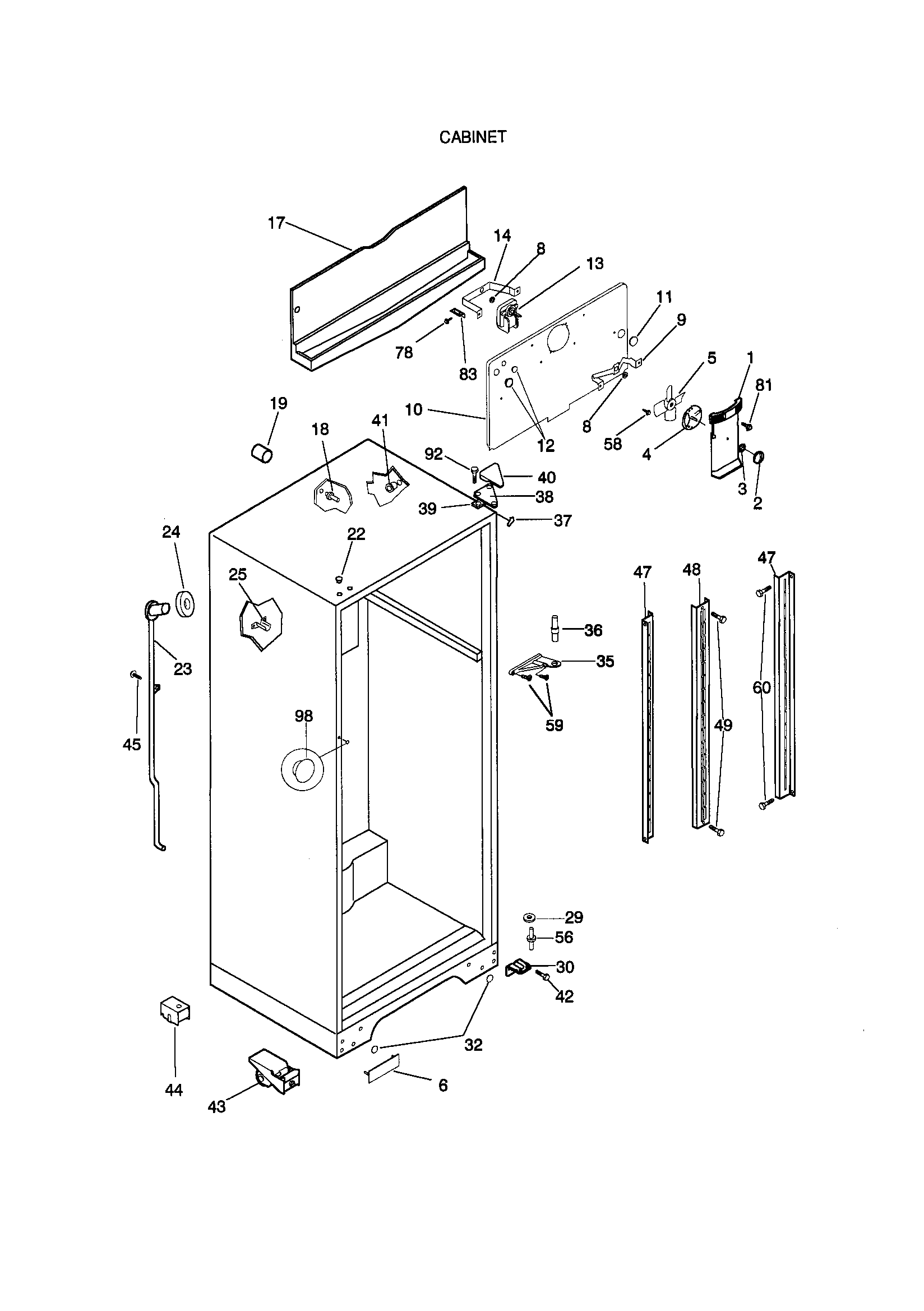

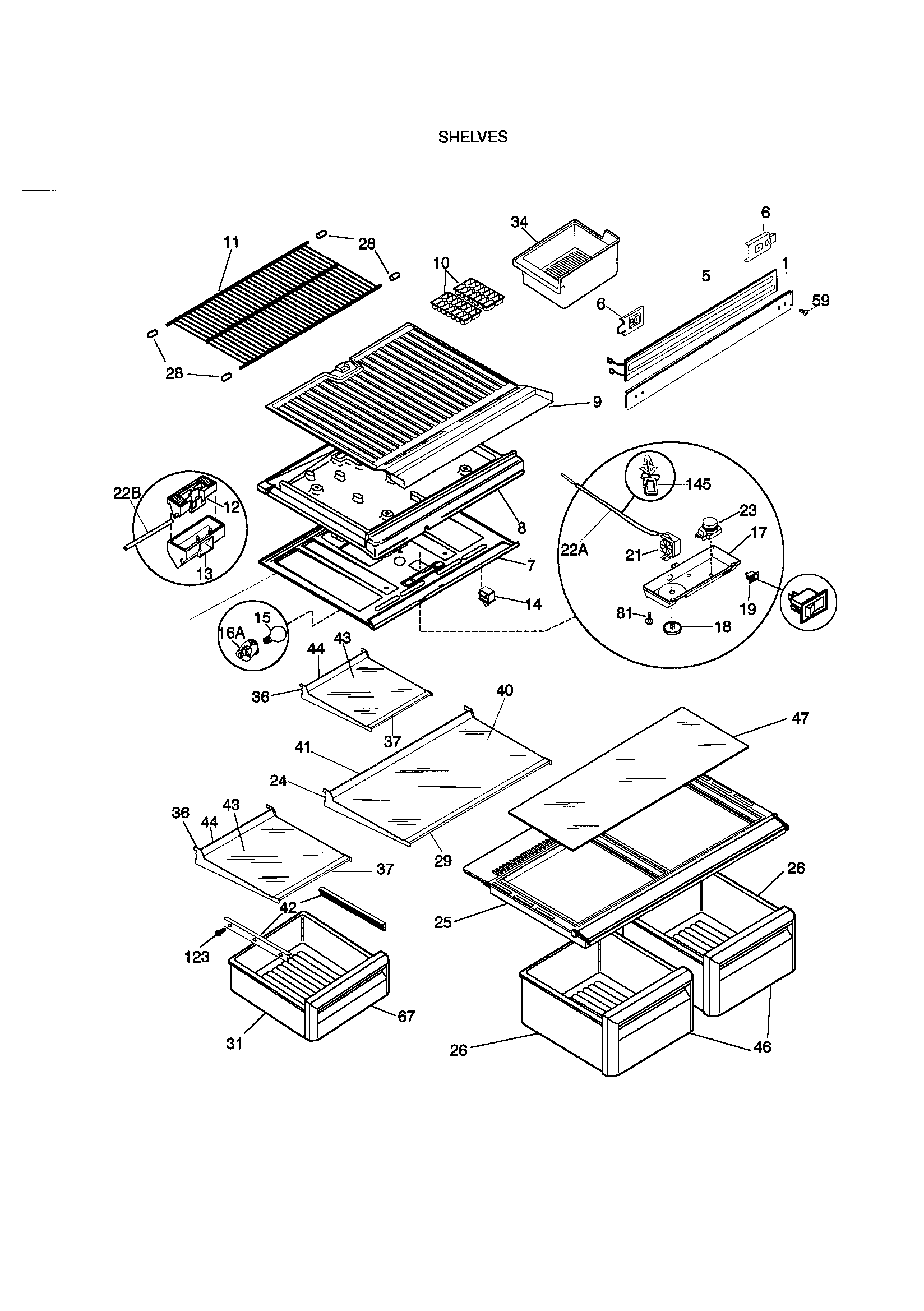

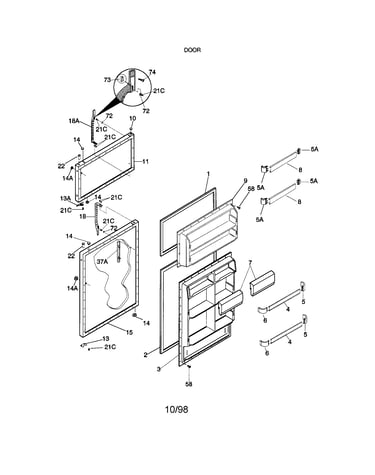

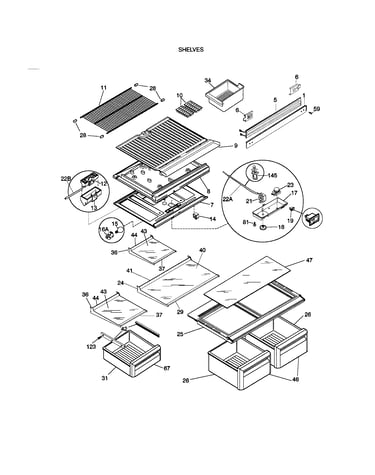

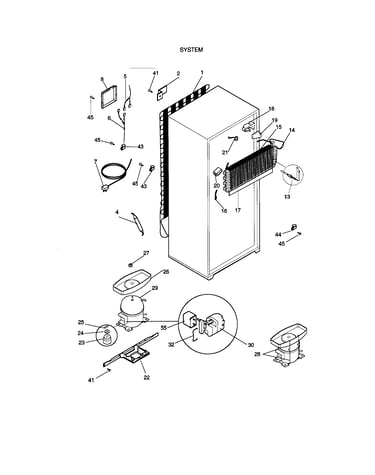

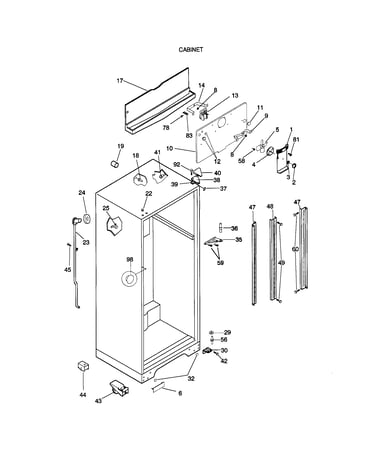

• If you are unsure, use the diagrams and part descriptions to confirm fit
• Keep your serial number handy for reference when checking the owner's manual

Common Kenmore 25369822890 parts customers replace

These are examples of parts available for this model that often solve everyday problems:

Symptom	Common part to check	Example part on this model
Door not sealing, frost, warm temps	Door gasket	Refrigerator door gasket (white) 5303207345
Fridge light not working	Light switch or bulb	Refrigerator light switch 5309918806
Frost buildup, poor cooling	Defrost timer or defrost heater	Refrigerator timer 215846602
Noisy or weak airflow	Fan blade	Refrigerator fan blade 5308000010

Why it matters

Using model-matched parts helps restore proper temperature control, airflow, and door sealing. That prevents food spoilage, reduces frost buildup, and keeps the compressor from running longer than necessary.

Last updated: February 2026

A fridge with the freezer on top is called a top-freezer refrigerator (also commonly called a top-mount refrigerator). Your Kenmore model 25369822890 is this style, with the freezer compartment above the fresh-food compartment and separate side-swing doors.

Common names you will see

• Top-freezer refrigerator
• Top-mount refrigerator
• Freezer-on-top refrigerator
• Two-door top freezer (informal)

How to identify it quickly

• The freezer is the upper compartment
• The refrigerator section is below
• Each compartment typically has its own door that opens from the side
• Temperature controls often adjust both compartments together, with a separate freezer control affecting the freezer (details vary by model; see the owner's manual)

Top-freezer vs other common refrigerator styles

Style	Freezer location	Typical door layout	Common reason people choose it
Top-freezer (top-mount)	Top	Two side-swing doors	Simple design, efficient use of space
Bottom-freezer	Bottom	Refrigerator door(s) above, freezer drawer/door below	Easier access to fresh food
Side-by-side	Left side	Two tall vertical doors	Narrow door swing, easy freezer access
French door	Bottom	Two refrigerator doors, freezer drawer below	Wide fridge space, modern layout

Why it matters

Knowing the style helps you match the right door gasket, shelves/bins, and cooling-system parts (like a defrost timer or thermostat) to your exact configuration when troubleshooting temperature, frost, or door-seal issues.

Last updated: February 2026

Most Kenmore refrigerators, including top-mount models like 25369822890, typically last 10 to 15 years with normal household use. Regular upkeep (clean airflow, good door sealing, and prompt fixes) helps you reach the high end of that range and avoid early cooling failures.

Typical lifespan and what to expect

Here’s a practical way to think about refrigerator life expectancy:

Condition	Typical lifespan	What you’ll notice
Normal use, basic care	10 to 15 years	Steady temps, occasional minor repairs
Good maintenance	15 years	Fewer temperature swings, less frost buildup
Poor airflow or neglected cleaning	Under 10 years	Longer run times, warm fridge, noisy operation

Maintenance that extends life (highest impact)

We recommend these habits for Kenmore top-mount refrigerators:

• Keep condenser area clean so heat can leave the system efficiently.
• Make sure doors close fully and seals are clean and flexible.
• Leave space around the cabinet for ventilation (especially at the back).
• Set stable temperatures (avoid the coldest setting unless needed).
• Don’t block interior air vents with food packages.
• Fix frost buildup or water leaks quickly to prevent secondary damage.

For model-specific care and control settings, follow the owner's manual.

Parts that commonly affect longevity

When a refrigerator starts running constantly, warming up, or frosting over, these parts are frequent contributors:

• Door sealing issues: refrigerator door gasket (white) 5303207345
• Defrost system problems: refrigerator timer 215846602 and refrigerator defrost heater 3206453
• Air movement problems: refrigerator fan blade 5308000010

Why it matters

A refrigerator that can’t move air well or can’t shed heat efficiently runs longer and hotter. That extra strain shortens the life of major components (especially in the sealed cooling system) and increases the chance of food temperature problems.

Last updated: February 2026

Kenmore is a Sears brand, and different manufacturers have built Kenmore refrigerators over the years. For Kenmore model 25369822890, the 253 prefix identifies a Frigidaire-built design family; use the model and serial tag plus the owner's manual to confirm details for your exact unit.

How to confirm the manufacturer on your exact refrigerator

Check the model and serial tag inside the fresh food compartment (commonly on a side wall or ceiling area). We look for:

• Full model number: 25369822890
• Serial number (helps identify production run)
• Electrical rating label (volts/amps)
• Any factory code or manufacturing location line
• A parts diagram match when comparing key components

Why the “253” prefix matters

Kenmore model numbers often start with a 3-digit prefix that points to the original manufacturer platform. That helps you match parts and troubleshooting steps for the defrost system, temperature control, and door sealing.

Item you check	What it indicates	What to do
Model starts with 253	Frigidaire-built platform	Match parts by the exact model number and diagram
Model starts with a different prefix	Different manufacturer family	Use the exact model and serial to select parts

Parts commonly involved on this model family

When diagnosing warm temperatures, heavy frost, or poor door sealing, these model-listed parts are often involved:

• Refrigerator temperature control thermostat 5304404821 (controls cooling cycles)
• Refrigerator timer 215846602 (defrost cycle timing; part number 215267800)
• Refrigerator door gasket (white) 5303207345 (prevents air leaks)

Why it matters

Knowing the manufacturer family helps you choose compatible replacement parts and follow the right diagnostic path for defrost, airflow, and temperature control issues.

Last updated: February 2026
