Your KitchenAid dishwasher model number is printed on the rating label inside the door area. On KitchenAid model KUDL03FVSS4, the label is located near the door on either the right-hand or left-hand side of the dishwasher interior.

Where to look (fast checklist)

• Open the dishwasher door fully.
• Look along the inner tub frame near the door opening.
• Check both the right and left sides of the interior.
• Find the rating label with Model and Serial.
• Write the model number exactly as shown (letters and numbers).

What the label tells you

The rating label typically includes:

• Model number (used to match parts like a drain pump or door seal)
• Serial number (used for service history and production details)
• Electrical ratings (voltage/amps)
• Certification and manufacturing information

Model number vs. serial number

Item	What it’s used for	Example format
Model number	Ordering correct parts and checking fit	KUDL03FVSS4
Serial number	Service identification and production tracking	Letters and numbers

Why it matters

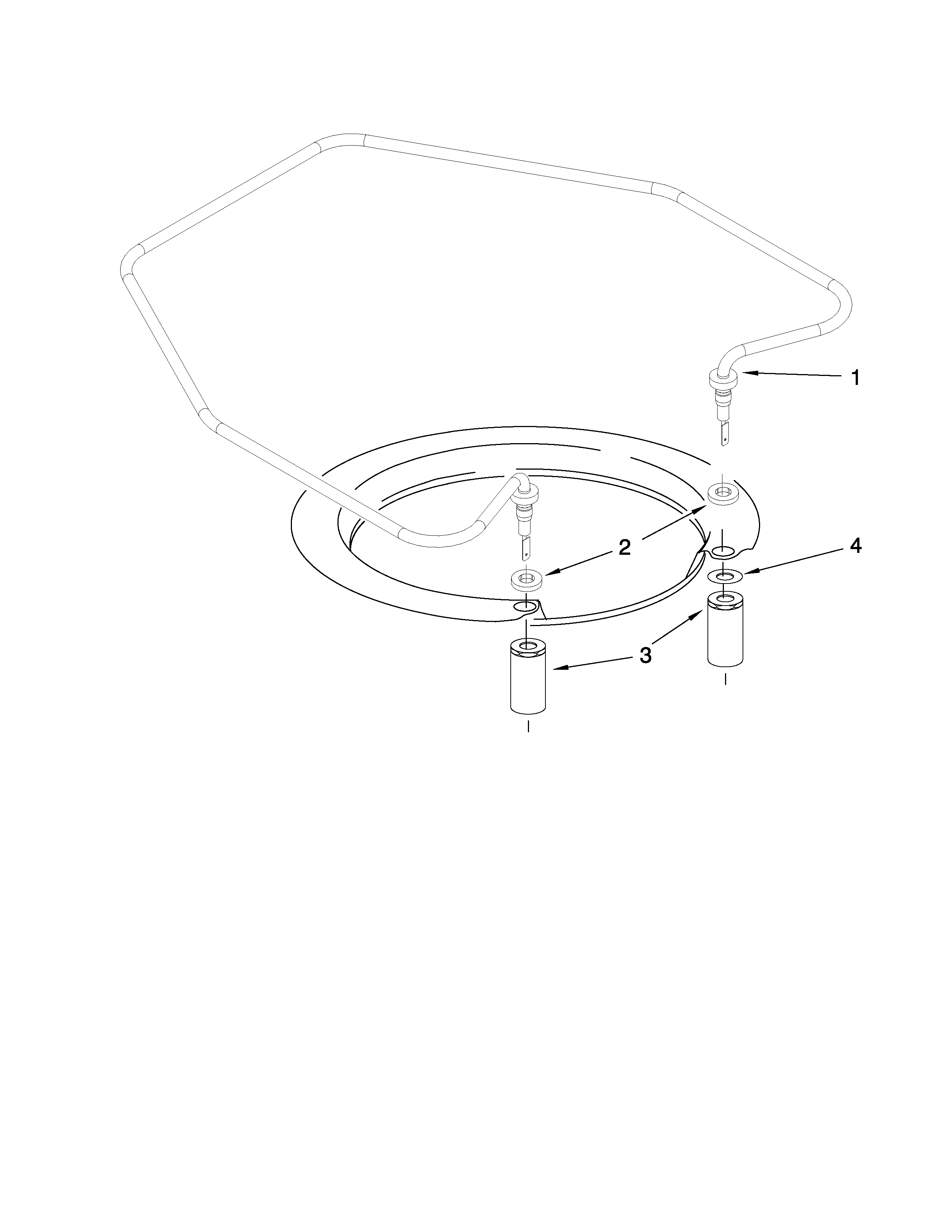

Using the exact model number prevents ordering the wrong KitchenAid dishwasher parts. Even small model changes can affect fit for items like the heater element, water inlet valve, or control board.

For diagrams and model-specific details, use the KUDL03FVSS4 owner’s manual.

Last updated: February 2026

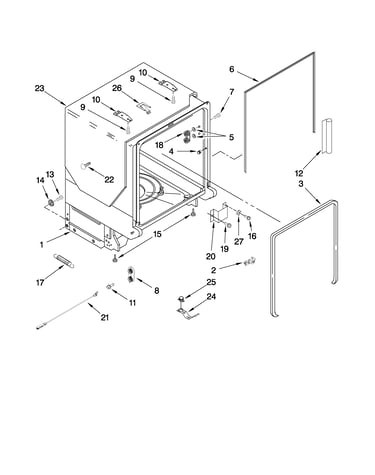

On the KitchenAid KUDL03FVSS4 dishwasher, a loose rubber door seal usually fixes by fully seating the gasket into the door channel evenly, then keeping the door closed so the seal “sets” in place. If the seal is torn, hardened, or won’t stay seated, replace it.

Quick fix: reseat the door seal

1. Turn off power to the dishwasher at the breaker.
2. Open the door and inspect the gasket for twists, gaps, or debris.
3. Starting at the top center, press the seal into the channel with your fingers, working evenly down both sides.
4. Make sure the corners are fully seated and the seal is not stretched.
5. Close and latch the door for several hours (overnight works well) to help the gasket conform.

What to check while you’re there

• Food residue, detergent buildup, or scale in the gasket channel
• A section of gasket that is rolled outward instead of tucked into the groove
• Door not centered or rubbing (can prevent an even seal)
• Racks or tall items contacting the door and pushing it outward
• Signs of leaks at the bottom edge (often points to alignment or a worn seal)

When reseating is not enough

If the gasket keeps popping out or you still see drips, the seal is typically worn or the door is not closing square.

Symptom	Most likely cause	Best next step
Seal won’t stay in the channel	Gasket is stretched or hardened	Replace the door seal
Leak at one corner	Corner not seated or door alignment issue	Reseat corners; check door fit
Leak along bottom	Door not closing tight or tub/door alignment	Check leveling and centering
Door feels heavy or drops	Hinge/balance issue	Inspect hinges and balance parts

Why it matters

A properly seated door gasket keeps wash water inside the tub, protects your flooring and cabinets, and helps the dishwasher maintain correct wash pressure for better cleaning.

Helpful references

• Use the steps and diagrams in the KUDL03FVSS4 installation guide to confirm the dishwasher is centered and not rubbing the cabinet opening.

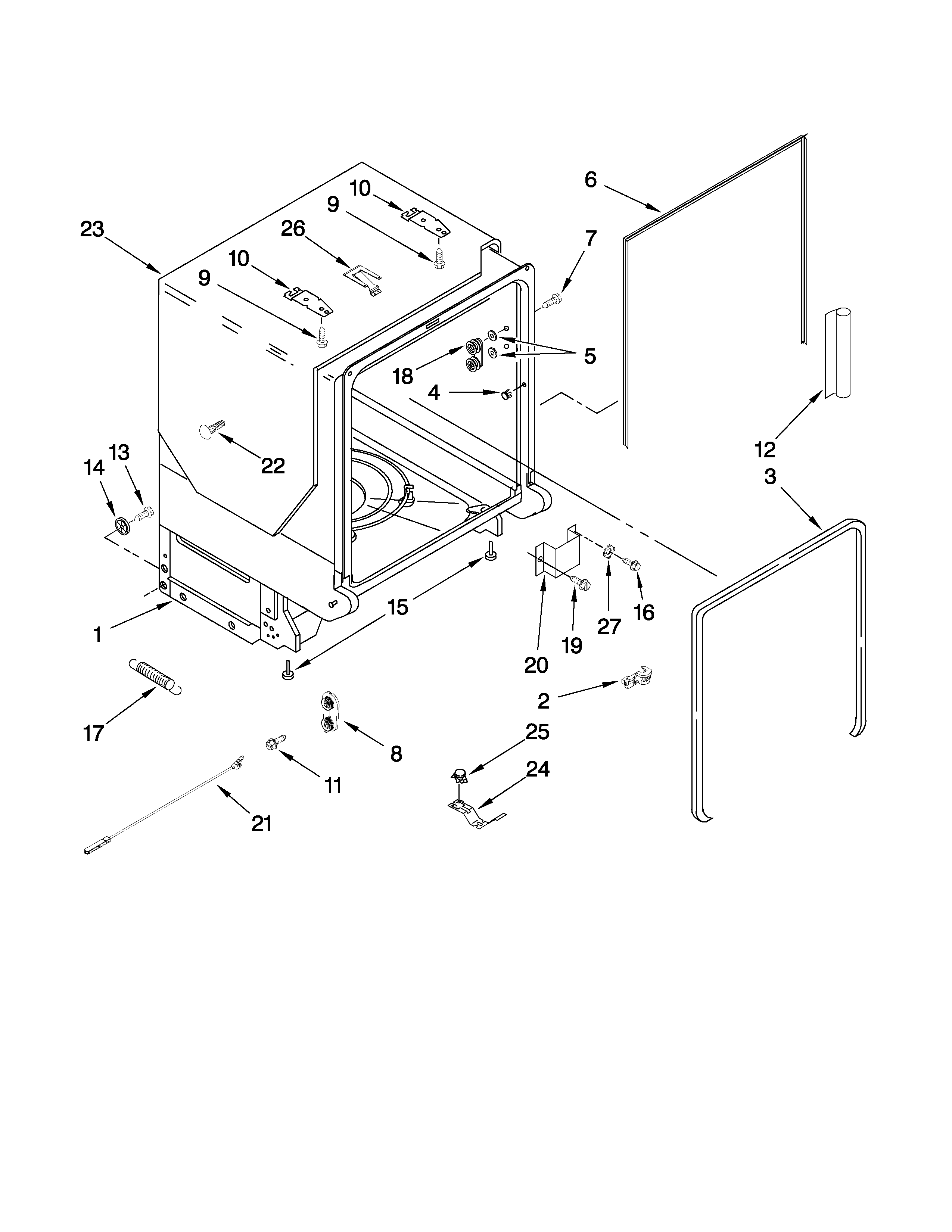

• If the gasket is damaged, replace the dishwasher door seal W11196317 for this model.

Last updated: February 2026

A KitchenAid undercounter dishwasher like model KUDL03FVSS4 typically lasts 10 to 14 years. Lifespan depends most on water quality, how often you run it, and routine care such as using rinse aid for drying performance and preventing hard-water buildup (as described in the KUDL03FVSS4 owner’s manual).

What affects dishwasher lifespan most

• Hard water and mineral scale: buildup stresses the heater, pump, and seals.
• Detergent and rinse aid use: rinse aid improves drying and helps control deposits.
• Loading habits: overloading blocks spray and increases strain on the wash system.
• Filter and sump cleanliness: food debris left in the system increases wear.
• Leaks and moisture: small leaks can damage wiring and electronic controls over time.

Maintenance that helps you reach the full 10 to 14 years

Follow the care and operating guidance in the KUDL03FVSS4 owner’s manual, and prioritize these habits:

• Clean out food debris from the bottom of the tub and around the sump area.
• Use rinse aid consistently for better drying and reduced spotting.
• Run hot water at the sink before starting a cycle (helps cleaning and reduces repeat washing).
• Inspect the door seal for tears, flattening, or gaps; replace if it starts leaking.
• Address draining issues early (standing water, slow drain) to protect the motor and controls.

Quick “repair or replace” decision guide

What you’re seeing	Most common cause	What it usually means
Not draining, water left in tub	Drain restriction or failing pump	Repair often makes sense
Poor cleaning, weak spray	Wash system issue, clogged spray path	Repair often makes sense
Frequent electrical no-power symptoms	Fuse, wiring, or control issue	Diagnose cost vs. age
Rust, major tub damage	Tub integrity issue	Replacement usually makes sense

Why it matters

Dishwashers that run longer cycles to save energy can still deliver excellent cleaning, but they rely on good water flow, proper detergent use, and rinse aid. Consistent maintenance reduces repeat cycles and heat stress, which are two of the biggest drivers of early wear.

Last updated: February 2026

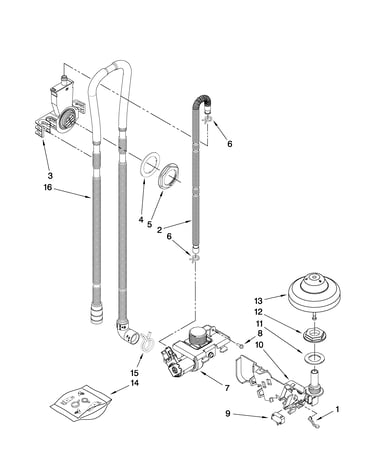

For the KitchenAid KUDL03FVSS4 dishwasher, the most common problems we see are poor cleaning (dirty dishes) and drainage trouble (standing water). These usually trace back to restricted water flow (spray arms, sump area) or a drain path issue (hose, drain pump), plus occasional door sealing leaks.

Most common issues and what they point to

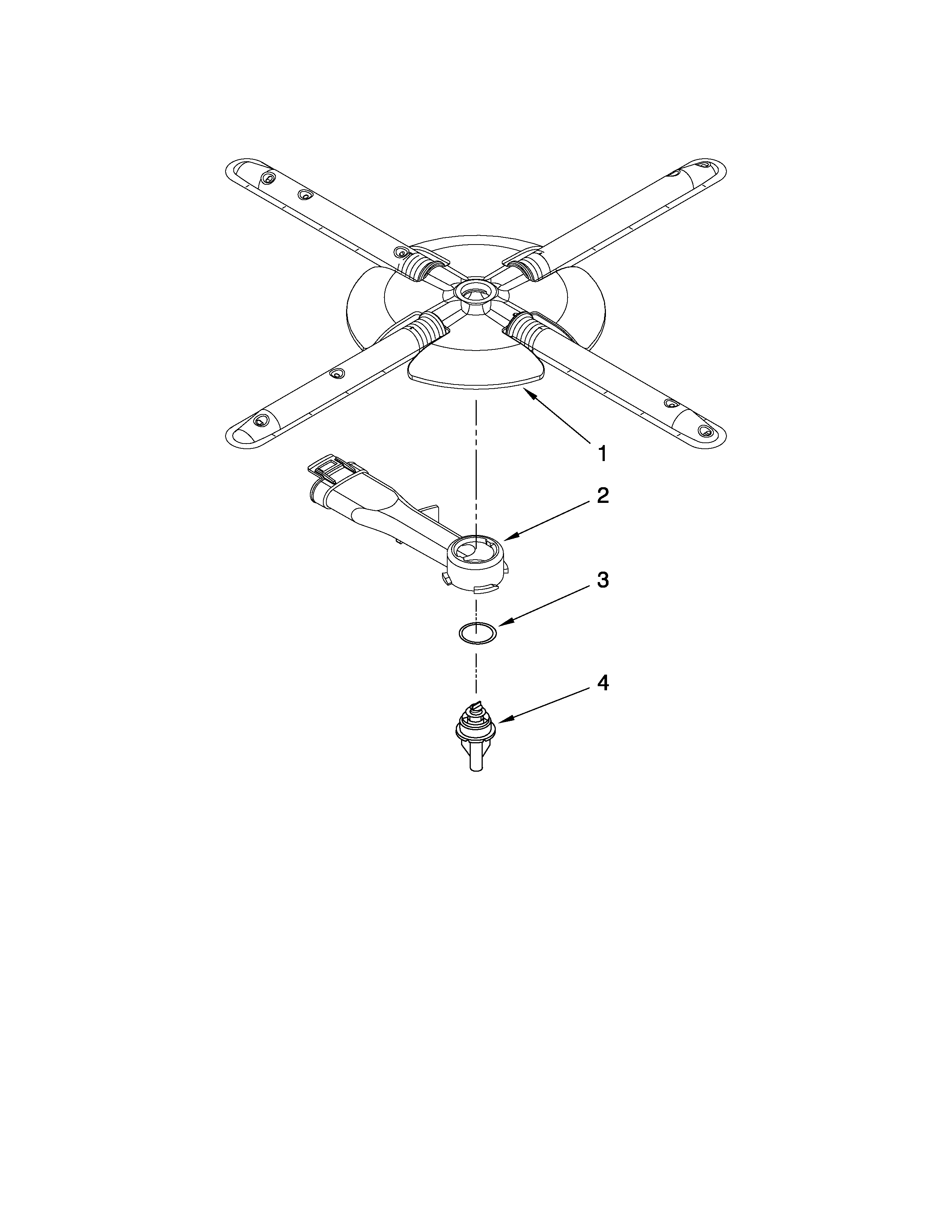

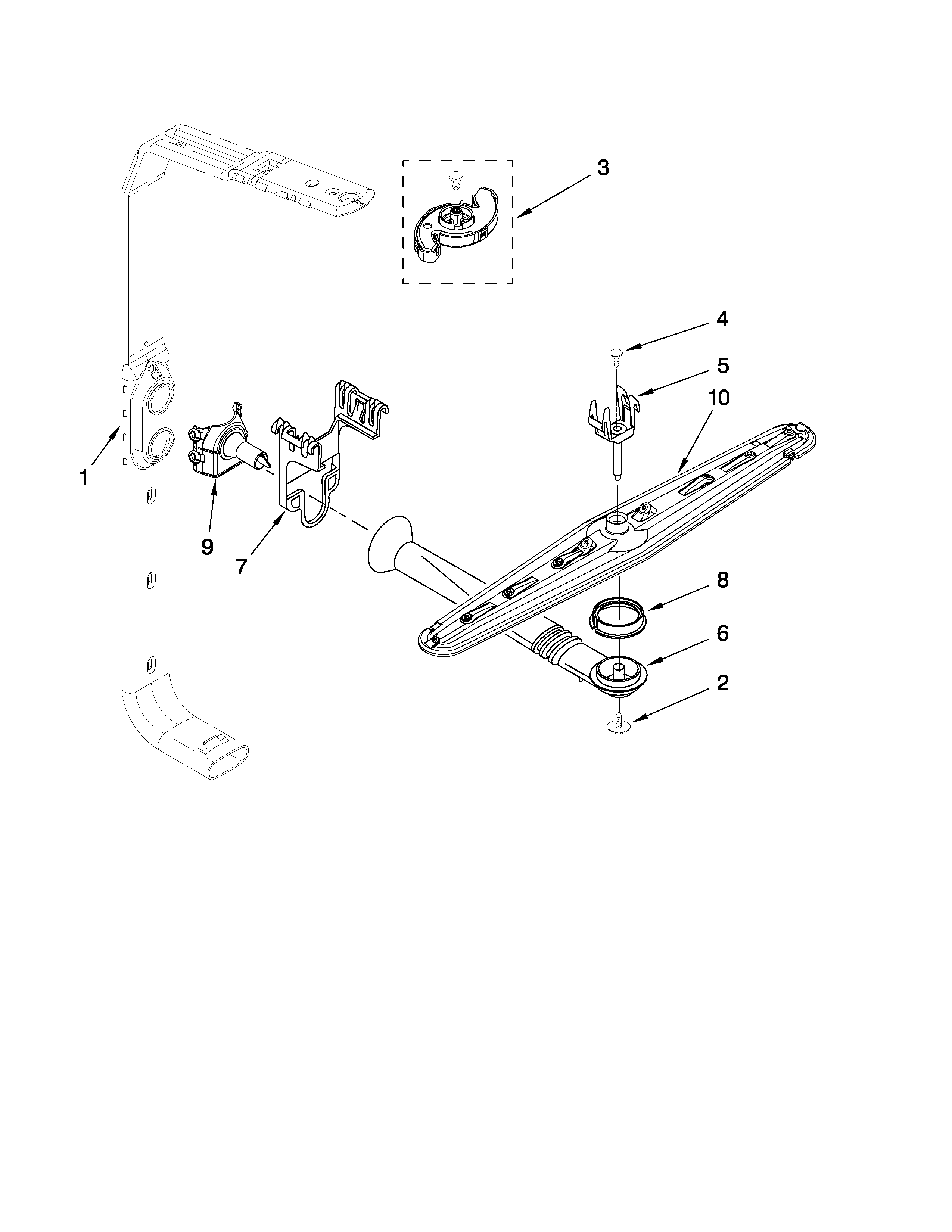

• Dirty dishes or grit left behind: spray arm holes blocked, heavy soil in the sump area, loading that blocks spray
• Standing water after the cycle: drain hose restriction, drain pump not moving water
• Won’t start or stops mid-cycle: door not fully latched, power interruption, blown fuse
• Leaks at the front or corners: worn door seal, door not closing squarely
• Poor drying: heater circuit issue, cycle interrupted before heat steps complete

Quick checks you can do first (KUDL03FVSS4)

Use the troubleshooting steps in the KUDL03FVSS4 user manual to match symptoms to checks like Start/Resume behavior, door latching, and cycle selection.

• Confirm the door closes and latches firmly (a loose latch can mimic “dead” controls)
• If Start/Resume is blinking, press START/RESUME and close the door promptly (top-control models)
• Check the sink drain and garbage disposer for a clog that can slow dishwasher draining
• Look for kinks or a sagging loop in the drain line routing (installation-related)
• If the unit is completely dead, check the home breaker and the dishwasher’s internal fuse

Parts that commonly solve these symptoms

Symptom	Common suspect part	Example part for this model

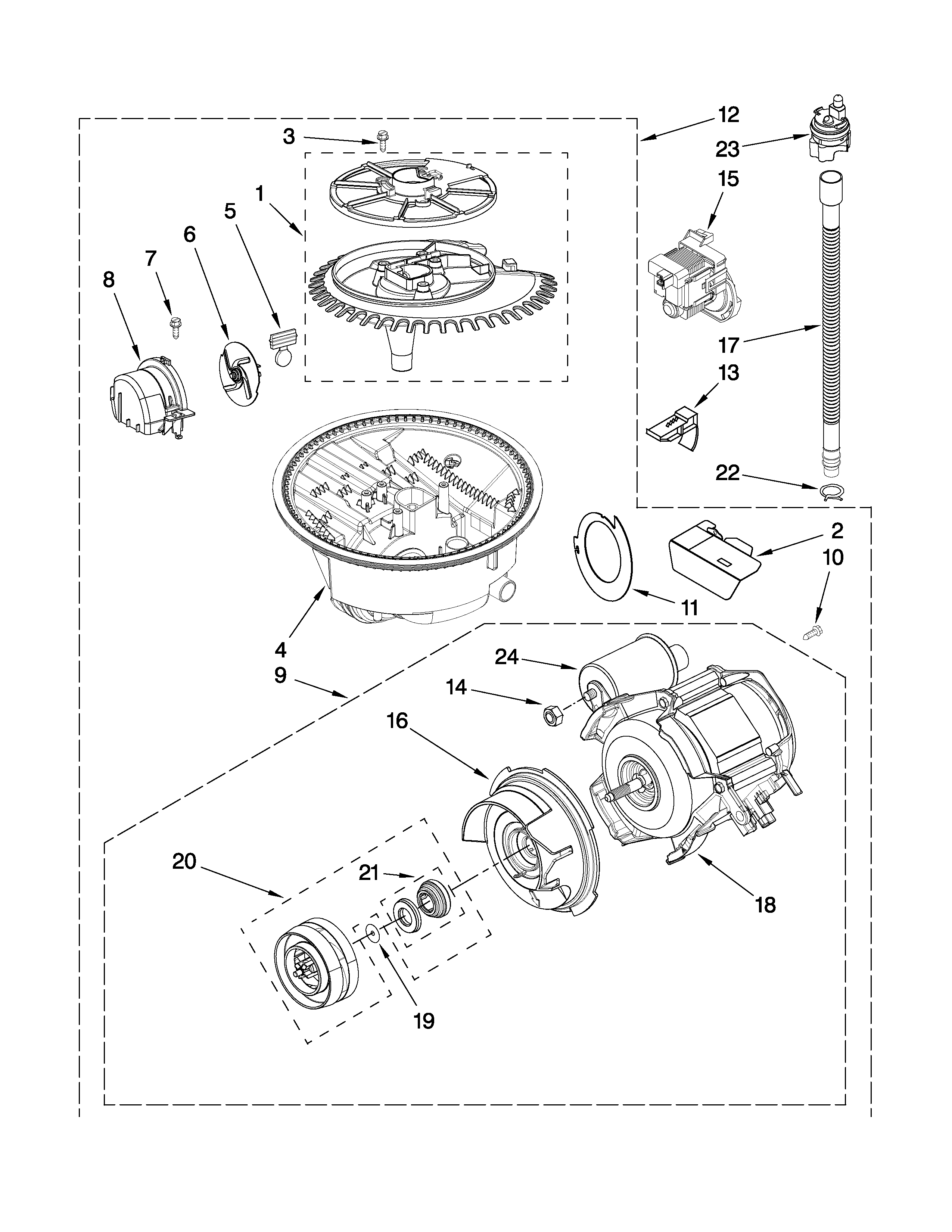

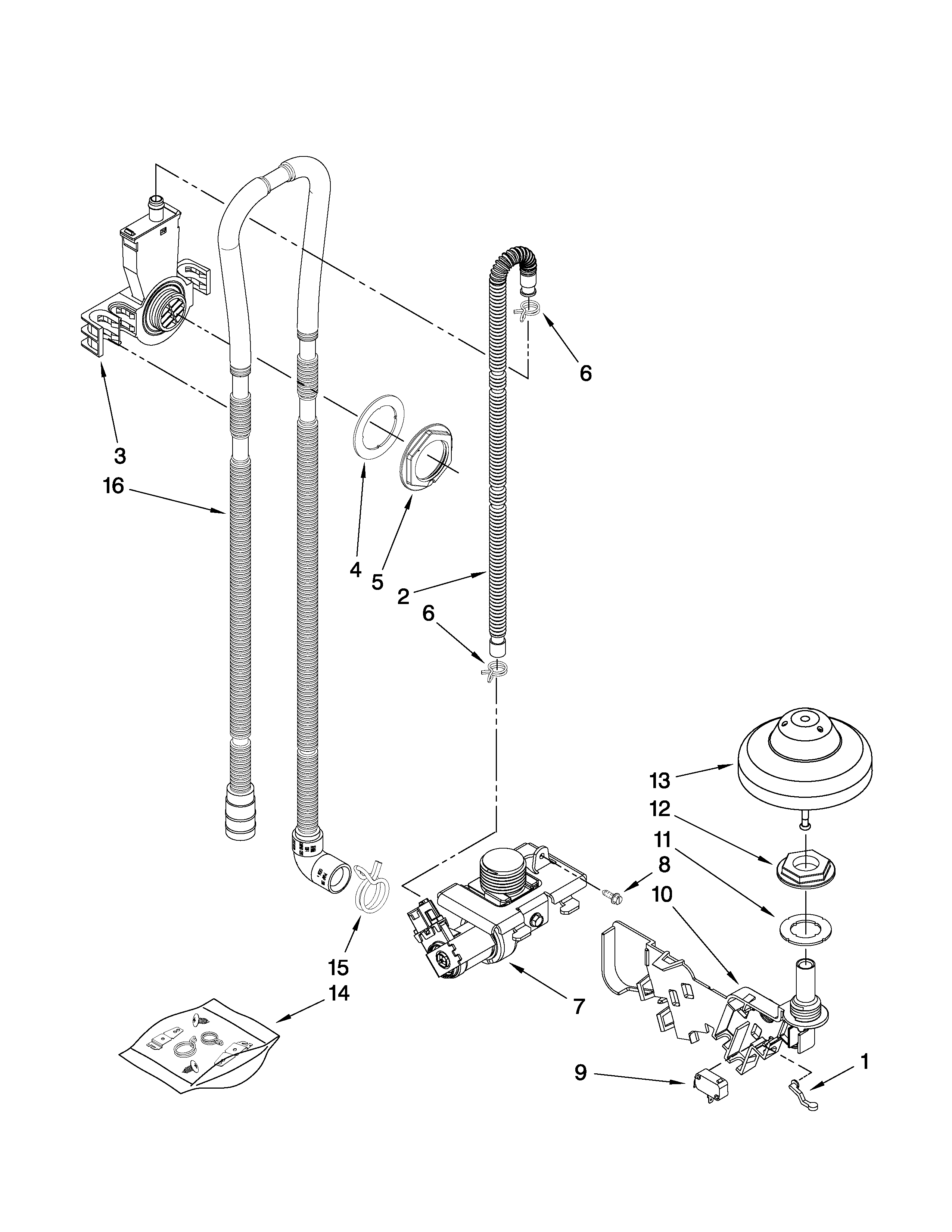

Standing water, won’t drain	Drain pump or drain hose restriction	Dishwasher drain pump WPW10348269 or dishwasher drain hose 8269144A
Dead/no power	Fuse or wiring issue	Fuse W10258275
Leaks at door	Door seal	Dishwasher door seal W11196317

Why it matters

Most “KitchenAid dishwasher problems” are really water movement problems: if wash water cannot spray freely or drain water cannot exit, cleaning suffers, cycles can stall, and leaks become more likely. Correct drain routing and a clear wash system prevent repeat failures.
