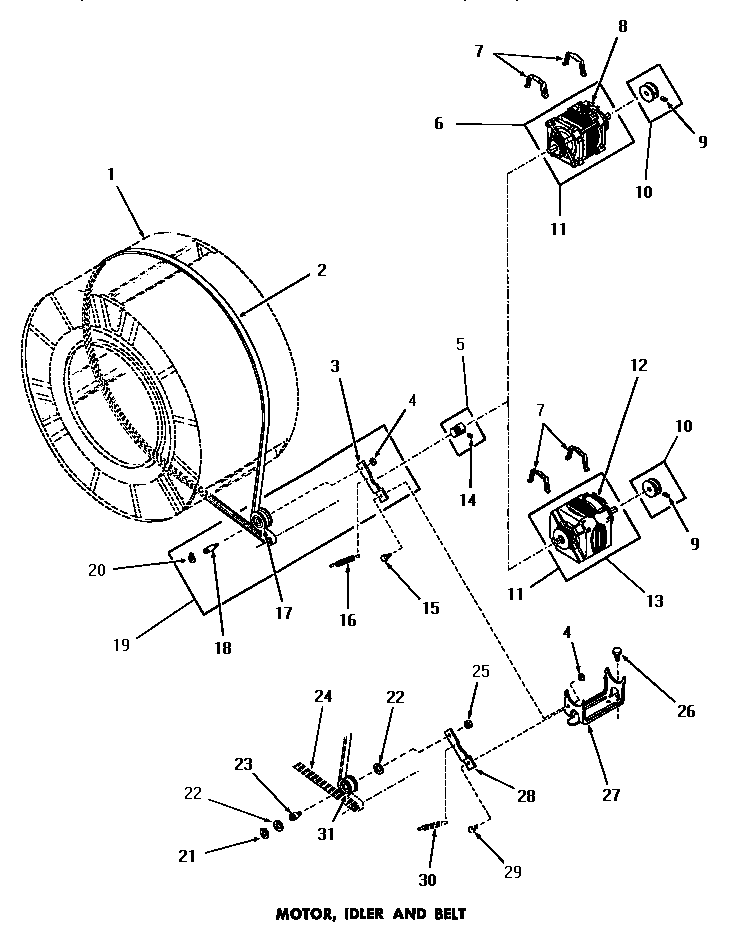

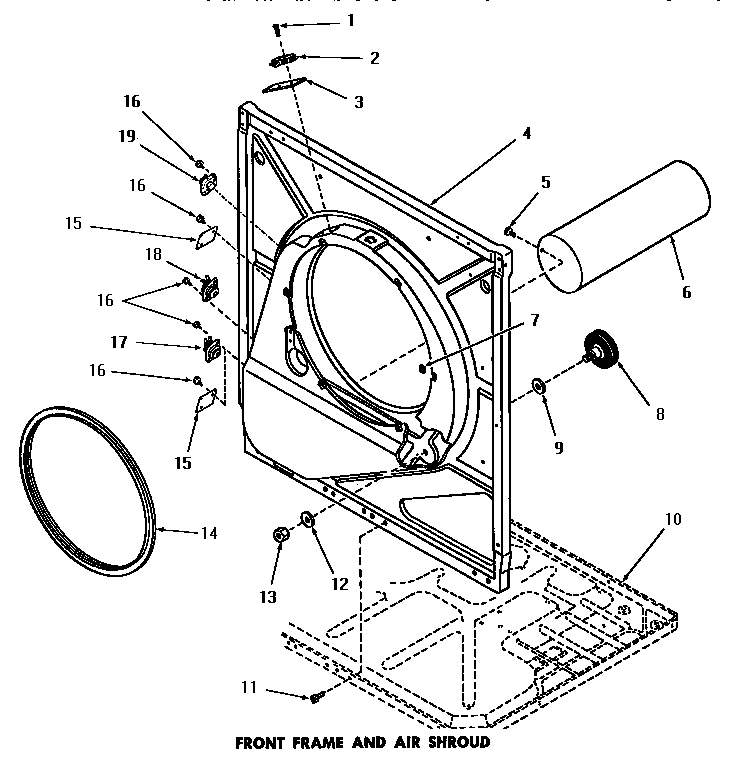

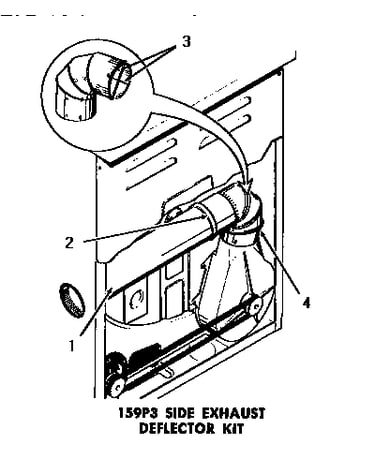

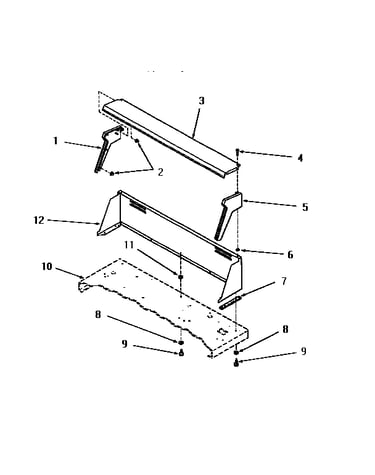

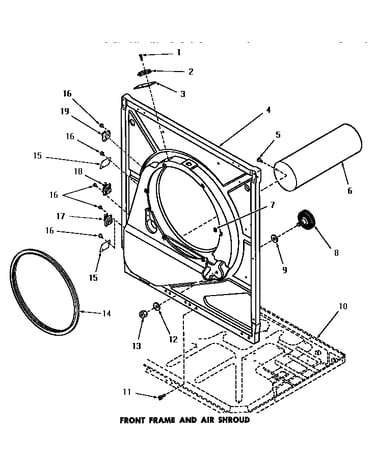

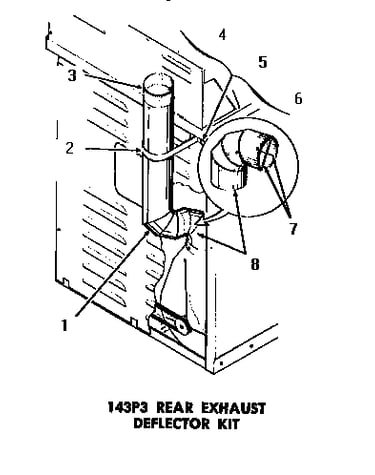

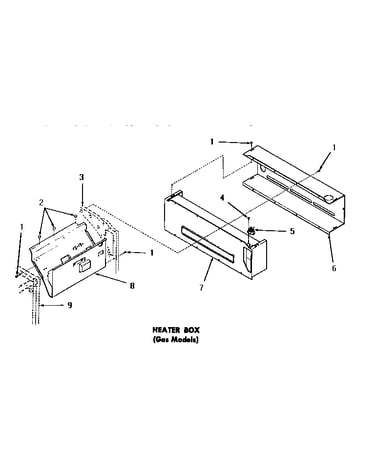

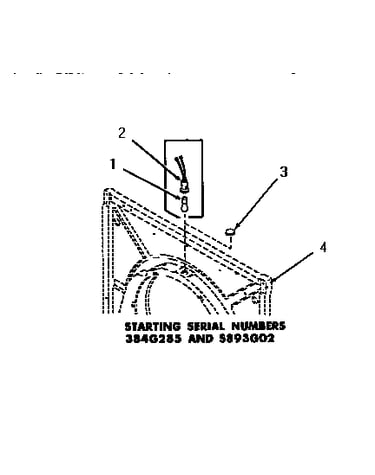

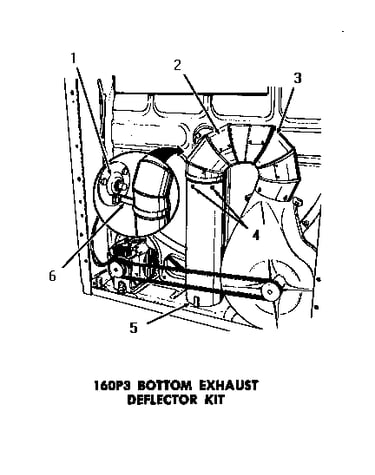

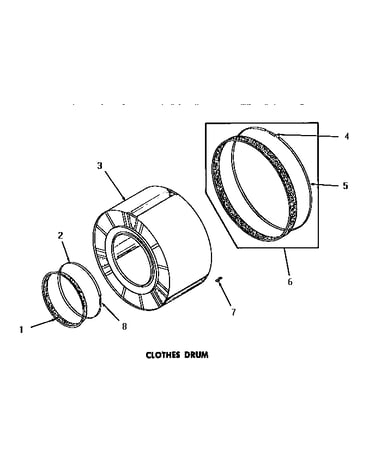

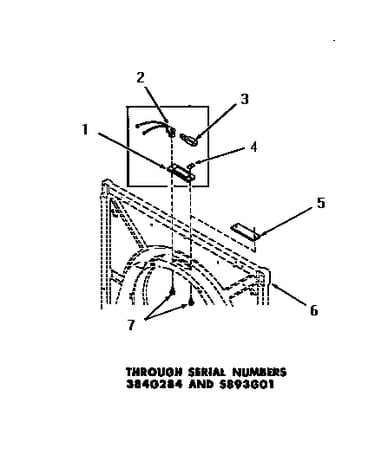

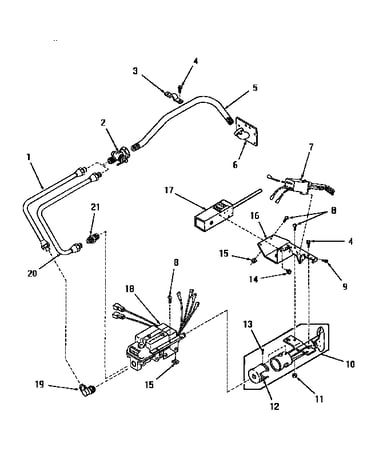

Model #DG3341 Speed Queen dryer

Here are the diagrams and repair parts for Speed Queen DG3341 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 335 parts

    Connector

    #20

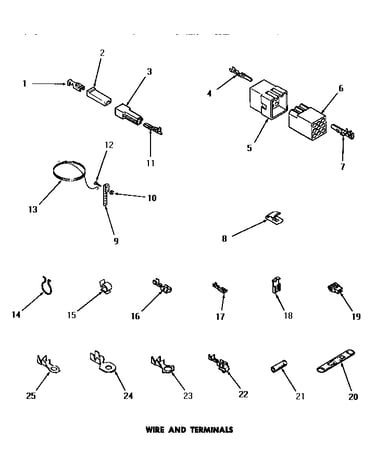

    Wire & terminals Diagram

    Connector

    Part #21091

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #14

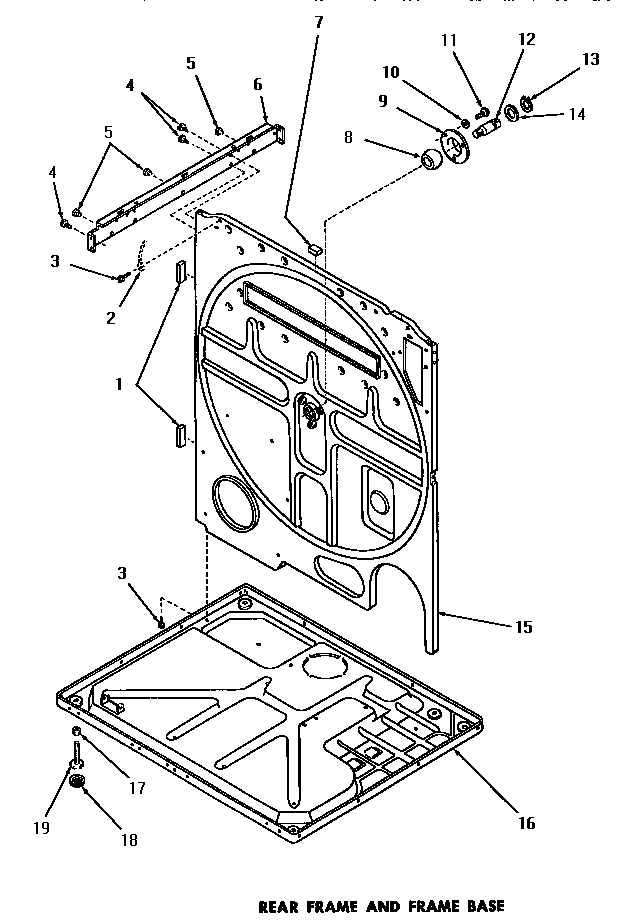

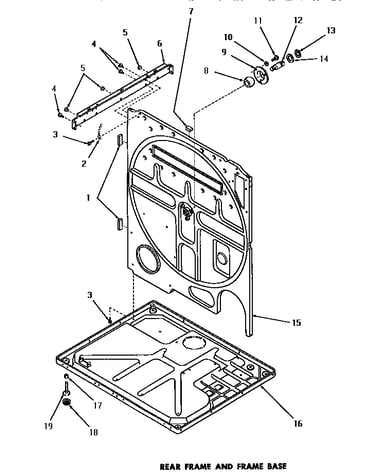

    Rear frame & frame base Diagram

    Washer

    Part #52564

    The manufacturer no longer makes this part, and there's no substitute part

    Hex Nut

    #9

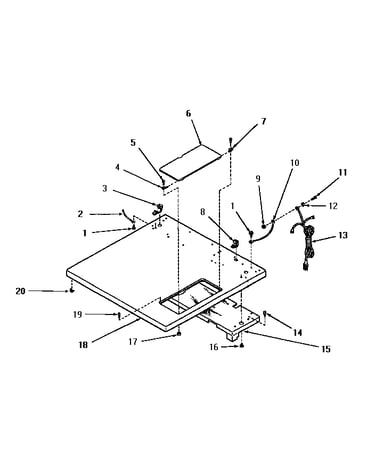

    Cabinet top Diagram

    Hex nut

    Part #23951

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #2

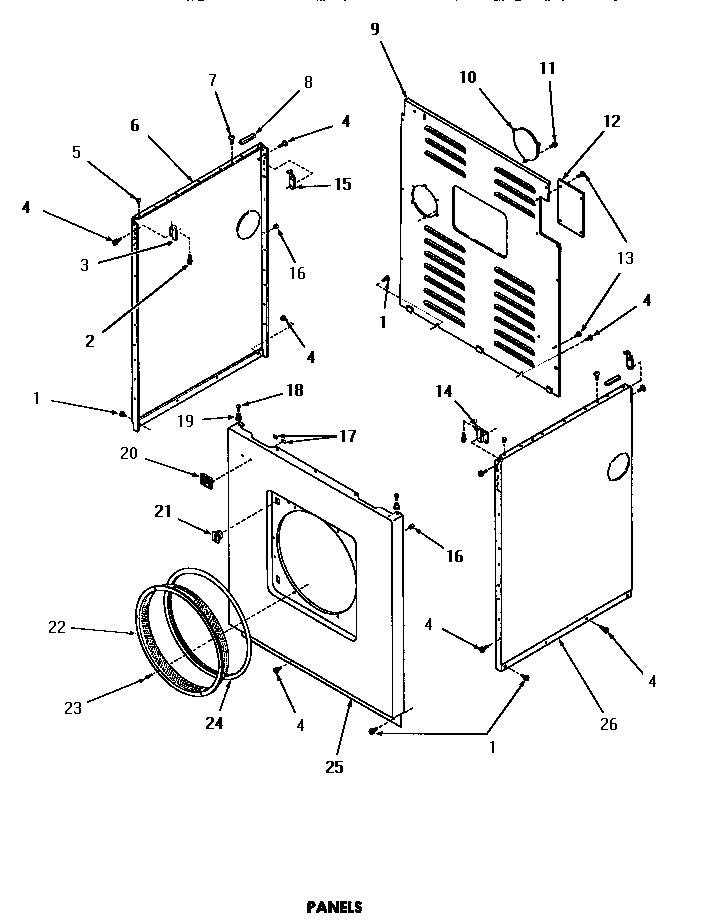

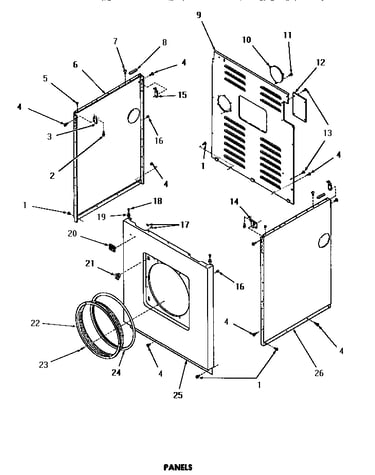

    Panels Diagram

    Screw

    Part #23008

    The manufacturer no longer makes this part, and there's no substitute part

    Terminal Block

    #5

    Wire & terminals Diagram

    Terminal block

    Part #23033

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #4

    Rear frame & frame base Diagram

    Screw

    Part #51780

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #25

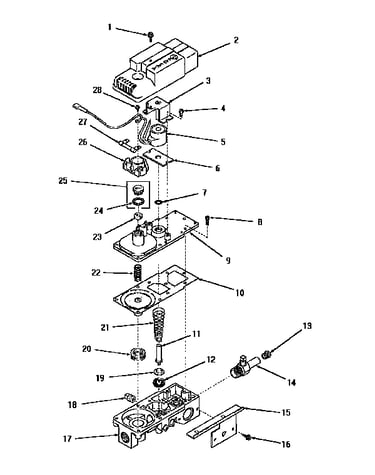

    53428 gas valve (nat / mixed gas) Diagram

    Screw

    Part #53952

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #11

    Cabinet top Diagram

    Screw

    Part #20267

    The manufacturer no longer makes this part, and there's no substitute part

    Nut

    #7

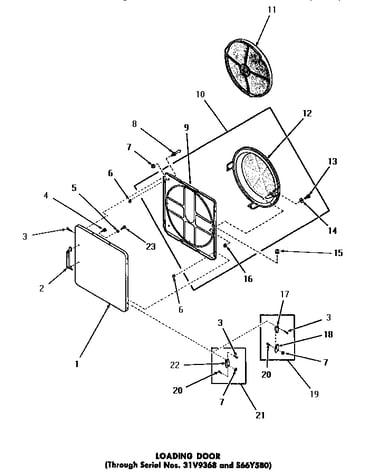

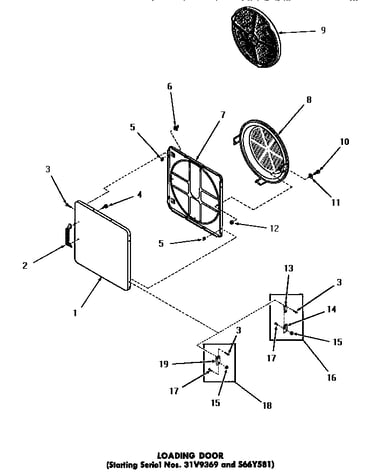

    Loading door (through serial numbers 31v9368 and s66y580) Diagram

    Nut

    Part #51236

    The manufacturer no longer makes this part, and there's no substitute part

    Foot

    #19

    Rear frame & frame base Diagram

    Foot

    Part #52696

    The manufacturer no longer makes this part, and there's no substitute part
