Model #PDW8800L00BB GE dishwasher

Here are the diagrams and repair parts for GE PDW8800L00BB dishwasher, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 160 parts

|

Dishwasher Tub Gasket

#843

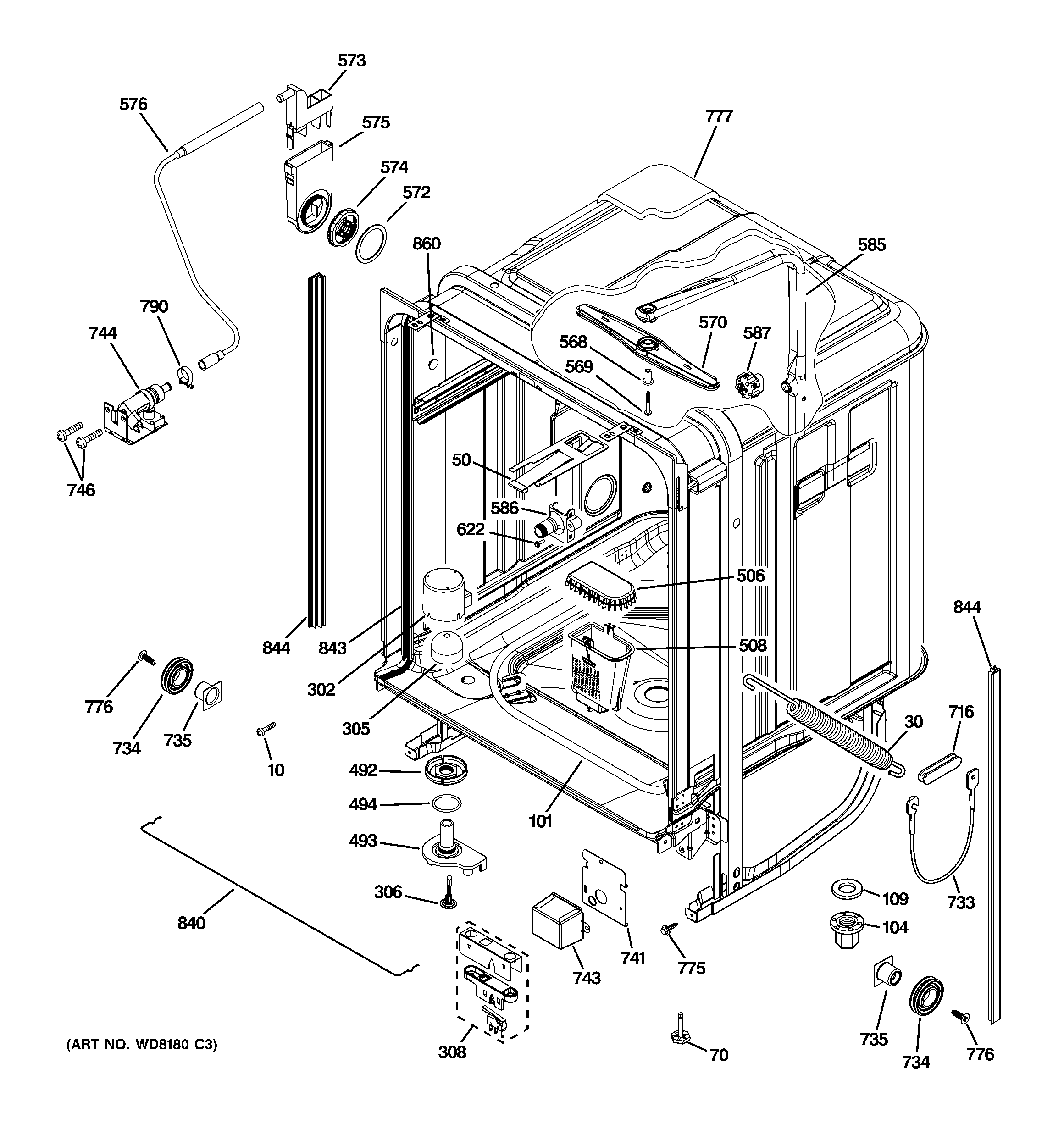

Body parts Diagram

Dishwasher tub gasket

Part #WD08X10032
$24.51

In Stock

Dishwasher Silverware Basket

#761

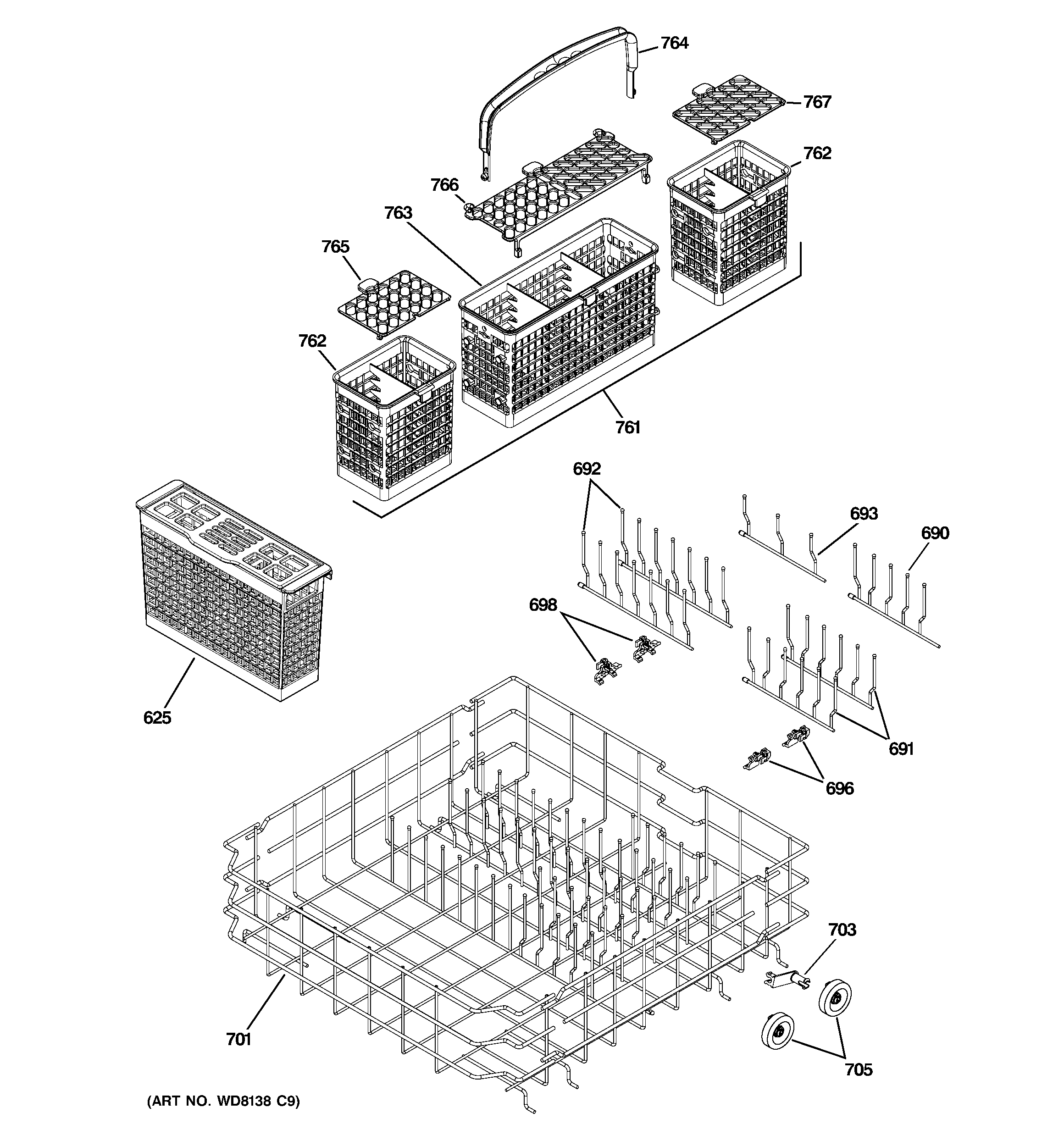

Lower rack assembly Diagram

$13.91

In Stock

Dishwasher Detergent Dispenser Assembly

#811

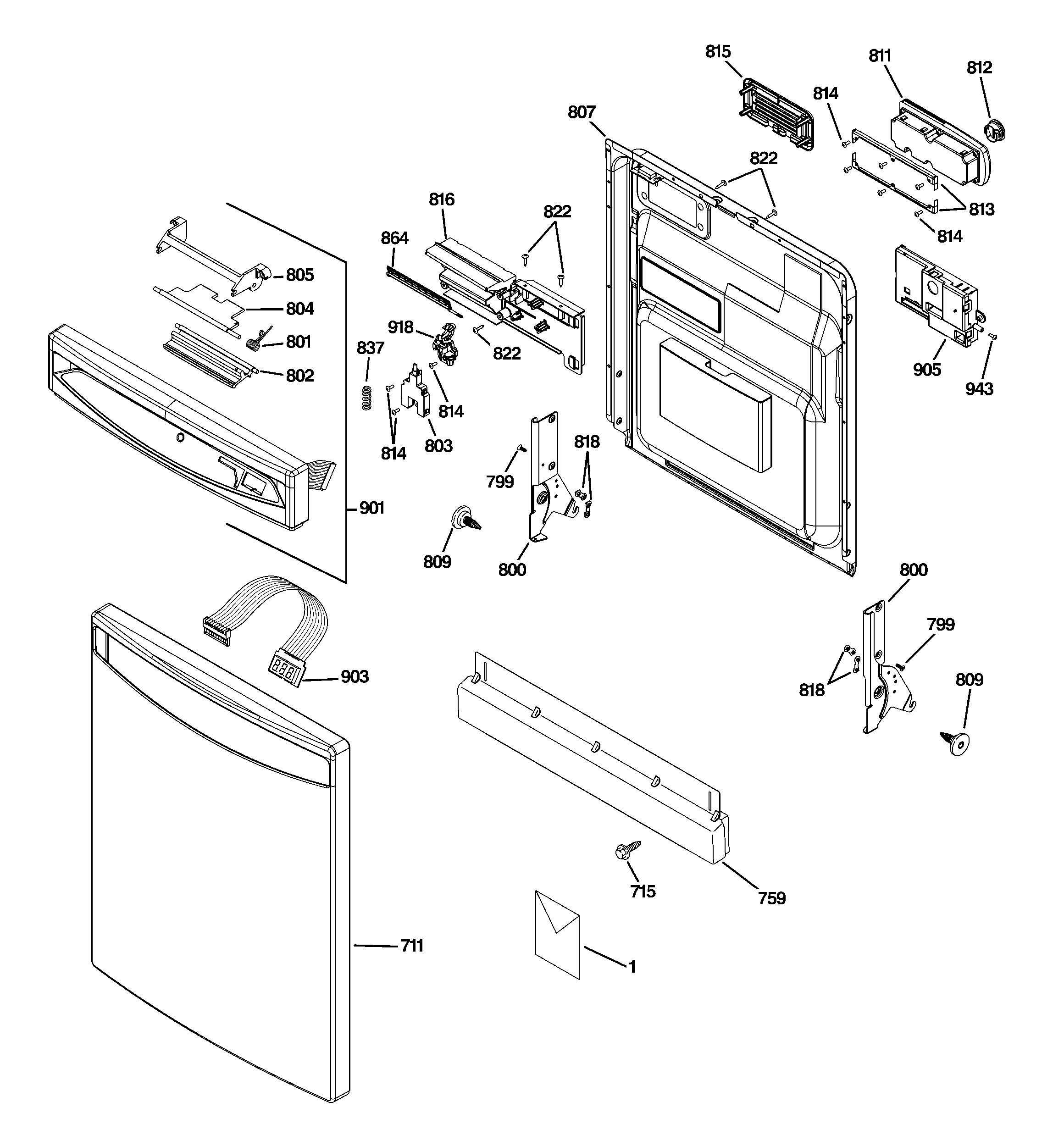

Escutcheon & door assembly Diagram

$39.06

In Stock

Dishwasher Door Hinge Arm Link

#716

Body parts Diagram

Dishwasher door hinge arm link

Part #WD14X10009
This item is not returnable
$3.75

In Stock

Dishwasher Door Seal

#844

Body parts Diagram

Dishwasher door seal

Part #WD08X10055
$9.99

In Stock

Dishwasher Sump Inlet

#505

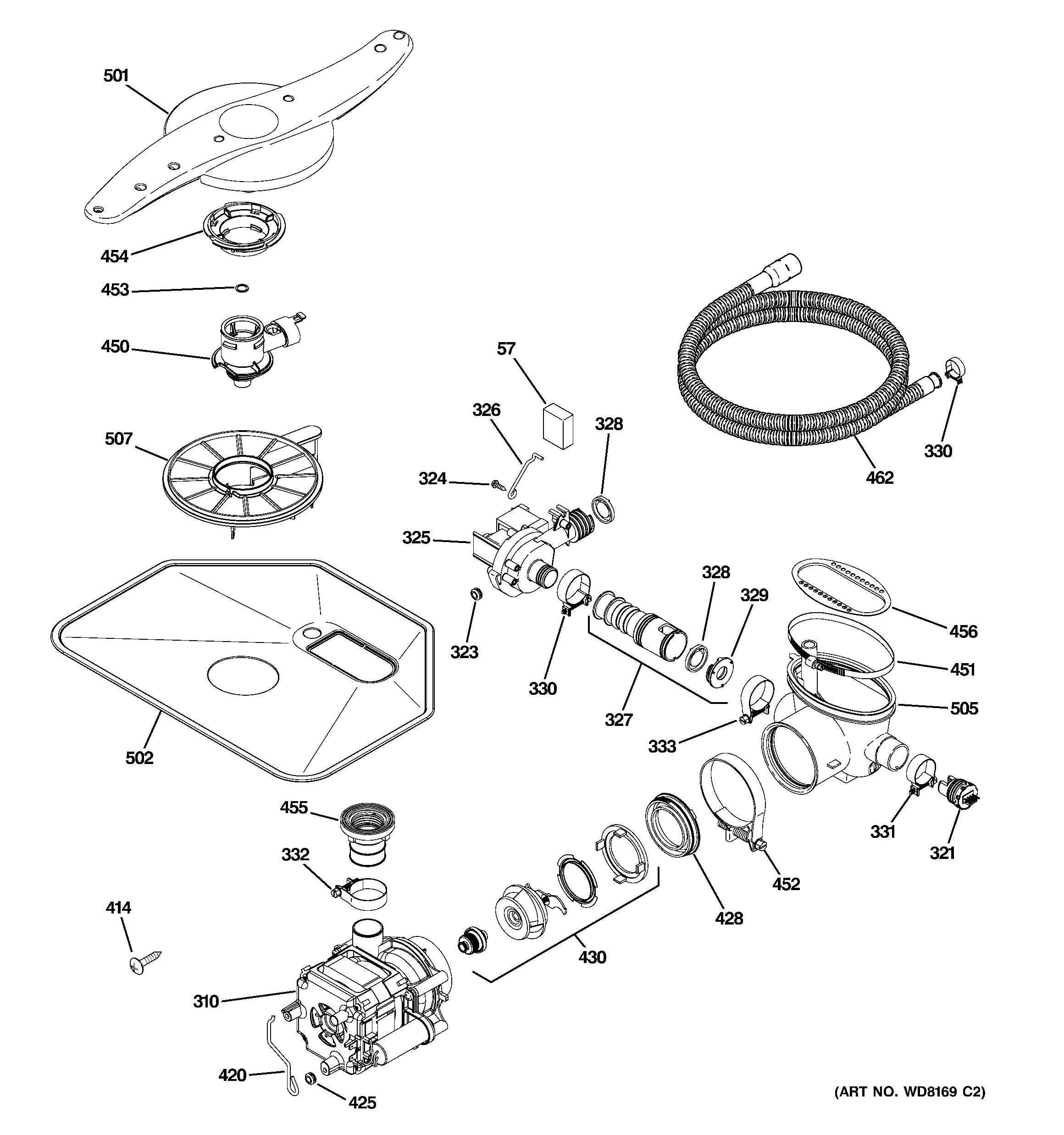

Motor-pump mechanism Diagram

Dishwasher sump inlet

Part #WD18X10026
$25.74

In Stock

Dishwasher Dishrack Slide Rail Stop

#652

Upper rack assembly Diagram

Dishwasher dishrack slide rail stop

Part #WD12X10184
This item is not returnable
$5.60

In Stock

Dishwasher Door Handle Retainer

#805

Escutcheon & door assembly Diagram

Dishwasher door handle retainer

Part #WD13X10017
This item is not returnable
$5.88

In Stock

Dishwasher Screw

#822

Escutcheon & door assembly Diagram

Dishwasher screw

Part #WD02X10106
This item is not returnable
$3.42

In Stock

Dishwasher Tine Row Retainer, Upper

#696

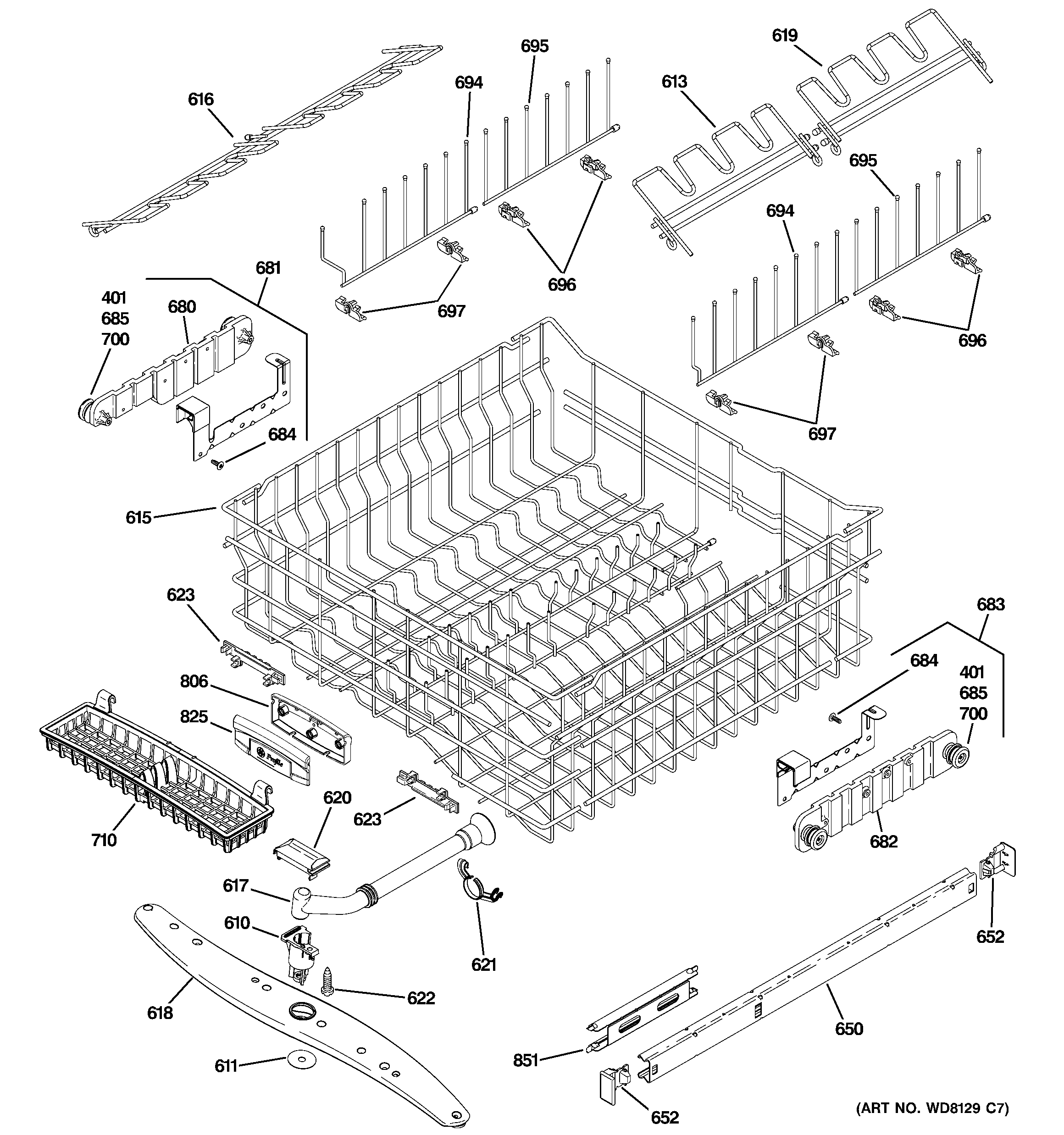

Upper rack assembly Diagram

Dishwasher tine row retainer, upper

Part #WD12X10116
This item is not returnable
$2.93

In Stock

Showing 10 of 160 parts

Symptoms common to all dishwashers

Choose a symptom to see related dishwasher repairs.

Main cause: damaged rack height adjuster
Main causes: broken door spring, detergent dispenser failure, cabinet mounting brackets loose or broken
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm or pump problems
