How do I find the size of my Kenmore refrigerator?
For your Kenmore side-by-side refrigerator model 10653569202, “size” usually means either the outside dimensions (to fit the space) or the storage capacity in cubic feet (how much it holds). We use the dimensions listed in the 10653569202 owner's manual to get the most accurate numbers.

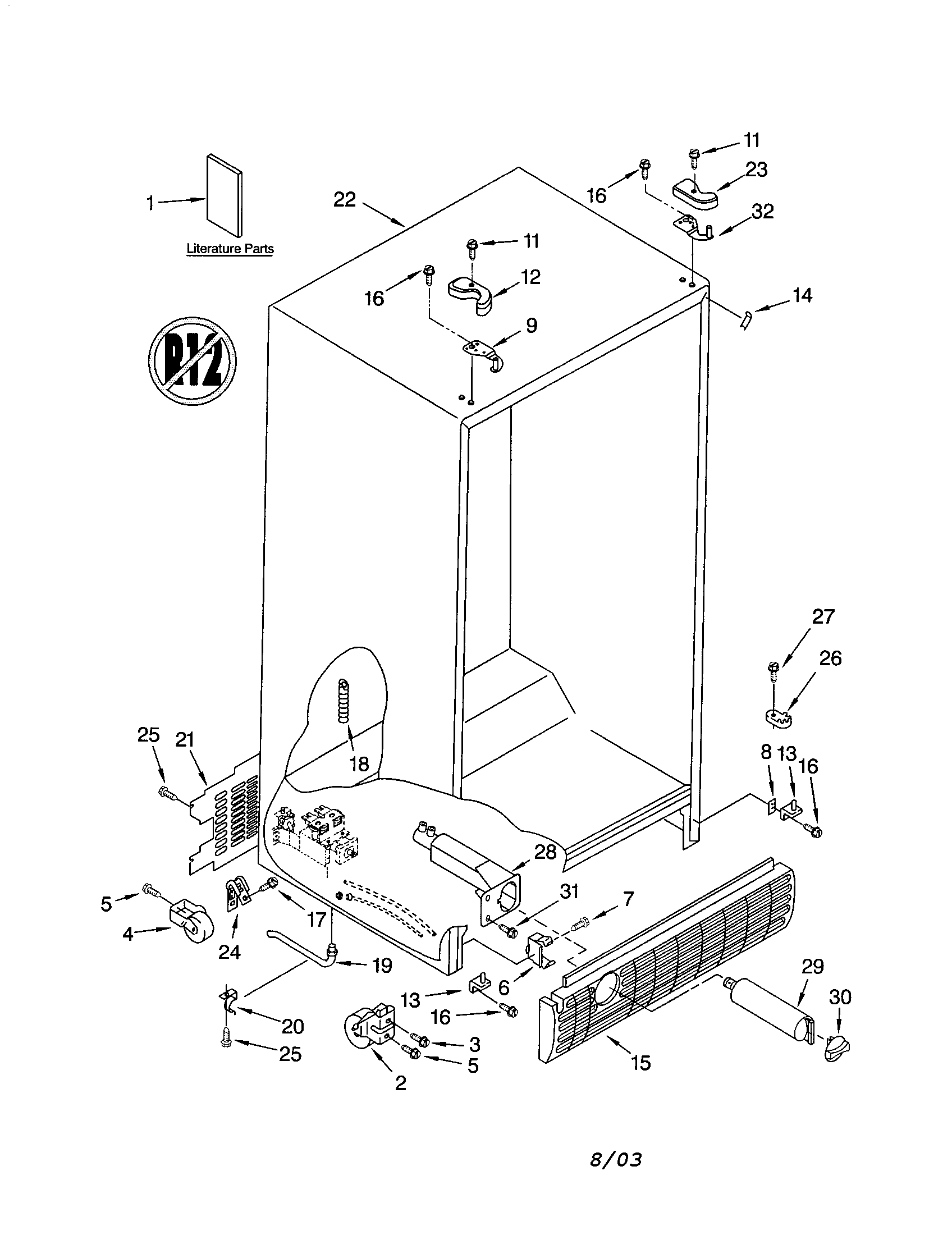

Use a tape measure and record these three numbers:
- Width: left to right across the front (include handles only if you need clearance)
- Height: floor to the top of the cabinet or hinge cover (whichever is highest)
- Depth: front to back (measure cabinet depth, then measure again including handles)
The manual calls for ventilation and swing clearance, so your “required space” is bigger than the cabinet size:
- Allow 1/2 inch space on each side and at the top for ventilation
- If installed next to a fixed wall, leave at least 2 inches on the hinge side so the door can swing open
- If you have an ice maker, allow extra space at the back for the water line
If you do not have the capacity label handy, we estimate cubic feet from interior measurements.

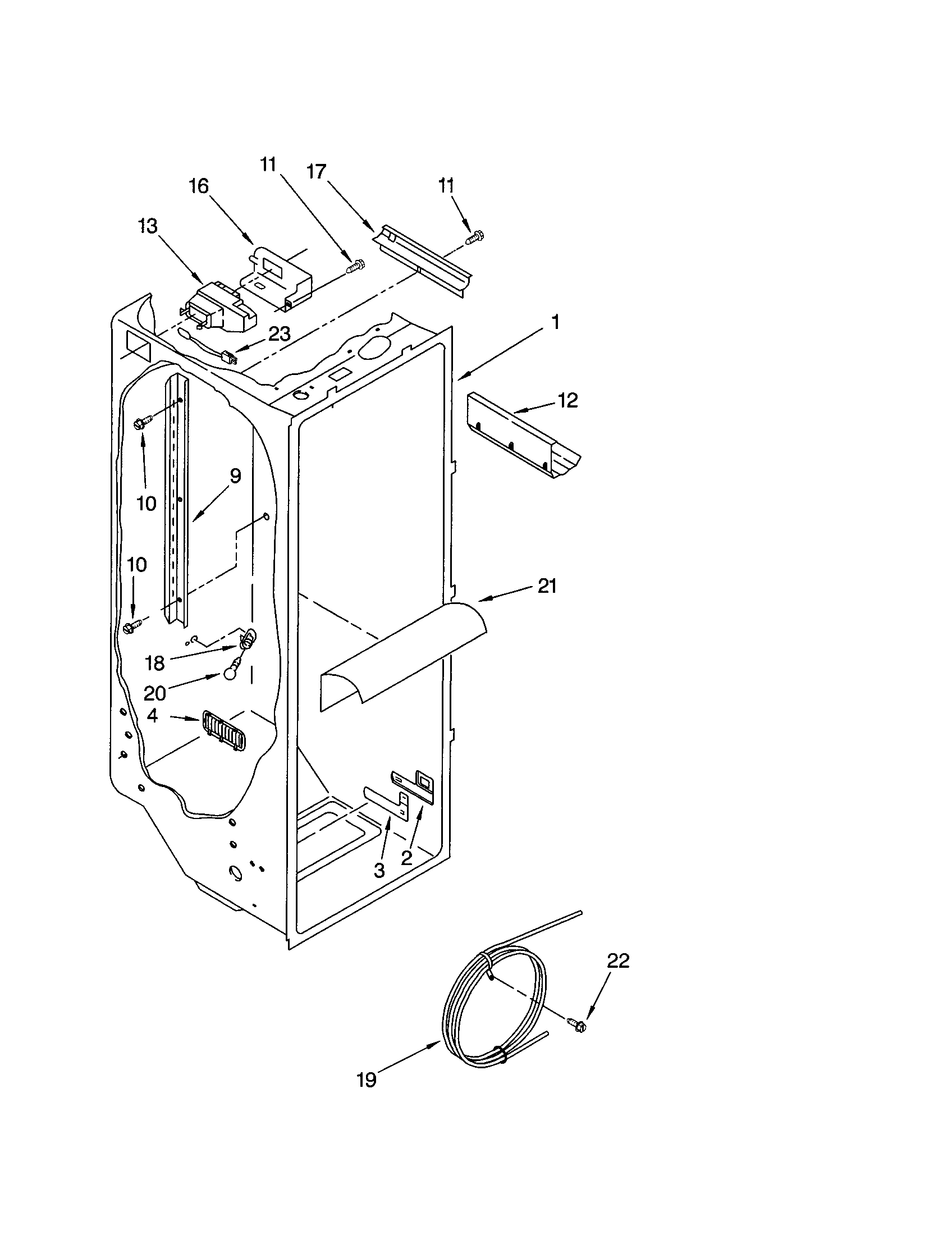

- Measure interior width, height, and depth (in inches) of the fresh food section.
- Multiply:
width × height × depth = cubic inches - Divide by 1,728 to convert to cubic feet.
| What you have | What it tells you | How we use it |
|---|---|---|
| Outside width/height/depth | Fit and clearance | Compare to cabinet opening and door swing space |
| Interior width/height/depth | Storage estimate | Convert cubic inches to cubic feet |
| Model/serial label capacity | Exact capacity | Use the printed cubic feet value |

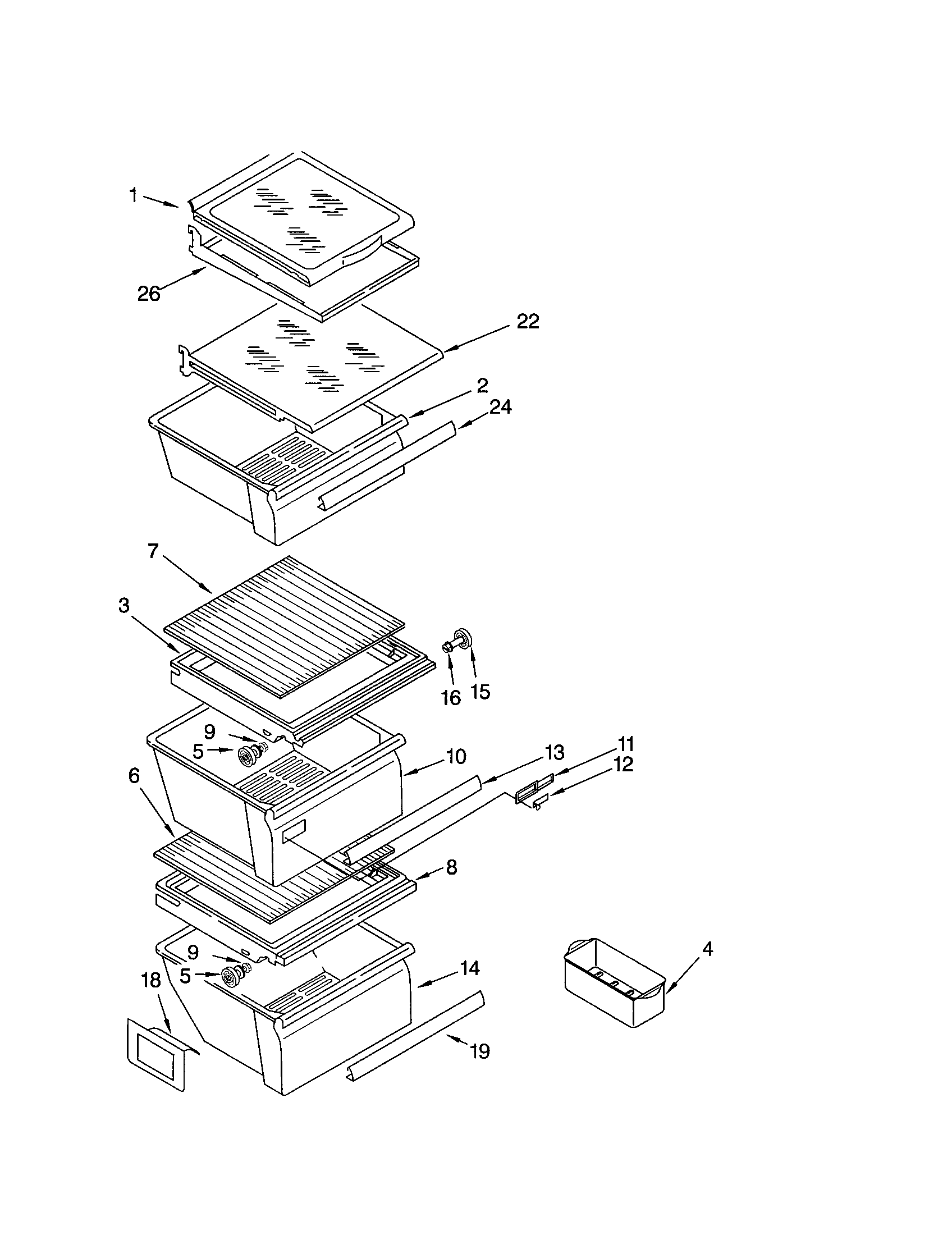

Correct sizing prevents installation problems (door swing, ventilation, water line clearance) and helps you choose compatible shelves, bins, and water filter parts for Kenmore model 10653569202.
Last updated: January 2026
What are the most common issues with 10653569202?
The most common issues we see on the Kenmore 10653569202 side-by-side refrigerator involve weak cooling, water or ice dispenser problems, frost buildup from defrost failures, and door sealing or closing issues. These symptoms usually trace back to airflow, defrost, or water-supply components listed for this model.

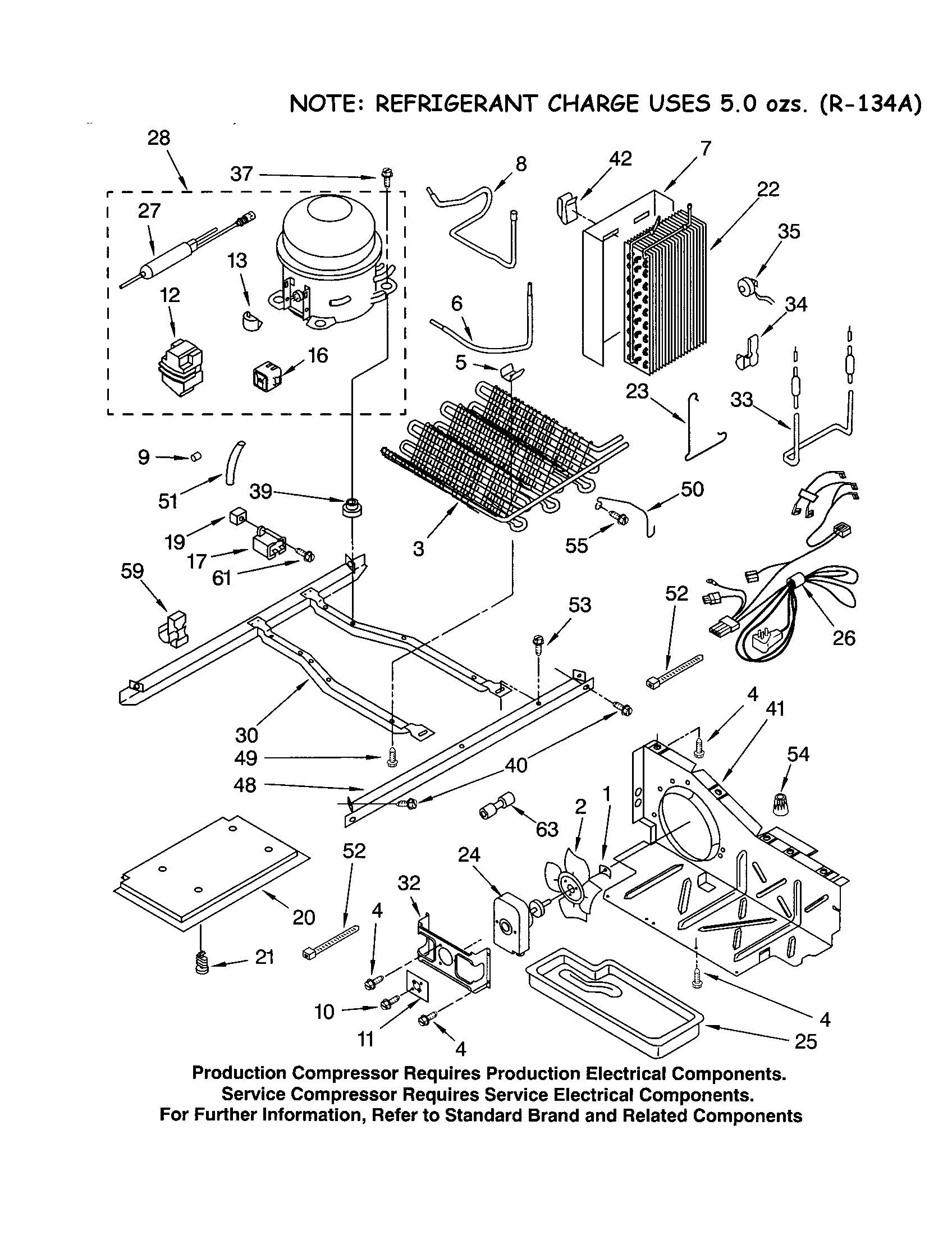

- Not cooling well or warm refrigerator section: restricted airflow, evaporator fan issues, or a dirty condenser area
- Frost buildup on the back wall or evaporator cover: defrost system problem (heater or defrost thermostat)

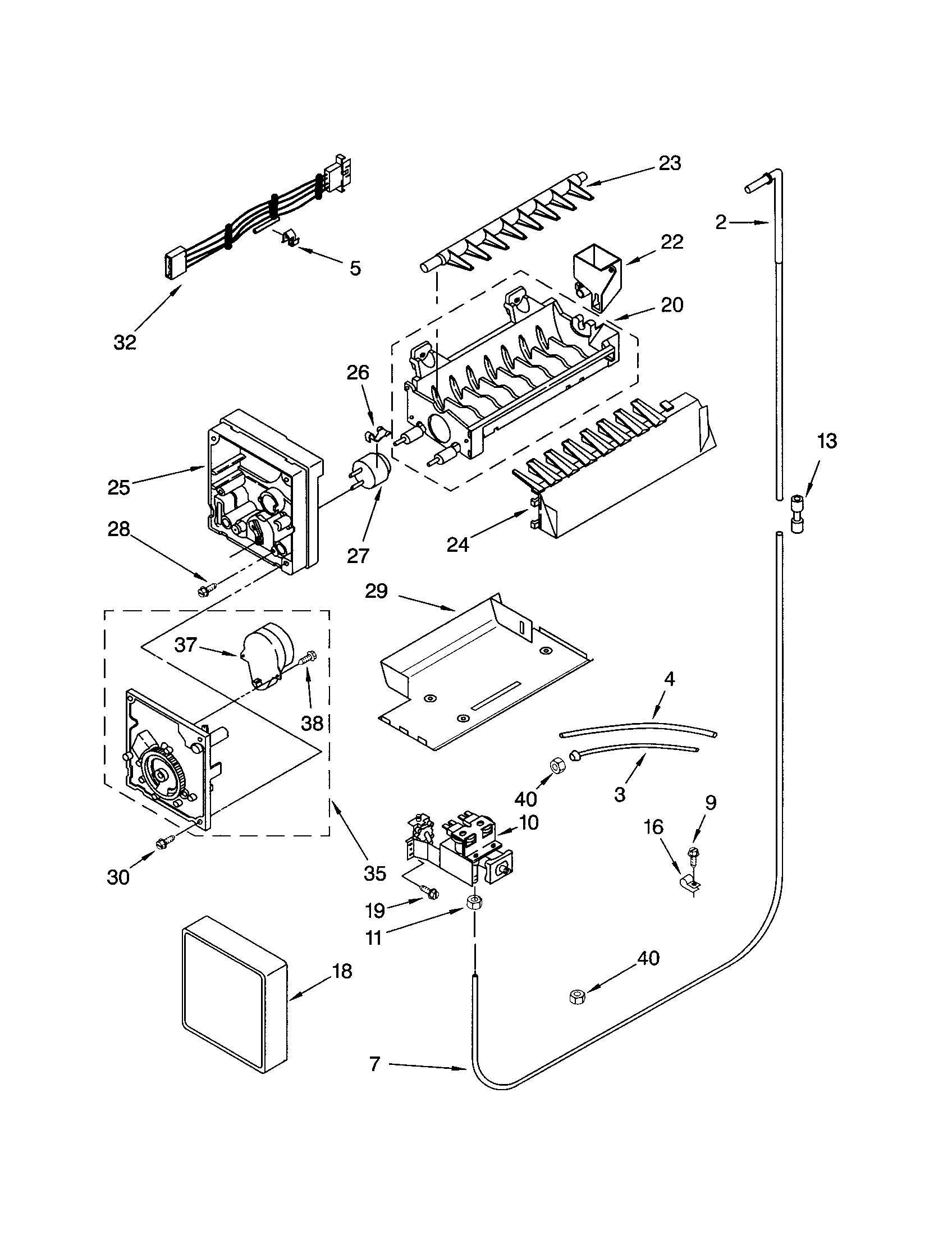

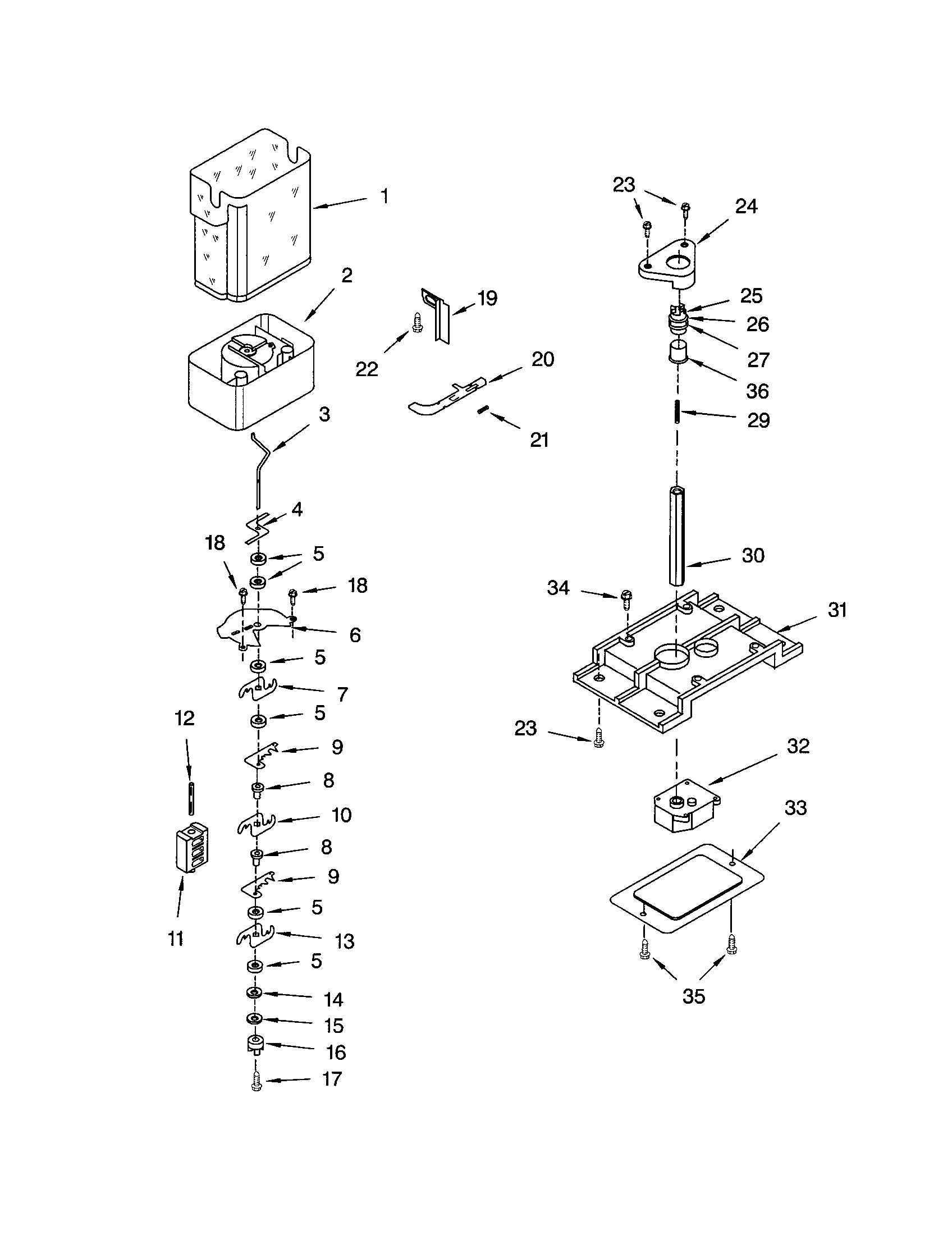

- Ice maker not making ice or slow ice production: water supply restriction, inlet valve issue, or ice mold problem

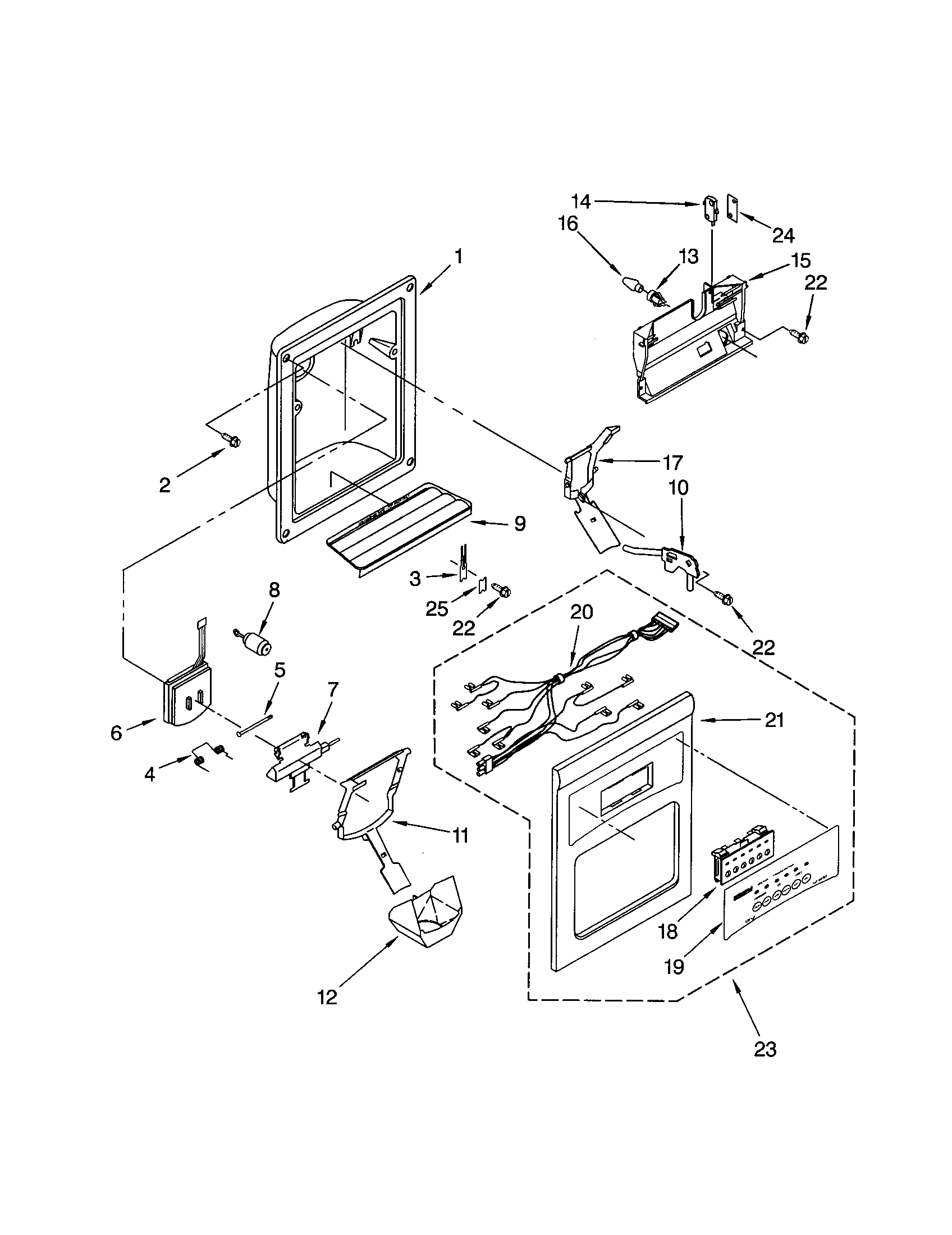

- Water dispenser not dispensing or dispensing slowly: inlet valve, reservoir, tubing, or filter housing restriction

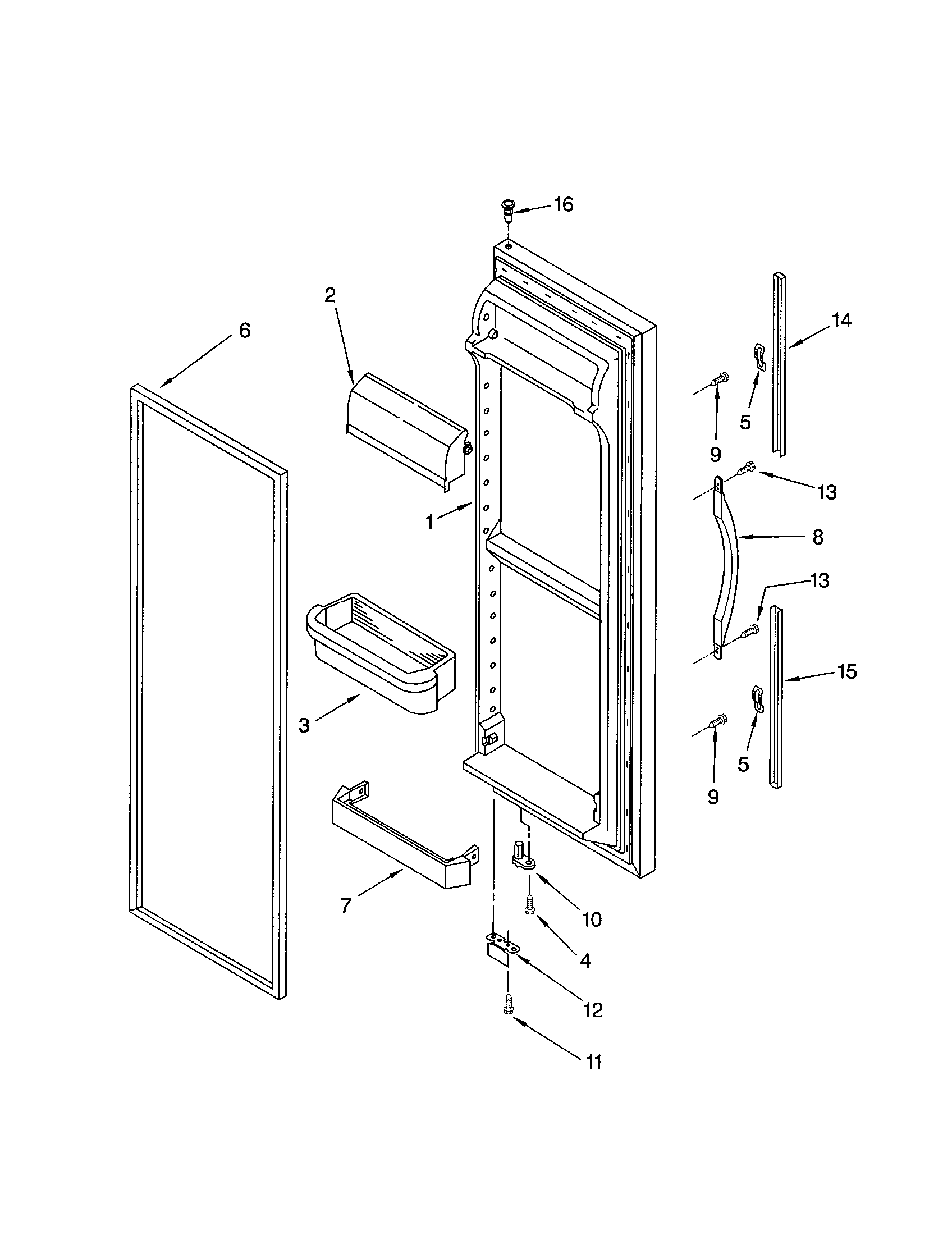

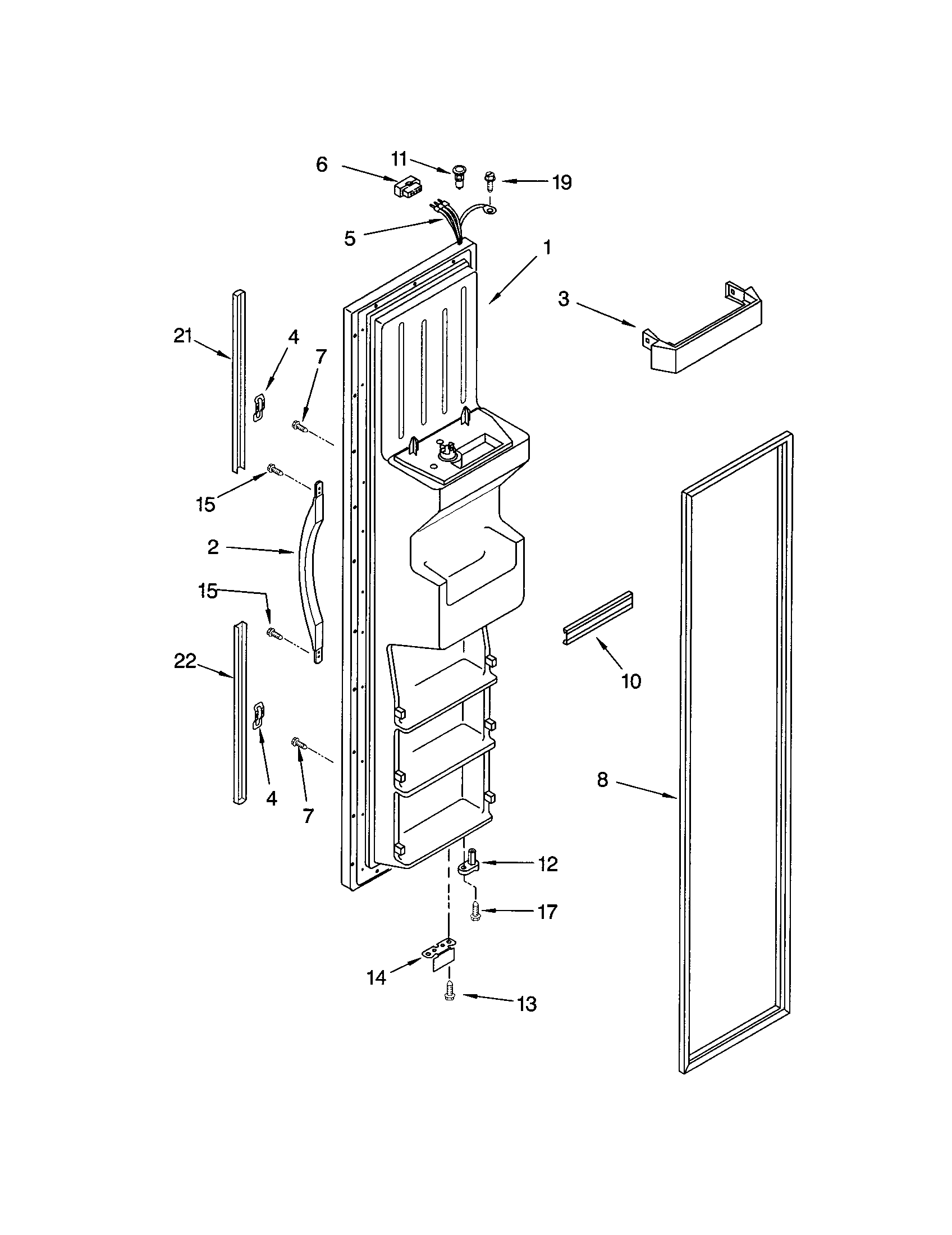

- Door not closing smoothly or door sagging: worn door cam or gasket sealing problems
| Symptom | Commonly involved part | Example part on this model |
|---|---|---|
| No water to dispenser/ice maker | Water inlet valve | Refrigerator inlet valve W10408179 |
| Frost buildup, warm temps | Defrost thermostat or heater | Refrigerator defrost bi-metal WPW10225581, refrigerator heater WP2323198 |
| Poor airflow, warm sections | Evaporator fan components | Evaporator motor WP2315548, refrigerator evaporator fan blade WP2169142 |
| Door pops, won’t close right | Door cam | Refrigerator door cam (black) WP2182179 |
- Confirm temperature settings; allow 24 hours after changes.
- Make sure vents inside both compartments are not blocked by food.
- Listen for the evaporator fan running when the door switch is pressed.
- Check for heavy frost behind the freezer’s rear panel (defrost issue indicator).
- For water issues, verify the household shutoff valve is fully open and the supply line is not kinked.
Cooling, defrost, and water delivery systems work together on a side-by-side refrigerator; a single failed component can cause multiple symptoms (for example, a defrost failure can look like a “not cooling” complaint).
For model-specific operating details and troubleshooting steps, use the 10653569202 owner’s manual.
Last updated: March 2026
What is the code Sy Ef on a Kenmore refrigerator?

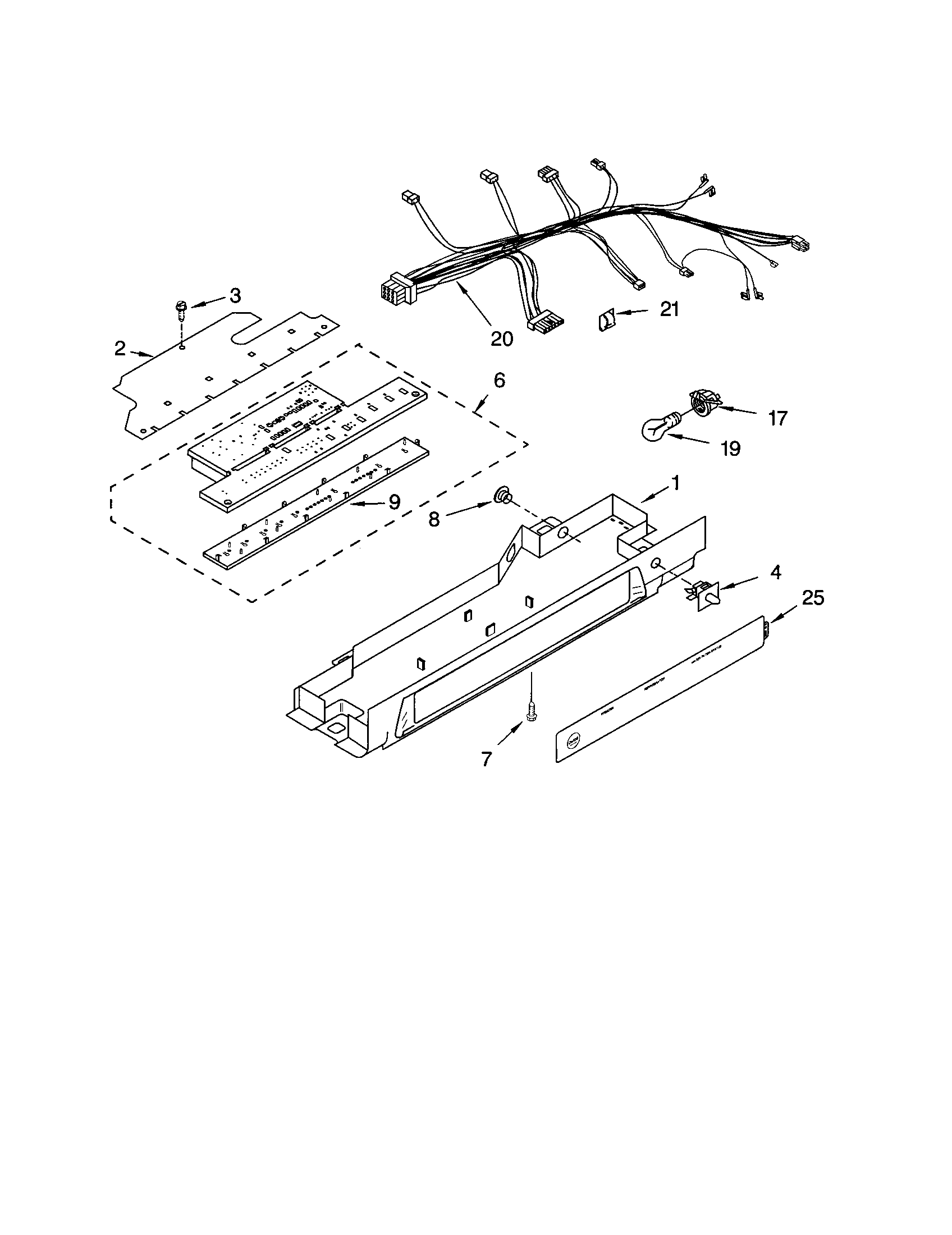

On a Kenmore refrigerator, the SY EF (or 5Y EF) code points to a problem in the evaporator fan circuit. On model 10653569202, this usually means the evaporator fan is not running correctly, airflow is restricted by frost or ice, or the wiring/control is not sending power to the fan.
- Unplug the refrigerator for 5 minutes, then restore power and listen for the freezer fan to run.
- Make sure freezer vents are not blocked by food packages.
- Check for heavy frost on the freezer back wall (a defrost problem can stop airflow).
- Confirm the freezer door closes tightly and the door switch clicks and works.
- If the fan is noisy, rubbing, or intermittent, plan on inspecting the fan area.
| What you notice | Most likely cause | What typically fixes it |
|---|---|---|
| Freezer warm, fridge warm, fan silent | Failed evaporator fan motor or wiring issue | Fan circuit diagnosis and repair per the 10653569202 owner’s manual |
| Frost blanket on freezer back wall | Defrost system problem | Test/replace defrost components such as the refrigerator defrost bi-metal WPW10225581 or defrost heater circuit |
| Fan runs but airflow is weak | Ice buildup or blocked diffuser/vents | Defrost/clear airflow path, verify diffuser operation |

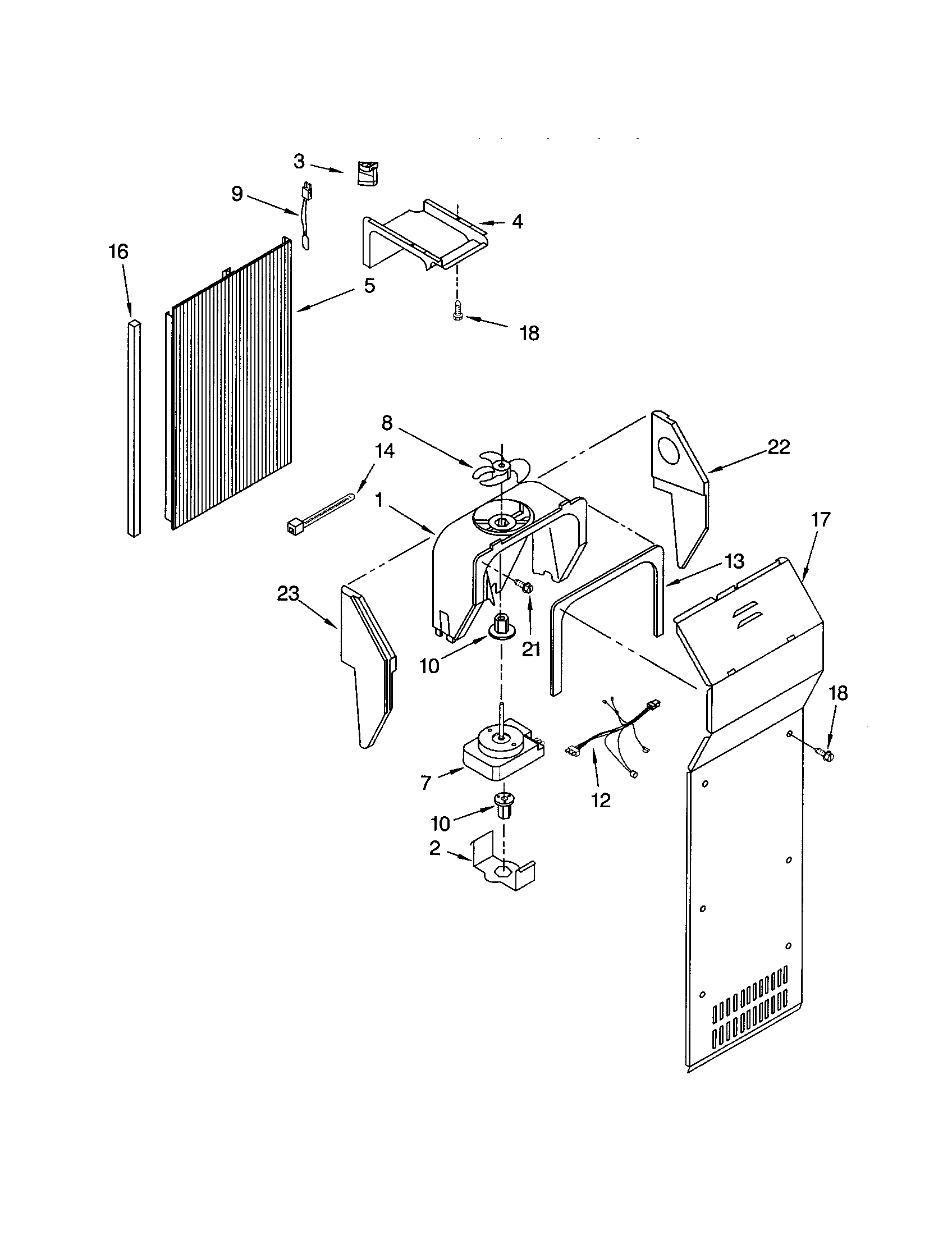

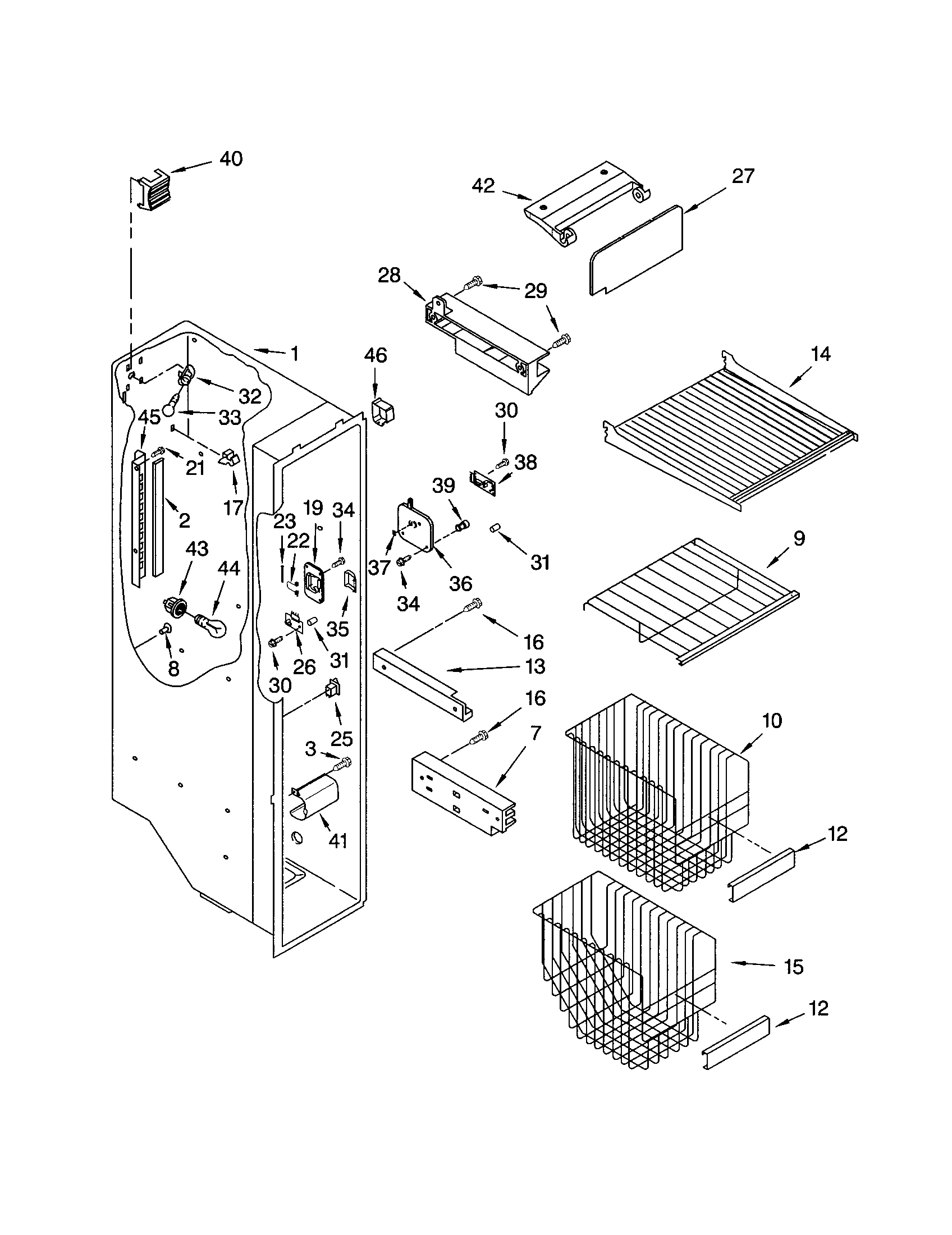

The evaporator fan moves cold air from the evaporator through the freezer and into the fresh food section. When the fan circuit fails, temperatures rise quickly and the compressor may run longer, which can lead to food spoilage and excessive frost.
- You smell burning, see damaged wiring, or the breaker trips.
- The freezer has heavy ice buildup that returns within days.
- The code returns immediately after a power reset.
