Model # PDWT580V00SS Official GE dishwasher

Here are the diagrams and repair parts for Official GE PDWT580V00SS dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

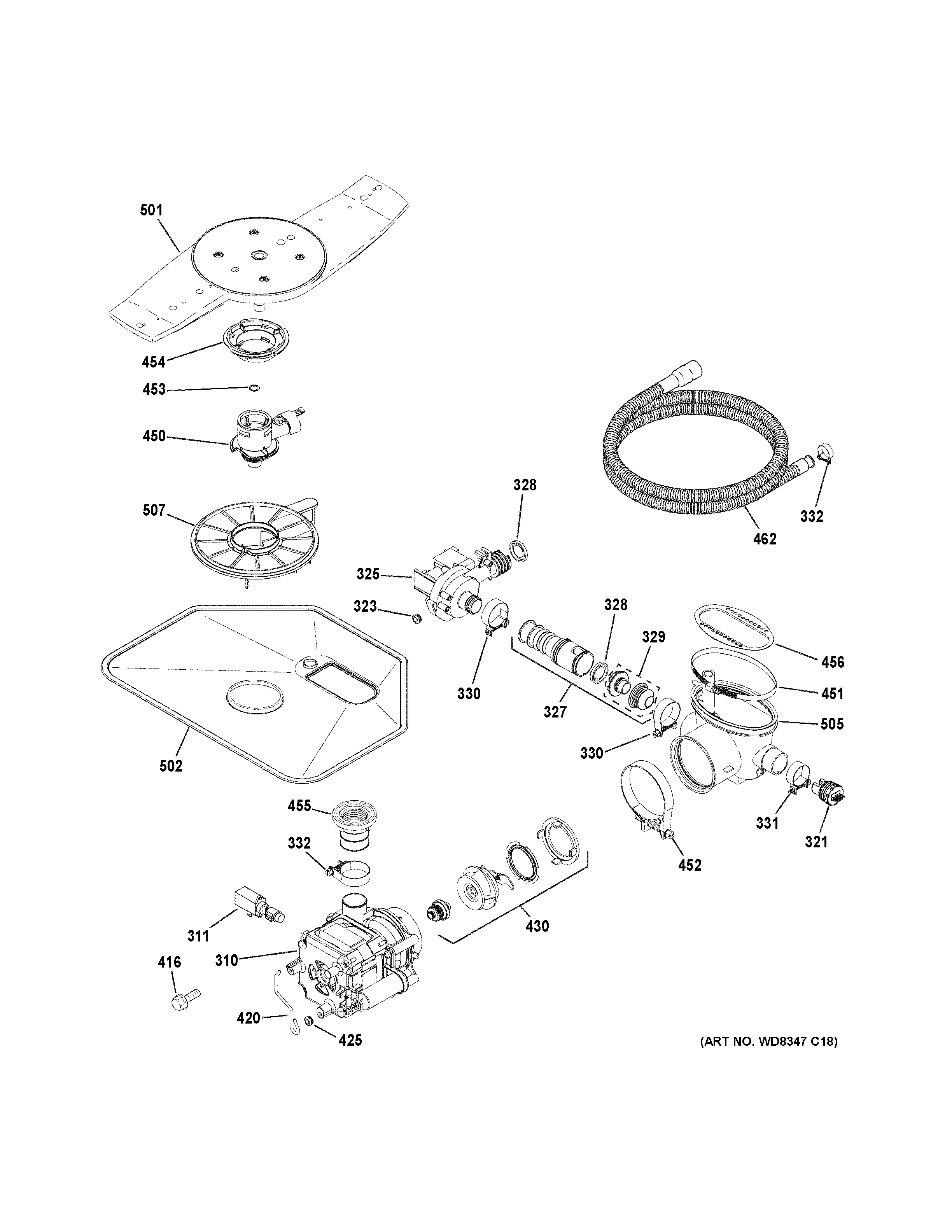

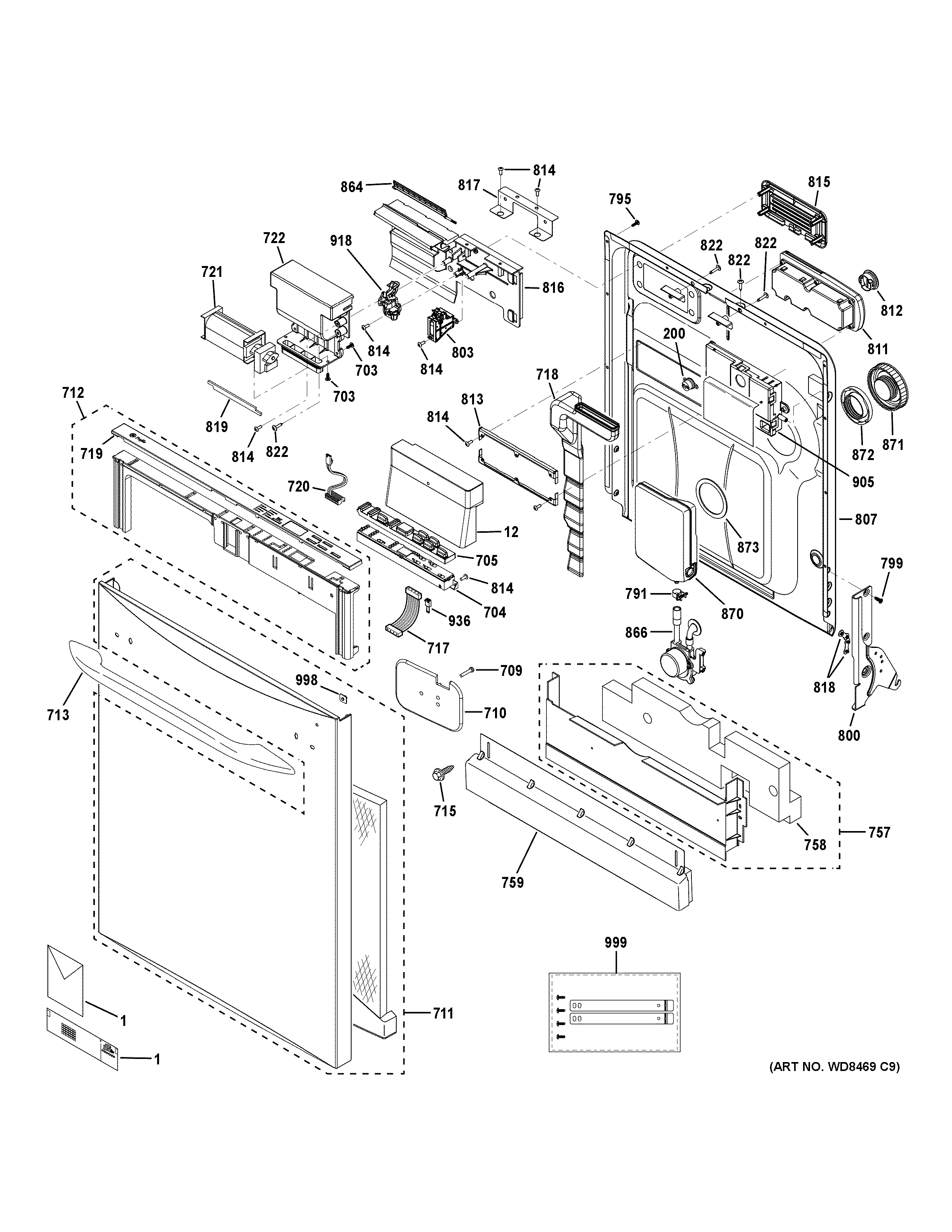

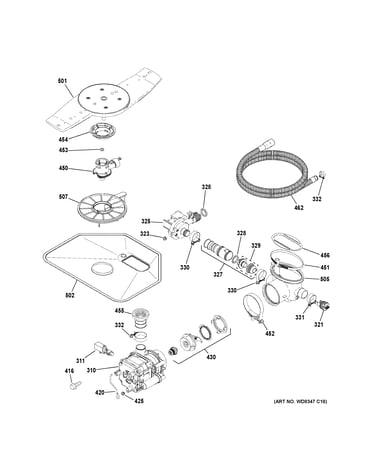

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |

Dishwasher Water Inlet Valve (replaces Wd15x10011) WD15X10014
#744

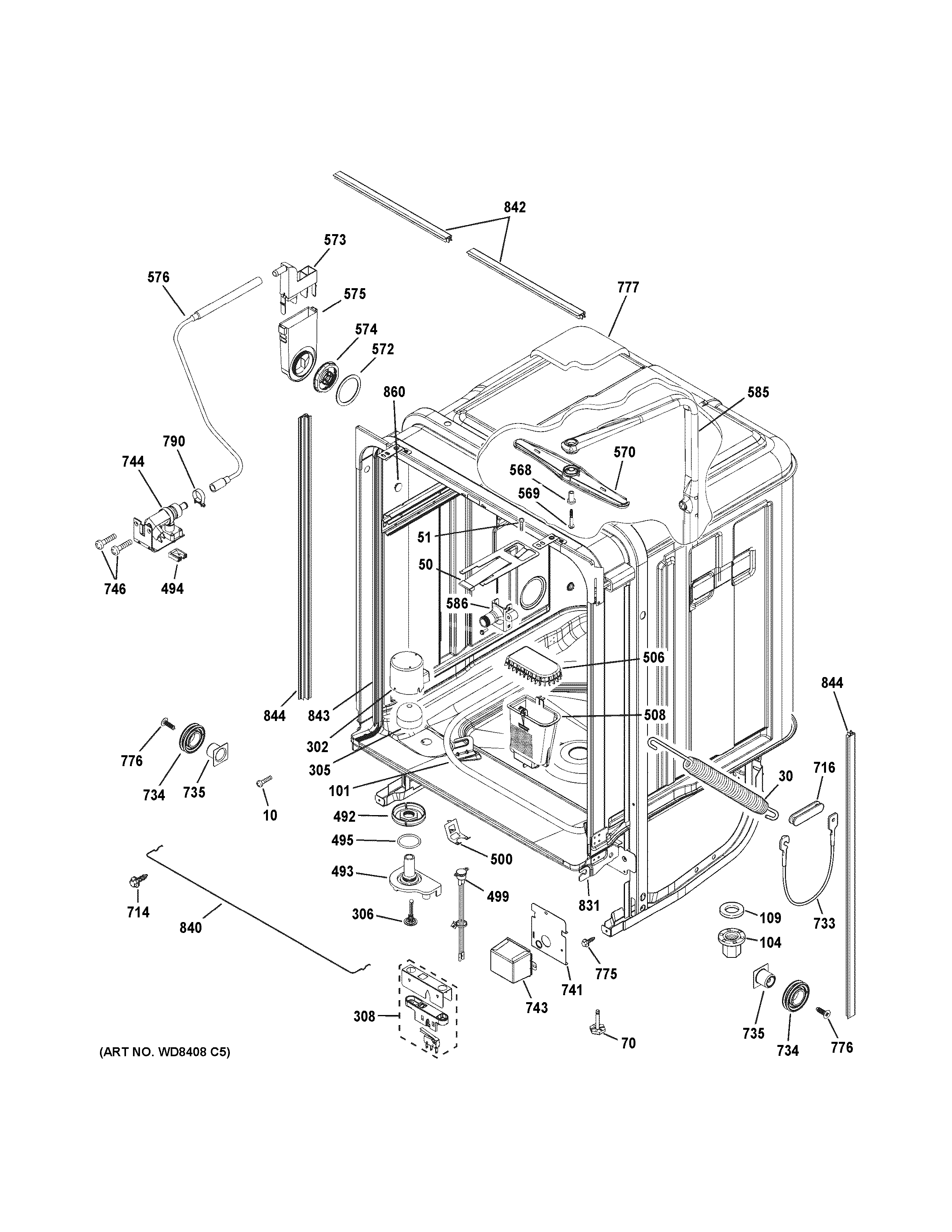

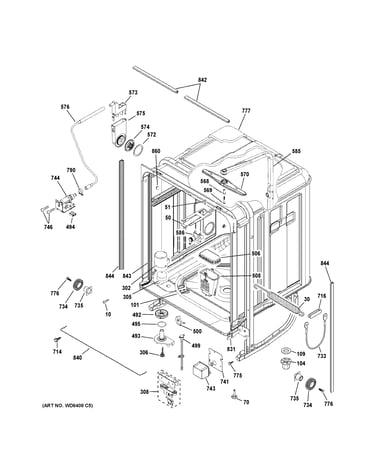

Body parts diagram

Dishwasher water inlet valve (replaces wd15x10011)

Part #WD15X10014

BEST SELLER
$33.34
13% OFF Phone Price : $38.34
In Stock
Dishwasher Tub Gasket WD08X10032
#843

Body parts diagram

Dishwasher tub gasket

Part #WD08X10032

BEST SELLER
$32.09
13% OFF Phone Price : $37.09
In Stock
Dishwasher Silverware Basket WD28X10109
#761

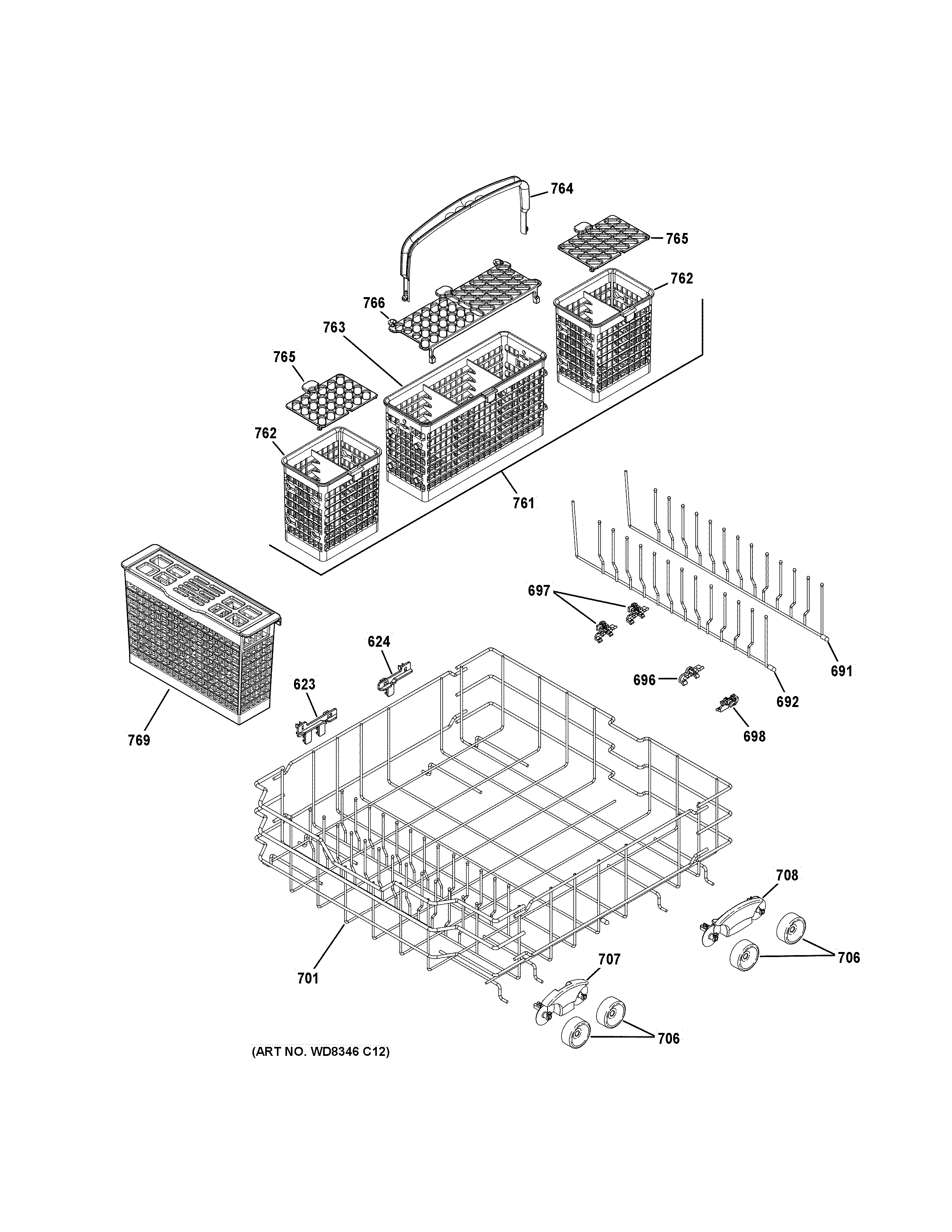

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10109

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10109. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.99
14% OFF Phone Price : $35.99
In Stock
Dishwasher Silverware Basket WD28X10107
#762

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10107

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.99
14% OFF Phone Price : $35.99
In Stock
Basket Handle WD28X10108
#764

Lower rack assembly diagram

Basket handle

Part #WD28X10108

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10108. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.99
14% OFF Phone Price : $35.99
In Stock
Dishwasher Silverware Basket WD28X10106
#763

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10106

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10106. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.99
14% OFF Phone Price : $35.99
In Stock
Dishwasher Door Seal (replaces Wd08x10040) WD08X10055
#844

Body parts diagram

Dishwasher door seal (replaces wd08x10040)

Part #WD08X10055

This item is not returnable
$13.01
13% OFF Phone Price : $15.01
In Stock
Dishwasher Door Hinge Arm Link WD14X10009
#716

Body parts diagram

Dishwasher door hinge arm link

Part #WD14X10009

This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Dishwasher Screw WD02X10067
#622

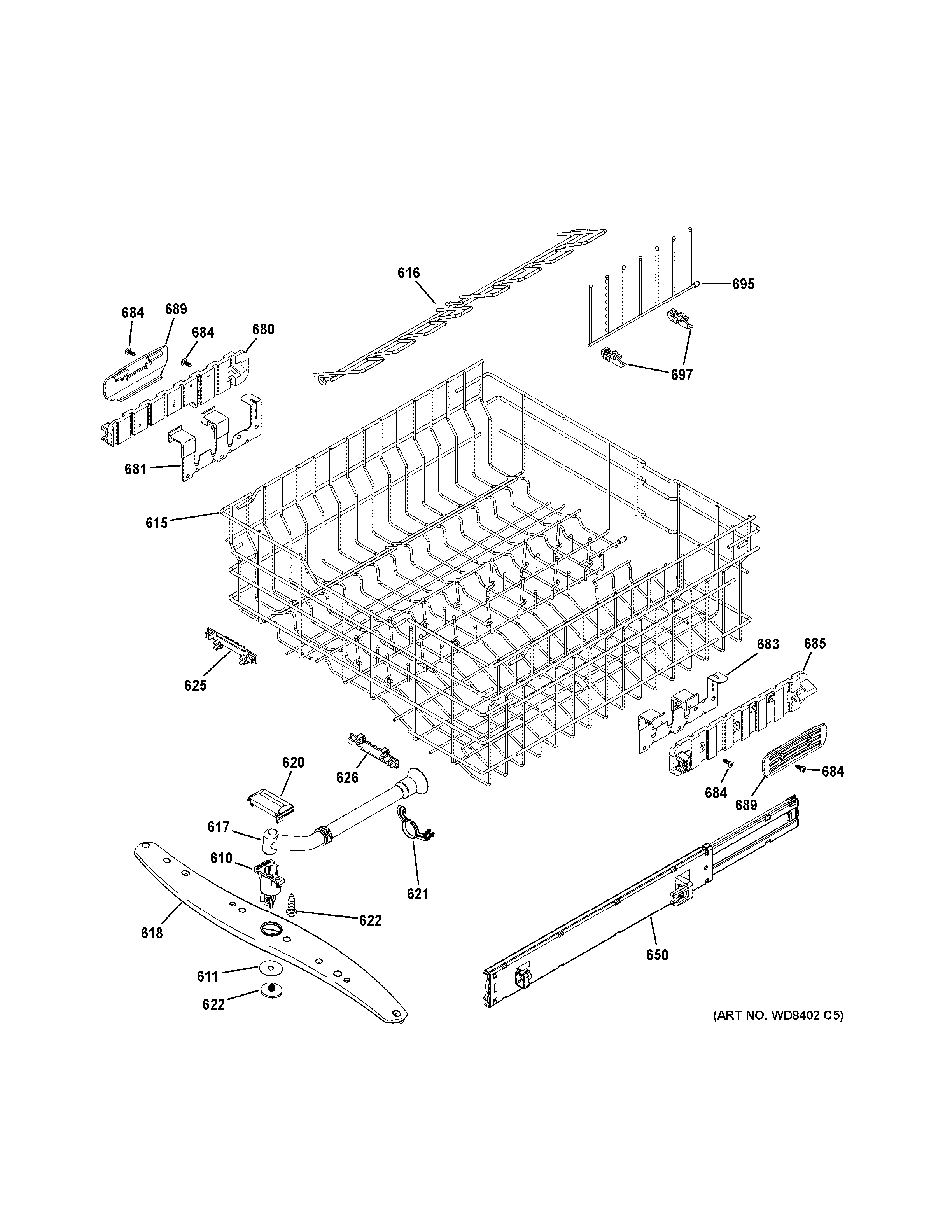

Upper rack assembly diagram

Dishwasher screw

Part #WD02X10067

This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Cable WD01X10235
#733

Body parts diagram

Cable

Part #WD01X10235

Replaced by #WD01X10393

?
Manufacturer substitution
This part replaces WD01X10235. Substitute parts can look different from the original.
This item is not returnable
$14.03
12% OFF Phone Price : $16.03
In Stock
