Cooling performance problems are the most common issue we see on Frigidaire refrigerators like model FGHB2844LF7; they usually trace back to restricted airflow (dirty condenser coils, blocked vents), a weak evaporator fan, or air leaks from doors that are not sealing or aligned.

Quick checks we recommend first

• Confirm the refrigerator is level and the doors align and close easily; poor leveling can prevent a tight seal.
• Make sure the toe grille is not blocked; the refrigerator needs airflow for proper operation.
• Check for frost buildup or warm spots that suggest an airflow or defrost issue.
• Listen for the evaporator fan; a failing fan often causes warm fresh food temps.
• Inspect door gaskets for gaps, tears, or areas that do not contact the cabinet.

Common symptoms and the most likely causes

Symptom	Most likely cause	What to do next
Fresh food section warm, freezer OK	Airflow problem (blocked vents, weak evaporator fan)	Clear vents; inspect fan area; follow how to fix your evaporator cooling fan
Both sections warm	Dirty condenser coils, poor airflow at toe grille, control issue	Clean coils; ensure toe grille is clear; verify settings in FGHB2844LF7 owner’s manual

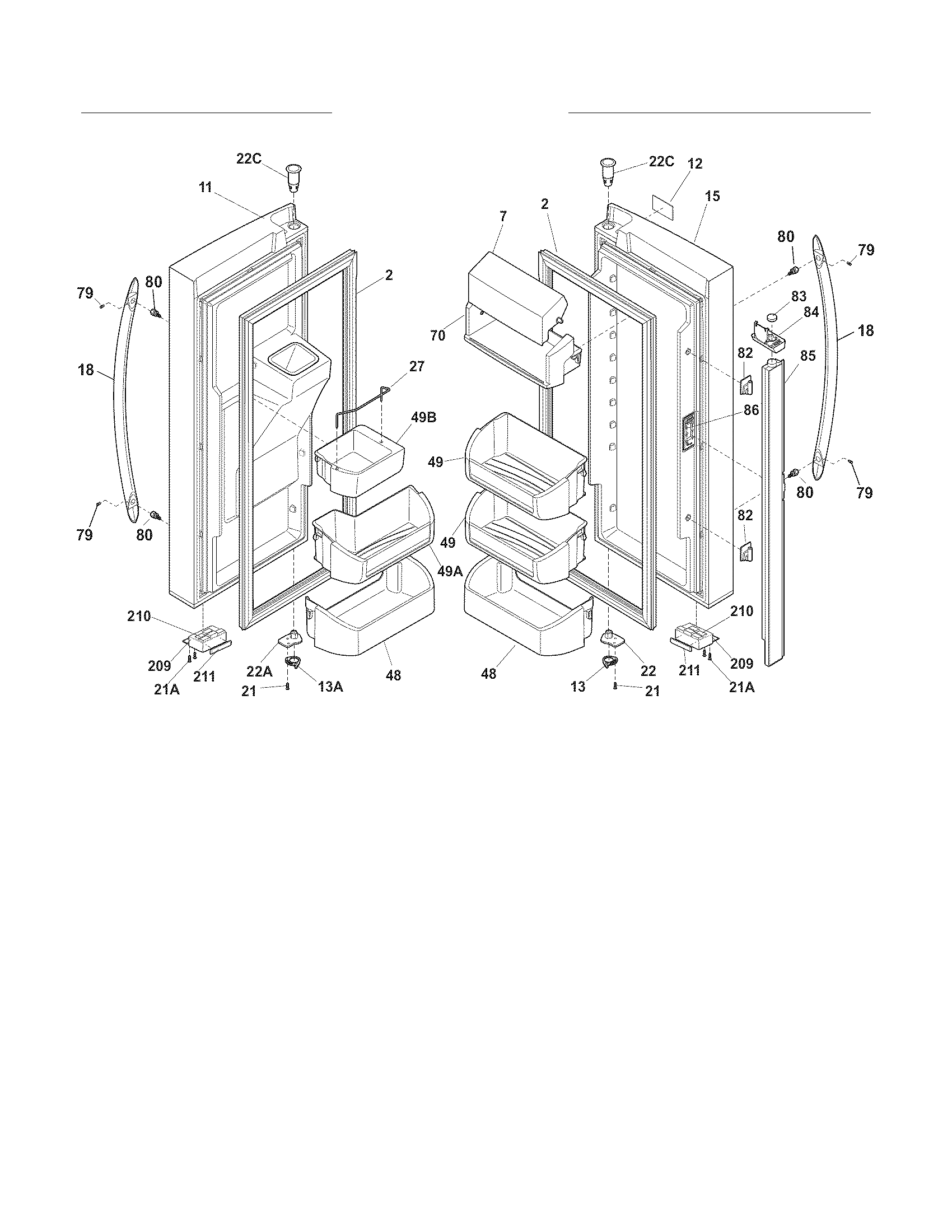

Door not closing or moisture around door	Refrigerator not level, door misalignment, worn gasket	Level unit and align doors; replace gasket if torn
Ice maker or dispenser acting up	Clogged filter, low water pressure, inlet valve issue	Replace filter; verify 30 to 100 psi supply; see how to replace the water filter in a Frigidaire refrigerator

Parts that commonly solve the underlying issue

If troubleshooting points to a specific failure, these are frequent fixes for FGHB2844LF7:

• Refrigerator water filter ULTRAWF if water flow is slow or ice is small/hollow.
• Refrigerator door gasket 5304537408 if you find air leaks, sweating, or the dollar-bill test fails.
• Refrigerator water inlet valve 242253002 if the ice maker will not fill and water pressure is confirmed.

Why it matters

Cooling issues are usually progressive; running warm forces longer compressor run times, can spoil food, and can also trigger secondary problems like excess frost, odors, and ice maker complaints.

Last updated: January 2026

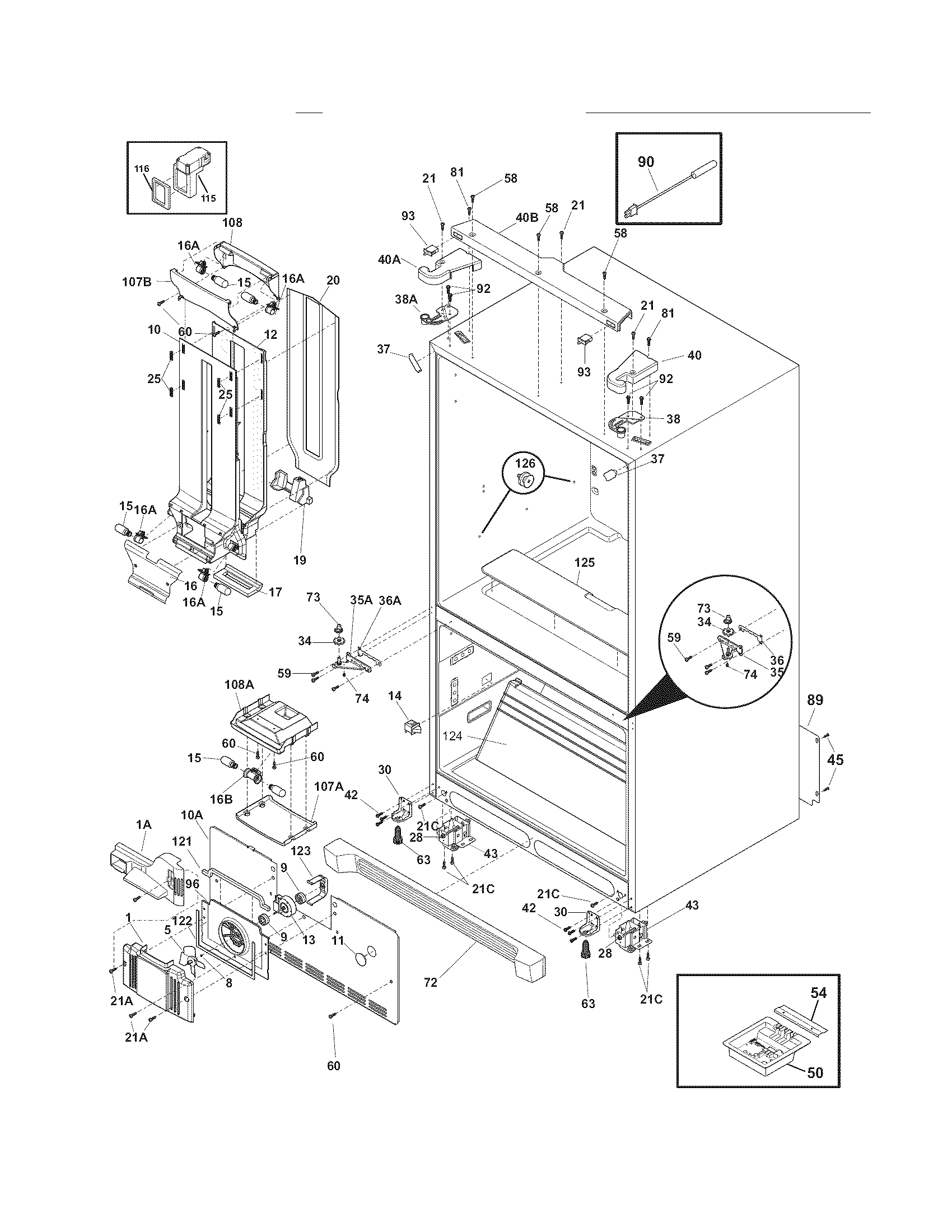

On a Frigidaire FGHB2844LF7 bottom-mount refrigerator, the “bottom part” is usually the freezer compartment (the bottom drawer). Under and behind the cabinet, the lower service area that houses cooling hardware is commonly called the machine compartment.

Common names you will hear (and what they mean)

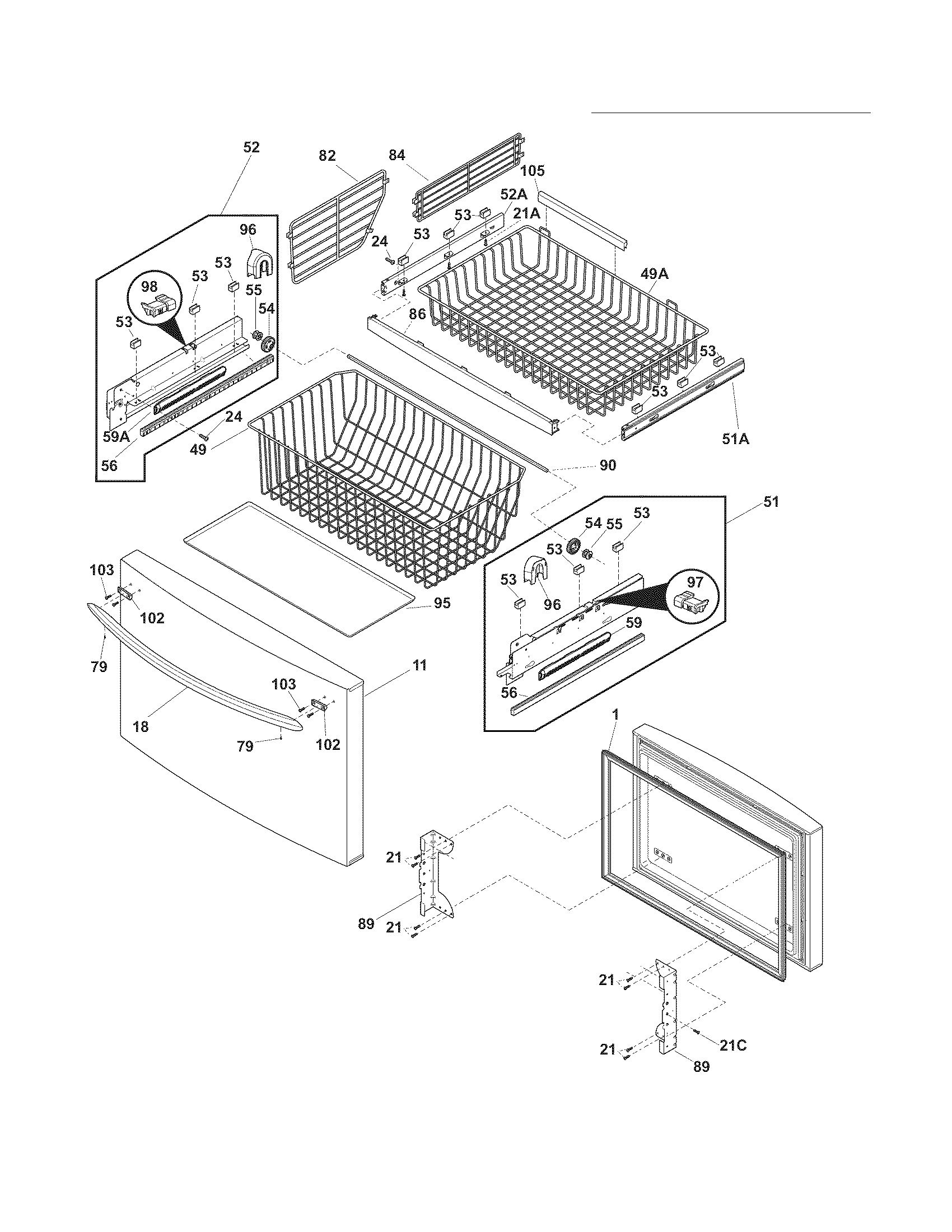

• Freezer drawer (bottom freezer compartment): The food-storage section at the bottom.
• Machine compartment: The service area where major cooling components live.
• Toe grille (kick plate): The front lower cover near the floor.
• Drain pan: A pan underneath that catches defrost water so it can evaporate.
• Condenser area: Where heat is released (often near the compressor and condenser coils).

For model-specific diagrams and terminology, we recommend checking the FGHB2844LF7 installation guide.

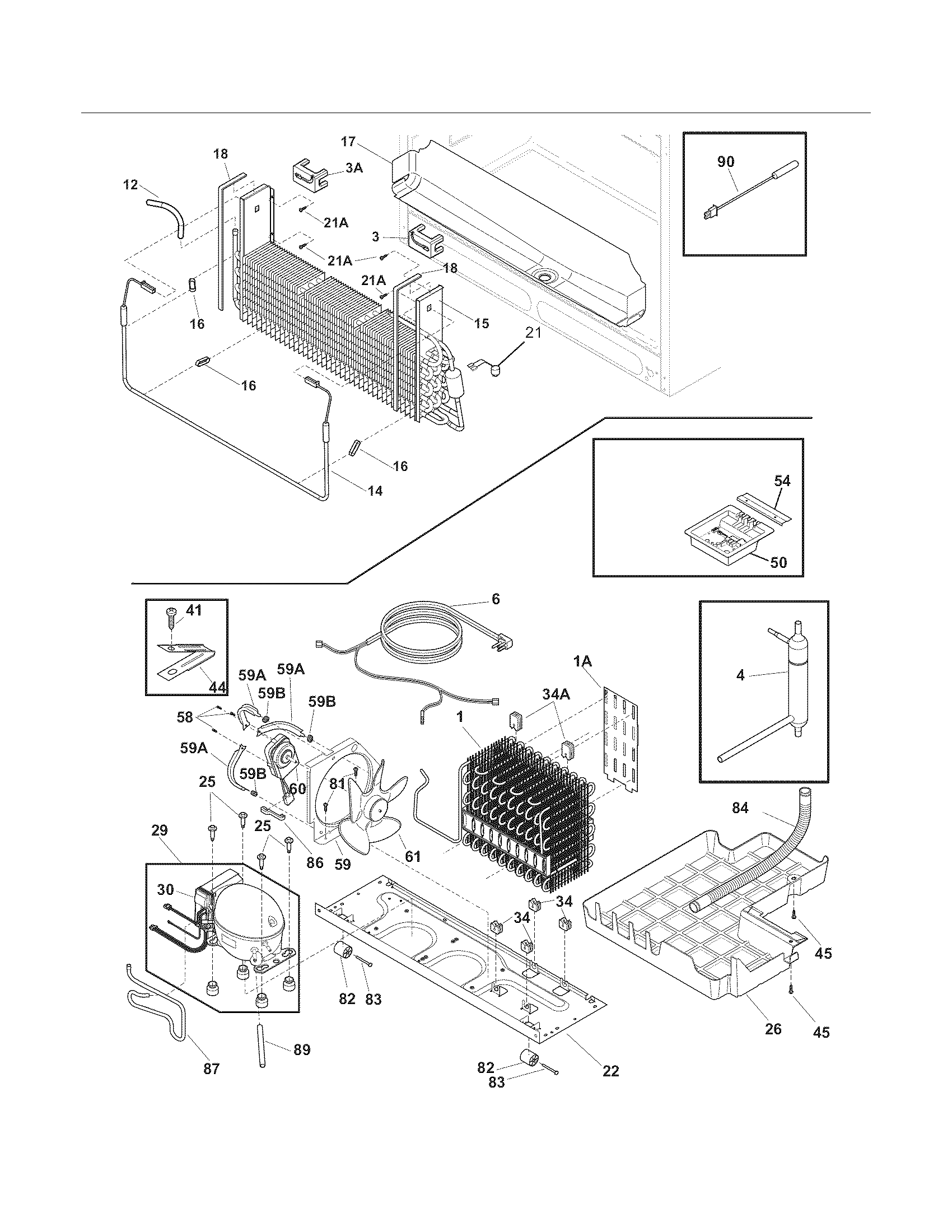

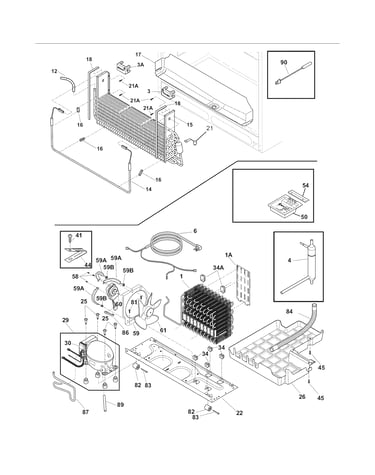

What’s typically located “down low” on this style of refrigerator

Most bottom-mount (French door) refrigerators place these items in the lower service area:

• Compressor (pumps refrigerant)
• Condenser coils (release heat)
• Condenser fan (moves air across the condenser area)
• Drain pan (collects defrost water)

If you are troubleshooting cooling, water leaks, or noises, the “bottom part” you mean often determines the next step.

Quick reference: bottom freezer vs. machine compartment

If you mean this	Where it is	What it affects
Freezer drawer	Front, bottom	Frozen food temps, ice storage
Machine compartment	Back/bottom of cabinet	Overall cooling, heat removal
Toe grille	Front, near floor	Airflow access, leveling access

Why it matters

Using the right term helps you find the correct instructions and parts faster. For example, water and ice issues often trace back to the filter or valve, such as the refrigerator water inlet valve 242253002 or the refrigerator water filter ULTRAWF, while sealing issues point to a door gasket.

Last updated: January 2026

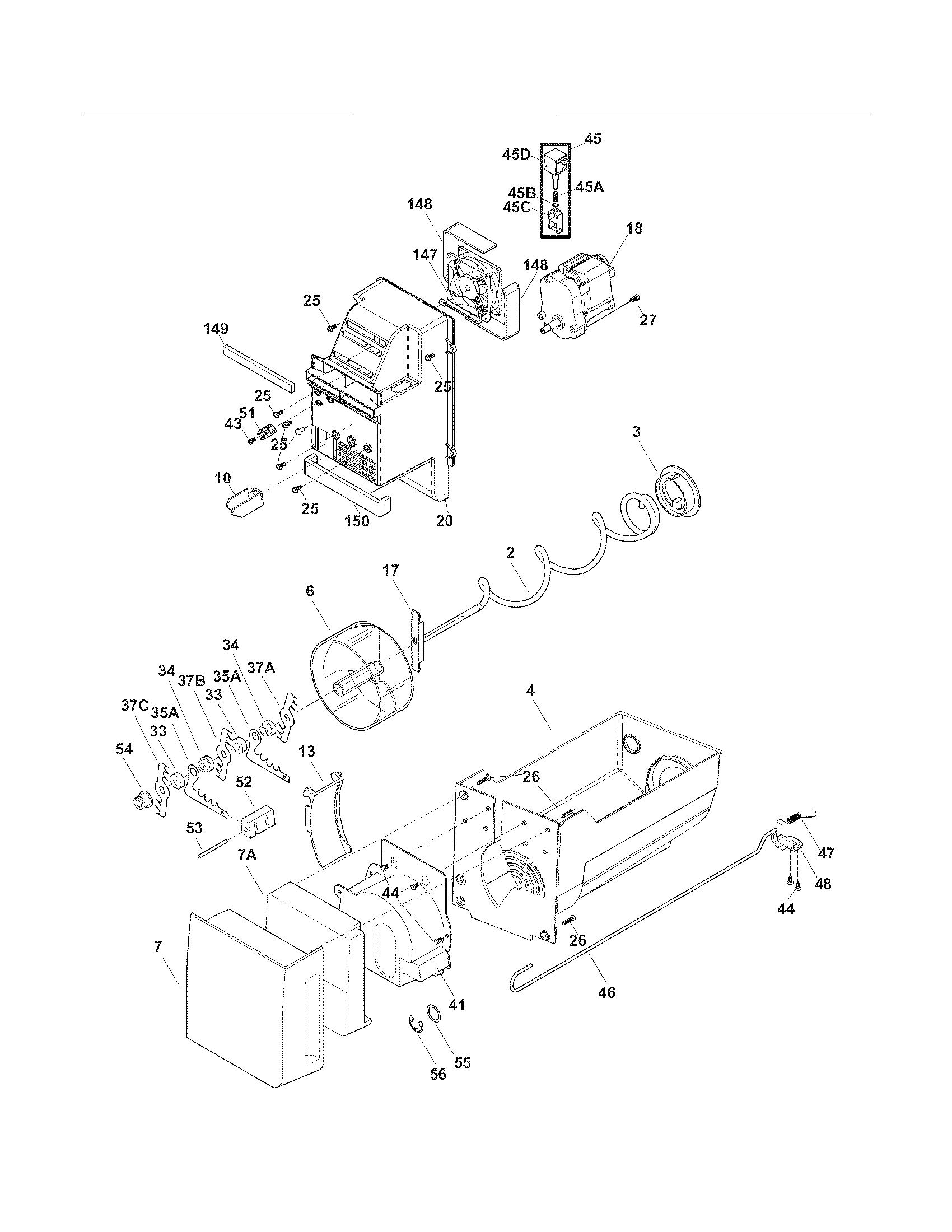

For a Frigidaire FGHB2844LF7 bottom-mount refrigerator, most bottom (freezer) ice maker “no ice” problems are caused by the ice maker being turned off, the freezer not staying near 0°F, or restricted water flow from the supply line, filter, or inlet valve.

Quick checks (do these first)

• Confirm the ice maker is ON (lower the wire signal arm on freezer ice makers, if equipped).
• Set the freezer to 0°F (-18°C) and wait 24 hours for temperatures to stabilize.
• Make sure the ice bin is fully seated; dump clumped or stuck ice.
• Verify the household shutoff valve is fully open.
• Check the water line behind the refrigerator for kinks or crushing.

For control locations and model-specific steps, use the FGHB2844LF7 owner’s manual.

Water supply and filter steps

Restricted flow is the most common cause of small cubes, hollow cubes, or no fill.

• Replace the refrigerator water filter ULTRAWF if it is older than 6 months or water flow is slow.
• After changing the filter, purge air by dispensing water until the stream is steady.
• Confirm the refrigerator is connected to a cold water line.
• Water pressure should be 30 to 100 psi for proper ice maker operation.

Symptom-to-fix guide

Symptom	Most likely cause	What we do first
No ice at all	Ice maker OFF, freezer too warm, no water	Turn ON, set 0°F, check shutoff valve
Small or hollow cubes	Low flow, clogged filter, low pressure	Replace filter, verify 30 to 100 psi
Cycles but never fills	Inlet valve not opening	Test/replace inlet valve

When a part is likely needed

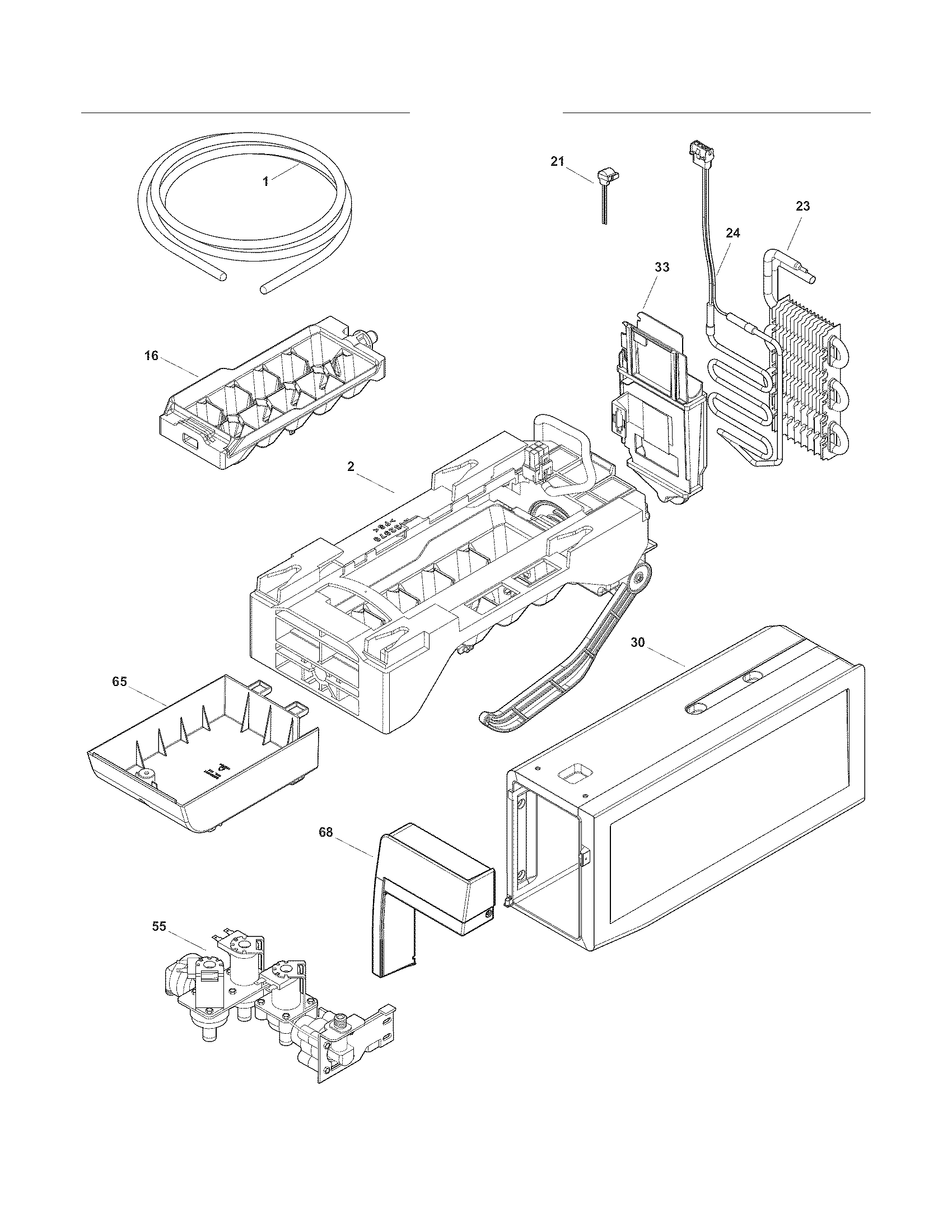

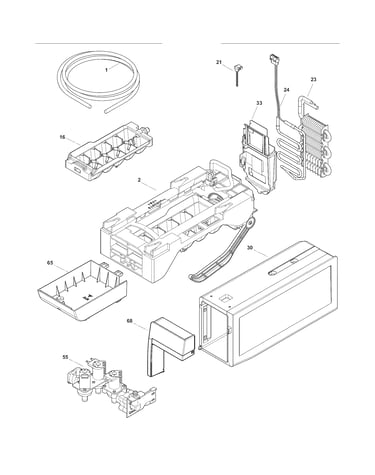

If the freezer is cold and water supply is good but the mold never fills, the inlet valve is a common next step: refrigerator water inlet valve 242253002. If the unit will not cycle or eject, the ice maker itself is the likely fix: refrigerator ice maker assembly 243297613.

Why it matters

An ice maker needs steady freezer temperature and consistent water flow. A restricted filter or kinked line reduces fill volume, which stops ice production and creates small cubes.
