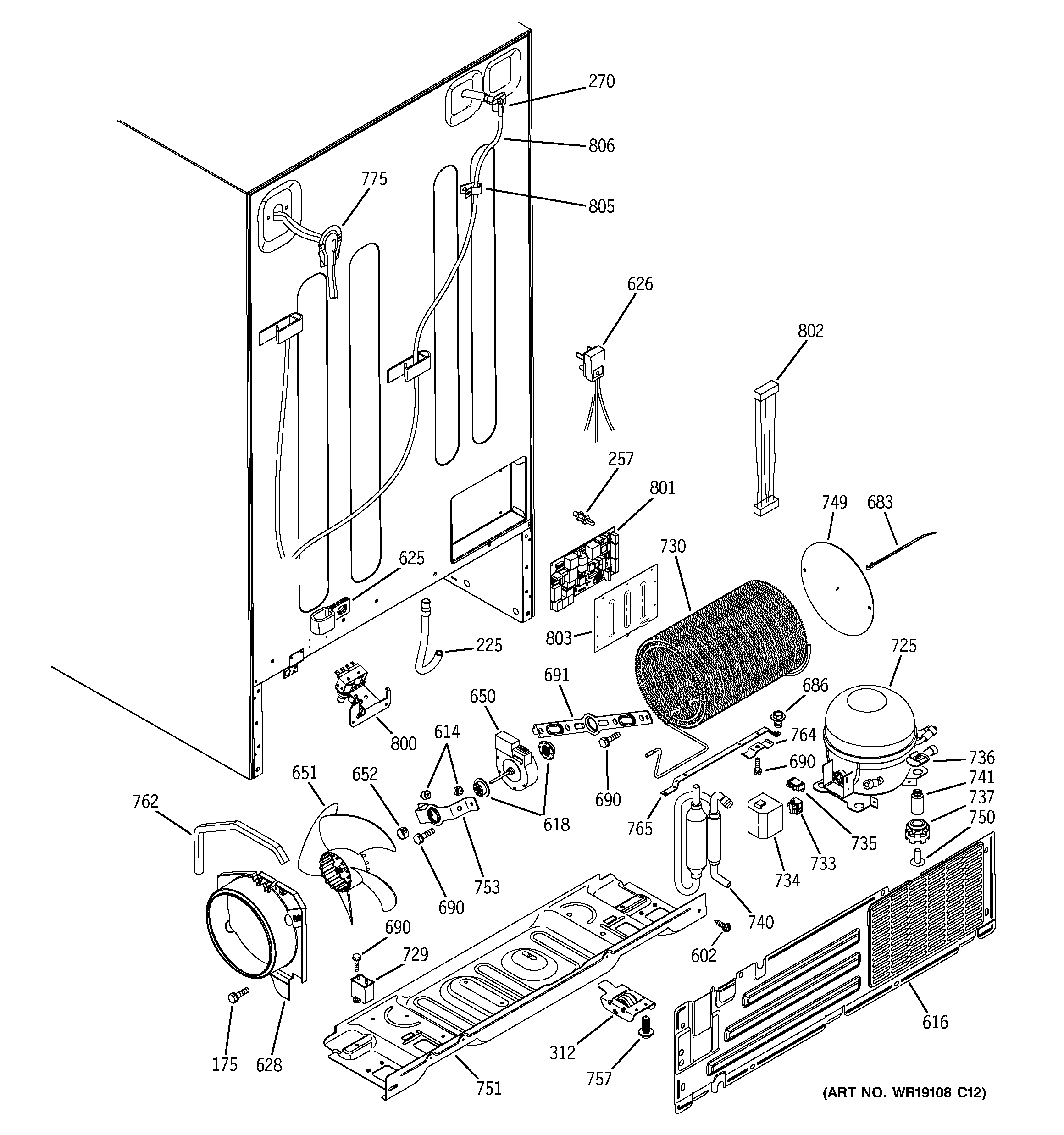

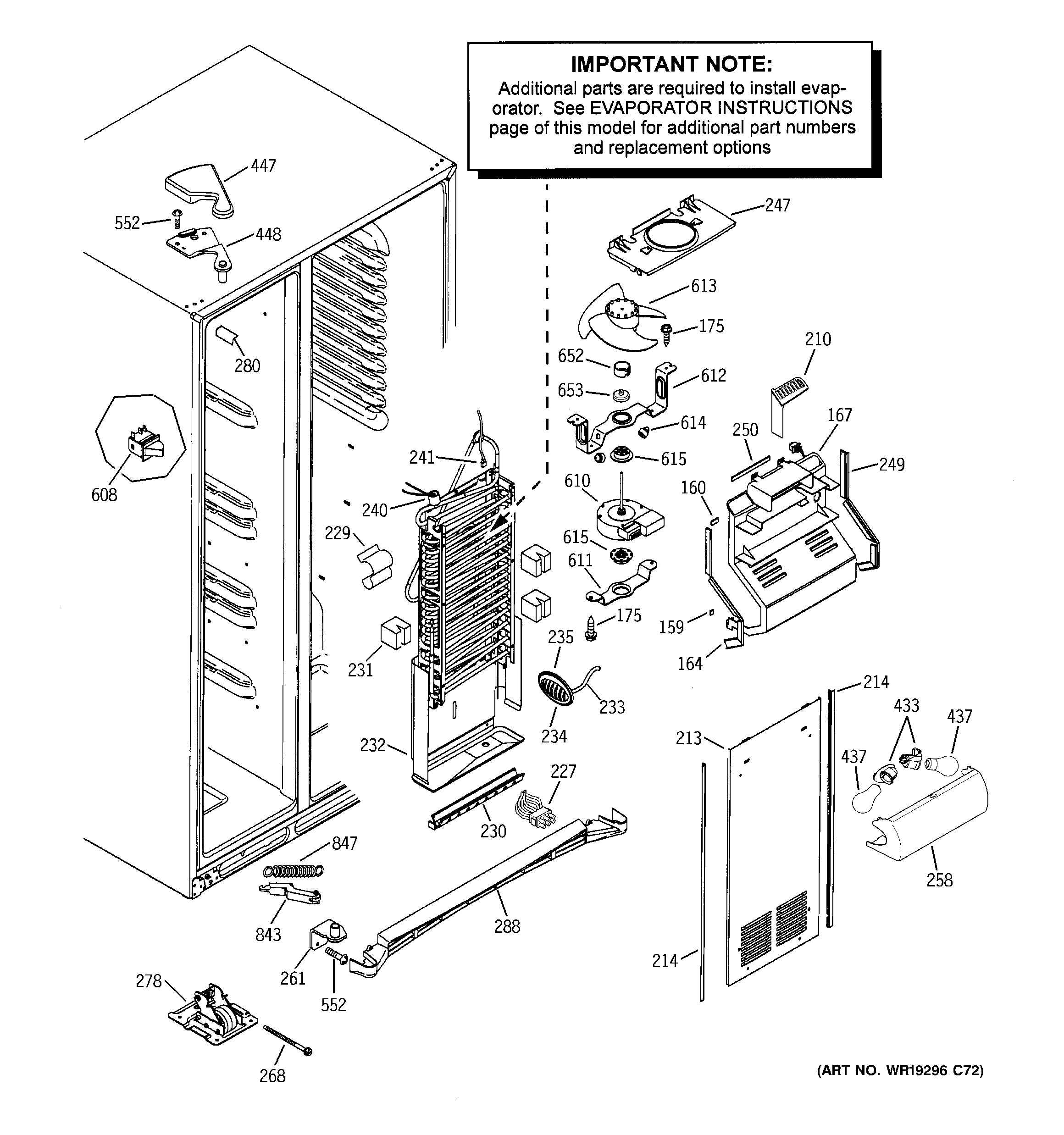

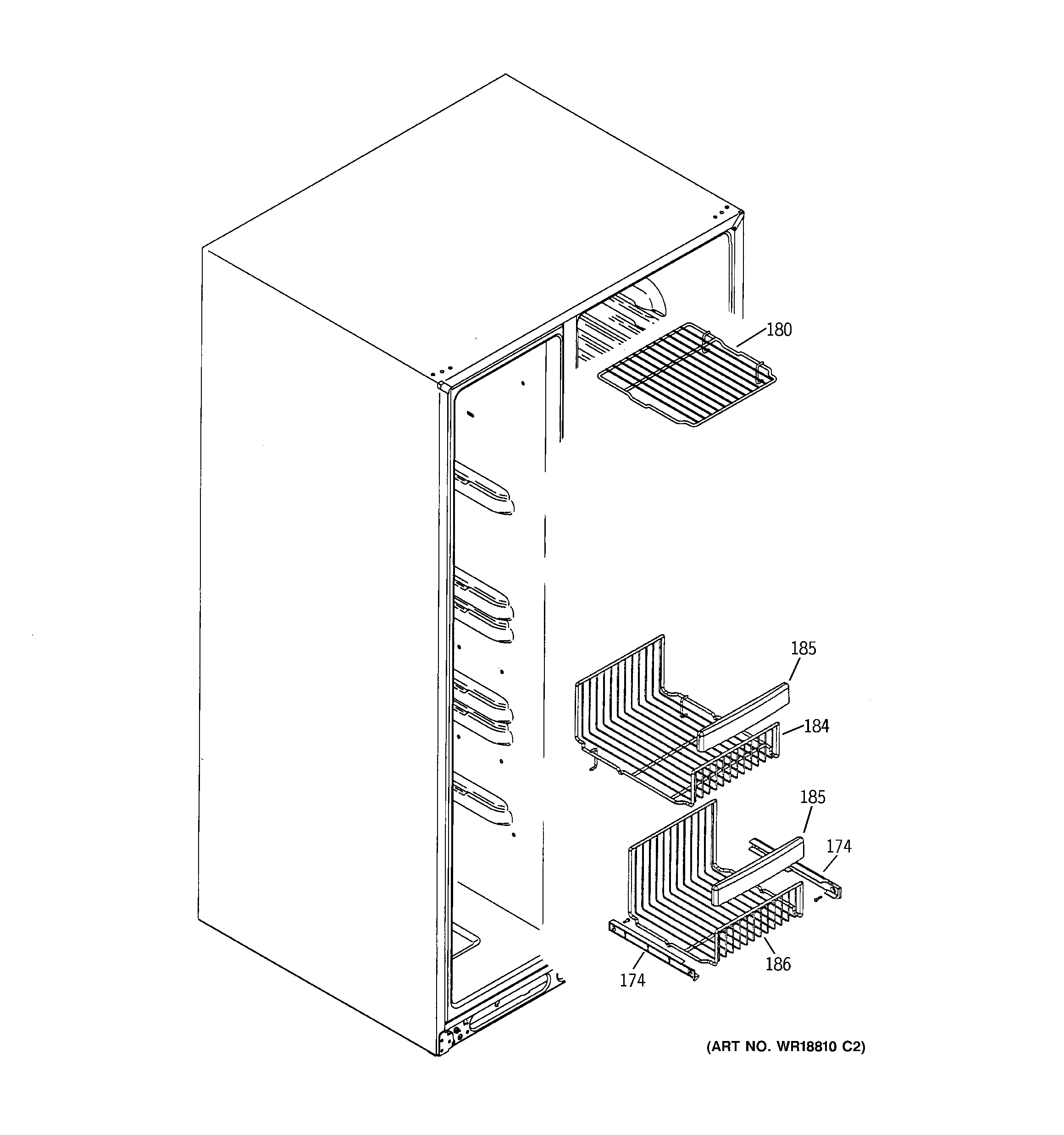

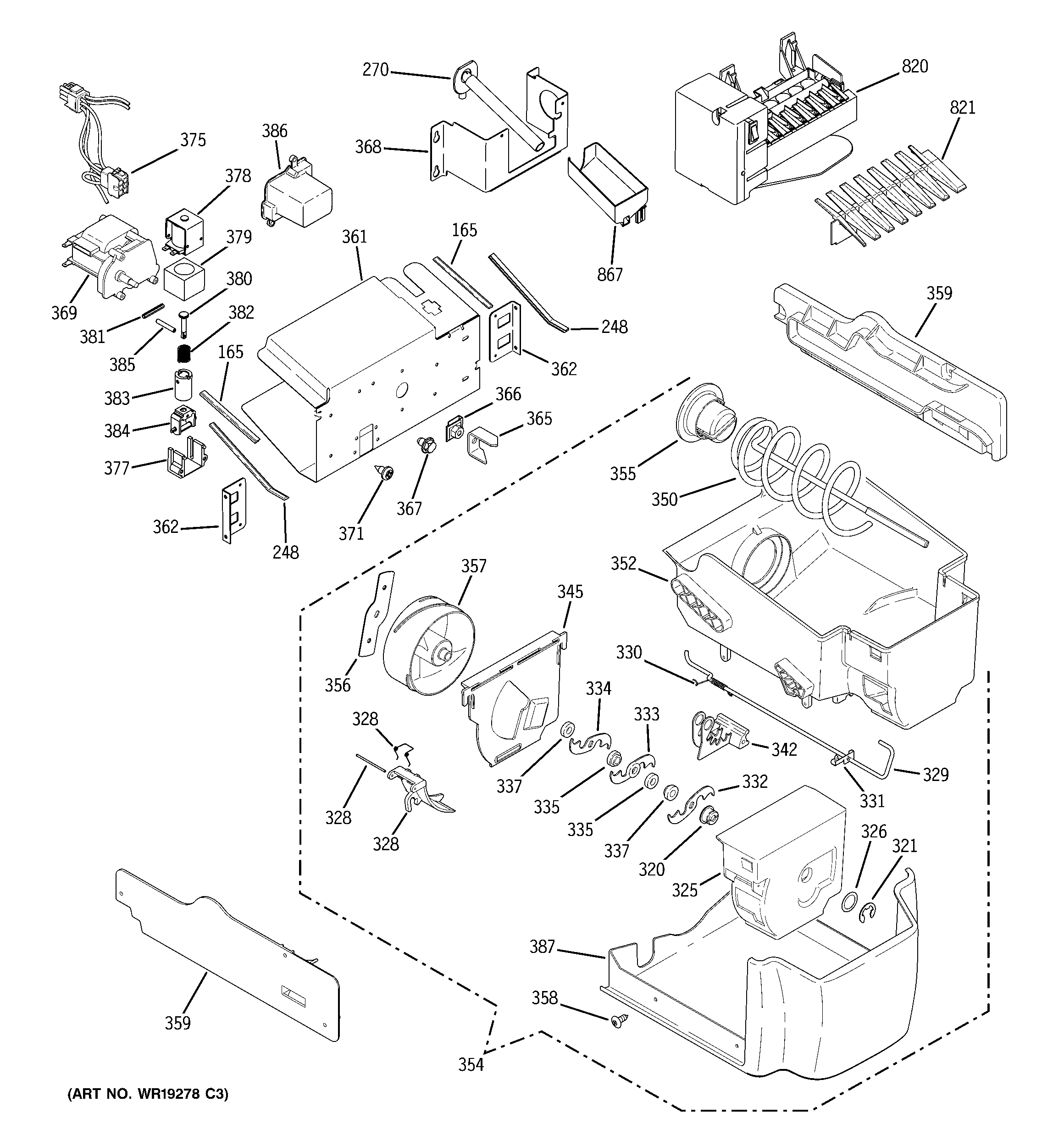

GE ESS25LSRBSS refrigerator - r series Parts
Here are the diagrams and repair parts for GE ESS25LSRBSS refrigerator - r series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for ESS25LSRBSS Refrigerators

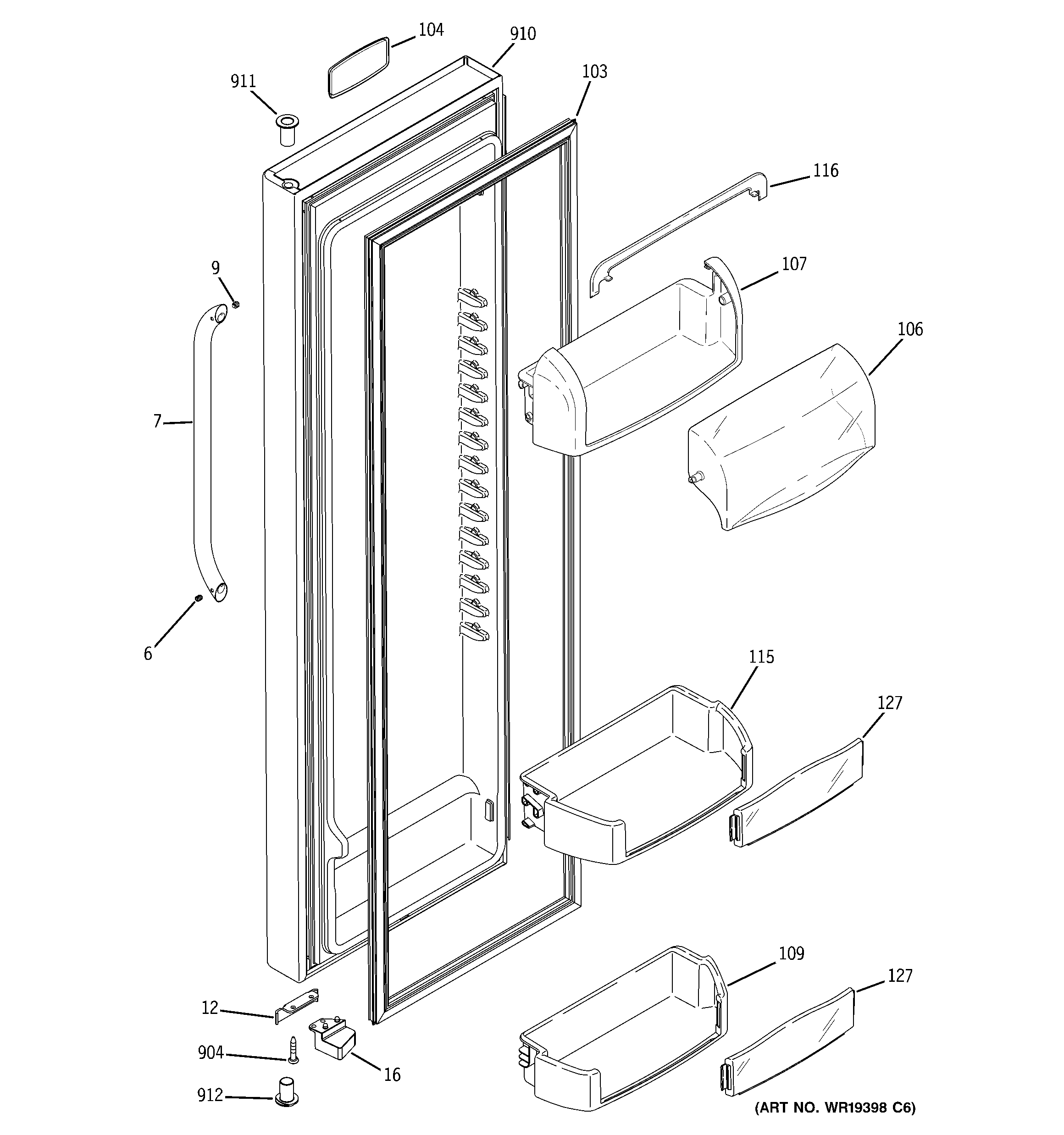

Fresh food door diagram
Refrigerator Shelf Module
Part #WR71X10607Replaced by #WR71X10973
Manufacturer substitutionThis part replaces WR71X10607. Substitute parts can look different from the original.In Stock$117.689% OFF Phone Price : $129.68
Qty
Fresh food door diagram
Refrigerator Shelf Module
Part #WR71X10253Replaced by #WR71X10973
Manufacturer substitutionThis part replaces WR71X10253. Substitute parts can look different from the original.In Stock$117.689% OFF Phone Price : $129.68QtySpring Closure
Part #WR01X2027Replaced by #WR1X2027

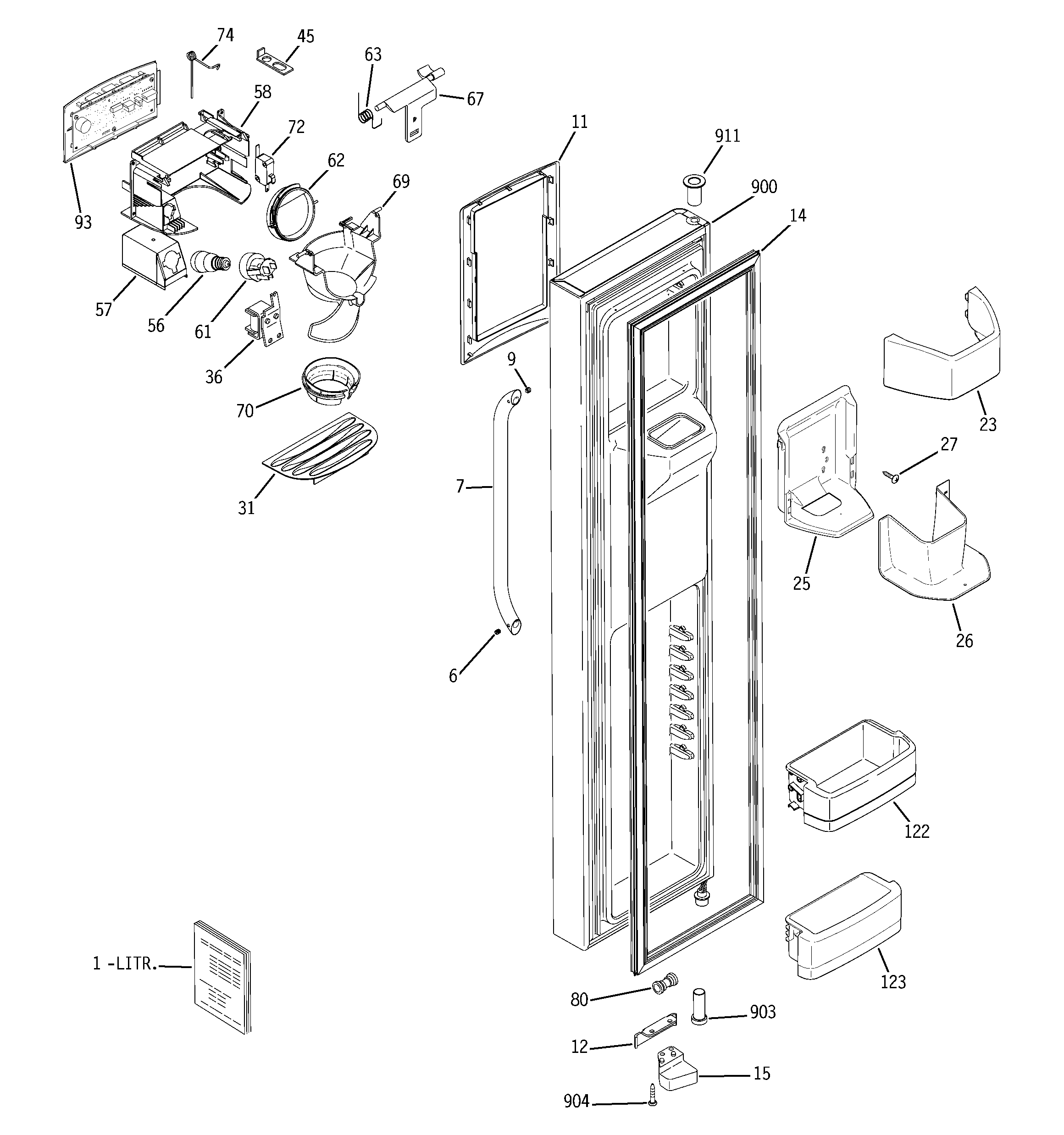

Manufacturer substitutionThis part replaces WR01X2027. Substitute parts can look different from the original.In Stock$26.9354% OFF Was : $57.95QtyFreezer door diagram
Refrigerator Housing Shield
Part #WR17X11077Replaced by #WR17X11170
Manufacturer substitutionThis part replaces WR17X11077. Substitute parts can look different from the original.This item is not returnableIn Stock$25.7519% OFF Phone Price : $31.75QtyFreezer door diagram
Ge Profile Refrigerator Freezer Door Hinge Bushing

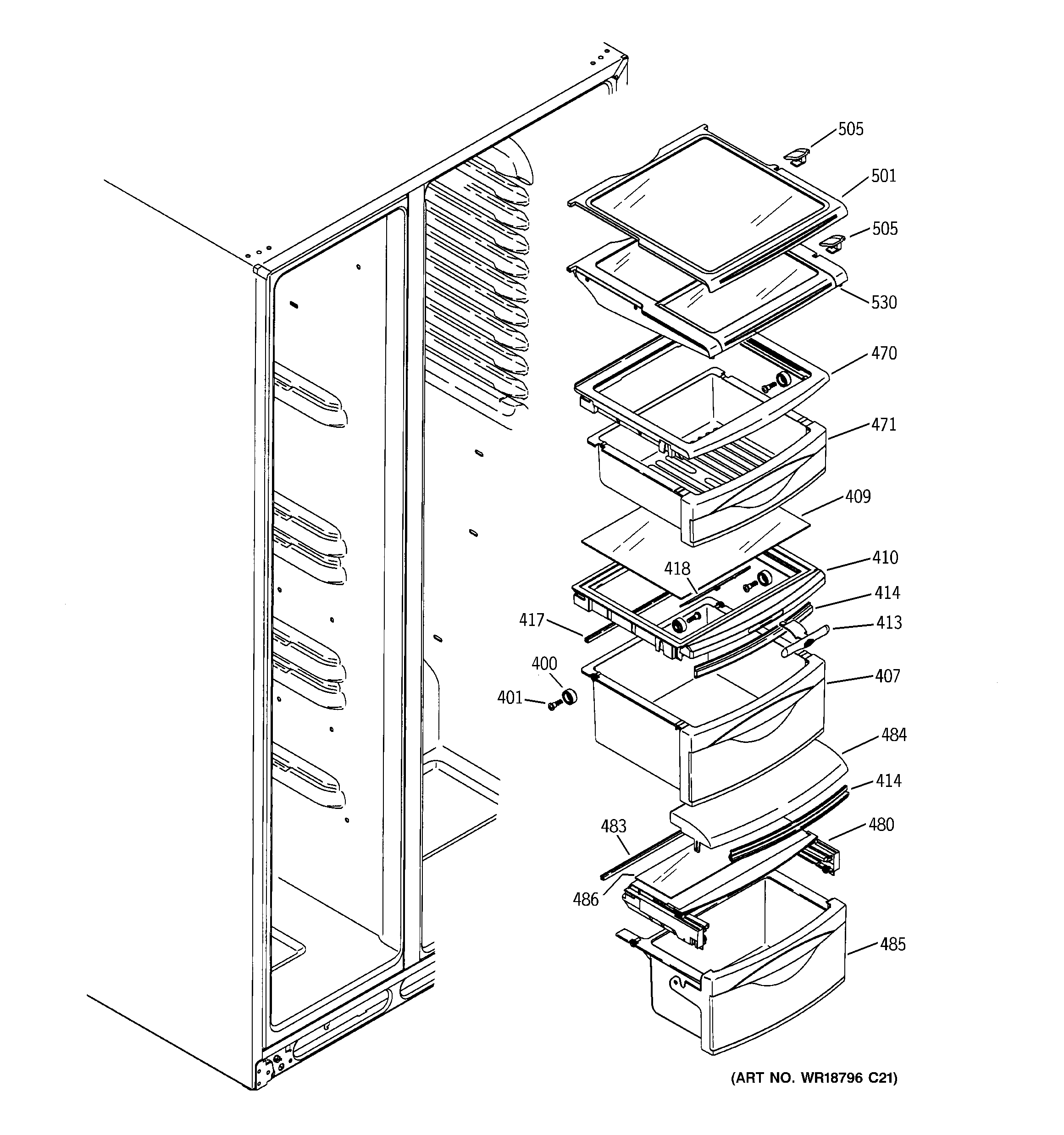

In Stock$10.5216% OFF Phone Price : $12.52QtyFresh food shelves diagram
Ge Profile Refrigerator Drawer Cover Wheel

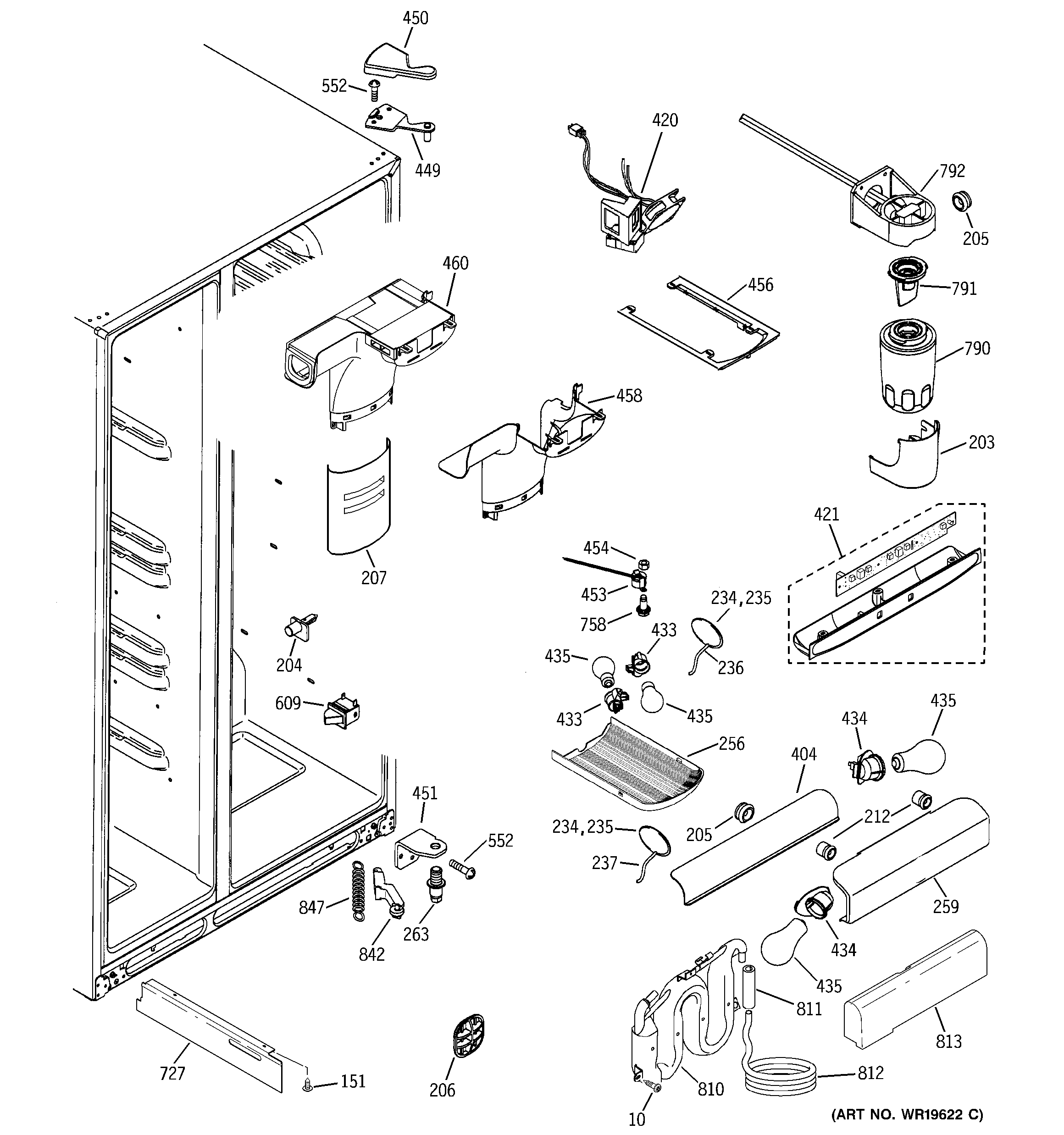

Part #WR01X10209This item is not returnableIn Stock$16.4511% OFF Phone Price : $18.45QtyFresh food section diagram
Ge Profile Grommet
Part #WR02X10678This item is not returnableIn Stock$9.0110% OFF Phone Price : $10.01QtyFresh food section diagram
Refrigerator Hinge Pin
Part #WR02X10648Replaced by #WR02X12263
Manufacturer substitutionThis part replaces WR02X10648. Substitute parts can look different from the original.In Stock$40.7313% OFF Phone Price : $46.73QtyFresh food shelves diagram
Refrigerator Crisper Drawer Assembly
Part #WR32X10369Replaced by #WR32X26248
Manufacturer substitutionThis part replaces WR32X10369. Substitute parts can look different from the original.In Stock$74.598% OFF Was : $80.80QtyFreezer door diagram
Refrigerator Light Bulb
Part #WR02X10675Replaced by #WR01X37886
Manufacturer substitutionThis part replaces WR02X10675. Substitute parts can look different from the original.In Stock$45.89Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Ge Profile Refrigerator Door Hinge, Lower
In Stock
$43.75
12% OFF Phone Price : $49.75
Qty
Refrigerator Access Cover
In Stock
$756.34
Qty
Ge Profile Refrigerator Water Filter Cover
Part #WR17X10800
This item is not returnable
In Stock
$32.40
16% OFF Phone Price : $38.40
Qty
Refrigerator Water Reservoir Insulation
Part #WR17X11620
This item is not returnable
In Stock
$28.18
18% OFF Phone Price : $34.18
Qty
