GE GDWF100R30BB dishwasher Parts

A bad control board in your GE GDWF100R30BB dishwasher typically shows up as controls that do not respond, cycles that start then stop, lights that flash like a malfunction, or the unit acting “random” (beeping, changing cycles, or going dead). Use the owner's manual to confirm normal control behavior and indicator meanings.

Common signs we see with control problems

• Buttons or touch pads do nothing, or only work intermittently
• Cycle will not start even though the door is closed and latched
• Dishwasher stops mid-cycle and will not resume
• Status lights flash, indicating a malfunction (not just “Clean” at end of cycle)
• Unit has power, but the display goes dark after inactivity and will not “wake” with a key press
• Repeated canceling or draining behavior when you press START/RESET

Quick checks before blaming the control board

These checks rule out the most common “looks like the board” issues.

• Power reset: If your dishwasher is on a wall switch, turn it off, then back on; wait 5 to 10 seconds before pressing START/RESET so the control can reboot.
• Door latch check: Close and latch the door firmly; many models will not run if the latch is not fully engaged.
• Cancel and restart correctly: Press START/RESET to cancel; allow about 2 minutes for pump-out if needed, then select a cycle and press START/RESET again.
• Control panel sleep behavior: If lights timed out, open and close the door or press any pad to reactivate the display.

What a normal start sequence looks like (so you can compare)

What you do	What should happen	What it suggests if it does not happen
Close and latch door, press START/RESET	Water fill begins immediately	Possible door latch, power, or control issue
About 60 seconds after start	Wash action begins	Possible control, motor/pump, or fill issue
Press START/RESET to cancel	Drains/pumps out (about 2 minutes)	Possible control or drain system issue

Why it matters

A failing control board can mimic other problems (door latch, power supply, or even a drain issue). Confirming the expected start, fill, and indicator behavior helps you avoid replacing the wrong part and speeds up troubleshooting.

If the dishwasher also will not fill or behaves erratically during fill and wash, we typically check the wash system components next, including the pump and motor assembly such as mechanism assembly WD26X10053.

Last updated: February 2026

Yes. On many GE dishwashers (including model GDWF100R30BB), an FTD-style drain error can be triggered when the dishwasher cannot drain fast enough due to a clog or a drain setup issue (kinked hose, blocked air gap, or disposer plug not removed). See the installation guide for correct drain plumbing requirements.

What to check first (fast, common fixes)

• Cancel the cycle and let the unit try to drain; listen for the drain pump running.
• Check the sink drain; if the sink is slow, the dishwasher often drains poorly too.
• Inspect the drain hose for kinks and make sure it is not crushed behind the unit.
• If you have an air gap, clean it; the manual notes to check the air gap anytime the dishwasher is not draining well.
• If the drain connects to a disposer, confirm the disposer inlet plug was removed.

Drain setup requirements that can cause drain errors

The drain path matters as much as clogs. The install instructions call out these limits:

Item	Typical requirement for this model’s install	Why it matters
Drain hose length	Must not exceed 10 ft	Long runs restrict flow
Drain hose elevation	Must not exceed 48 in	Too high can prevent draining
High loop or air gap	Required	Prevents backflow and improves drain performance

Parts that commonly relate to draining problems

If cleaning and hose checks do not fix the issue, a failed drain component is a common next suspect.

• Dishwasher drain pump WD26X10048 (pumps water out during drain)
• Dishwasher filter WD12X10109 (a clogged filter can restrict water movement and contribute to poor draining)
• Dishwasher float assembly WD12X10047 (if stuck, it can affect fill behavior and cycle performance)

Why it matters

When the dishwasher cannot drain, dirty water can remain in the sump and the control can end the cycle early or post a drain fault. Fixing the clog or correcting the high loop or air gap usually restores normal cycle timing and cleaning.

For code-specific meaning and related symptoms, use our GE electronic dishwasher error codes reference alongside the troubleshooting steps above.

Last updated: February 2026

The most common GE dishwasher problems are the dishwasher not starting, not draining, or not cleaning well. On the GE GDWF100R30BB, these symptoms are often tied to a door not fully latched, a cycle being reset (START/RESET flashing), or restricted water flow from a dirty filter or drain path; our GDWF100R30BB owner's manual walks through the indicator lights and basic troubleshooting.

Most common symptoms and what to check first

• Won’t start or seems dead: confirm the door is fully closed and latched; open and close the door to wake the controls.
• START/RESET light flashing: the cycle was interrupted or power was lost; the dishwasher typically drains for about 90 seconds, then you can restart.
• Won’t drain: check for a clogged filter area, a blocked air gap (if installed), or a kinked drain hose.
• Not cleaning: verify loading (spray arms must spin freely), use fresh detergent, and keep the filter area clean.
• Too many suds: use only automatic dishwasher detergent; rinse aid spills can also create suds.

Quick “symptom to likely cause” guide

Symptom	Most common cause	Good next step
Won’t start	Door not latched, control not awake	Close door firmly; press Start per the manual
Beeps and START/RESET flashes	Cycle canceled or power interruption	Wait for drain to finish; restart cycle
Standing water	Drain restriction or weak drain pump	Clear filter/drain path; inspect drain hose
Dishes gritty/dirty	Filter clogged, spray arm blocked	Clean filter area; confirm spray arm holes are clear

Parts that commonly relate to these issues (for GDWF100R30BB)

If basic checks do not fix the problem, these model-matched parts are commonly involved:

• Dishwasher filter WD12X10109 (helps prevent debris from recirculating)
• Dishwasher drain pump WD26X10048 (pumps water out during drain)

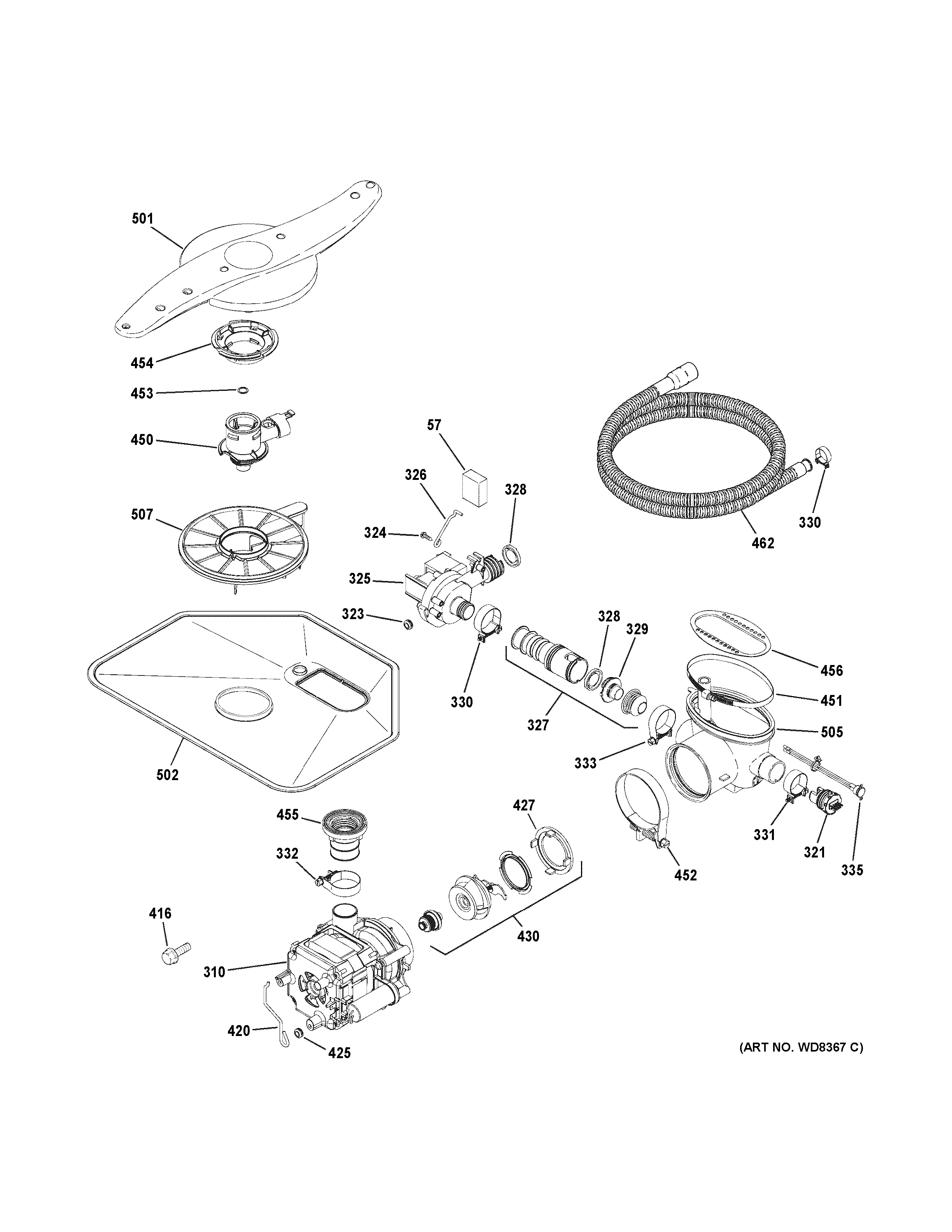

• Mechanism assembly WD26X10053 (pump and motor assembly for wash circulation)
• Dishwasher float assembly WD12X10047 (helps prevent overfilling)

Why it matters

Most “common problems” are really a few repeatable failure points: power interruptions and resets, restricted draining, and restricted wash circulation. Catching a clogged filter or drain early helps prevent poor cleaning, odors, and repeat cycle interruptions.

Last updated: February 2026

A GE dishwasher typically lasts 10 to 12 years with normal household use. With consistent care (cleaning, correct loading, and fixing small leaks early), it’s common to reach the upper end of that range for your GE GDWF100R30BB.

Typical lifespan and what affects it

Most dishwasher lifespan comes down to heat, water quality, and how well the wash system stays clear.

• Frequency of use (daily cycles wear pumps, seals, and racks faster)
• Hard water (mineral buildup can reduce cleaning and strain the pump)
• Filter and sump cleanliness (clogs lead to poor wash performance and drain issues)
• Door sealing and leaks (even small leaks can damage components over time)
• Loading habits (blocked spray arms reduce cleaning and increase rewash cycles)

For model-specific care and cleaning guidance, follow the maintenance sections in the owner's manual.

Maintenance that extends life (high impact)

These steps prevent the most common wear issues in GE dishwashers.

• Clean the filter area regularly; replace a worn or damaged filter with dishwasher filter WD12X10109 when needed
• Check the door perimeter for gaps, flattening, or tears; replace the seal if it leaks using dishwasher door seal WD08X10055
• Keep spray paths clear (no tall items blocking the spray arm)
• Use the right detergent amount for your water conditions to reduce residue
• Protect against freezing if the unit is in an unheated space (per the owner's manual)

Quick “repair vs. replace” guide

Use this as a practical decision tool when the dishwasher is aging.

If your GDWF100R30BB has…	Usually means…	Typical next step
Repeated leaking at the door	Seal wear or alignment issue	Inspect and replace door seal
Poor cleaning even after cleaning	Filter/spray circulation problem	Clean filter, inspect wash system
Not draining consistently	Drain restriction or drain pump issue	Check drain path; consider pump service
Loud grinding during wash	Pump/motor wear	Diagnose wash motor and impeller

Why it matters

A dishwasher near the end of its expected life often shows up as longer cycles, weaker cleaning, or intermittent draining. Staying ahead of filter clogs and door leaks reduces strain on the pump and helps the unit reach its full service life.

Last updated: February 2026
