GE GTDP200EF1WS electric dryer Parts

The most common GE dryer problem is poor or no drying heat, which usually shows up as long dry times or clothes staying damp. On the GE GTDP200EF1WS electric dryer, the most frequent root causes are restricted venting (airflow) or a failed heating or temperature-safety part.

• Dryer tumbles but does not heat
• Clothes take too long to dry
• Dryer stops mid-cycle (overheating protection)
• Burning smell or very hot cabinet
• Dryer will not start (power or safety switch issue)

Start with airflow because a partially clogged exhaust can lengthen drying time and can also overheat the dryer.

• Clean the lint screen before every load (replace it if it is damaged or warped)
• Inspect the vent hose for kinks, crushing, or long runs
• Confirm you are using 4-inch metal ducting (rigid metal is best)
• Check the outside exhaust hood; the flaps should move freely and the hood should be clear of lint or nests
• If drying is inconsistent, sort loads and avoid overloading (heavy items hold more moisture)

If venting is clear and the dryer still will not heat or overheats, these parts are common suspects on electric dryers:

Good airflow keeps temperatures stable, protects safety thermostats, and shortens dry times. When venting is restricted, the dryer can run longer, waste energy, and trip heat-safety components.

For model-specific venting and troubleshooting steps, follow the installation guide and the troubleshooting chart in the owner's manual.

Last updated: February 2026

A GE electric dryer like model GTDP200EF1WS typically lasts 10 to 13 years with normal household use. Keeping airflow strong (clean lint filter, clear venting) and fixing wear parts early helps you reach the full expected life.

Most dryers wear based on heat, airflow restriction, and drum support wear. These factors have the biggest impact:

• Venting condition (short, rigid 4-inch metal duct dries faster and runs cooler)
• Lint filter cleaning before every load
• Load size (overloading increases strain and wrinkles)
• Moisture and heat settings (high heat all the time shortens component life)
• Prompt repair of squealing, thumping, or overheating symptoms

We recommend following the care and venting guidance in the GTDP200EF1WS owner's manual. Key actions:

• Clean the lint filter before each use
• Inspect and clean the exhaust duct periodically; a partially clogged exhaust increases drying time
• Use 4-inch rigid metal or UL-listed flexible metal ducting (avoid plastic)
• Keep the vent run short and uncrushed
• Check the outside exhaust hood flaps for free movement and blockage

When a dryer gets noisy, takes longer to dry, or overheats, these parts are often involved:

• Dryer lint screen WE18X25100 (restricted airflow increases run time)
• Dryer high-limit thermostat WE4M137 (overheating protection)
• Dryer operating thermostat WE4M216 (temperature regulation)

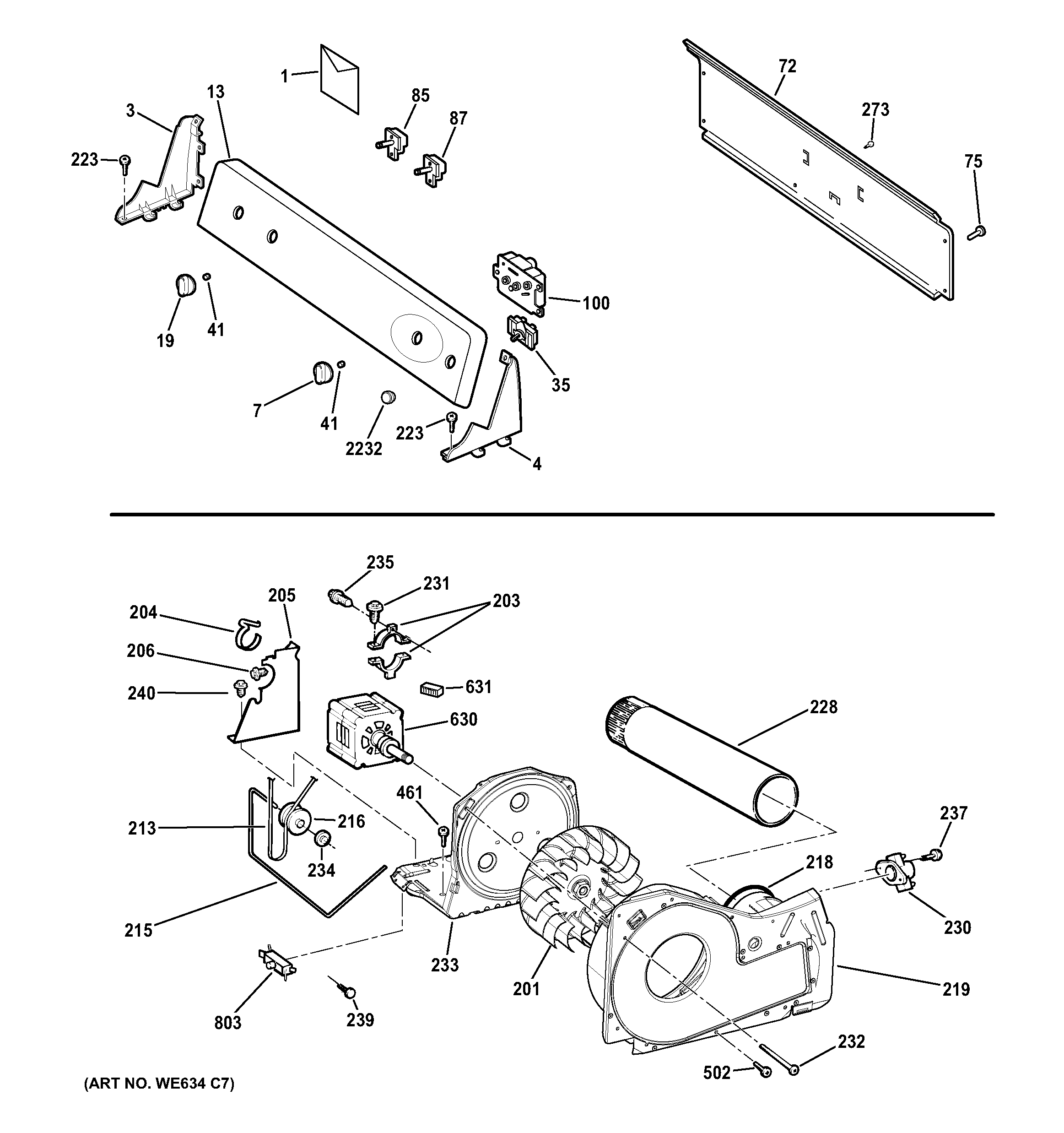

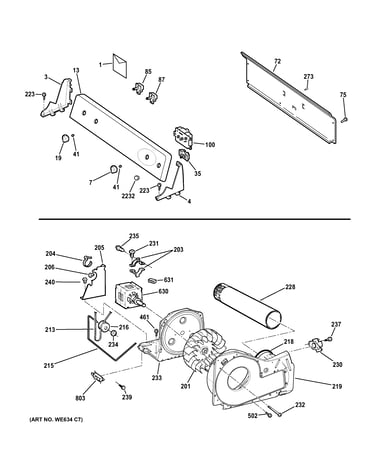

• Dryer blower wheel WE16X20393 (moves air through the drum and vent)
• Dryer drum front glide pad WE03X37317 (reduces drum friction and noise)

A dryer that runs longer than normal uses more energy and puts extra heat stress on the heating element, thermostats, motor, and drum support parts. Strong airflow and early part replacement are the simplest ways to keep your GE dryer in its normal 10 to 13-year service life.

Last updated: February 2026

GE electric dryers like model GTDP200EF1WS do not use a single factory reset button. The practical reset is a power reset plus restarting the cycle; the normal start and restart behavior is shown in the GTDP200EF1WS owner's manual.

• Turn the cycle knob to Off.
• Wait 1 minute.
• If the dryer is still unresponsive, unplug it or switch the breaker off for 2 to 5 minutes.
• Restore power.
• Close the door fully.
• Select a cycle and press Start (opening the door stops operation; closing it and pressing Start resumes).

• Confirm the plug is fully seated and the outlet has power.
• Check the home electrical panel; most electric dryers use two fuses or breakers.
• Make sure the door is fully closed, then press Start.
• Inspect airflow: clean the lint screen and make sure the vent duct is not crushed or clogged.

A reset clears a temporary control interruption. If the same symptom comes back, the dryer is usually reacting to a power issue, a door not fully closed, or restricted venting that triggers safety shutoff.

Last updated: February 2026
