Amana
Gas Range

Model # GAK26TC Official Amana gas self-cleaning range

Here are the diagrams and repair parts for Official Amana GAK26TC gas self-cleaning range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

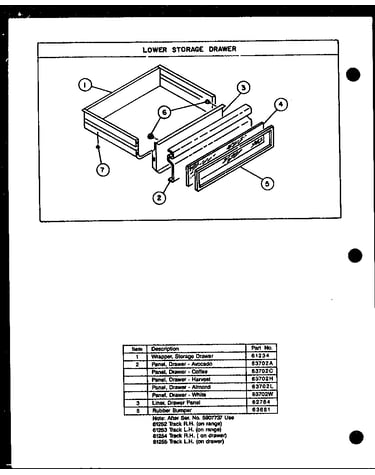

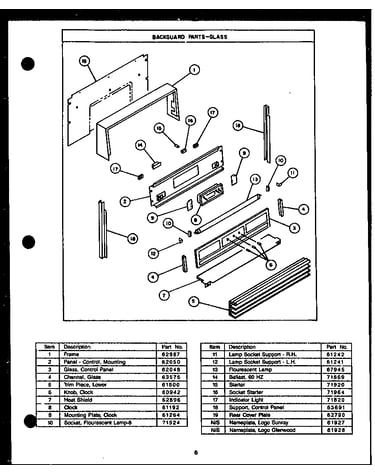

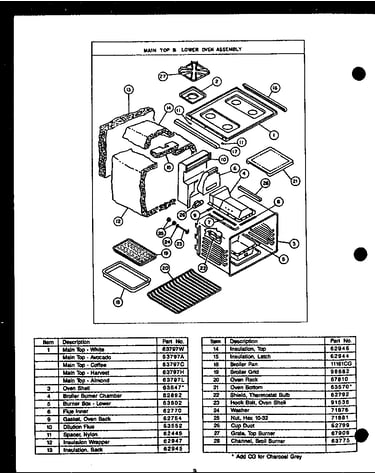

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Switch Oven Light 63977
#31

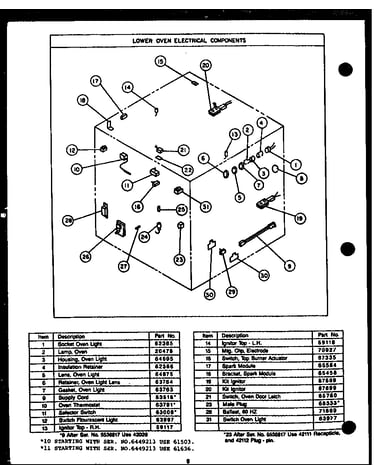

Lower oven electrical components diagram

Switch oven light

Part #63977

The manufacturer no longer makes this part, and there's no substitute part

Oven Light & Top Light Switch 63997
#12

Lower oven electrical components diagram

Oven light & top light switch

Part #63997

The manufacturer no longer makes this part, and there's no substitute part

Bracket Door Switch 60148
#38

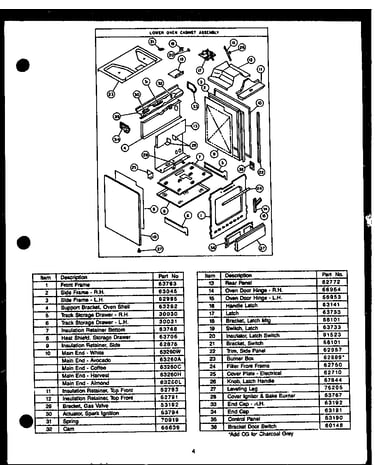

Lower oven cabinet assembly diagram

Bracket door switch

Part #60148

The manufacturer no longer makes this part, and there's no substitute part

Knob 63177
#26A

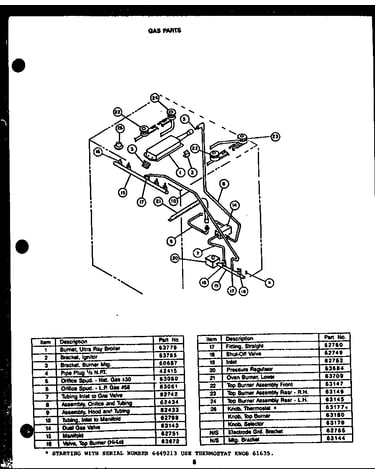

Gas parts diagram

Knob

Part #63177

The manufacturer no longer makes this part, and there's no substitute part

Glass Support Bracket 62439
#12

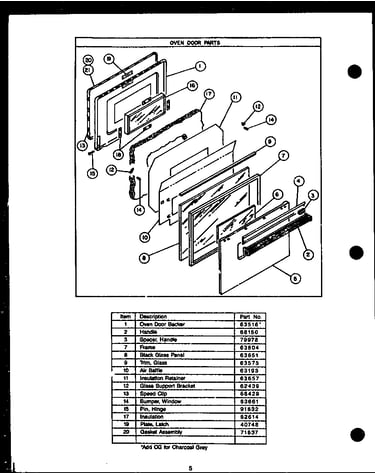

Oven door parts diagram

Glass support bracket

Part #62439

The manufacturer no longer makes this part, and there's no substitute part

Oven Light Housing 64695
#3

Lower oven electrical components diagram

Oven light housing

Part #64695

The manufacturer no longer makes this part, and there's no substitute part

End Cap 63191
#34

Lower oven cabinet assembly diagram

End cap

Part #63191

The manufacturer no longer makes this part, and there's no substitute part

Burner Box (add Cg For Charcoal Grey) 62889
#23

Lower oven cabinet assembly diagram

Burner box (add cg for charcoal grey)

Part #62889

The manufacturer no longer makes this part, and there's no substitute part

Burner, Ultra Ray Broiler 63779
#1

Gas parts diagram

Burner, ultra ray broiler

Part #63779

The manufacturer no longer makes this part, and there's no substitute part

Main End - Harvest 63260H
#10D

Lower oven cabinet assembly diagram

Main end - harvest

Part #63260H

The manufacturer no longer makes this part, and there's no substitute part
