Model # S3523 Official Hoover futura turbopower 2000

Here are the diagrams and repair parts for Official Hoover S3523 futura turbopower 2000, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |

Extension Tube 43453095
#9

Attachment parts diagram

Extension tube

Part #43453095

The manufacturer no longer makes this part, and there's no substitute part

Hose Rel Lat 36153038
Hose rel lat

Part #36153038

The manufacturer no longer makes this part, and there's no substitute part

Bag Support 36424010
#16

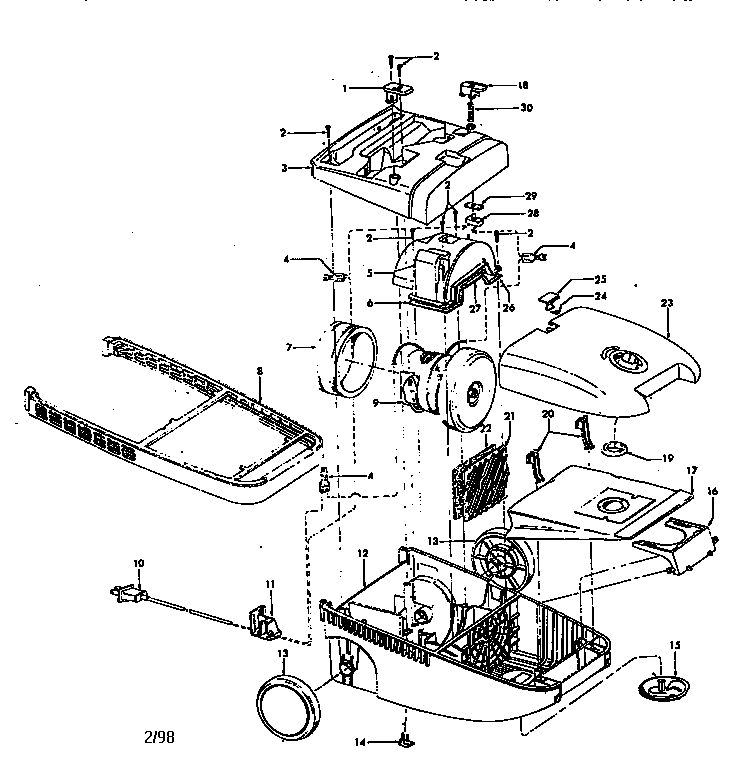

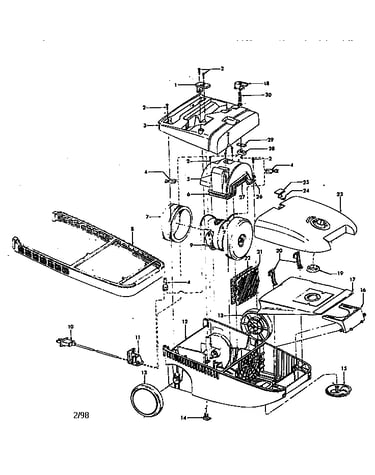

Turbopower 2000 diagram

Bag support

Part #36424010

The manufacturer no longer makes this part, and there's no substitute part

Latch 36153054
#25

Turbopower 2000 diagram

Latch

Part #36153054

The manufacturer no longer makes this part, and there's no substitute part

Pto Cover 37258130
#14

Turbopower 2000 diagram

Pto cover

Part #37258130

The manufacturer no longer makes this part, and there's no substitute part

Fan Cover 37196065
#3

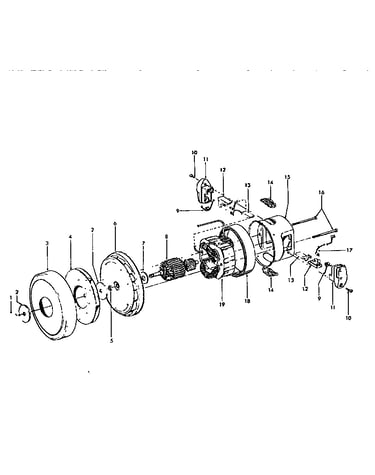

Motor assembly diagram

Fan cover

Part #37196065

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Brush 48447001
#5

Attachment parts diagram

Vacuum brush

Part #48447001

The manufacturer no longer makes this part, and there's no substitute part

Field Coil 45311048
#19

Motor assembly diagram

Field coil

Part #45311048

The manufacturer no longer makes this part, and there's no substitute part

Fan 43551008
#4

Motor assembly diagram

Fan

Part #43551008

The manufacturer no longer makes this part, and there's no substitute part

Torsion Spring 38351009
#24

Turbopower 2000 diagram

Torsion spring

Part #38351009

The manufacturer no longer makes this part, and there's no substitute part
