Model # U6625-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U6625-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |

Vacuum Idler Arm Pulley 43241006
#13A

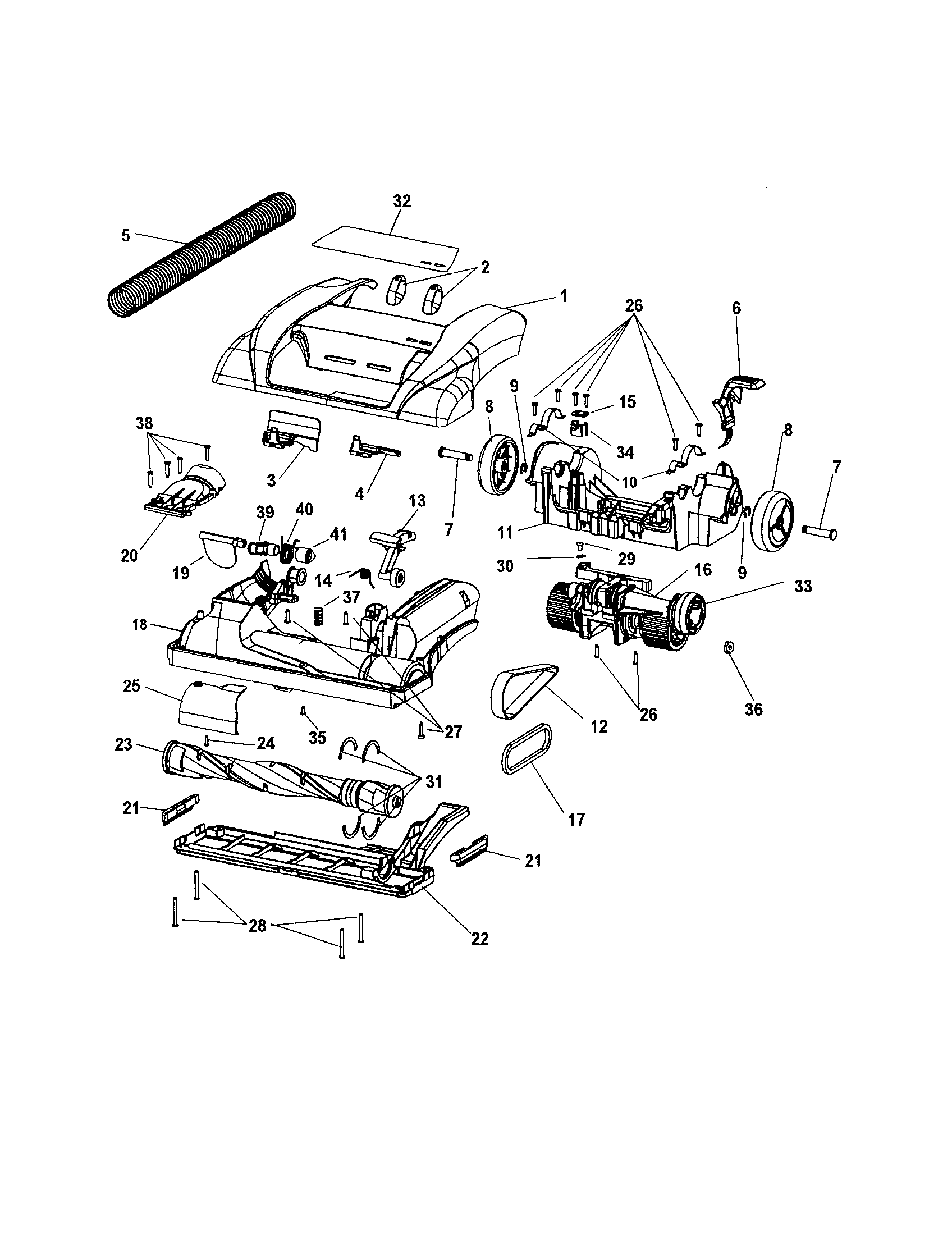

Hood assembly diagram

Vacuum idler arm pulley

Part #43241006

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hepa Filter (replaces 43611042) 40140201
#29

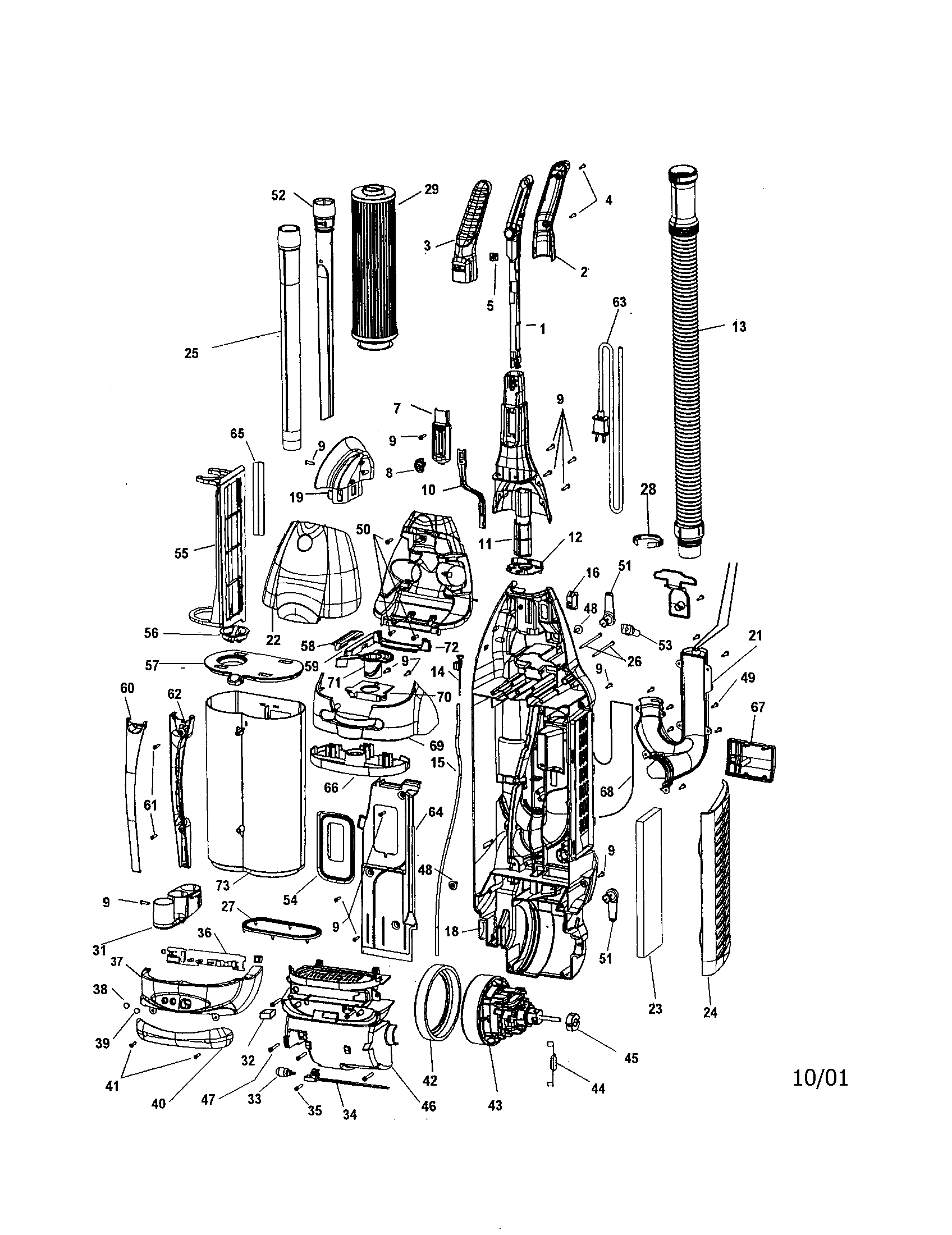

Handle and housing diagram

Vacuum hepa filter (replaces 43611042)

Part #40140201

The manufacturer no longer makes this part, and there's no substitute part

Edf Covr-aem 37246137
#37A

Handle and housing diagram

Edf covr-aem

Part #37246137

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Grip Rod 38512001
#1

Handle and housing diagram

Vacuum handle grip rod

Part #38512001

The manufacturer no longer makes this part, and there's no substitute part

Thermal Protector 49811074

#NI

All parts diagram

Thermal protector

Part #49811074

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Self-propelled Power Drive Washer 36128002
#30

Hood assembly diagram

Vacuum self-propelled power drive washer

Part #36128002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 39457022
#62

Handle and housing diagram

Vacuum handle

Part #39457022

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Edge Brush 39511004
Vacuum edge brush

Part #39511004

The manufacturer no longer makes this part, and there's no substitute part

Latch Cover 38567037
#66A

Handle and housing diagram

Latch cover

Part #38567037

The manufacturer no longer makes this part, and there's no substitute part

Edf Cov - Ag 37246138
#37B

Handle and housing diagram

Edf cov - ag

Part #37246138

The manufacturer no longer makes this part, and there's no substitute part
