Kenmore
Washer

Model # 1105804952 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 1105804952 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 360 parts  |
Washer Spanner Nut 21366
#16

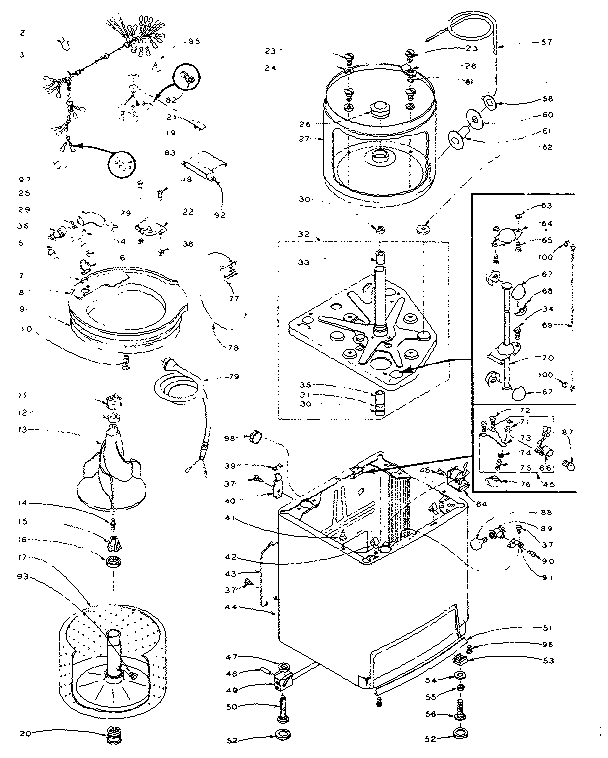

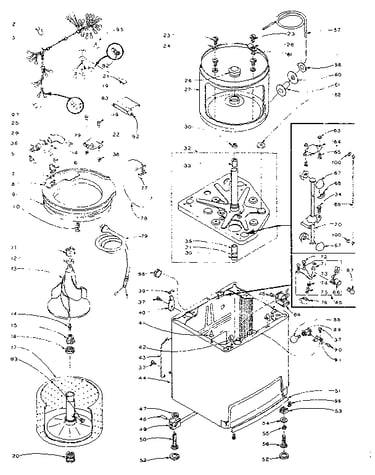

Machine sub-assembly diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
62% OFF MSRP : $17.00
In Stock
Prs Swt Hose 92274
#57

Machine sub-assembly diagram

Prs swt hose

Part #92274

Replaced by #WP353244

?
Manufacturer substitution
This part replaces 92274. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
19% OFF MSRP : $54.00
In Stock
Screw 18724
#36

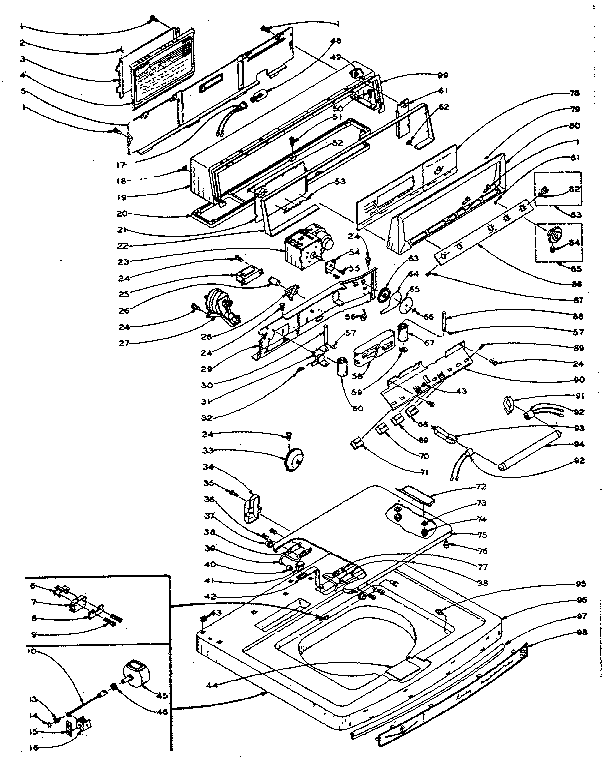

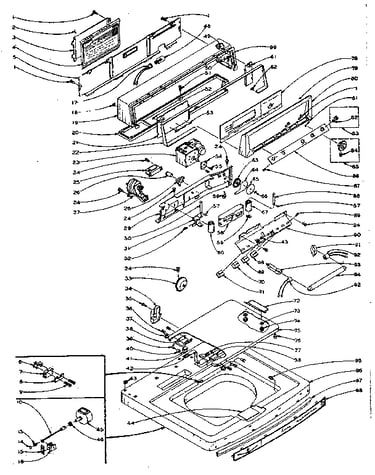

Top and console assembly diagram

Screw

Part #18724

Replaced by #WPW10119828

?
Manufacturer substitution
This part replaces 18724. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.09 |
76% OFF MSRP : $13.00
In Stock
Clamp 272853
#29

Machine sub-assembly diagram

Clamp

Part #272853

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 16802
#62

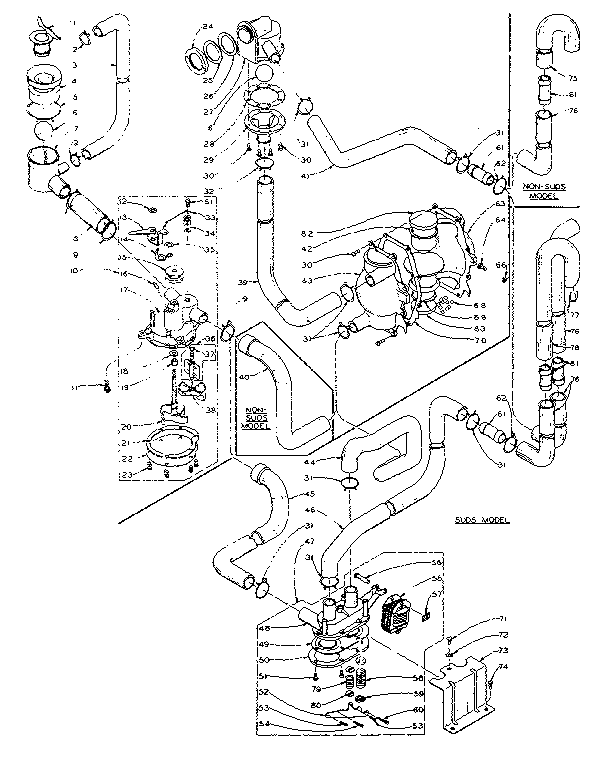

Water system diagram

Hose clamp

Part #16802

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 272852
#2

Water system diagram

Hose clamp

Part #272852

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 272856
#31

Water system diagram

Hose clamp

Part #272856

The manufacturer no longer makes this part, and there's no substitute part

Clamp 21276
#9

Water system diagram

Clamp

Part #21276

The manufacturer no longer makes this part, and there's no substitute part

Clamp 272857
#32

Water system diagram

Clamp

Part #272857

The manufacturer no longer makes this part, and there's no substitute part

Lever 21018
#6

Top and console assembly diagram

Lever

Part #21018

Replaced by #WP691581

?
Manufacturer substitution
This part replaces 21018. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
