GE GTE16GTHCRWW refrigerator

GE GTE16GTHCRWW refrigerator Parts

Here are the diagrams and repair parts for GE GTE16GTHCRWW refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GTE16GTHCRWW Refrigerators

GE Refrigerator GTE16GTHCRWW FAQs

A top-mount refrigerator like the GE GTE16GTHCRWW is usually the better choice if you want lower upfront cost, strong reliability, and good energy efficiency. A bottom-mount is usually better if you want fresh-food items at eye level and easier access to the refrigerator section.

Quick comparison: top mount vs bottom mount

Feature Top mount (freezer on top) Bottom mount (freezer on bottom)
Everyday access Freezer is easiest to reach Refrigerator is easiest to reach
Typical price Lower Higher
Energy use (typical) Often slightly lower Often slightly higher
Organization Simpler layout More fridge-level storage and drawers
Best for Budget, reliability, smaller kitchens Convenience, frequent fresh-food use

How to choose for your kitchen and habits

  • Choose top mount if you use the freezer often, want a simpler design, or need a more budget-friendly option.
  • Choose bottom mount if you cook frequently and want fresh foods (produce, dairy, leftovers) at eye level.
  • If you have limited space, measure door swing and clearance; top mounts are commonly easier to fit in tight layouts.
  • If you are sensitive to bending, a bottom mount reduces how often you crouch for refrigerator items.

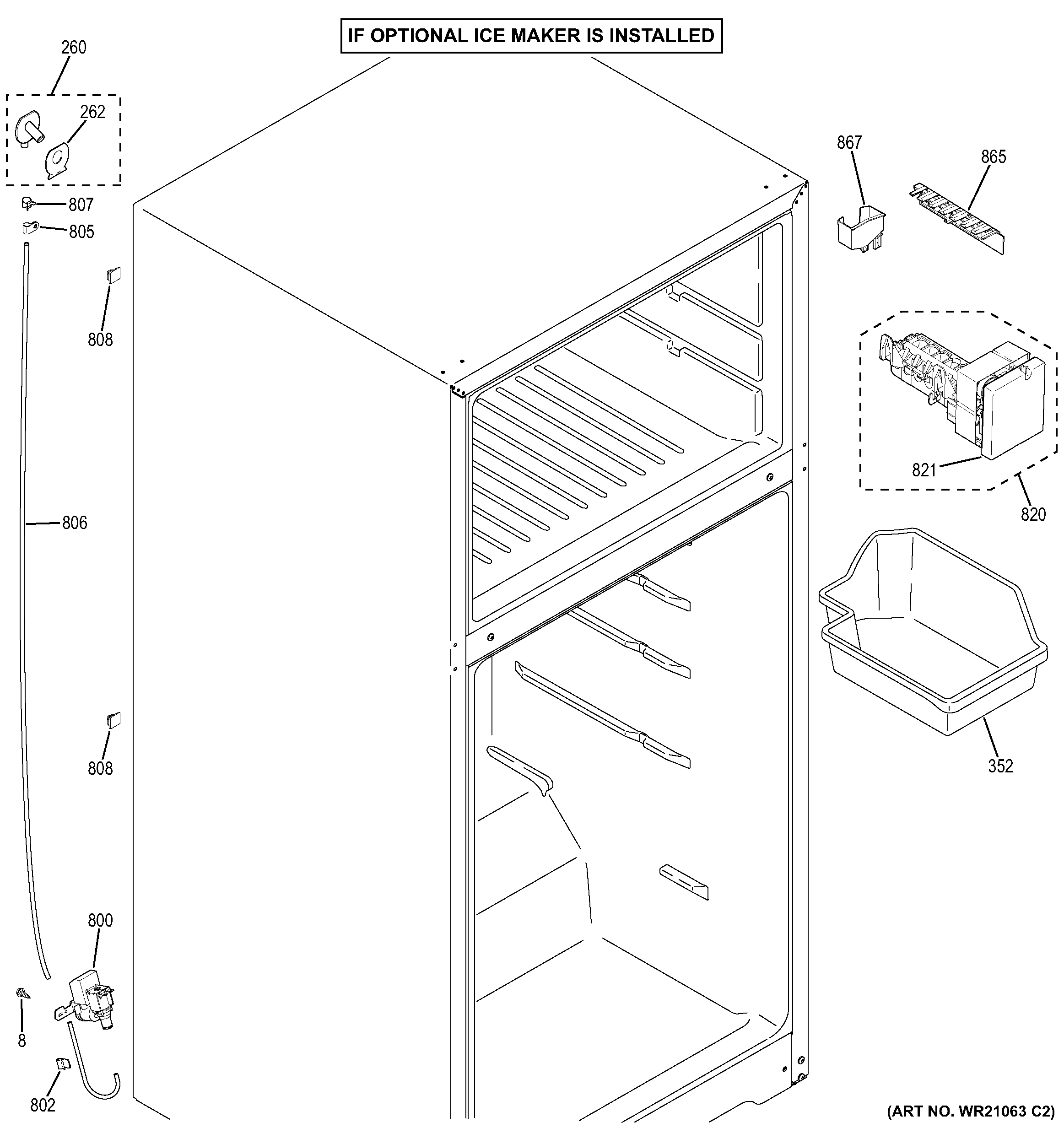

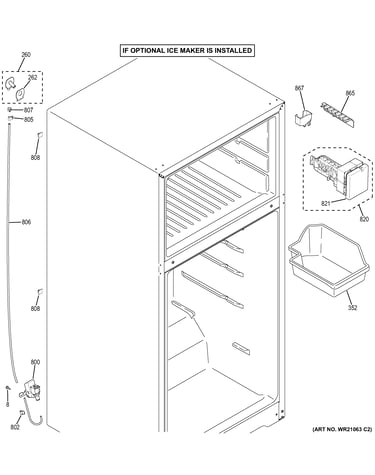

  • If you want an ice maker in a top-mount setup, confirm the correct kit for your model, such as the GE refrigerator ice maker kit WR30X10093.

Why it matters

The “better” refrigerator is the one that matches how you use it every day. Layout affects comfort, food visibility (which reduces waste), and how hard the sealed system and fans have to work to maintain stable temperatures.

Practical tip for owners

If your decision is driven by performance concerns (warm fridge, noisy operation, frost buildup), start with basic checks like door sealing and airflow. For model-relevant troubleshooting paths, we use resources like GE refrigerator error codes to narrow down likely causes.

Last updated: January 2026

Yes. GE Café is widely considered a high-end (premium) GE appliance line, positioned above standard GE models with upgraded design, finishes, and feature sets. It is separate from your GE GTE16GTHCRWW top-mount refrigerator, which is a more traditional, value-focused configuration.

How GE Café compares to other GE lines

GE organizes products into different “good, better, best” tiers depending on category. In most refrigerator and cooking categories, GE Café sits in the premium tier.

  • GE (standard line): broad selection, practical features, value pricing
  • GE Profile: step-up features and styling, often more tech-focused
  • GE Café: premium styling and curated finishes, higher-end feature packages
  • Monogram: luxury tier, built-in and pro-style options (typically the highest tier)

What “high end” usually means in real-world terms

High-end is mostly about materials, design options, and feature packages, not just price.

  • More premium exterior finishes and hardware options
  • More advanced convenience features (varies by product)
  • More design-forward styling intended to match upscale kitchens
  • Higher typical price point than standard GE models
  • More “suite” coordination across kitchen appliances

Quick comparison table

GE line Typical market position Common buyer goal
GE (standard) Mainstream Reliable basics and value
GE Profile Upper-mainstream More features and tech
GE Café Premium High-end look plus upgraded features
Monogram Luxury Built-in, pro-style, top-tier finishes

Why it matters

Knowing the product tier helps when you are comparing features, planning a kitchen suite, or deciding whether to repair or upgrade. For repairs on your GE GTE16GTHCRWW, we focus on model-specific replacement parts such as the GE appliance light bulb, 40-watt 40A15 when a basic function like interior lighting needs attention.

Last updated: January 2026

Cooling problems are the most common issue we see with GE refrigerators, including the GE GTE16GTHCRWW. Symptoms usually show up as warm fresh food, soft ice, or heavy frost, and the root cause is often airflow or heat removal problems such as a dirty condenser area, a failing fan motor, or a defrost system problem.

What to check first (fast, no-parts steps)

  • Confirm the temperature controls were not accidentally changed.
  • Make sure the doors close fully and nothing is holding them open.
  • Look for frost buildup on the freezer back wall (a strong clue of a defrost issue).
  • Listen for the evaporator fan running when the compressor is on.
  • Clean dust from the condenser area (unplug the refrigerator first).

Common causes and the parts that often fix them

If basic checks do not restore normal cooling, these are the most frequent repair paths for a top-mount like the GTE16GTHCRWW:

Symptom Most likely area Common part to inspect/replace

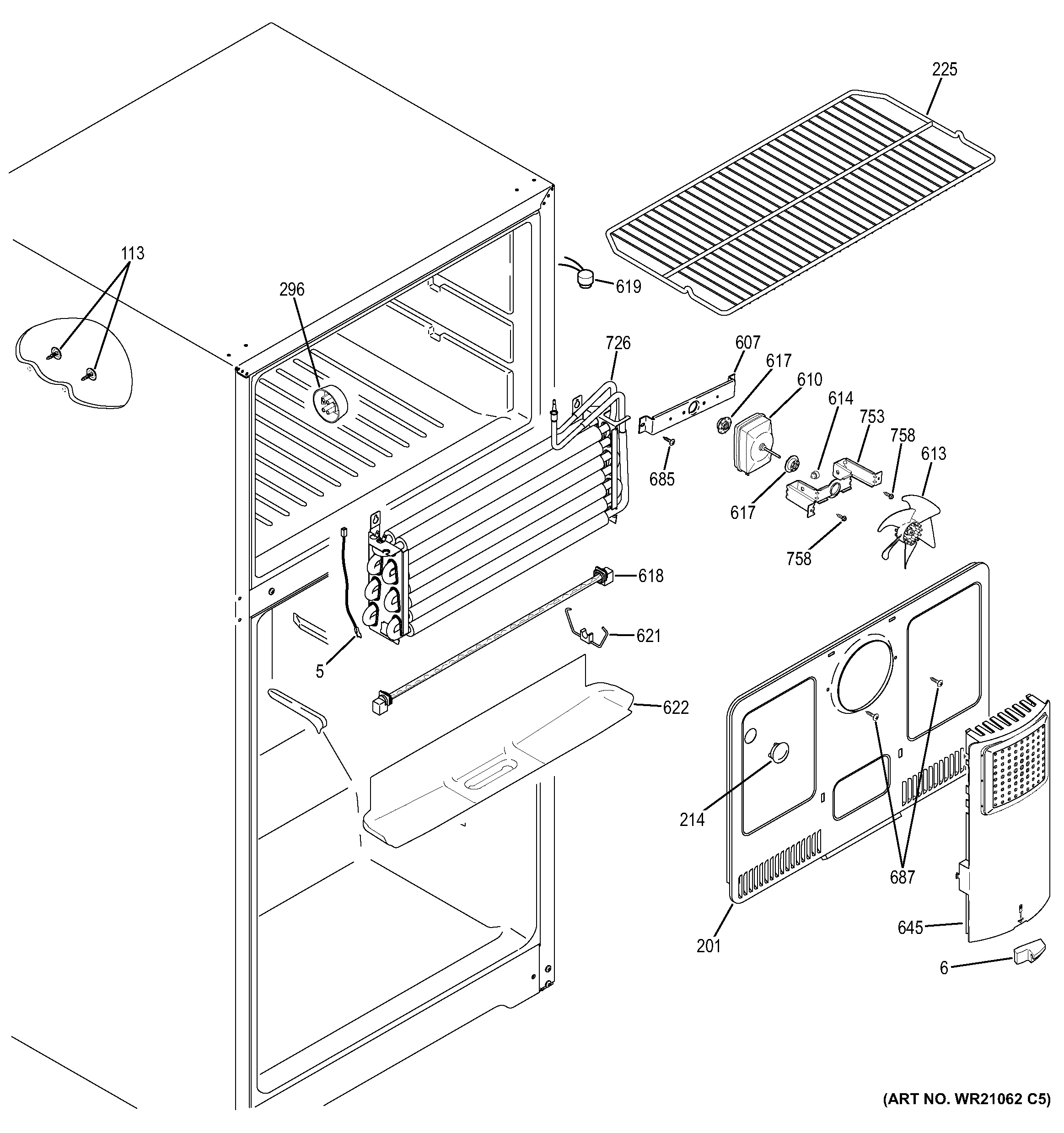

Freezer cold, fridge warm Airflow from freezer to fridge Refrigerator evaporator fan WR60X31522
Frosted freezer back panel, weak cooling Defrost system Refrigerator defrost heater WR09X21107

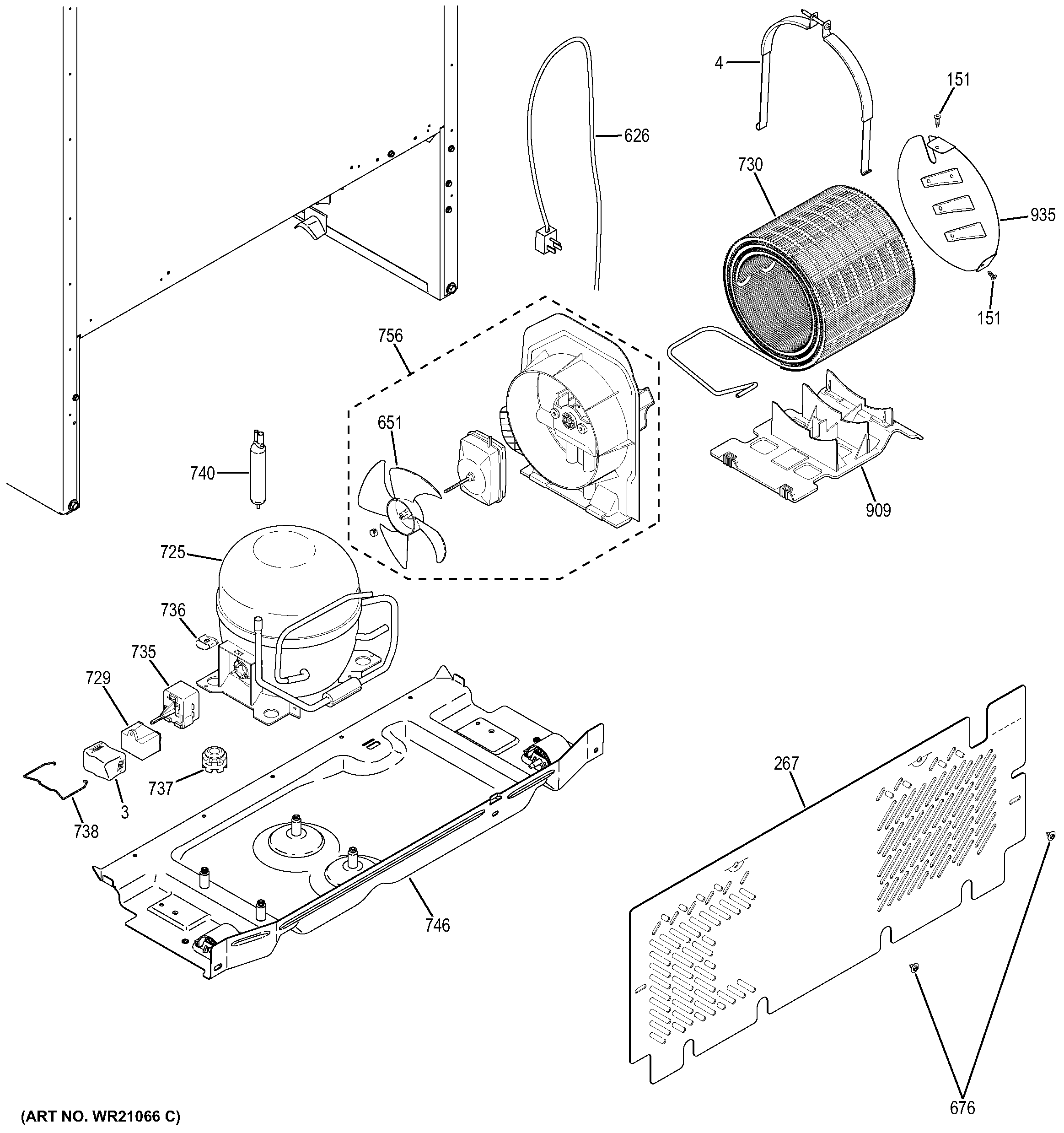

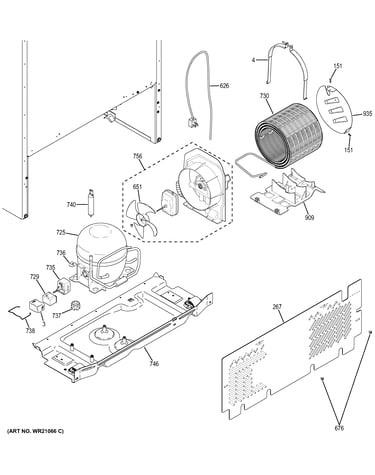

Warm cabinet, compressor runs a lot Heat not being removed Refrigerator condenser fan motor assembly WR17X24348

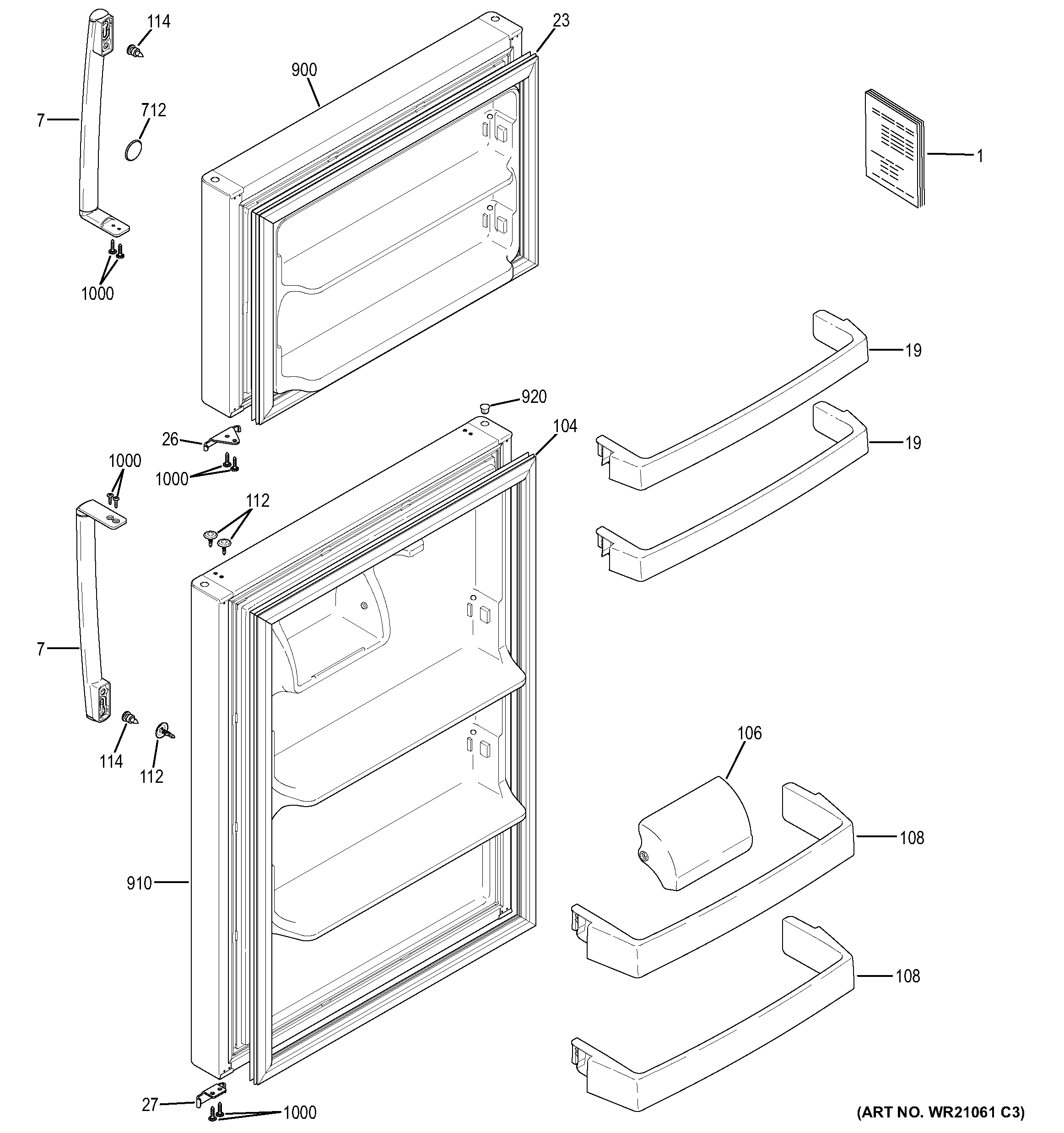

Door not sealing, moisture/frost Door seal Refrigerator door gasket WR14X27232 or refrigerator freezer door gasket WR14X27230

Why it matters

A refrigerator that cannot move air across the evaporator or cannot shed heat at the condenser will run longer, struggle to hold safe food temperatures, and can develop frost or moisture problems that get worse over time.

Helpful GE troubleshooting resources

Last updated: January 2026
