Why is my Kenmore refrigerator leaking underneath?
Water leaking underneath a Kenmore refrigerator model 25370443417 is usually caused by a defrost drain problem (clogged or frozen), a cracked or overflowing drain pan, or a water supply connection that seeps slowly and collects under the cabinet. Use the 25370443417 installation guide checklist to confirm there are no leaks at any water connections.
Quick checks we recommend first
- Look for water only after a defrost cycle; that points to a defrost drain or drain pan issue.
- Check the drain pan underneath for cracks, shifting, or overflow.
- Inspect the water line and fittings at the back for slow drips (especially after moving the unit).
- Confirm the refrigerator is level and slightly tilted back; poor leveling can affect drainage.
- If the leak started after moving or storage in freezing temps, drain and purge the water system before normal use.
Most common causes and what to do
| What you notice | Likely cause | What to do next |
|---|---|---|
| Water appears near the center/front | Defrost drain clogged or frozen | Clear the drain opening inside the fresh food section using warm water and a soft tube cleaner. |
| Water only shows up occasionally | Drain pan overflow during defrost | Clean the pan and surrounding area; verify the pan is seated correctly. |
| Water near the back by the wall | Water line or fitting seep | Tighten fittings, inspect tubing for kinks or cracks, and recheck for leaks in 24 hours. |
| Leak after moving | Water system not fully drained | Drain the supply system before putting the refrigerator back into service. |
Parts that can be involved

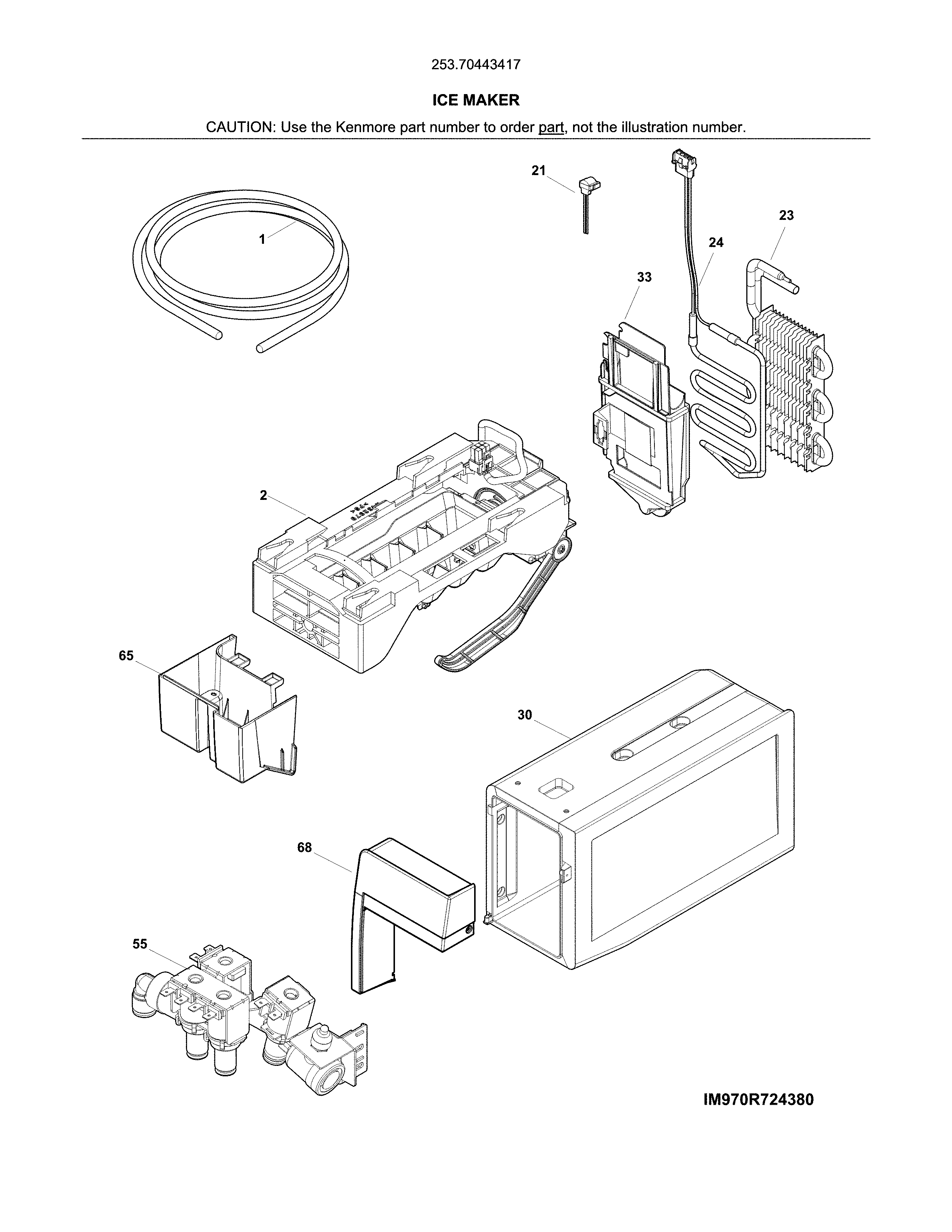

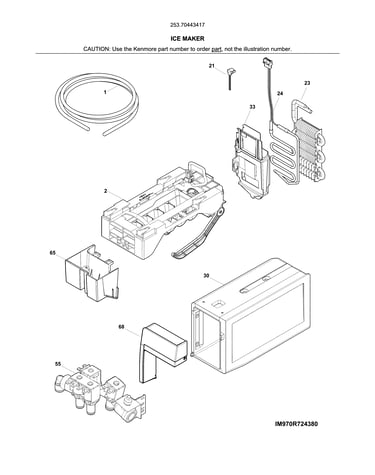

If you confirm the leak is tied to the ice maker or water supply, a failing valve can drip and run down to the floor. For this model, the related part is the refrigerator water inlet valve assembly 242253002.
Why it matters
Leaks under the refrigerator can damage flooring and can also lead to ice buildup, odor, and cooling issues if water ends up freezing in the wrong place. Catching a slow seep early also helps prevent repeated puddles.
Last updated: January 2026
What does DH mean on Kenmore Elite refrigerator?
On Kenmore model 25370443417, DH commonly indicates a defrost heating problem (the refrigerator is not sensing normal defrost heat). The most common causes are a failed defrost heater circuit, a bad defrost sensor/thermostat, or a control issue that prevents the heater from turning on.
What to check first (safe, no-tools steps)
- Power reset: unplug the refrigerator (or turn off the breaker) for 5 minutes, then restore power.
- Confirm doors close and seal fully; warm air leaks can worsen frost and trigger defrost-related issues.
- Listen for the evaporator fan; poor airflow can mimic cooling and defrost symptoms.
- Look for heavy frost on the freezer back wall; that points strongly to a defrost system problem.
- Verify temperature settings are not set to “OFF/0” style settings (some interfaces allow this).
Parts that commonly cause a DH/defrost-heat issue
If you find heavy frost buildup or repeated DH indications, these model-compatible parts are common suspects:
Quick symptom-to-part guide
| What you notice | Most likely area | What we typically replace first |
|---|---|---|
| Thick frost on freezer back panel, fridge warms | Defrost system | Defrost sensor/thermostat |
| Fan runs but airflow is weak, frost returns quickly | Evaporator area | Defrost sensor/thermostat |
| Intermittent DH, temps swing | Control/defrost sensing | Sensor/thermostat, then control diagnostics |
Why it matters
When the defrost system is not heating normally, frost can blanket the evaporator coil and block airflow. That makes the fresh food section warm up even though the freezer may still feel cold.
Where to find model-specific guidance
Use the troubleshooting and diagnostic information in the 25370443417 owner’s manual.
Last updated: January 2026
What is a bottom mount refrigerator?
A bottom-mount refrigerator (like Kenmore model 25370443417) keeps the fresh-food section on top at eye level and puts the freezer drawer on the bottom, so you bend less for everyday groceries and use the lower freezer for longer-term storage.
How a bottom-mount layout works

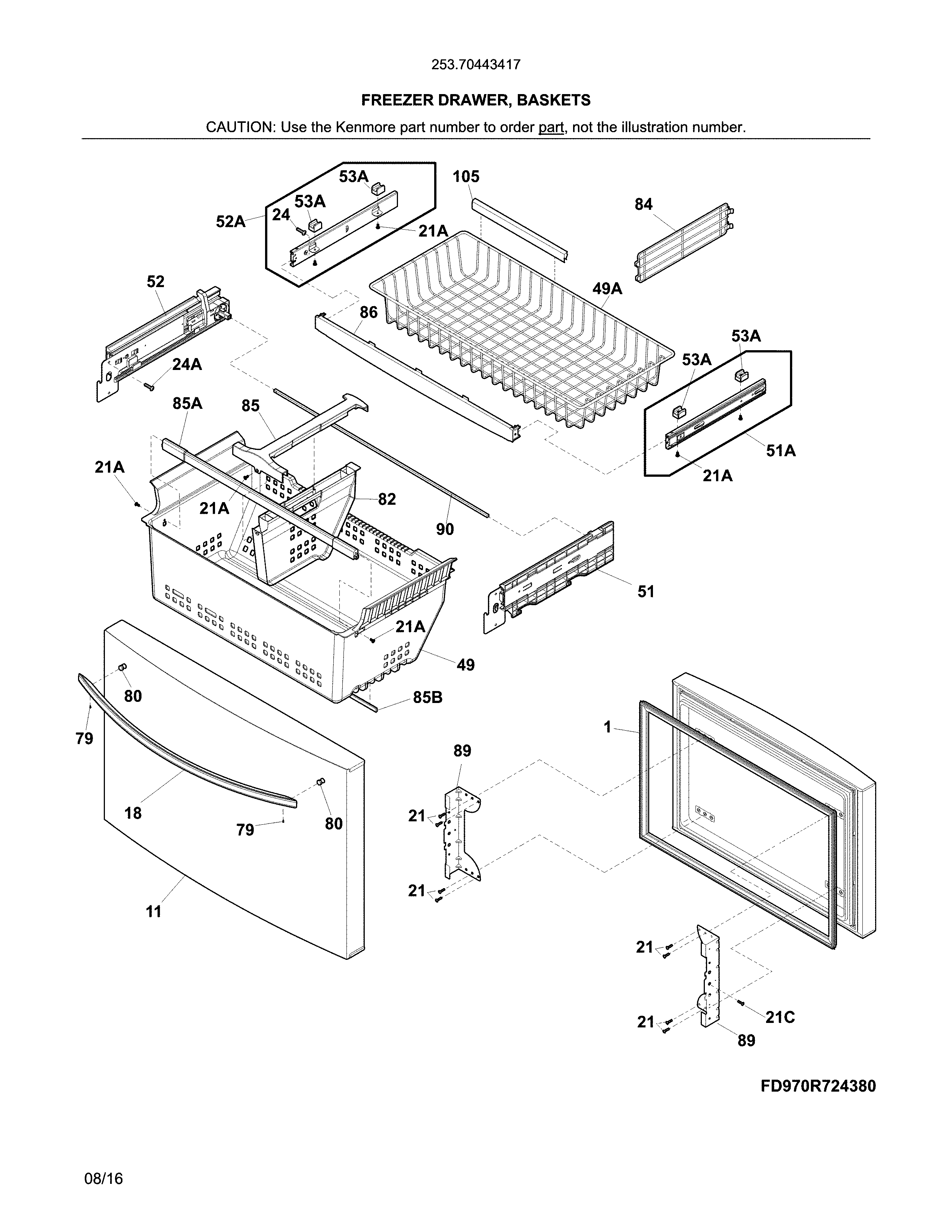

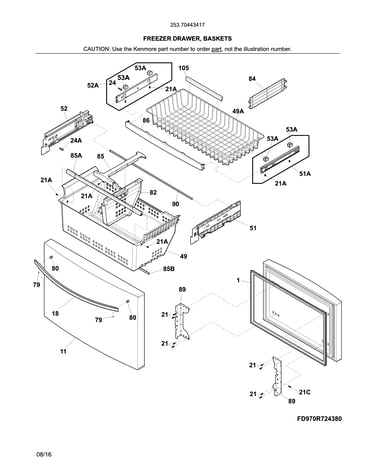

In a bottom-mount design, the refrigerator compartment is the main upper section, and frozen food is stored in a pull-out freezer drawer below.
Common features you will see on many bottom-mount models:
- Upper fresh-food shelves and drawers for daily items
- Lower freezer basket(s) for frozen foods
- Doors designed to self-close when left slightly open (many designs self-close within about 20 degrees)
- Built-in clearances needed around the cabinet for airflow and connections (water, electrical)
Why many people prefer bottom-mount
This style is popular because it prioritizes the items you access most often.
- Fresh foods are easier to reach without bending
- Freezer storage is deeper and often better organized with baskets
- Works well for households that use the refrigerator more than the freezer
- Often pairs well with an ice maker and water supply setup (when equipped)
Bottom-mount vs. top-freezer: quick comparison
| Feature | Bottom-mount refrigerator | Top-freezer refrigerator |
|---|---|---|
| Fresh food access | Eye level | Lower, more bending |
| Freezer access | Lower drawer | Upper door |
| Best for | Frequent fresh-food use | Frequent freezer use |
Why it matters for installation and use
Because bottom-mount units often use a freezer drawer and wide doors, placement and leveling affect day-to-day convenience. For model 25370443417, we recommend following the clearances, leveling steps, and door-opening guidance in the 25370443417 owner's manual so drawers and baskets open fully and the doors seal properly.
Last updated: January 2026
