Kenmore
Microwave/Hood Combo

Model #72163689300 Kenmore microwave/hood combo

Here are the diagrams and repair parts for Kenmore 72163689300 microwave/hood combo, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

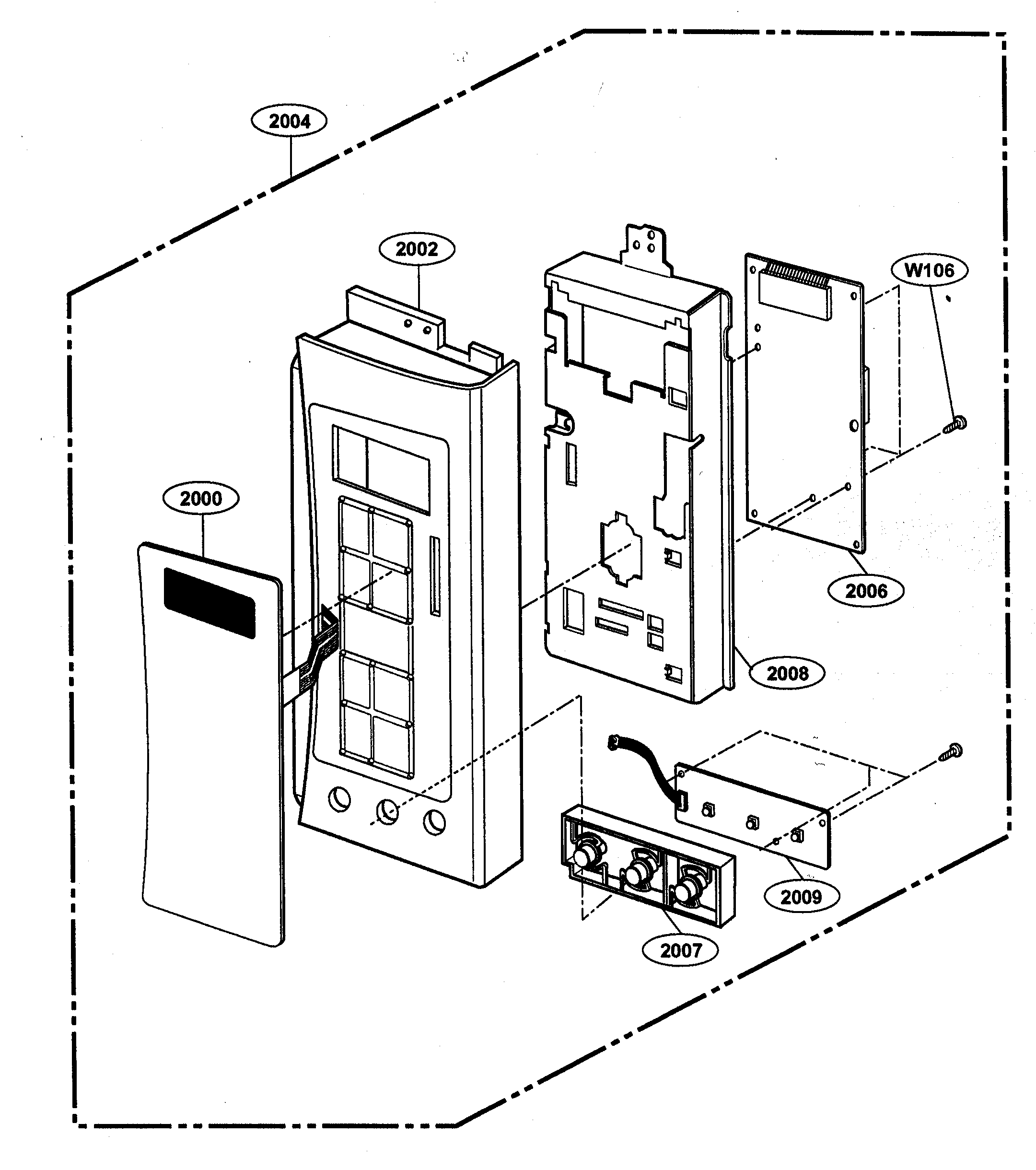

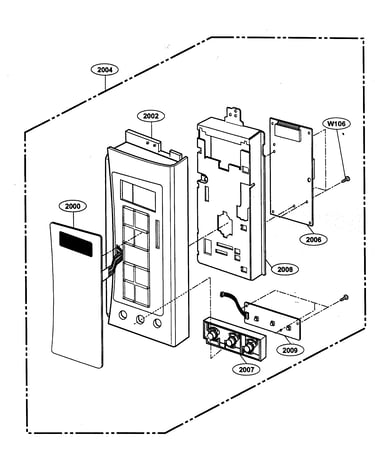

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 91 parts

    Microwave Charcoal Filter

    #5037

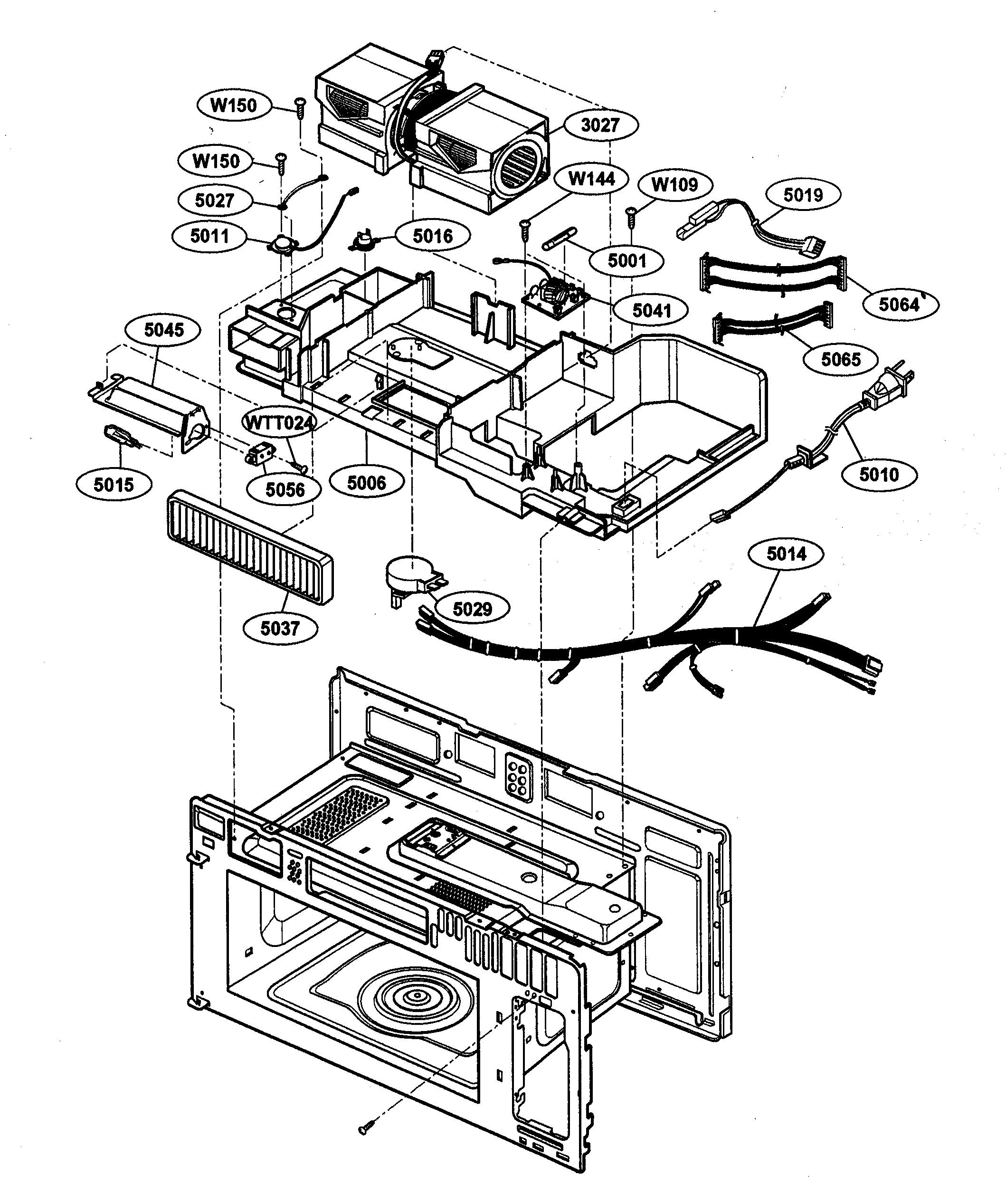

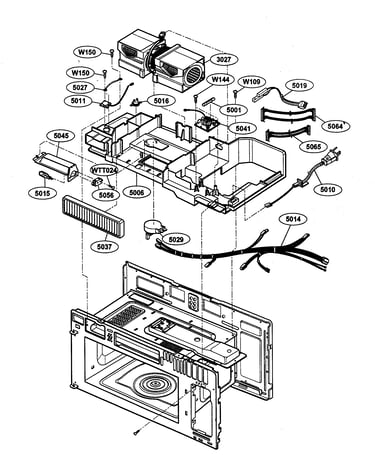

    Interior parts 2 Diagram

    Microwave charcoal filter

    Part #5230W1A003A
    $11.47

    In Stock

    Microwave Door Interlock Switch

    #4003

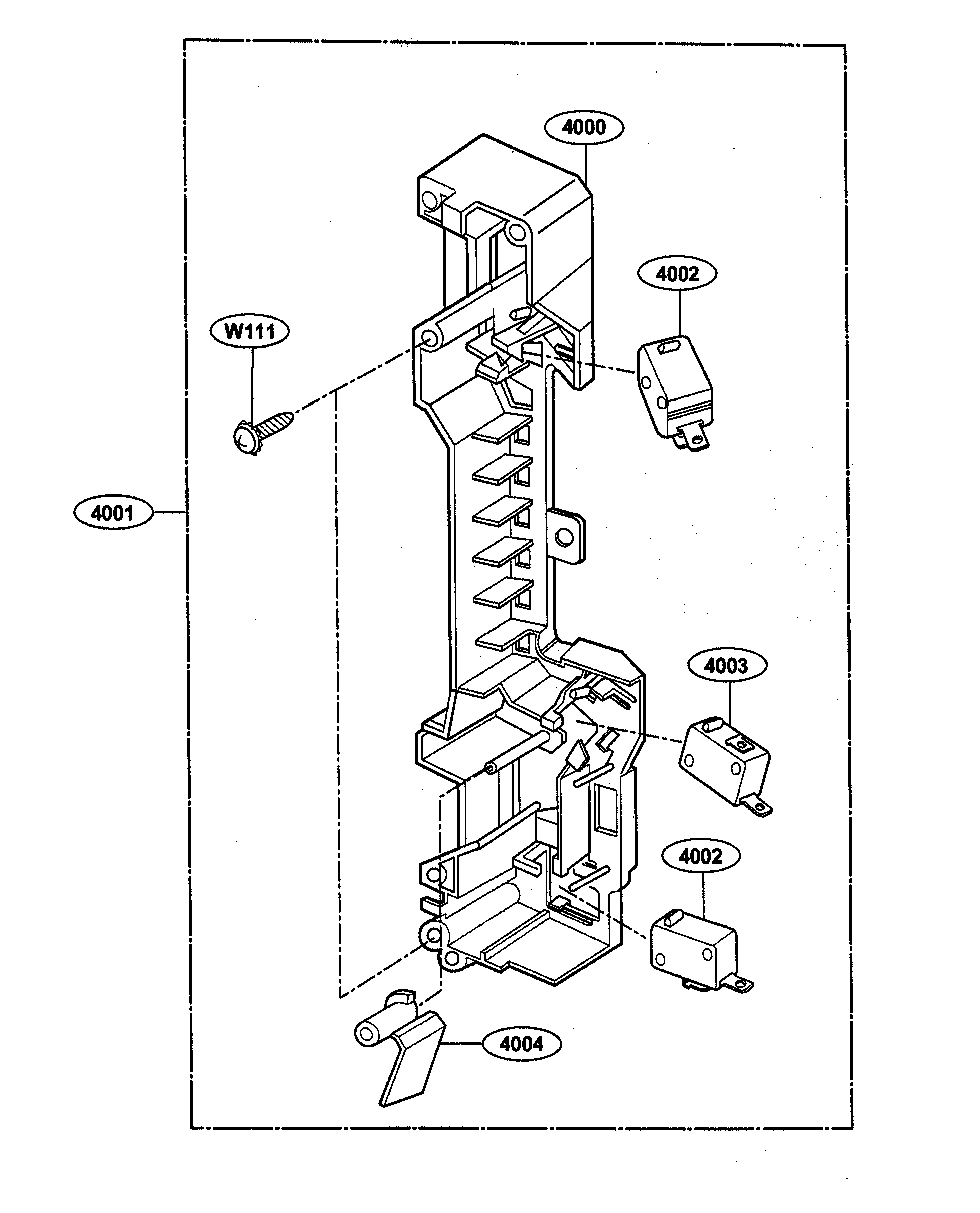

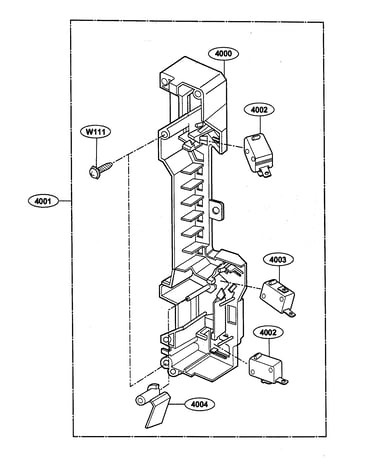

    Latch board Diagram

    Microwave door interlock switch

    Part #6600W1K001C
    This item is not returnable
    $6.22

    In Stock

    Microwave Door Latch Hook

    #1006

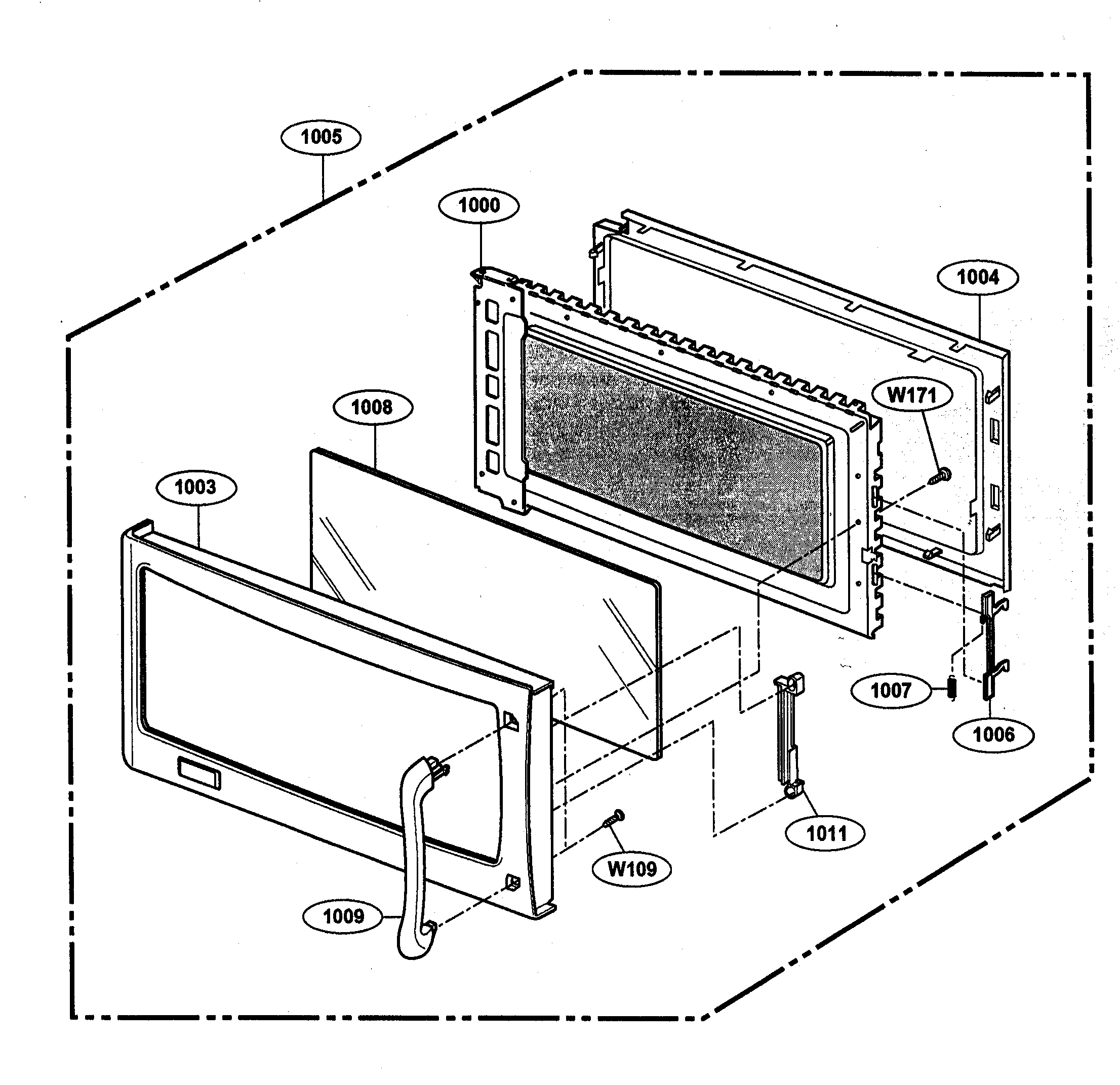

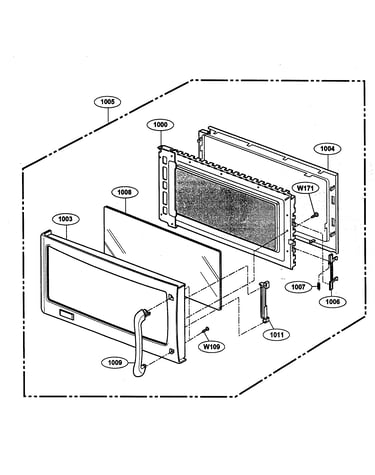

    Door parts Diagram

    Microwave door latch hook

    Part #4026W2A015A
    This item is not returnable
    $4.83

    In Stock

    Microwave Fuse

    #5001

    Interior parts 2 Diagram

    Microwave fuse

    Part #3B74133K
    This item is not returnable
    $6.67

    In Stock

    Microwave Waveguide Cover Rivet

    #3004

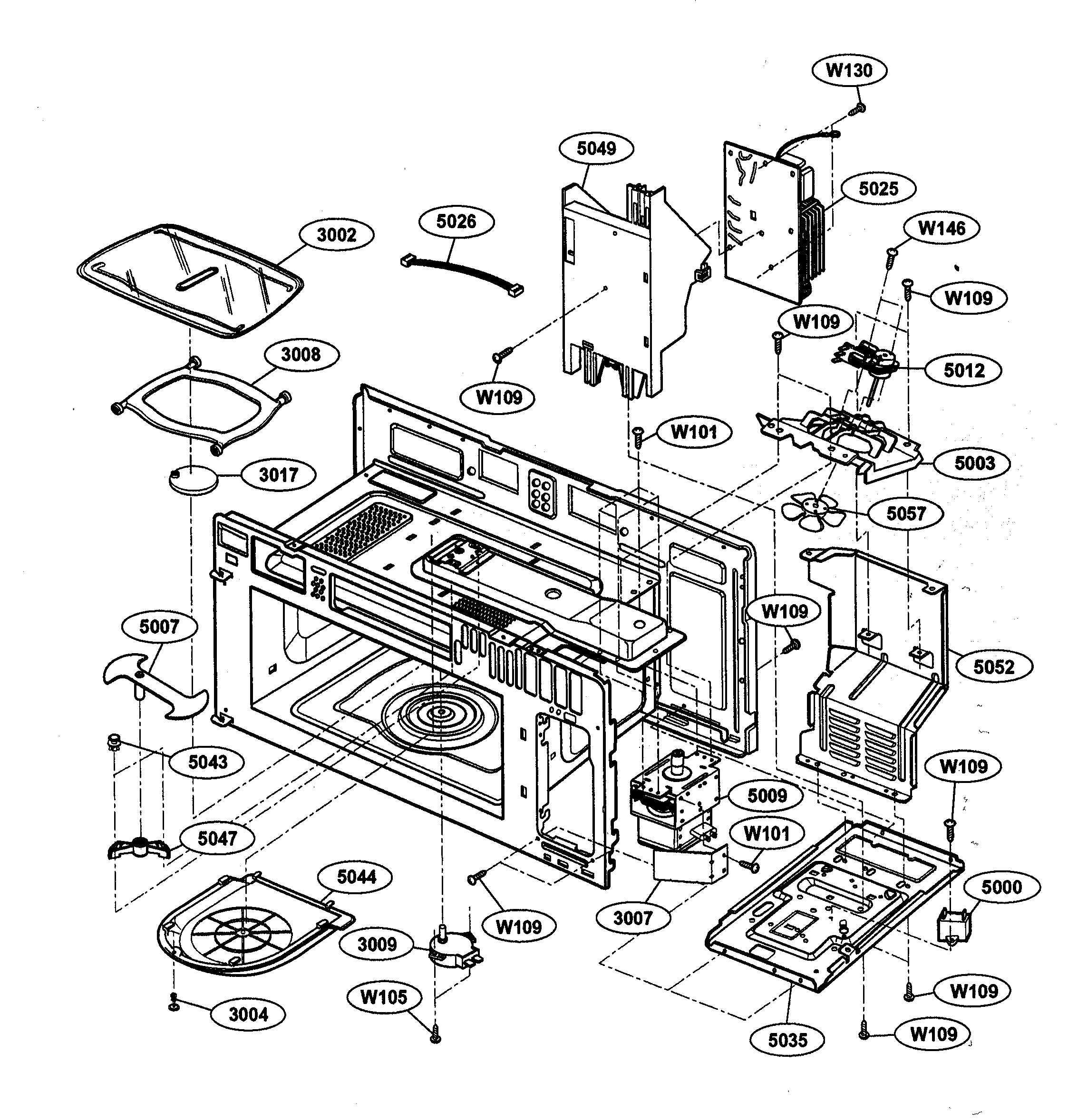

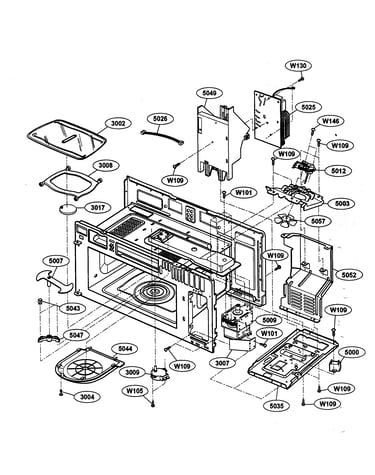

    Interior parts 1 Diagram

    Microwave waveguide cover rivet

    Part #4051W3A001A
    This item is not returnable
    $2.71

    In Stock

    Microwave Door Latch Spring

    #1007

    Door parts Diagram

    Microwave door latch spring

    Part #4970WRA001G
    This item is not returnable
    $4.18

    In Stock

    Microwave Turntable Motor

    #3009

    Interior parts 1 Diagram

    Microwave turntable motor

    Part #6549W1S013D
    $15.57

    In Stock

    Microwave Screw

    #W109

    Door parts Diagram

    Microwave screw

    Part #1TTL0402818
    This item is not returnable
    $3.98

    In Stock

    Microwave Mounting Bolt

    #W135

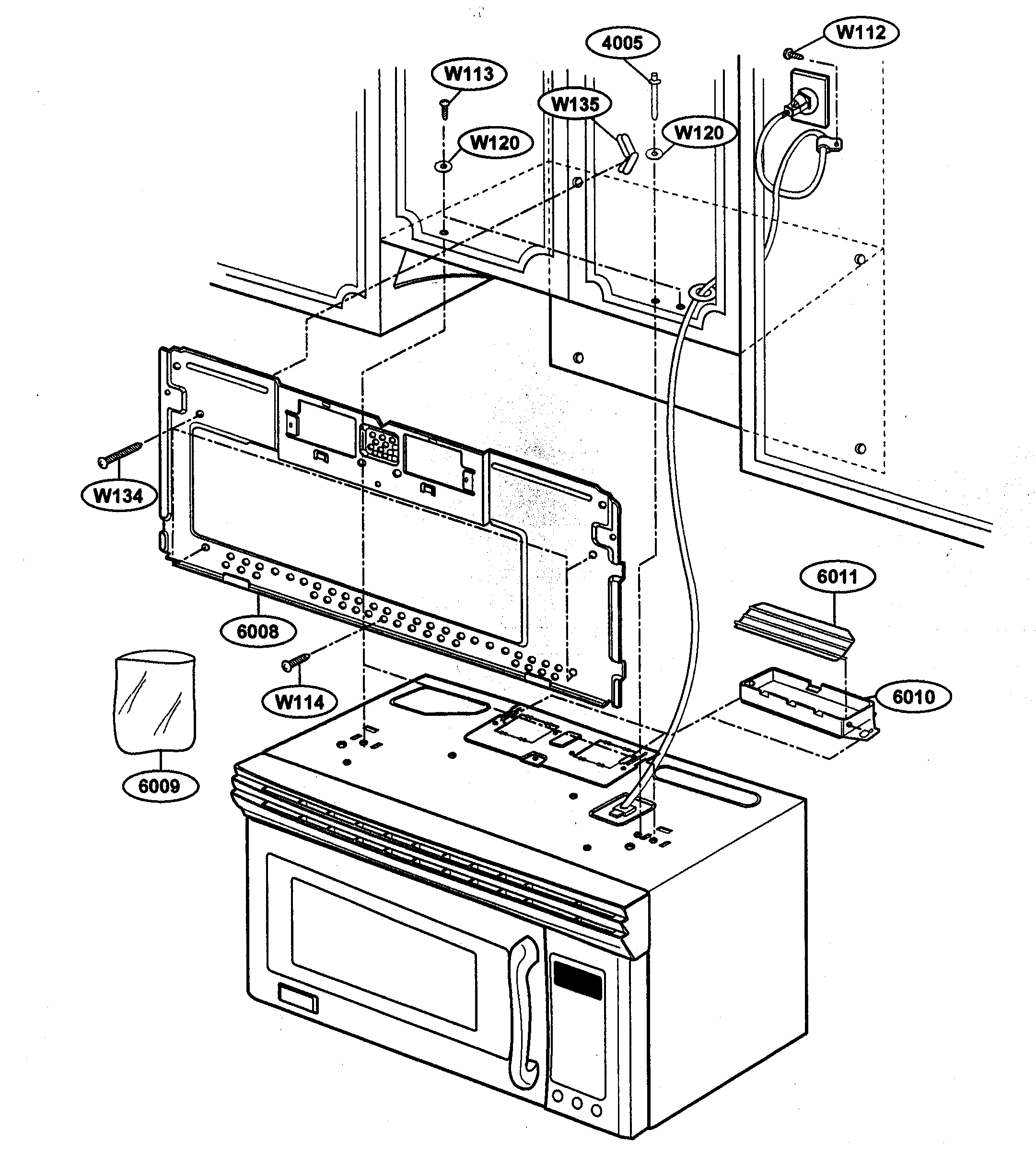

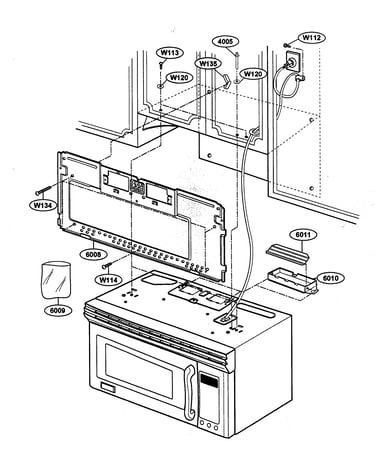

    Instalation parts Diagram

    Microwave mounting bolt

    Part #4B72059C
    This item is not returnable
    $2.54

    In Stock

    Microwave Screw, M4 x 12-mm

    #W142

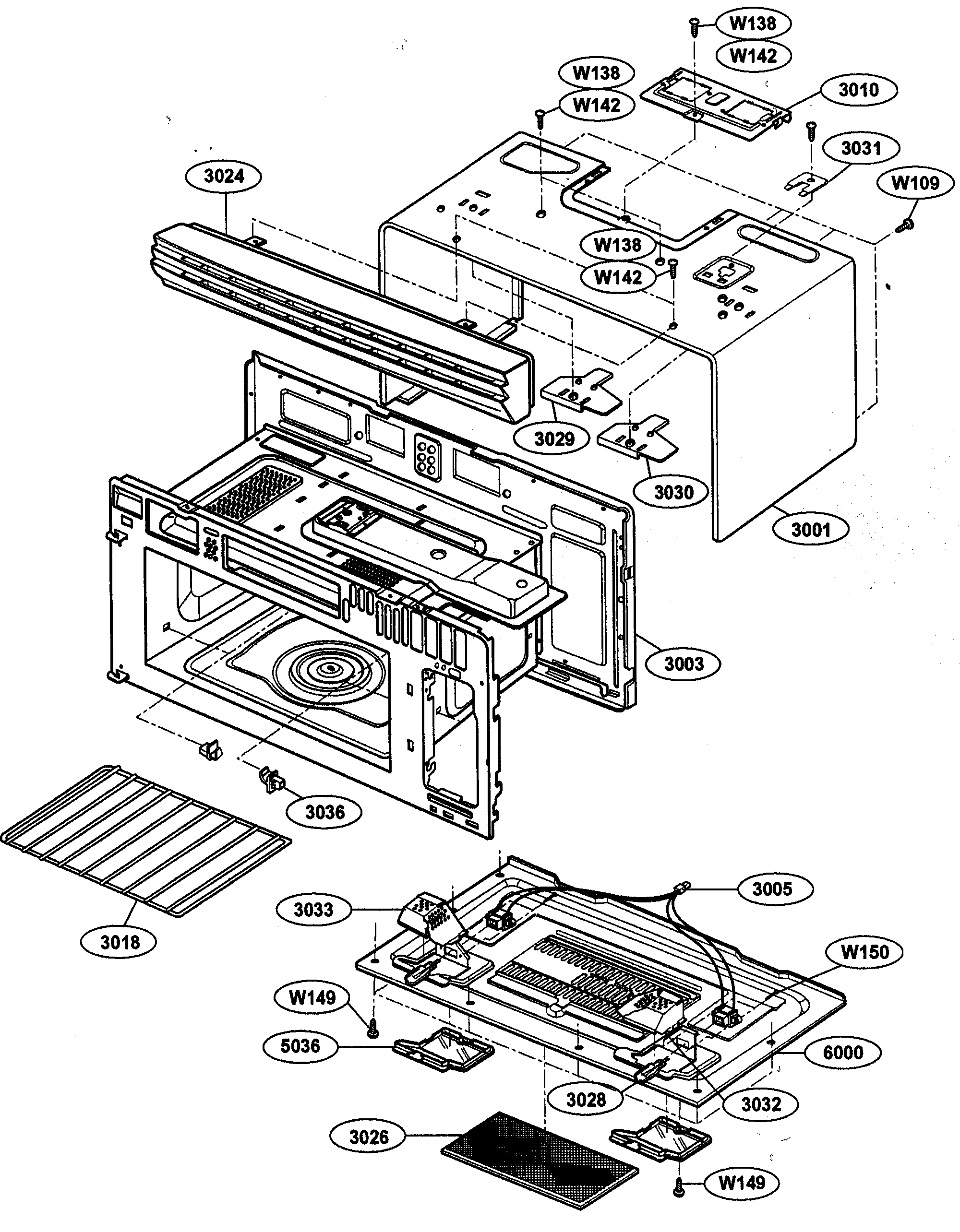

    Oven cavity Diagram

    Microwave screw, m4 x 12-mm

    Part #1TTL0402816
    This item is not returnable
    $3.97

    In Stock
