Kenmore 11161209712 refrigerator Parts

For Kenmore model 11161209712, the correct water filter depends on whether your refrigerator is equipped with the optional ice maker and water supply setup. We match the exact filter by confirming your model ID and the filter housing style shown in the 11161209712 owner's manual.

How to identify the right filter on your refrigerator

Use these quick checks before ordering:

• Look for a twist-in or push-in filter cartridge inside the fresh food compartment (often upper right or upper left).
• Check for a filter head and labeled “Filter” cover; some versions use an internal filter, others use an inline filter.
• If you have no filter housing inside, your setup may use an inline filter on the water line (or no filter at all).
• Confirm whether your unit has the optional ice maker; the manual lists ice maker as optional for this platform.
• Match what you see to the filter location and replacement steps in the manual.

Common filter setups (what they mean)

This model family is often configured one of these ways:

What you see	Most likely setup	What to do next
Filter cartridge inside refrigerator	Internal refrigerator water filter	Replace the cartridge that matches the housing style and label
No cartridge, but water line connected	Inline water filter on supply line	Use an inline filter sized for 1/4-inch water tubing
No water line, no ice maker	No filtration system in use	No filter needed until ice maker/water is added

Why it matters

Using the correct filter protects water flow to the ice maker, helps prevent leaks at the filter head, and avoids low ice production caused by restriction. It also helps you stay within typical household water pressure needs for ice maker operation.

Helpful related guidance

If you’re troubleshooting a filter or ice maker related issue (no ice, slow fill, odd indicator behavior), use our model-specific reference: Kenmore 111 model top freezer refrigerator error codes.

Last updated: February 2026

For Kenmore refrigerator model 11161209712, the cabinet size listed in the product documentation is approximately 29.9 in wide, 28.8 in deep, and 66.3 in high (overall dimensions can vary slightly depending on leveling legs, door swing, and clearance). For the exact spec callouts and clearance guidance, use the 11161209712 owner's manual.

Dimensions and key specs (from the manual)

Here are the core size and spec details we use for planning fit and installation:

• Width: 29.9 in
• Depth: 28.8 in
• Height: 66.3 in
• Capacity: 14.2 cu ft
• Weight: 176.7 lb

Measurement	What it helps with	What to double-check
Width	Cabinet opening and side clearance	Door swing clearance near walls/counters
Depth	Counter and walkway clearance	Handles and door thickness (if applicable)
Height	Overhead cabinet clearance	Leveling leg adjustment range

How to measure your space correctly

We recommend measuring the opening before ordering or moving the refrigerator:

• Measure width at the front and back of the opening (use the smaller number).
• Measure height to the lowest overhead cabinet or trim.
• Measure depth from the back wall to the front edge of counters.
• Plan extra room for airflow behind and above the unit.
• Confirm you can fully open the doors without hitting a wall or island.

Why it matters

A refrigerator that is even 1 inch too wide or too tall can prevent proper airflow, make doors bind, or keep the unit from sliding fully into place. Using the documented dimensions for model 11161209712 helps avoid fit issues and protects cooling performance.

Last updated: February 2026

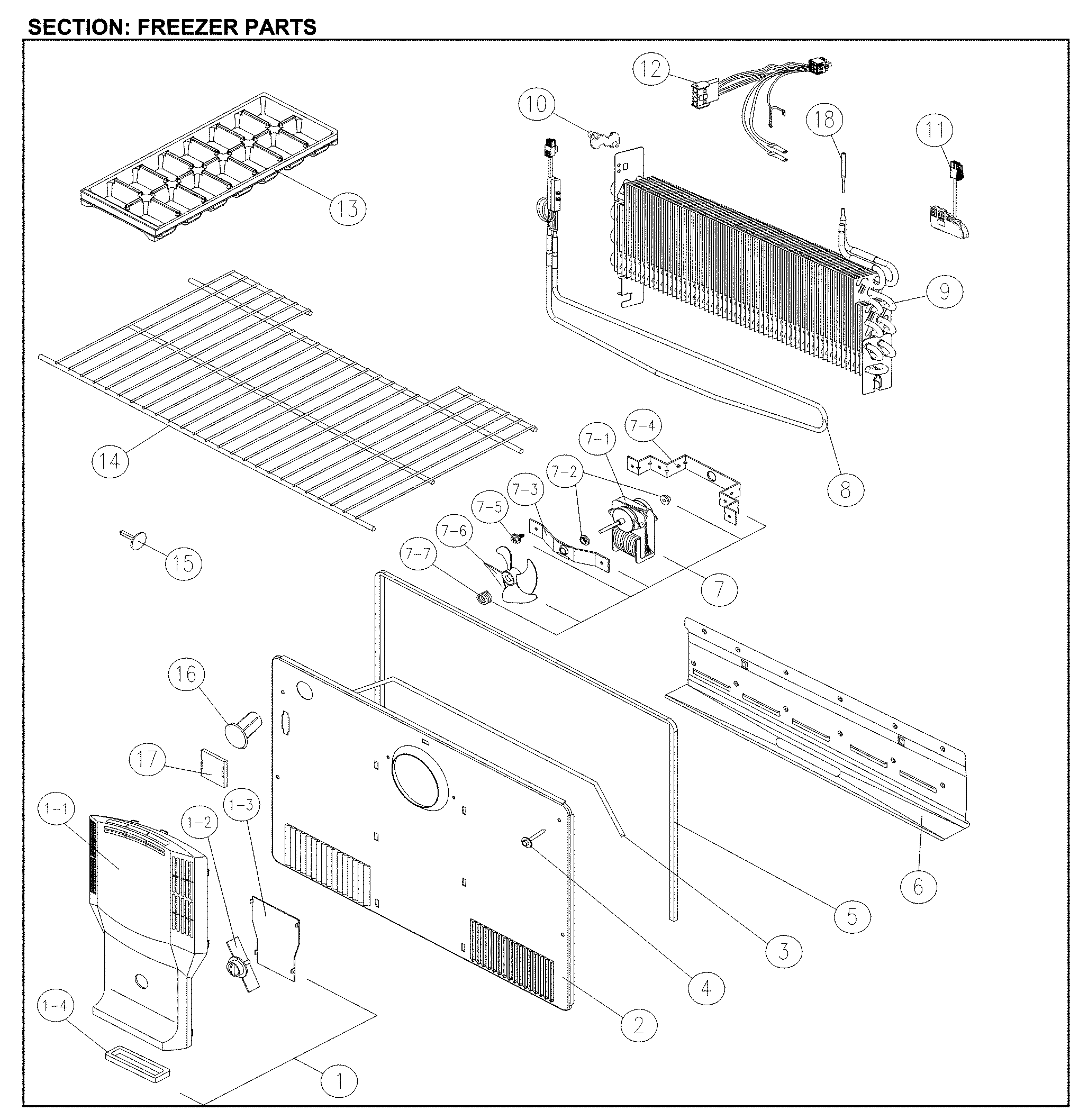

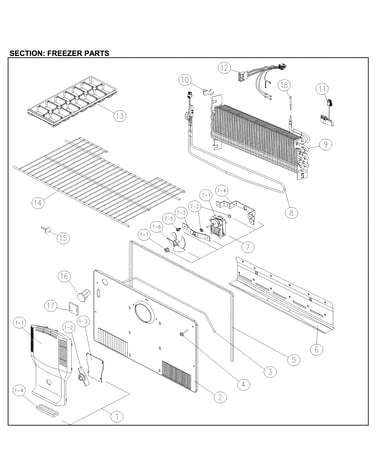

In a top-mount refrigerator like Kenmore model 11161209712, the top section is the freezer compartment. It is the colder compartment designed to keep foods frozen, and it may also house an optional ice maker depending on how your refrigerator is equipped.

What the freezer compartment does

The freezer is built to maintain temperatures below freezing so food stays safely frozen for longer storage.

Common freezer functions include:

• Freezing and long-term storage of meats, vegetables, and prepared foods
• Making and storing ice (if your model has an ice maker installed)
• Providing cold air that helps cool the fresh food section (through internal airflow)

Freezer vs. refrigerator section (quick comparison)

Section	Typical temperature setting	Main purpose
Freezer (top)	0°F	Freeze and store frozen foods
Refrigerator (bottom)	37°F	Keep fresh foods cold without freezing

Why the name matters when troubleshooting

Using the right term helps you match symptoms to the right system. For example, “freezer not cold” often points to airflow, defrost, or fan issues that can also affect the refrigerator section.

If you see a display message or suspect a control issue, use the model-specific code list in Kenmore 111 model top freezer refrigerator error codes. For operating details and compartment features specific to 11161209712, check the owner's manual.

Helpful tips for best freezer performance

• Keep vents inside the freezer clear so air can circulate
• Set the freezer near 0°F and the refrigerator near 37°F
• Avoid overpacking; tight loads restrict airflow
• Keep the door seals clean and closing tightly

Last updated: February 2026

Yes. We still support Kenmore refrigerator parts, and the best way to match the correct replacement is to shop by your exact model number (for this unit: Kenmore 11161209712). Use the parts list for your model and confirm fit details in the 11161209712 owner's manual.

How to make sure you get the right part

• Match the full model number exactly: 11161209712.
• Compare the part description to what you see on your refrigerator (shelf, bin, gasket, ice maker, etc.).
• Check whether your refrigerator has optional features (for example, an optional ice maker) before ordering.
• Use the manual diagrams and specifications to confirm what your unit uses.
• If you are replacing a water filter, confirm the filter style and location first.

Common Kenmore refrigerator parts people replace

Even when symptoms look the same, the correct part can vary by model and configuration. These are the most common categories:

Symptom or need	Common part category	What it affects
Warm fridge or freezer	Evaporator fan, defrost components	Airflow and defrost performance
Water leaking or puddles	Drain components, water line fittings	Water routing and drainage
Door not sealing	Door gasket, hinges	Temperature stability and frost
Bad taste or slow water flow	Refrigerator water filter	Water quality and flow

Why it matters

Ordering by model number prevents wrong-part returns and helps you restore proper cooling, door sealing, and water system performance. It also helps you avoid unnecessary disassembly on a sealed-system refrigerator.

Helpful DIY resources

• For water filter help: how to replace the water filter in a Kenmore refrigerator
• For troubleshooting display codes on this model family: Kenmore 111 model top freezer refrigerator error codes

Last updated: February 2026

The most common problems we see with Kenmore refrigerators like model 11161209712 are cooling issues, ice maker or water supply problems (if equipped), water leaks, unusual noises, and frost buildup. Many of these come down to airflow, door sealing, defrost performance, or water pressure.

Most common issues and what usually causes them

• Not cooling or warm temperatures: dirty condenser area, blocked vents, evaporator fan issue, or a defrost problem
• Frost buildup in freezer: door not sealing, frequent door openings, or defrost system trouble
• Water leaking or puddles: clogged/iced defrost drain, misaligned drain pan, or water line connection leak (if equipped)
• Noisy operation: evaporator fan noise, condenser fan noise, or normal refrigerant flow sounds
• Ice maker not working (optional): low water pressure, frozen fill tube, or inlet valve issue
• Water dispenser issues (if equipped): filter restriction, air in the line, or inlet valve problem

Quick checks you can do first

1. Confirm settings: Refrigerator at 37°F and freezer at 0°F (typical targets).
2. Check airflow: Make sure packages are not blocking vents in either compartment.
3. Inspect door gaskets: Look for gaps, tears, or areas that do not grip the cabinet.
4. Listen for fans: You should typically hear a fan running at times when the compressor is on.
5. Look for drain issues: If you see water under crisper drawers, suspect a defrost drain clog.

Model-specific specs that help with diagnosis

From the documentation for Kenmore 11161209712, these details are useful when troubleshooting:

Item	What to know	Why it matters
Refrigerant	R600a (flammable)	Avoid puncturing tubing; service sealed-system issues only with trained help.
Dimensions (approx.)	29.9 in W, 28.8 in D, 66.3 in H	Helps confirm clearance for airflow and door swing.
Weight (approx.)	176.7 lb	Plan safe moving and leveling.
Water pressure (if equipped)	207 to 827 kPa	Low pressure commonly causes ice maker fill problems.

Why it matters

Cooling, frost, and leak complaints often share the same root causes: restricted airflow, poor door sealing, or defrost drainage problems. Fixing the underlying cause protects food temperatures and reduces compressor run time.

Helpful model resources

• Use the owner's manual for safety warnings, specifications, and operating guidance.
• If you’re seeing a display code, use Kenmore 111 model top freezer refrigerator error codes to match the code to the most likely failure area.

Last updated: February 2026
