On the Bosch SHE3ARL5UC dishwasher, we recommend not running another cycle with an E22 error until you clear the cause. E22 commonly points to a drain restriction (filter area, drain path, or pump area), and continuing to run it can leave dirty water in the tub and reduce cleaning performance.

What to do first (safe, quick checks)

• Cancel the cycle and let the unit drain if it will.
• Turn off power at the breaker before reaching into the sump area.
• Remove and clean the filter system and any debris in the sump.
• Check the drain hose routing for kinks or a crushed section.
• If the dishwasher still will not drain, inspect the drain pump area for obstructions.

For model-specific steps and panel removal guidance, follow the SHE3ARL5UC manual.

When it is OK to run it again

Run a short cycle only after the dishwasher:

• Drains fully at the end of Cancel/Drain
• Has a clean filter and clear sump
• Has a drain hose that is not kinked and has a proper high loop or air gap (per your setup)

Quick symptom-to-likely-cause table

What you notice	Most common cause	What to check
Standing water in bottom	Clogged filter/sump	Filter, sump debris
Hums but no draining	Pump jam or blockage	Pump inlet area
Drains slowly	Partial restriction	Hose routing, disposer/air gap
Error returns quickly	Ongoing drain fault	Pump, hose, control logic

Parts that commonly relate to E22-style drain problems

If cleaning and hose checks do not solve it, these model-compatible parts are often involved:

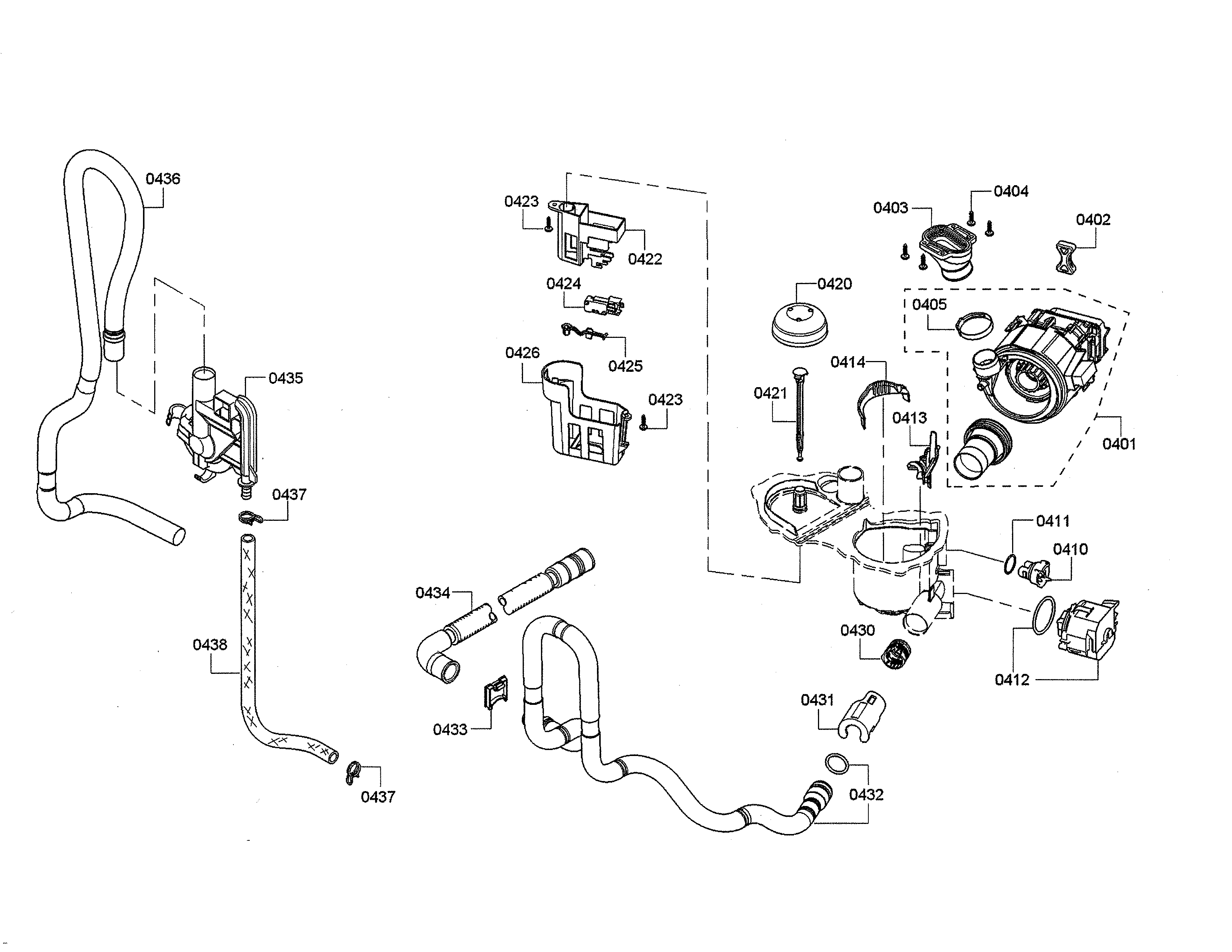

• Dishwasher drain pump 00611332 (moves water out during drain)
• Dishwasher drain hose 00668108 (carries drain water to the plumbing)
• Dishwasher drain pump lid 00611322 (seals the pump area; can be involved if debris gets past)

Why it matters

A drain restriction can keep dirty water circulating, trigger repeat error codes, and strain the drain system. Clearing the blockage early usually restores normal wash and drain performance without additional damage.

Last updated: January 2026

On the Bosch SHE3ARL5UC dishwasher, the most common problems we see are drainage issues (standing water, slow drain) and drying complaints (plastic items staying wet). Drain problems are usually caused by a clogged filter area, a kinked/blocked drain hose, or a failing drain pump; drying is often normal for Bosch condensation drying.

Most common symptoms and what they usually mean

• Water left in the bottom after a cycle: filter or drain path restriction, drain pump issue
• Dishwasher stops mid-cycle: door not fully latched, control sensing a drain/fill problem
• Dishes not drying well: condensation drying behavior, rinse aid low, door opened too soon
• Random filling or overfilling: water inlet valve not closing fully
• Poor cleaning: spray arm blockage, filter buildup, low water temperature

Quick checks we recommend first (no parts needed)

1. Turn off power at the breaker.
2. Remove and clean the filter area in the tub bottom (food debris and glass are common).
3. Check the drain hose routing for kinks and confirm the high loop/air gap setup matches the SHE3ARL5UC installation guide.
4. Run the disposer (if connected) and make sure the sink drain is clear.
5. If your unit shows an error, match it to the Bosch dishwasher error codes list to narrow the cause.

When a part is the likely fix

Problem you see	Most likely part area	Example part for SHE3ARL5UC
Won’t drain or drains weakly	Drain pump or pump cover	Dishwasher drain pump 00611332
Fills when it shouldn’t or won’t stop filling	Water inlet valve	Dishwasher water inlet valve 00622058
Slow drain, leaks, or poor drain routing	Drain hose	Dishwasher drain hose (inspect for kinks/clogs)

Why it matters

Drainage problems can trigger cycle interruptions and odors, and they can also make cleaning performance look “bad” even when the wash system is fine. Drying complaints are common on Bosch units because condensation drying works differently than exposed heating-element drying.

Last updated: January 2026

The model number for your Bosch dishwasher is printed on the appliance’s rating label; on most Bosch dishwashers like the SHE3ARL5UC, you will find it on the door edge or on the tub frame just inside the door. Use that exact model number when ordering parts or checking diagrams in the owner's manual.

Where to look on the dishwasher

Check these common Bosch label locations (open the door and use a flashlight):

• Top or side edge of the dishwasher door
• Left or right side of the tub opening (the frame around the tub)
• Along the inner door panel near the latch area
• On the side wall just inside the tub opening

What to write down (and why)

Record the full identification information exactly as shown on the label.

• Model number (example: SHE3ARL5UC)
• FD number (factory date code, common on Bosch labels)
• Serial number
• Any “E-Nr” or similar identifier printed with the model

Why it matters

Bosch often uses multiple revisions for the same model family; the full model and ID details ensure you get the correct fit for parts like the dishwasher door latch 00611312 or the dishwasher water inlet valve 00622058.

Quick checklist before ordering parts

• Match every character (letters, numbers, and any suffix like “/08”)
• Use the label info, not the number on the control panel or user interface
• If the label is hard to read, take a clear photo and zoom in

Label info at a glance

Label item	What it helps with	When you need it
Model number	Correct diagrams and part fit	Always
Serial number	Production run identification	When parts vary by run
FD number	Date code for Bosch revisions	When multiple versions exist

Last updated: March 2026
