Universal/Multiflex (Frigidaire)
Laundry Center

Model #MLXG62RED0 Universal/Multiflex (Frigidaire) laundry center - 5995283743

Here are the repair parts and diagrams for your Universal/Multiflex (Frigidaire) MLXG62RED0 laundry center - 5995283743.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 238 parts

Washer Tub Seal Assembly

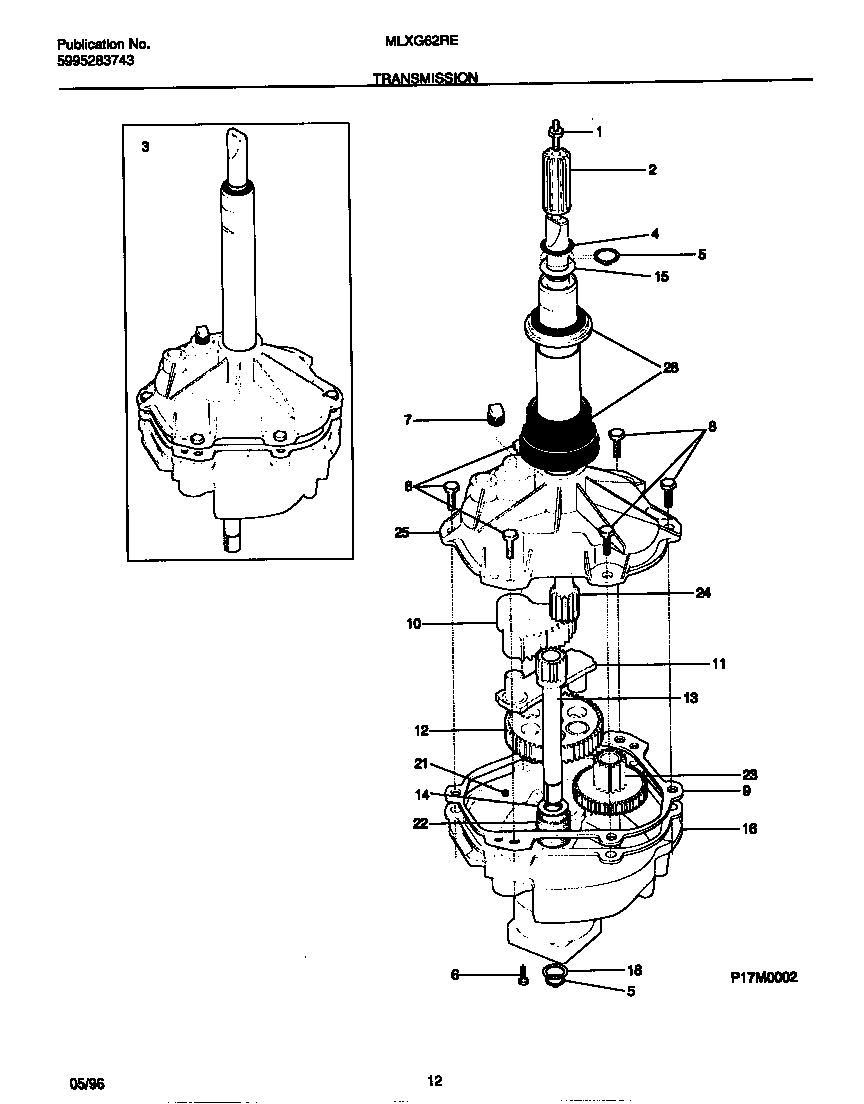

Transmission Diagram

Washer tub seal assembly

Part #5303279394


In Stock

Dryer Blower Wheel

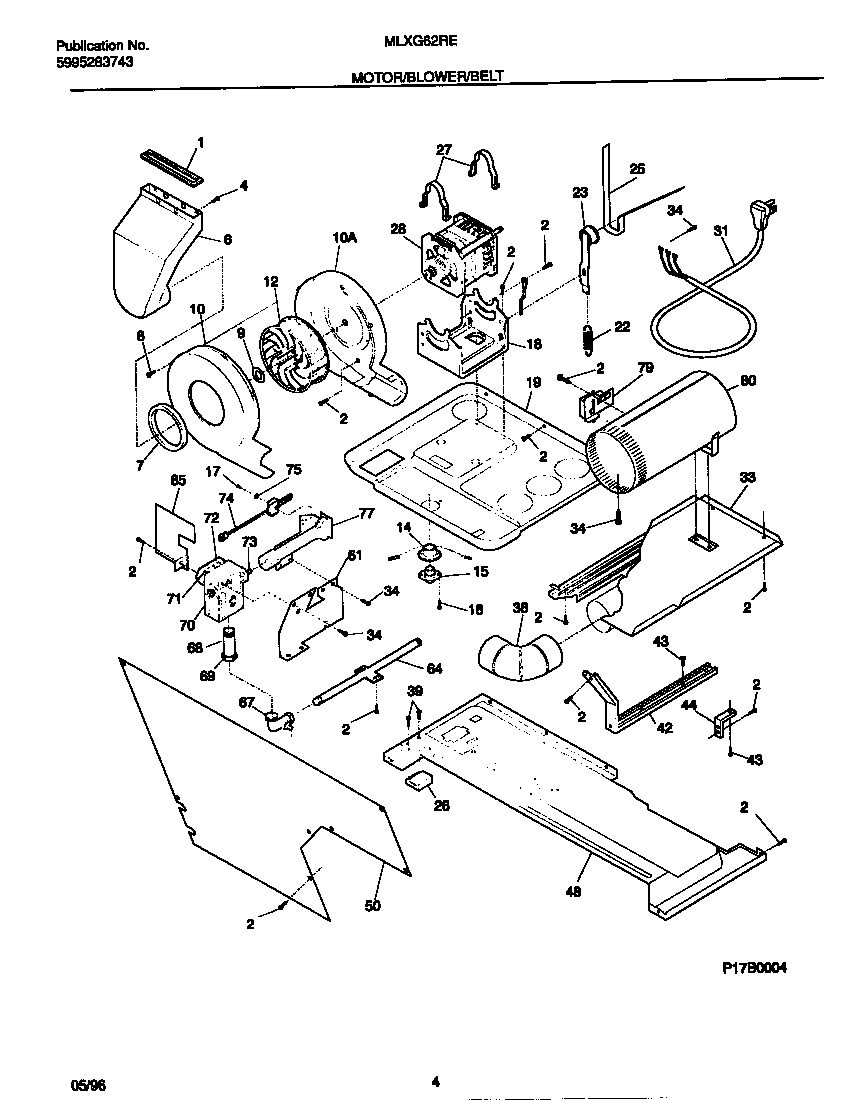

Motor/blower/belt Diagram

Dryer blower wheel

Part #131476300


In Stock

Dryer Grounding Ball

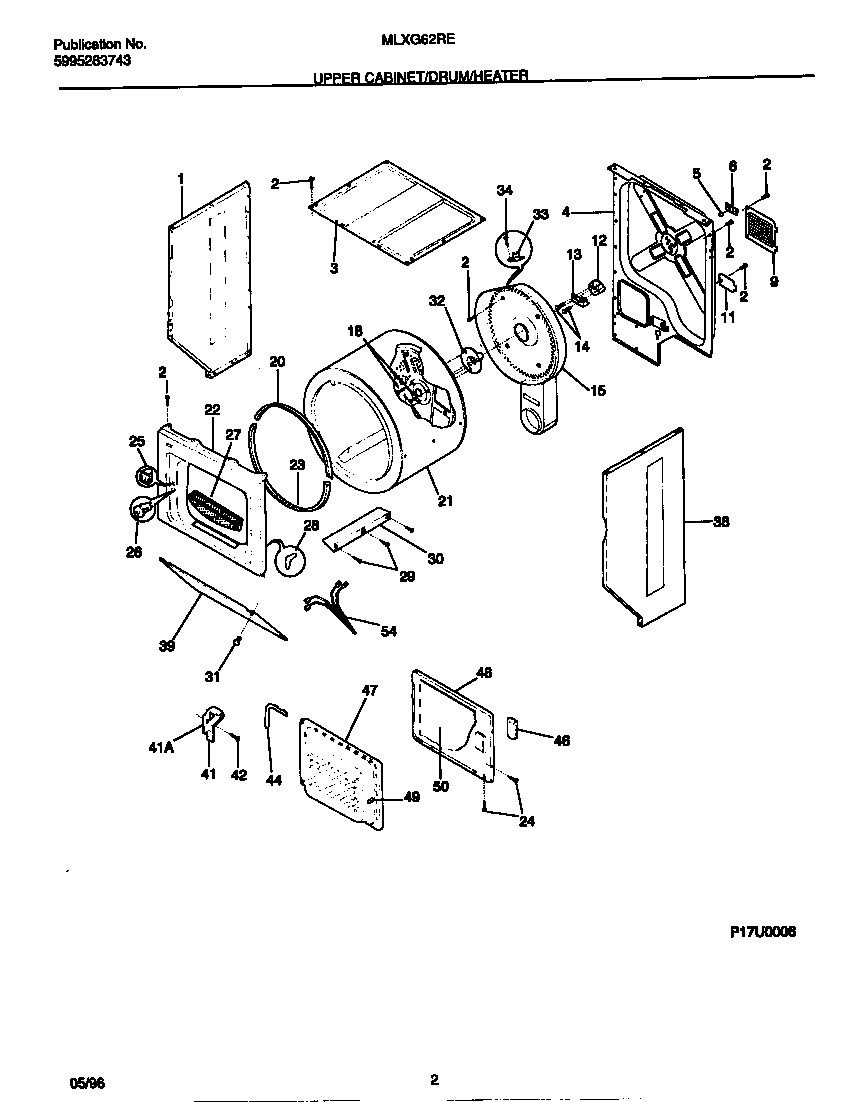

Upper cabinet/drum/heater Diagram

Dryer grounding ball

Part #5303281019


In Stock

Laundry Appliance Screw, #8-18 x 31/100-in

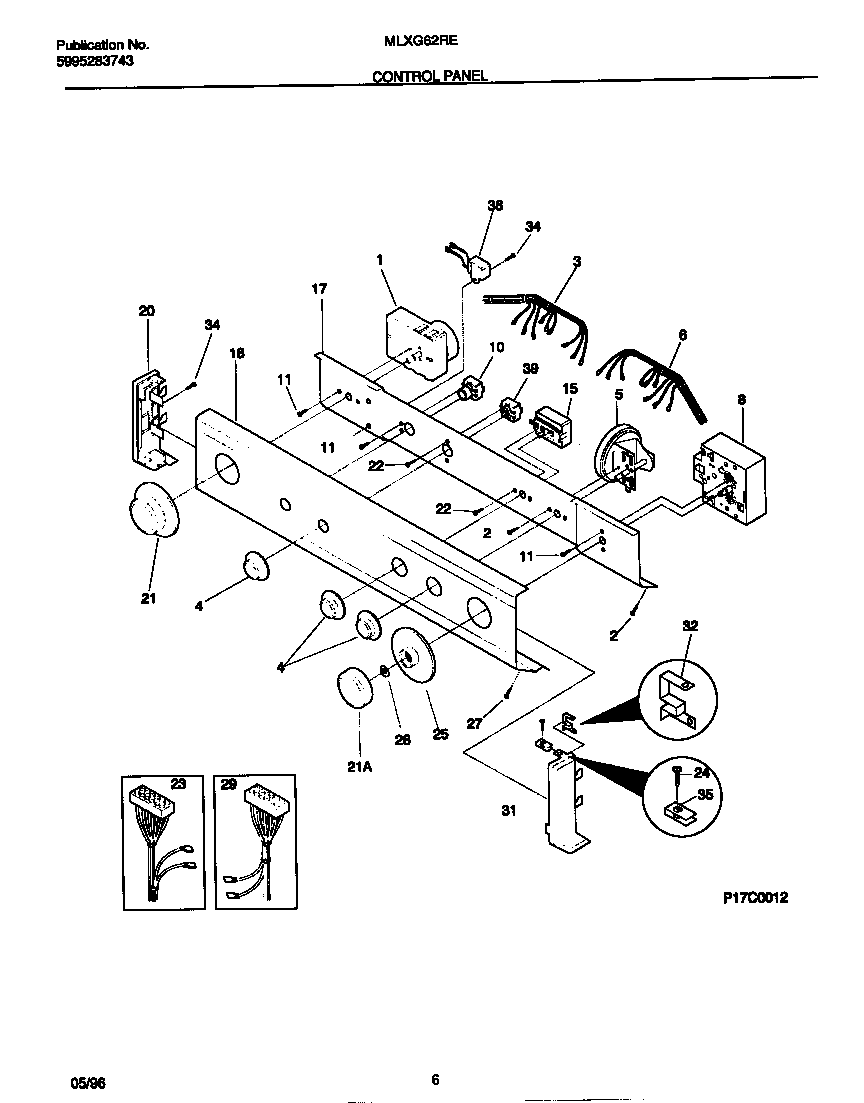

Control panel Diagram


In Stock

Dryer Rear Bearing Clip


Upper cabinet/drum/heater Diagram

Dryer rear bearing clip

Part #5303281020


In Stock

Dryer Door Seal


Upper cabinet/drum/heater Diagram

Dryer door seal

Part #131129900


In Stock

Washer Agitator

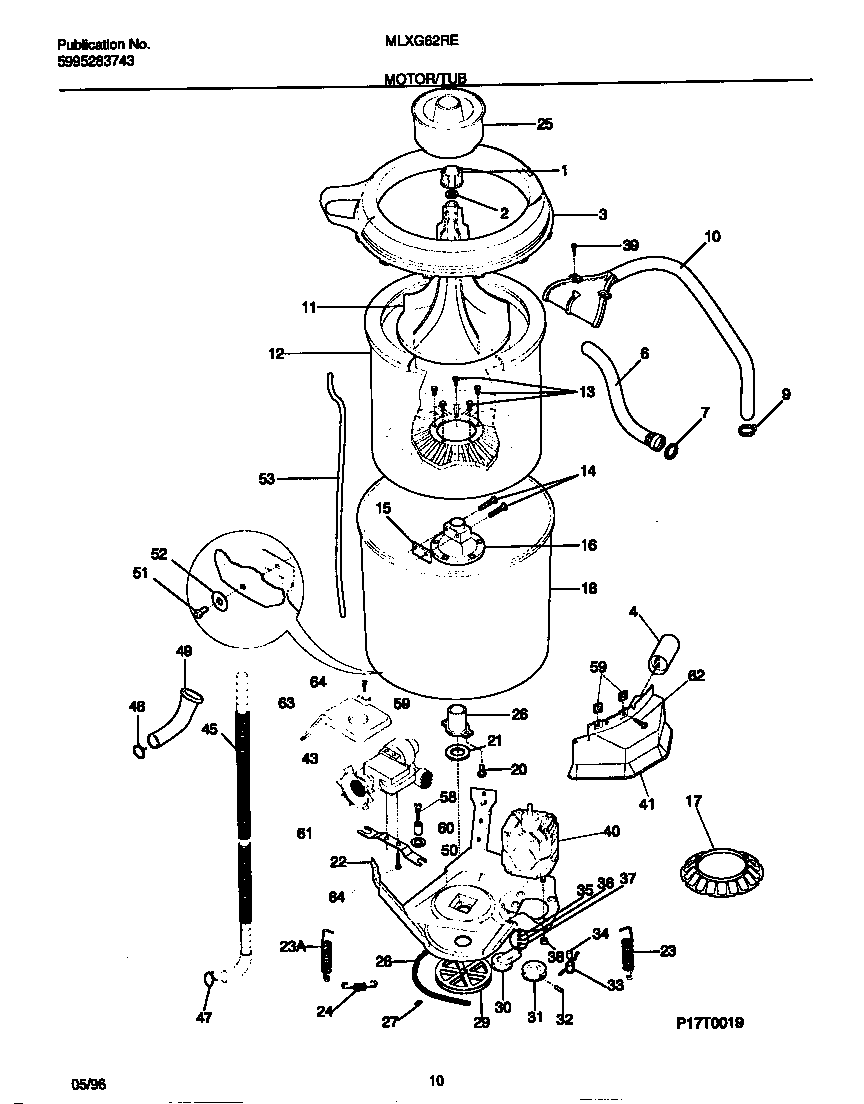

Motor/tub Diagram

Washer agitator

Part #3204401


In Stock

Washer Start Capacitor


Motor/tub Diagram

Washer start capacitor

Part #131212301
This item is not returnable


In Stock

Dryer Gas Valve Assembly


Motor/blower/belt Diagram

Dryer gas valve assembly

Part #5303207409


In Stock

Washer Tub-to-Pump Hose


Motor/tub Diagram

Washer tub-to-pump hose

Part #131434500


In Stock

Symptoms common to all laundry centers

Choose a symptom to see related laundry center repairs.

Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad heating element
Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply problem, blown fuse
Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control board
Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components
Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown fuse, control failure
Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring
Main causes: clogged drain system, blocked drain hose, bad drain pump
Main causes: broken dryer drive belt, weak drive motor, binding drum seals
Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failure, bad water valve
