On the Whirlpool WDF760SADM0 dishwasher, replacing the bottom door seal typically means removing the inner door panel, swapping the seal at the bottom edge of the door, then reassembling and checking for leaks. We follow the access and reassembly steps shown in the WDF760SADM0 installation guide.

Before you start

• Turn off power to the dishwasher at the breaker.
• Shut off the water supply valve under the sink.
• Protect the floor and door finish; do not use the door panel as a work surface unless it is covered.
• Keep screws organized by location (inner door, console area, lower access panel).
• Have a towel ready to catch any drips when you test.

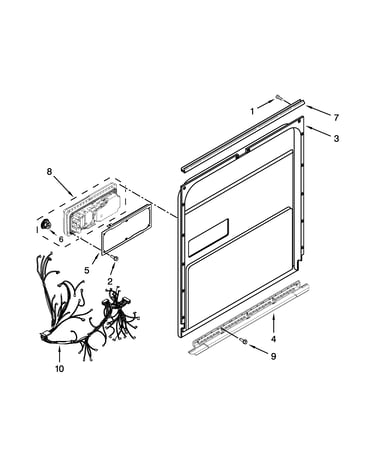

Step-by-step: replace the bottom door seal

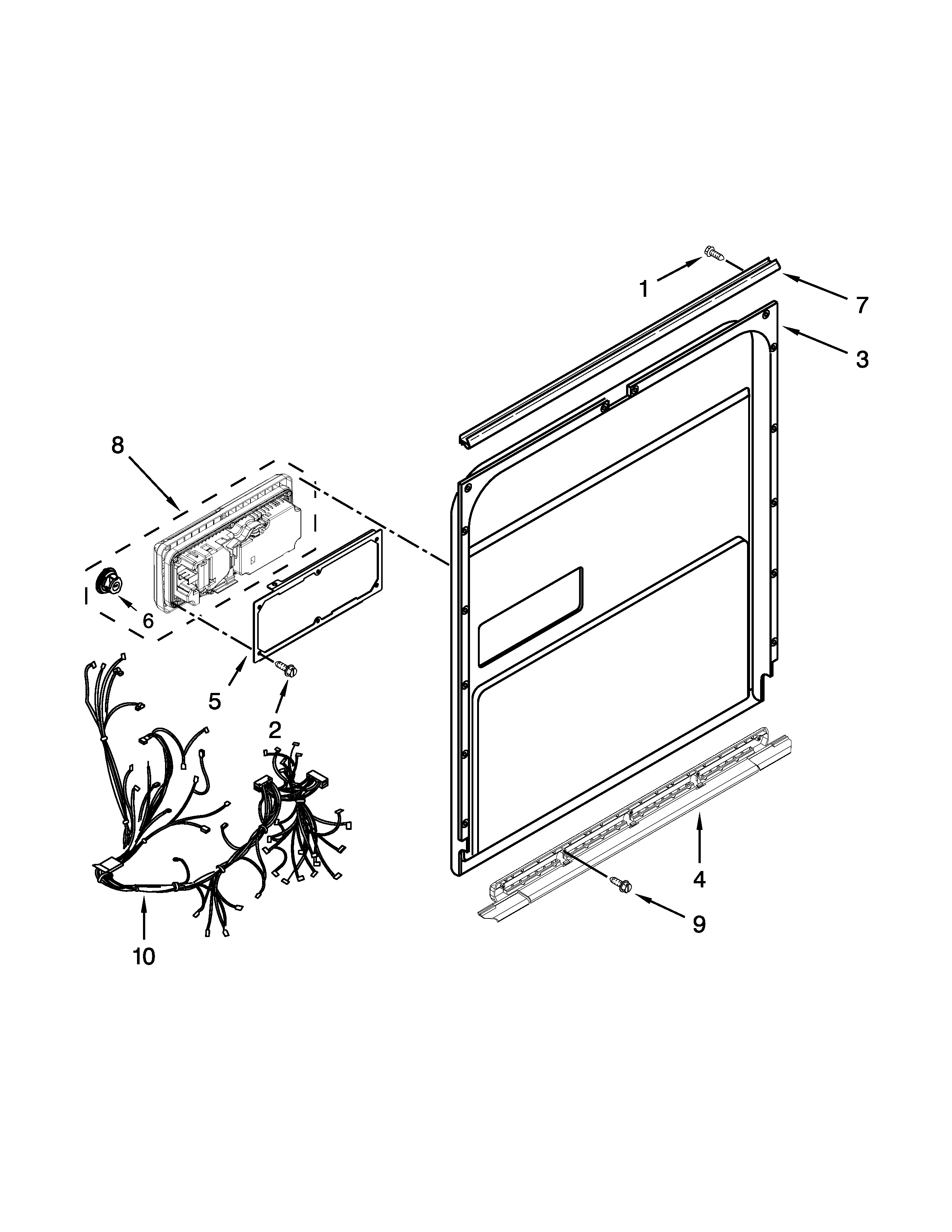

1. Open the door and remove the screws that secure the inner door panel (support the panel as the last screws come out).
2. Separate the inner panel from the outer door panel enough to access the bottom edge of the door.
3. Remove the old bottom door seal by pulling it straight off its mounting channel or retainers.
4. Clean the mounting surface: remove detergent residue, grease, and mineral buildup so the new seal seats flat.
5. Install the new seal starting at one end and pressing it evenly into place across the full width.
6. Reinstall the inner door panel and tighten screws evenly (snug, not over-tight).
7. Run a short cycle and inspect the bottom corners of the door for drips.

Quick checks if it still leaks at the bottom

• Confirm the dishwasher is centered and level so the door closes squarely.
• Make sure the door closes firmly and latches consistently.
• Check door tension; if the door falls open or closes by itself, adjust spring tension so both sides match.

Symptom	Most common cause	What to do next
Drip from one bottom corner	Seal not fully seated or door not level	Reseat seal; level and re-center dishwasher
Water runs down inner door	Oversudsing or loading blocking spray	Use correct detergent; adjust loading
Leak only when door is opened mid-cycle	Normal water on inner door	Pause, wait, then open slowly

Why it matters

A properly seated bottom door seal prevents leaks that can damage flooring and helps the WDF760SADM0 maintain correct wash pressure for better cleaning.

Last updated: February 2026

For Whirlpool model WDF760SADM0, we troubleshoot most common dishwasher problems by checking power, door latch, water supply, and draining first; then we move to filters, spray coverage, and cycle options. Use the WDF760SADM0 owner’s manual troubleshooting section to match symptoms to fixes.

Quick checks (fastest fixes first)

• Reset the circuit breaker or replace a blown fuse.
• Close the door firmly; confirm it latches.
• Select a cycle and press Start; some cycles pause briefly during wash.
• Turn on the water supply valve under the sink.
• If recently installed, run the shortest cycle; after ~2 minutes, unlatch, wait 5 seconds, open, and confirm water is in the tub.

Symptom guide

Symptom	Most likely area	What to do next
No lights, no response	Power supply	Verify grounded outlet and wiring per the WDF760SADM0 installation guide
Lights on, won’t run	Door not latched	Inspect latch; replace dishwasher door latch WPW10653840 if worn
Stops mid-cycle	Normal pause or fault	Wait through pauses; then check for an error code using Whirlpool dishwasher error codes

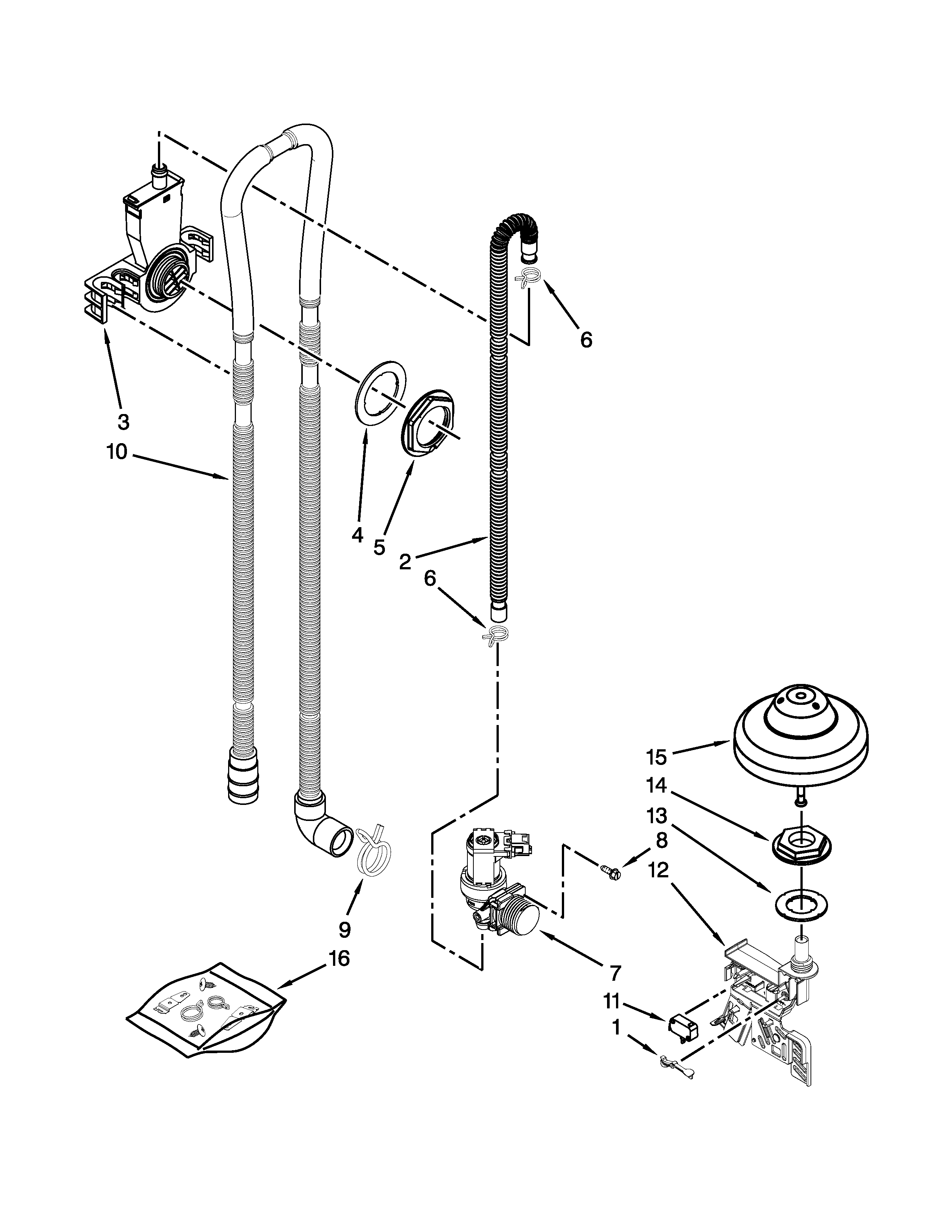

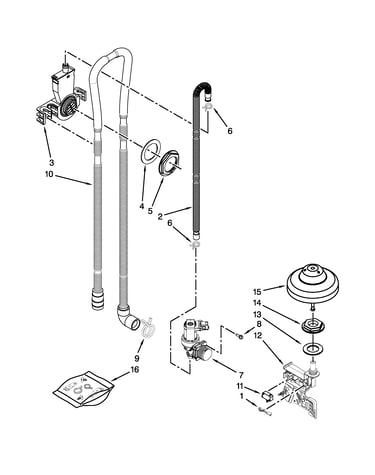

If it won’t drain

• Remove and clean the filter; reinstall fully seated and locked.
• Clean the drain air gap (if installed).
• Check drain hose routing for kinks and a proper high loop.

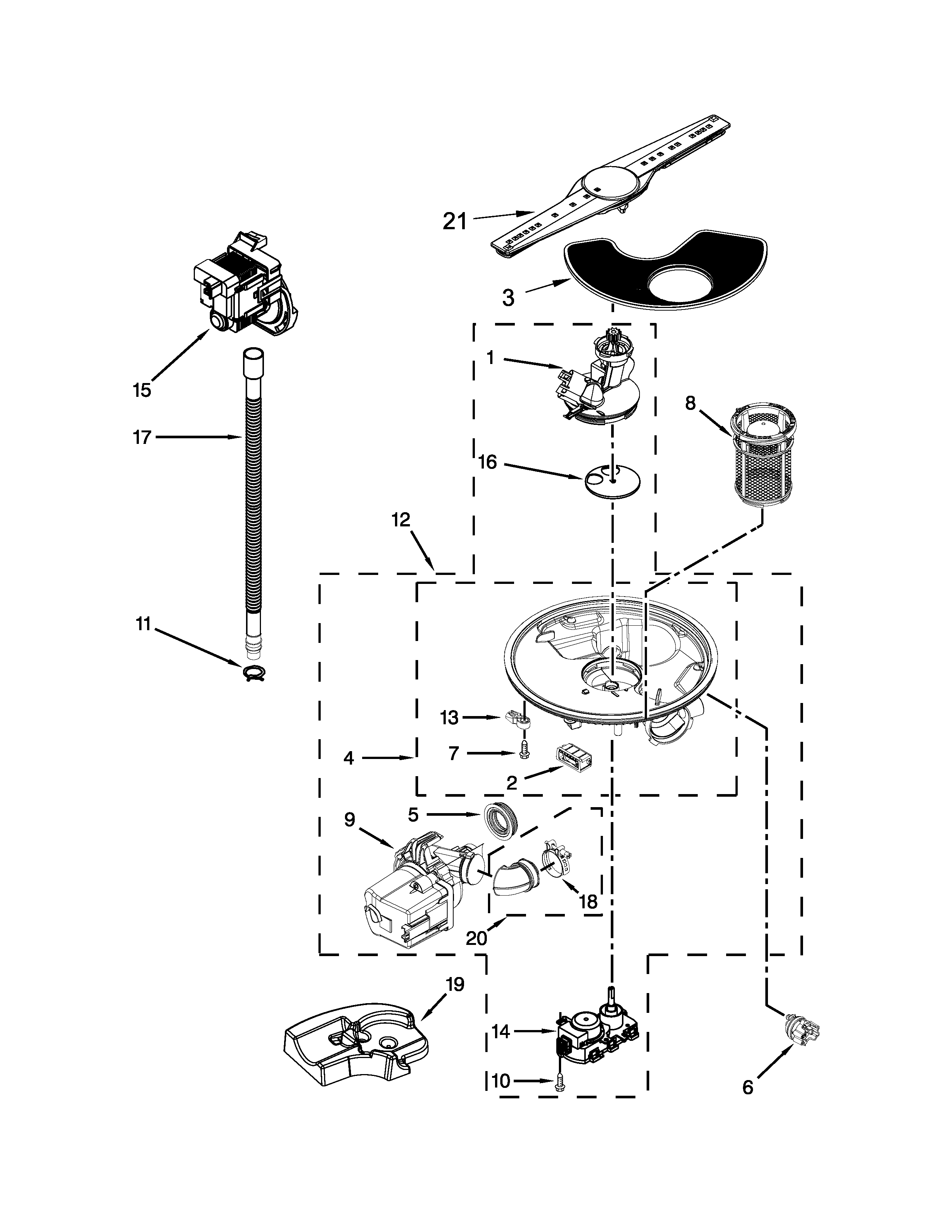

• If water remains, inspect the pump and hose connections; replace dishwasher drain pump WPW10348269 or a damaged drain hose such as dishwasher drain hose 8269144A when needed.

Why it matters

Starting with power, latch, fill, and drain checks prevents unnecessary part replacement and quickly separates a setup issue from a true component failure.

Last updated: February 2026

On a Whirlpool WDF760SADM0 dishwasher, an F4 code points to a drain problem (the dishwasher is not pumping water out as expected). In most cases, clearing a blockage in the drain path or fixing a drain component restores normal operation; confirm the exact code meaning in the WDF760SADM0 user manual.

What to check first (fast, no parts)

• Press Cancel/Drain and listen for the drain pump; you should hear water moving to the sink drain.
• Check the sink/disposer inlet where the dishwasher drain hose connects; clear any clog.
• If you have a drain air gap, remove the cap and clean it (a common cause of poor draining).
• Clean and reseat the filters; a filter that is not locked in place can restrict flow.
• Inspect the drain hose for kinks, crushing, or a low loop that traps water.

Likely causes and the parts that fix them

If the drain path is clear but the unit still shows F4, these are the most common repair directions:

Symptom	Most likely cause	What typically fixes it
Hums but won’t drain	Jammed or failing drain pump	Replace the dishwasher drain pump WPW10348269
Drains slowly or backs up	Restricted or damaged drain hose	Replace the dishwasher drain hose 8269144A or correct routing
Intermittent drain errors	Control senses water still present	Clean filters, check air gap, verify hose routing

Why it matters

A drain fault leaves dirty water in the tub, can stop the cycle mid-wash, and can cause repeated beeping or pauses. Fixing the drain path first prevents unnecessary part replacement and gets your Whirlpool dishwasher washing and drying normally again.

Safety note before servicing

Turn off power at the breaker before accessing wiring or pumps, and do not operate the dishwasher until it is properly installed and secured; review the WDF760SADM0 installation guide for safety and check steps.

Last updated: February 2026

A Whirlpool dishwasher like model WDF760SADM0 typically lasts 10 to 12 years. Consistent cleaning, correct loading, and fixing small problems early (draining, heating, latching) are what most often determine whether it reaches the high end of that range.

What affects lifespan the most

• Maintenance and cleaning: Keeping the filter area and sump clear reduces strain on the motor and pump.
• Drying setup: This model is designed to use rinse aid for better drying and to help control hard-water buildup.
• Cycle length and usage: Longer, energy-saving cycles are normal; many loads average 2 to 3 hours, and some options can push cycles past 3.5 hours.
• Water quality: Hard water speeds up mineral deposits on internal parts.
• Door and power issues: A door that does not latch tightly or intermittent power can cause repeated stops and restarts.

Simple habits that help WDF760SADM0 reach 10 to 12 years

• Scrape (do not pre-rinse heavily) and avoid loading items that block spray arms
• Use the right detergent amount for your water hardness
• Keep rinse aid filled for consistent drying performance
• Run a dishwasher cleaner periodically to reduce odor and buildup
• Address draining or heating symptoms quickly before they stress the motor

Common wear items vs. “end of life” symptoms

What you notice	Often a maintenance issue	Often a part-related issue
Water left in tub	Filter/sump debris, kinked hose	Drain system problem (pump or hose)
Poor drying	Low rinse aid, plastics holding water	Heating circuit issue
Stops mid-cycle	Door not fully latched, power interruption	Latch or control problem

If you are seeing repeated draining problems, the drain system is a common place to start; for this model, the dishwasher drain pump WPW10348269 is one of the key components.

Why it matters

Knowing the typical 10 to 12 year lifespan helps you decide whether to repair or replace. If your WDF760SADM0 is under about 8 years old, a targeted repair (pump, latch, hose) often restores reliable performance; past 10 years, compare repair cost to replacement value.

For model-specific operating and care guidance (including normal pauses and cycle behavior), use the WDF760SADM0 user manual.

Last updated: February 2026

On the Whirlpool WDF760SADM0 dishwasher, a leak condition is commonly reported as an F2-type fault (often shown as F2/E2), which points to water detected where it should not be (typically the base/drip area). After clearing the water, you still need to find and fix the source of the leak.

What to do first (safe, fast checks)

• Turn off power at the breaker; shut off the water supply.
• Open the door and check for standing water, then run a cancel/drain if the unit will respond.
• Pull the toe-kick panel and look for water in the base area.
• Inspect the door seal area for debris, warped gasket sections, or heavy soap residue.
• Check the drain path for restrictions (air gap, disposer inlet plug, hose kinks).

For control behavior, cycle cancellation, and troubleshooting steps specific to this model, use the WDF760SADM0 user manual.

Most common leak sources on this model type

Leaks usually come from one of these areas:

• Drain system: loose clamp, split hose, or a poor connection at the sink/disposer
• Fill system: inlet valve seep, overfill from a stuck float, or a loose supply fitting
• Wash system: sump seal, pump grommet, or spray-related oversudsing
• Door area: misaligned door, damaged gasket, or racks preventing full closure

Quick part-to-symptom guide

Symptom you see	Most likely area	What to inspect next
Water near sink cabinet	Drain connection	Drain hose routing and clamps
Water at front corners	Door sealing	Gasket, loading, latch engagement
Water under center of unit	Pump/sump area	Hoses, seals, pump mounting
Leak happens during fill	Inlet/overfill	Inlet valve, float movement

If you find water coming from the drain line or its connections, the dishwasher drain hose WPW10545278 is a common replacement part for the WDF760SADM0.

Why it matters

A leak code is the dishwasher protecting your kitchen from ongoing water damage. Clearing the water may reset the symptom, but the code returns until the underlying leak (hose, seal, valve, or door closure issue) is corrected.

Last updated: February 2026
