Maytag MTF2195AES top-mount refrigerator Parts

Here are the diagrams and repair parts for Maytag MTF2195AES top-mount refrigerator, as well as links to manuals and error code tables, if available.

Maytag MTF2195AES top-mount refrigerator
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MTF2195AES Refrigerators

  • Refrigerator Uv Filter Dryer for Maytag MTF2195AES - Part WPW10143759

    Compressor diagram

    Refrigerator Uv Dye Dryer

    Part #13900-1

    Replaced by #WPW10143759

    Info Icon
    Manufacturer substitution
    This part replaces 13900-1. Substitute parts can look different from the original.
    In Stock
    $22.16
    21% OFF Phone Price : $28.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Ice Maker (d7824706q) for Maytag MTF2195AES - Part D7824706Q

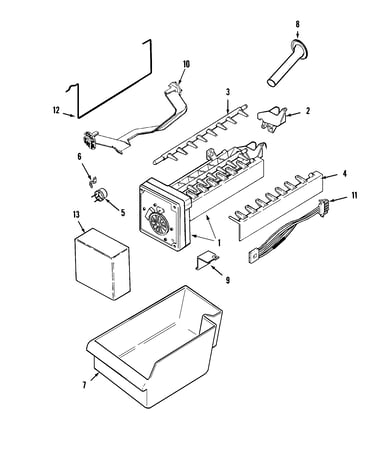

    Ice maker diagram

    Refrigerator Ice Maker

    Part #61005508

    Replaced by #D7824706Q

    Info Icon
    Manufacturer substitution
    This part replaces 61005508. Substitute parts can look different from the original.
    In Stock
    $101.86
    11% OFF Phone Price : $113.86Info Icon
    Minus Item
    Qty
    Plus Item
  • 40 Watt Refrigerator Bulb for Maytag MTF2195AES - Part W11679940

    Refrigerator Bulb

    Part #63001035

    Replaced by #W11679940

    Info Icon
    Manufacturer substitution
    This part replaces 63001035. Substitute parts can look different from the original.
    In Stock
    $39.43
    13% OFF Phone Price : $45.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor for Maytag MTF2195AES - Part W10309989

    Compressor diagram

    Refrigerator Compressor Kit

    Part #12002448

    Replaced by #W10309989

    Info Icon
    Manufacturer substitution
    This part replaces 12002448. Substitute parts can look different from the original.
    In Stock
    $433.88
    $12.00 OFF Phone Price : $445.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing for Maytag MTF2195AES - Part WPB5705307

    Compressor diagram

    Refrigerator Tubing

    Part #67579-26

    Replaced by #WPB5705307

    Info Icon
    Manufacturer substitution
    This part replaces 67579-26. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.94
    14% OFF Phone Price : $13.94Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Cube Ejector for Maytag MTF2195AES - Part WP627843

    Ice maker diagram

    Refrigerator Ice Ejector

    Part #95101-1

    Replaced by #WP627843

    Info Icon
    Manufacturer substitution
    This part replaces 95101-1. Substitute parts can look different from the original.
    In Stock
    $46.48
    11% OFF Phone Price : $52.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for Maytag MTF2195AES - Part W11772394

    Ice maker diagram

    Refrigerator Screw

    Part #63001487

    Replaced by #W11772394

    Info Icon
    Manufacturer substitution
    This part replaces 63001487. Substitute parts can look different from the original.
    In Stock
    $38.18
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing Clip for Maytag MTF2195AES - Part WPM0114003

    Compressor diagram

    Refrigerator Clamp Spring

    Part #60333-4

    Replaced by #WPM0114003

    Info Icon
    Manufacturer substitution
    This part replaces 60333-4. Substitute parts can look different from the original.
    In Stock
    $8.98
    10% OFF Phone Price : $9.98Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Inlet Valve Assembly for Maytag MTF2195AES - Part WP61005273

    Compressor diagram

    Refrigerator Water Inlet Valve Assembly

    Part #61005273

    Replaced by #WP61005273

    Info Icon
    Manufacturer substitution
    This part replaces 61005273. Substitute parts can look different from the original.
    In Stock
    $64.37
    9% OFF Phone Price : $70.37Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Cube Ejector for Maytag MTF2195AES - Part WP2182124

    Ice maker diagram

    Stripper, Ic

    Part #95102-1

    Replaced by #WP2182124

    Info Icon
    Manufacturer substitution
    This part replaces 95102-1. Substitute parts can look different from the original.
    In Stock
    $42.69
    12% OFF Phone Price : $48.69Info Icon
    Minus Item
    Qty
    Plus Item

Maytag Top-Mount Refrigerator MTF2195AES FAQs

A Maytag refrigerator typically lasts about 12 to 15 years with normal household use and basic maintenance. For your Maytag MTF2195AES top-mount refrigerator, keeping temperatures set correctly and cleaning key airflow areas helps you get the full expected service life.

Typical lifespan and what affects it

Most refrigerators fall into a similar lifespan range, but real-world life depends on usage and conditions.

  • Maintenance habits: cleaning coils, keeping door seals tight, replacing filters on schedule
  • Environment: hot garages, tight built-ins, or dusty homes shorten life
  • Usage: frequent door openings and overpacking reduce airflow and increase run time
  • Water system care (if equipped): filter changes and good water pressure protect the ice maker and valve
  • Repair history: repeated cooling or defrost issues can signal end-of-life components
Maintenance checklist that extends life

These are the highest-impact steps for a top-mount refrigerator like the MTF2195AES:

  • Set fresh food to about 37°F and freezer to about 0°F
  • Keep vents clear; do not block airflow with food packages
  • Clean condenser coils and the area around the machine compartment regularly
  • Inspect and clean door gaskets; fix gaps that cause warm air leaks
  • If you have a water filter, replace it on schedule and flush the dispenser after changes
Quick guide: symptoms vs. likely wear items
Symptom What it often points to What to do first
Warm fridge, freezer OK Airflow or evaporator fan issue Check vents, listen for fan, clear frost buildup
Frost buildup on back wall Defrost system issue Defrost fully, then monitor for repeat
Water under fridge Drain or defrost meltwater issue Clear drain path, level unit
No ice or slow fill Water supply or inlet valve issue Check supply line, filter, pressure
Why it matters

A refrigerator that is running longer than normal to hold temperature uses more electricity and puts extra wear on the compressor, fans, and defrost system. Simple airflow and temperature-control habits often prevent the failures that end a refrigerator’s service life.

Helpful resources

Last updated: January 2026

A top-mount refrigerator like the Maytag MTF2195AES puts the freezer on top and the fresh-food section below, so the main tradeoff is convenience: you bend more to reach everyday items, and you typically get fewer premium features than on bottom-freezer styles. For model-specific features and adjustments, use the MTF2195AES owner's manual.

Common disadvantages (what most owners notice)
  • More bending for fresh food: the refrigerator compartment is lower, so produce, deli items, and drinks take more reaching.
  • Less “wide-open” organization: top-mount designs often have simpler shelving and fewer specialty zones than many bottom-mount models.
  • Freezer access can be awkward: bulky frozen items can be harder to see and stack without pulling things out.
  • Fewer built-in dispenser options: many top-mount models do not include external water or ice dispensing.
  • Door swing clearance matters: if the hinge side is near a wall, you may need extra space to open the door wider.
What the MTF2195AES manual highlights that affects day-to-day use

The manual emphasizes installation and setup details that can feel like “disadvantages” if they are not planned for.

  • Room temperature limits: the refrigerator should be installed where the room temperature stays above 55°F (13°C) so it runs often enough to keep the freezer cold.
  • Clearance needs: allow about 1/2 inch on the sides, top, and back for easier installation and airflow.
  • Leveling is important: leveling/lock screws at the front corners help the refrigerator sit correctly and perform well.
Quick comparison: top-mount vs bottom-freezer
Feature Top-mount (like MTF2195AES) Bottom-freezer (typical)
Fresh-food access Lower, more bending Higher, easier reach
Freezer access Eye level Lower drawer/basket
Feature set Often simpler Often more “premium”
Cost to buy/repair Often lower Often higher
Why it matters

If you use fresh food more than frozen food, the top-mount layout can feel less convenient over time. Planning shelf layout, keeping frequently used items higher, and installing the unit with proper clearance and leveling helps reduce the everyday downsides.

Last updated: January 2026

Most Maytag refrigerators, including model MTF2195AES, do not have a single dedicated “reset” button. The practical reset is restoring power and then resetting the temperature controls to the correct settings as described in the MTF2195AES owner's manual.

What “reset” means on the MTF2195AES

On this top-mount refrigerator, a reset typically means one of these actions:

  • Power-cycle the refrigerator to clear a temporary control glitch
  • Recheck and set the fresh food and freezer temperature controls
  • Allow time for temperatures to stabilize after a change

The manual also notes that after certain tasks (such as door reversal), you should plug the refrigerator back in and reset the controls to the appropriate settings.

How to reset it safely (power reset)
  1. Unplug the refrigerator (or switch the circuit breaker off).
  2. Wait about 5 minutes.
  3. Restore power.
  4. Set the temperature controls back to normal settings.
  5. Allow 24 hours for temperatures to stabilize before making more adjustments.
Quick control settings reference

The manual lists these typical starting points:

Control Typical initial setting Where you may find it
Fresh food control 4 (on a 1 to 7 scale) Top of fresh food compartment (some versions)
Freezer control Cold to coldest range Back of freezer or top of fresh food compartment (varies)
If you are trying to reset after a “no cool” or warm temperature issue

Before changing settings repeatedly, check these common causes:

  • Doors closing fully and sealing (no gaps)
  • Long or frequent door openings
  • Control set too warm (or changed too quickly)
  • Room temperature below about 55°F (13°C)
  • Unit not level (can affect door closing)
Why it matters

A power reset and correct temperature control settings prevent over-adjusting, which can make temperatures swing and delay cooling. On the MTF2195AES, the controls interact, so changing one control affects the other.

Last updated: January 2026

A top-mount refrigerator like the Maytag MTF2195AES is usually the better choice when you want strong energy efficiency, simpler design, and lower upfront cost; a bottom-mount is usually better when you want fresh-food items at eye level and easier everyday access to the refrigerator section.

Quick comparison
Feature Top-mount refrigerator Bottom-mount refrigerator
Everyday access Freezer is easiest to reach Fresh food is easiest to reach
Typical cost Lower Higher
Complexity Simpler (often fewer moving parts) More complex (drawer slides, layouts)
Energy use (typical) Often lower Often slightly higher
Best for Budget, reliability, basic storage Convenience, organization, frequent fridge use
How to choose for your kitchen and habits
  • If you use the freezer a lot (frozen meals, bulk meat), a top-mount keeps it at a comfortable height.
  • If you cook daily and reach into the refrigerator constantly, a bottom-mount reduces bending.
  • If you want fewer service issues over time, top-mount designs are typically simpler.
  • If you have limited space, compare door swing and drawer clearance before deciding.
  • If you are installing a top-mount, follow the clearance and leveling guidance in the MTF2195AES owner's manual.
What matters for performance (either style)

Even the “better” style will struggle if installation and airflow are wrong. For the MTF2195AES, proper placement and leveling help it cool consistently.

  • Install where room temperature stays above 55°F (13°C).
  • Leave at least 1/2 inch clearance on the sides, top, and back for airflow and easier installation.
  • Level the cabinet using the front leveling/lock screws; a level refrigerator helps doors seal and reduces moisture issues.
Why it matters

Choosing the right mount style affects daily comfort (bending and reaching), food organization, and long-term operating cost. Installation details like clearance and leveling also directly impact temperature stability and door sealing.

Last updated: January 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Most common repair guides to help fix your refrigerators

These step-by-step repair guides will help you safely fix what’s broken on your refrigerator.

How to replace a refrigerator temperature control board

How to replace a refrigerator temperature control board

If the temperature in your refrigerator doesn't match the temperature you set, the problem could be the temperature cont…

Repair time and Difficulty

 30 minutes or less
How to replace a refrigerator water valve

How to replace a refrigerator water valve

Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…

Repair time and Difficulty

 15 minutes or less
How to clean refrigerator condenser coils

How to clean refrigerator condenser coils

Help your refrigerator run more efficiently by cleaning the condenser coils. It's easy and takes just a few minutes.…

Repair time and Difficulty

 15 minutes or less

Effective articles & videos to help repair your refrigerators

Use the advice and tips in these articles and videos to get the most out of your refrigerator.

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

Learn how easy replacing the water filter in a Universal/Multiflex refrigerator is.…

How to Replace the Water Filter in a KitchenAid Refrigerator

How to Replace the Water Filter in a KitchenAid Refrigerator

Discover how easy it is to replace the water filter in your KitchenAid refrigerator.…

Troubleshooting a refrigerator not cooling video

Troubleshooting a refrigerator not cooling video

Learn what to check if the inside of your fridge is wayyyy too warm.…

Parts & More

Bottom-Mount Refrigerator
Chipper/Shredder
Dishwasher
Dryer
Electric Range
Front-Engine Lawn Tractor
Gas Chainsaw
Gas Line Trimmer
Microwave/Hood Combo
Room Air Conditioner
Side-By-Side Refrigerator
Treadmill
Washer
Water Pump
