Whirlpool WTW7120HC0 washer Parts
Here are the diagrams and repair parts for Whirlpool WTW7120HC0 washer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

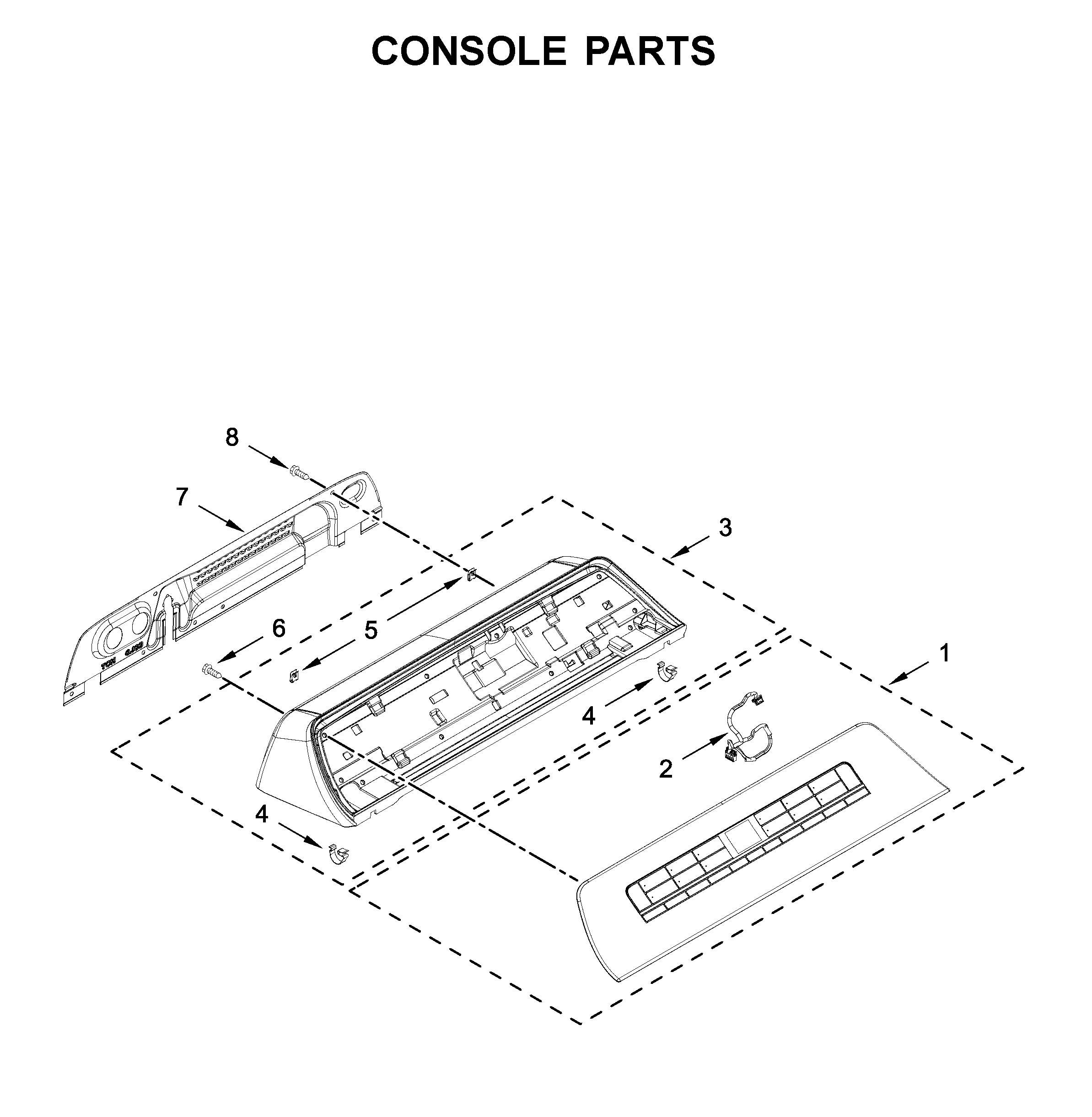

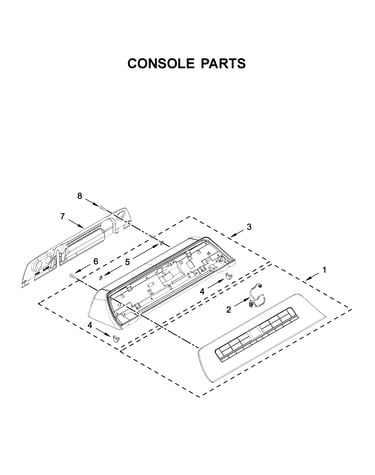

Browse Parts for WTW7120HC0 Washer

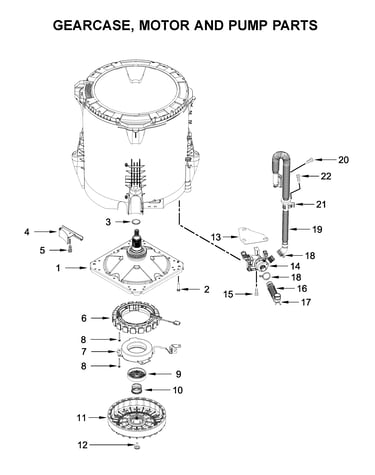

Gearcase, motor and pump parts diagram
Spring Support
Part #W10006494Replaced by #W10734521
Manufacturer substitutionThis part replaces W10006494. Substitute parts can look different from the original.In Stock$41.2513% OFF Phone Price : $47.25
Qty
Gearcase, motor and pump parts diagram
Slider
Part #W10905025Replaced by #W10734521
Manufacturer substitutionThis part replaces W10905025. Substitute parts can look different from the original.In Stock$41.2513% OFF Phone Price : $47.25QtyGearcase, motor and pump parts diagram
Clutch Coil
Part #W10905022Replaced by #W10754448

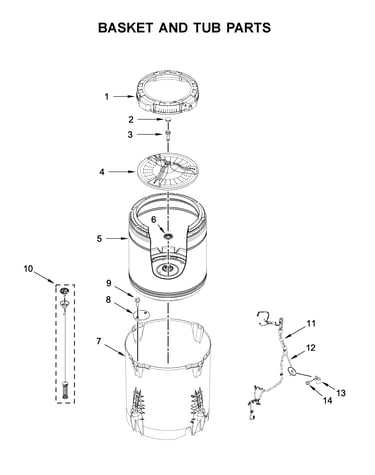

Manufacturer substitutionThis part replaces W10905022. Substitute parts can look different from the original.In Stock$105.3310% OFF Phone Price : $117.33QtyBasket and tub parts diagram
Damper Asm -
Part #W11187091Replaced by #W11400156
Manufacturer substitutionThis part replaces W11187091. Substitute parts can look different from the original.In Stock$84.107% OFF Phone Price : $90.10QtyBasket and tub parts diagram
Washer Washplate Screw
Part #W10625252Replaced by #W10752187

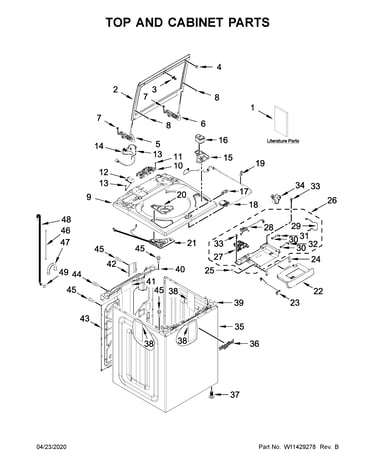

Manufacturer substitutionThis part replaces W10625252. Substitute parts can look different from the original.This item is not returnableIn Stock$4.0520% OFF Phone Price : $5.05QtyTop and cabinet parts diagram
Washer Water Inlet Valve
Part #W11096268Replaced by #W11220230
Manufacturer substitutionThis part replaces W11096268. Substitute parts can look different from the original.In Stock$94.646% OFF Phone Price : $100.64QtyGearcase, motor and pump parts diagram
Drive Asm -
Part #W11185701Replaced by #W11449841
Manufacturer substitutionThis part replaces W11185701. Substitute parts can look different from the original.In Stock$232.285% OFF Phone Price : $244.28QtyBasket and tub parts diagram
Impeller
Part #W10834890Replaced by #W10752283
Manufacturer substitutionThis part replaces W10834890. Substitute parts can look different from the original.In Stock$88.716% OFF Phone Price : $94.71QtyGearcase, motor and pump parts diagram
Pump Asm, Dr
Part #W11263349Replaced by #W11396717
Manufacturer substitutionThis part replaces W11263349. Substitute parts can look different from the original.In Stock$112.8710% OFF Phone Price : $124.87QtyBasket and tub parts diagram
Nut-lock,mac
Part #W11183985Replaced by #W11551646
Manufacturer substitutionThis part replaces W11183985. Substitute parts can look different from the original.In Stock$9.3110% OFF Phone Price : $10.31Qty
