Model # 411 Official Porter Cable miter fold laminate trimmer

Here are the diagrams and repair parts for Official Porter Cable 411 miter fold laminate trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 50 parts |

#117

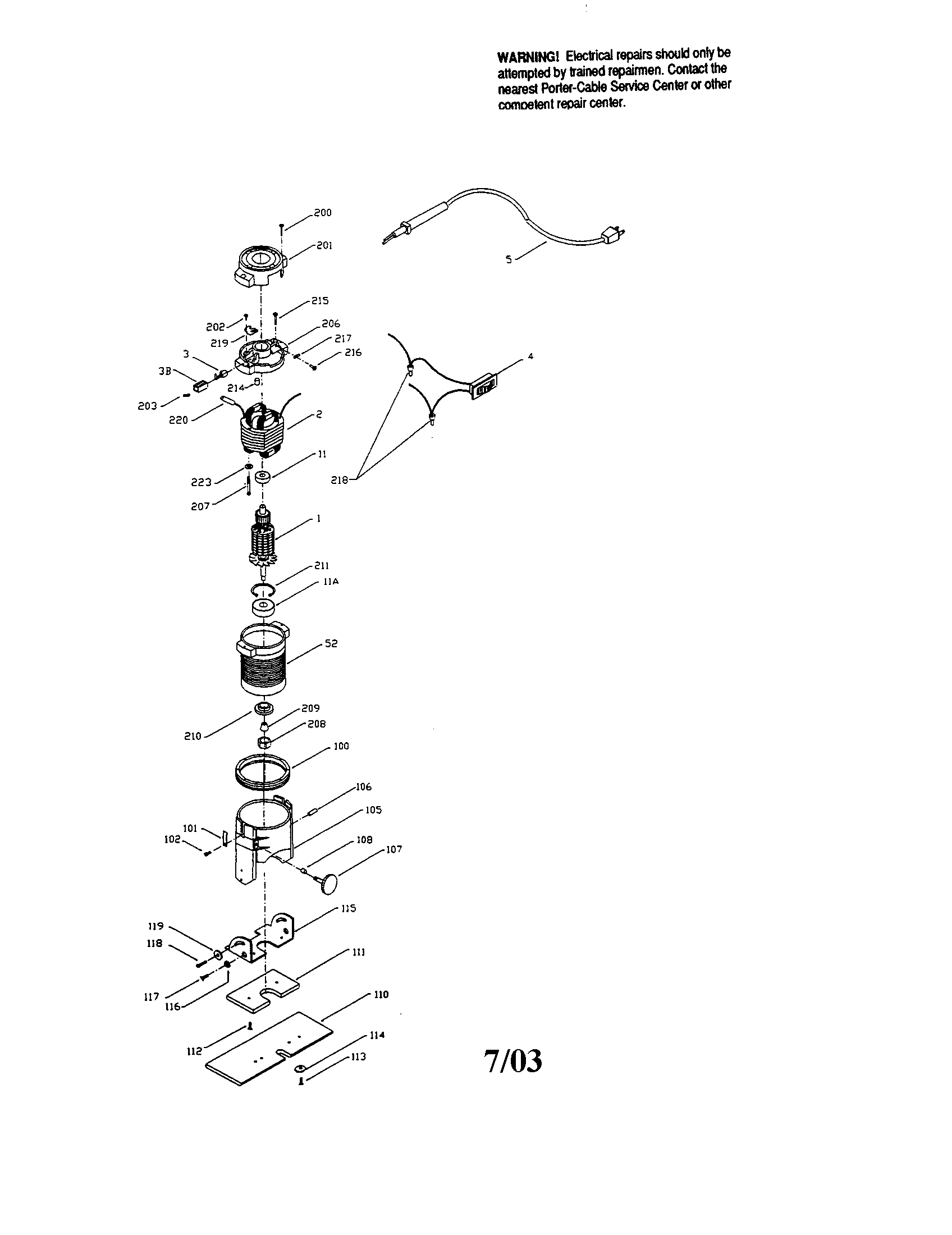

Laminate trimmer diagram

Router flat head screw

Part #688860

The manufacturer no longer makes this part, and there's no substitute part

#203

Laminate trimmer diagram

Terminal

Part #866312

The manufacturer no longer makes this part, and there's no substitute part

#216

Laminate trimmer diagram

Grnd screw

Part #844107

The manufacturer no longer makes this part, and there's no substitute part

#NI04

All parts diagram

Wrench

Part #698110

The manufacturer no longer makes this part, and there's no substitute part

#102

Laminate trimmer diagram

Screw

Part #858008

The manufacturer no longer makes this part, and there's no substitute part

#220

Laminate trimmer diagram

Sleeve

Part #846755

The manufacturer no longer makes this part, and there's no substitute part

#211

Laminate trimmer diagram

Ring

Part #802302

The manufacturer no longer makes this part, and there's no substitute part

#223

Laminate trimmer diagram

Lock washer

Part #802648

The manufacturer no longer makes this part, and there's no substitute part

#202

Laminate trimmer diagram

Screw

Part #844705

The manufacturer no longer makes this part, and there's no substitute part

#116

Laminate trimmer diagram

Spacer-split (current version)

Part #694682

The manufacturer no longer makes this part, and there's no substitute part
