Model # KBNU367VSS00 Official KitchenAid gas grill

Here are the diagrams and repair parts for Official KitchenAid KBNU367VSS00 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |

Valve W10244334
#78

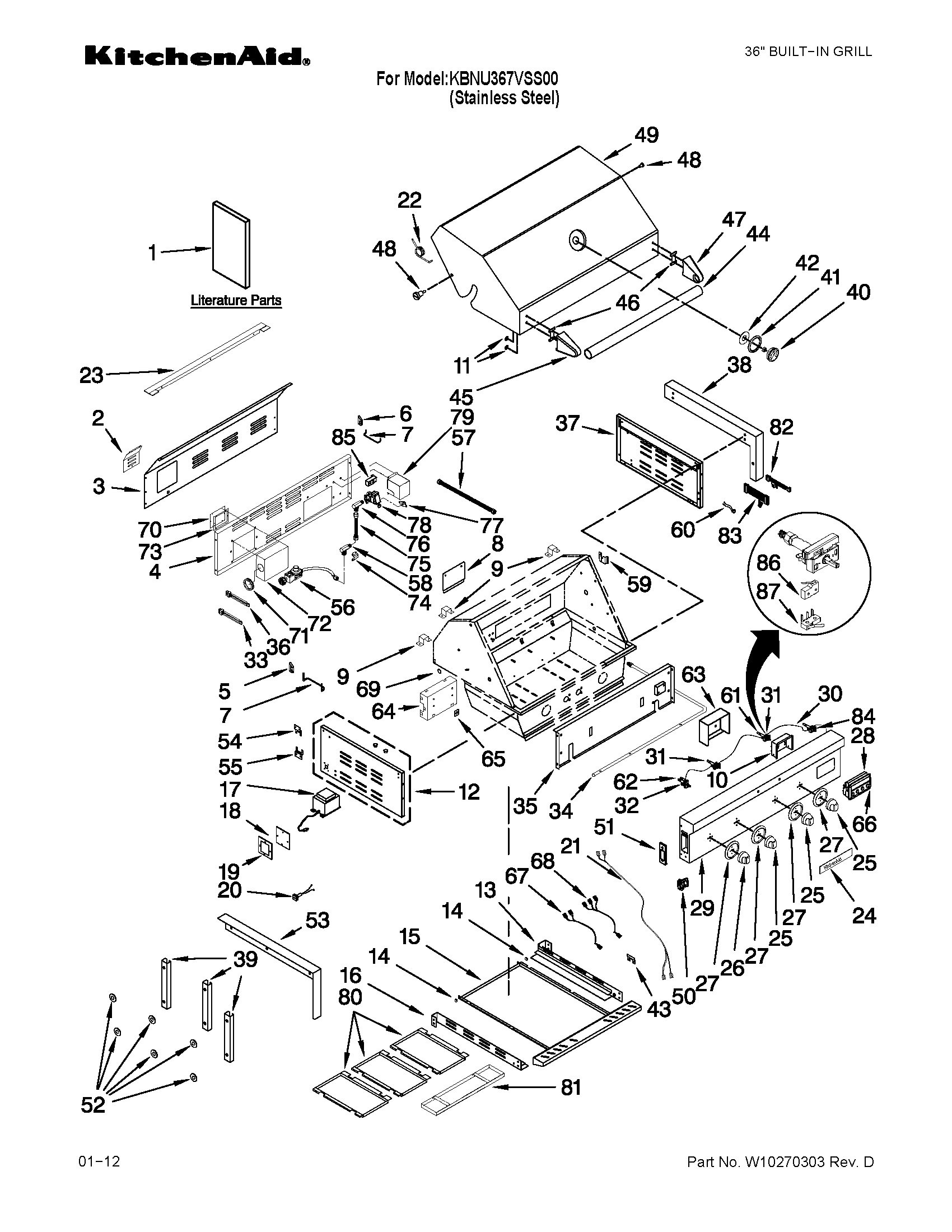

Grill parts diagram

Valve

Part #W10244334

Replaced by #WPW10247149

?
Manufacturer substitution
This part replaces W10244334. Substitute parts can look different from the original.
$218.39
$10.00 OFF Phone Price : $228.39
In Stock
Light-gril W10133866
#13

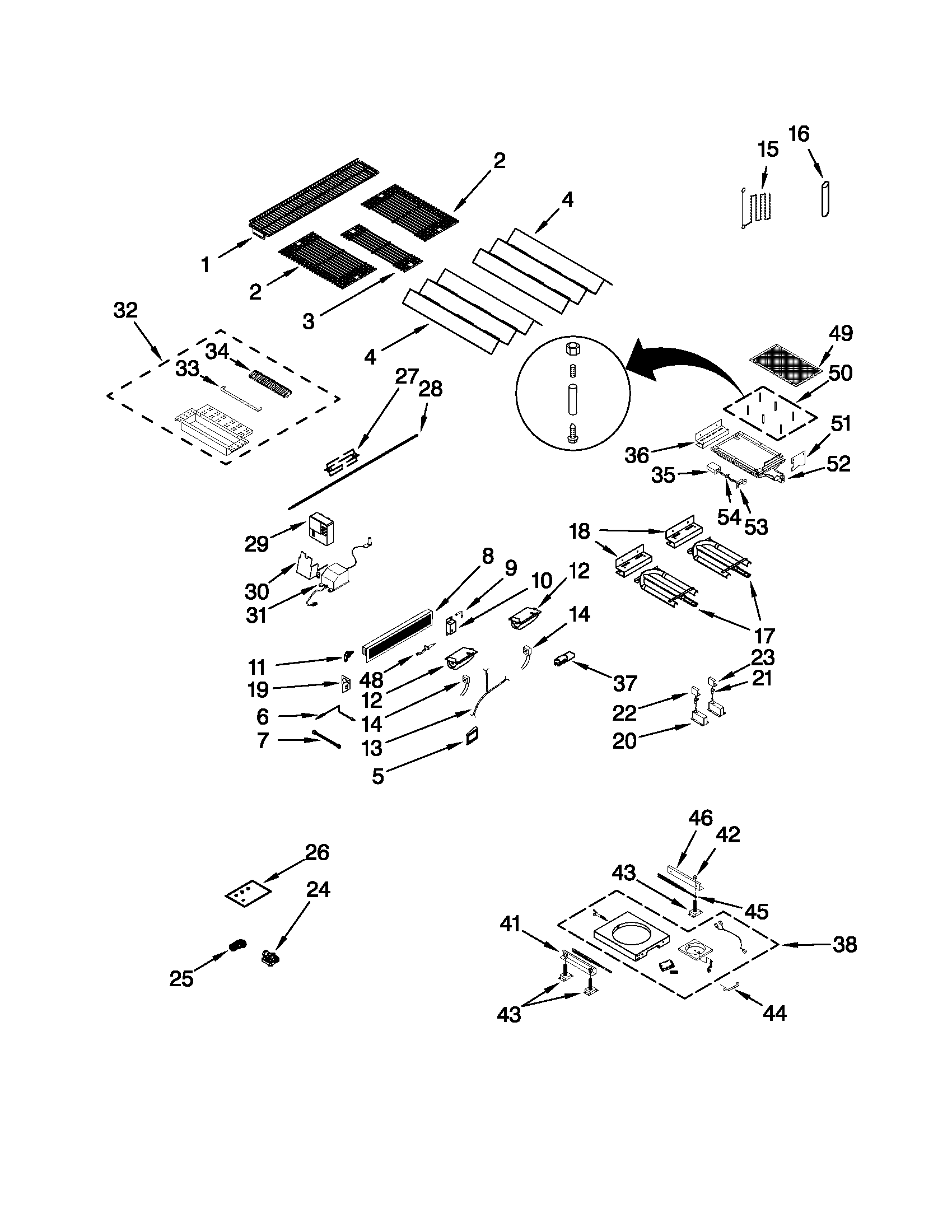

Burners, grates, and lights parts diagram

Light-gril

Part #W10133866

$56.09
8% OFF Phone Price : $61.09
In Stock
Gas Grill Burner Knob W10128753
#25

Grill parts diagram

Gas grill burner knob

Part #W10128753

$36.69
12% OFF Phone Price : $41.69
In Stock
Wire Harness W10247132
#83

Grill parts diagram

Wire harness

Part #W10247132

In Stock
Gas Grill Transformer W10247117
#17

Grill parts diagram

Gas grill transformer

Part #W10247117

In Stock
Gas Grill Regulator Cover W10247145
#64

Grill parts diagram

Gas grill regulator cover

Part #W10247145

In Stock
Spit Bar W10247180
#28

Burners, grates, and lights parts diagram

Spit bar

Part #W10247180

In Stock
Regulator W10247100
#56

Grill parts diagram

Regulator

Part #W10247100

In Stock
Flange W10244337
#77

Grill parts diagram

Flange

Part #W10244337

In Stock
Gas Grill Wire Harness W10133876
#21

Grill parts diagram

Gas grill wire harness

Part #W10133876

In Stock
