Here are the diagrams and repair parts for Speed Queen SSET17LF dryer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 178 parts

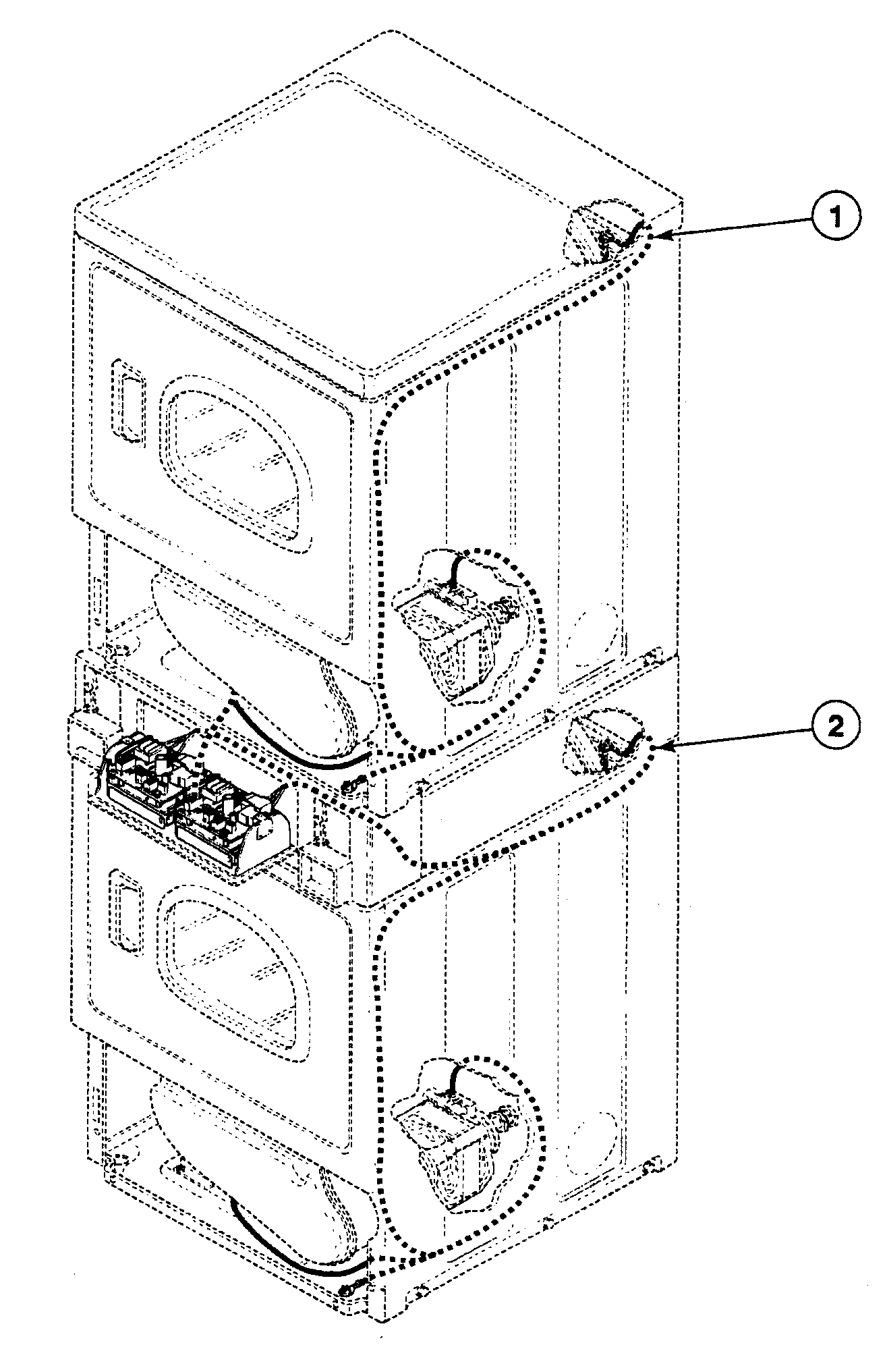

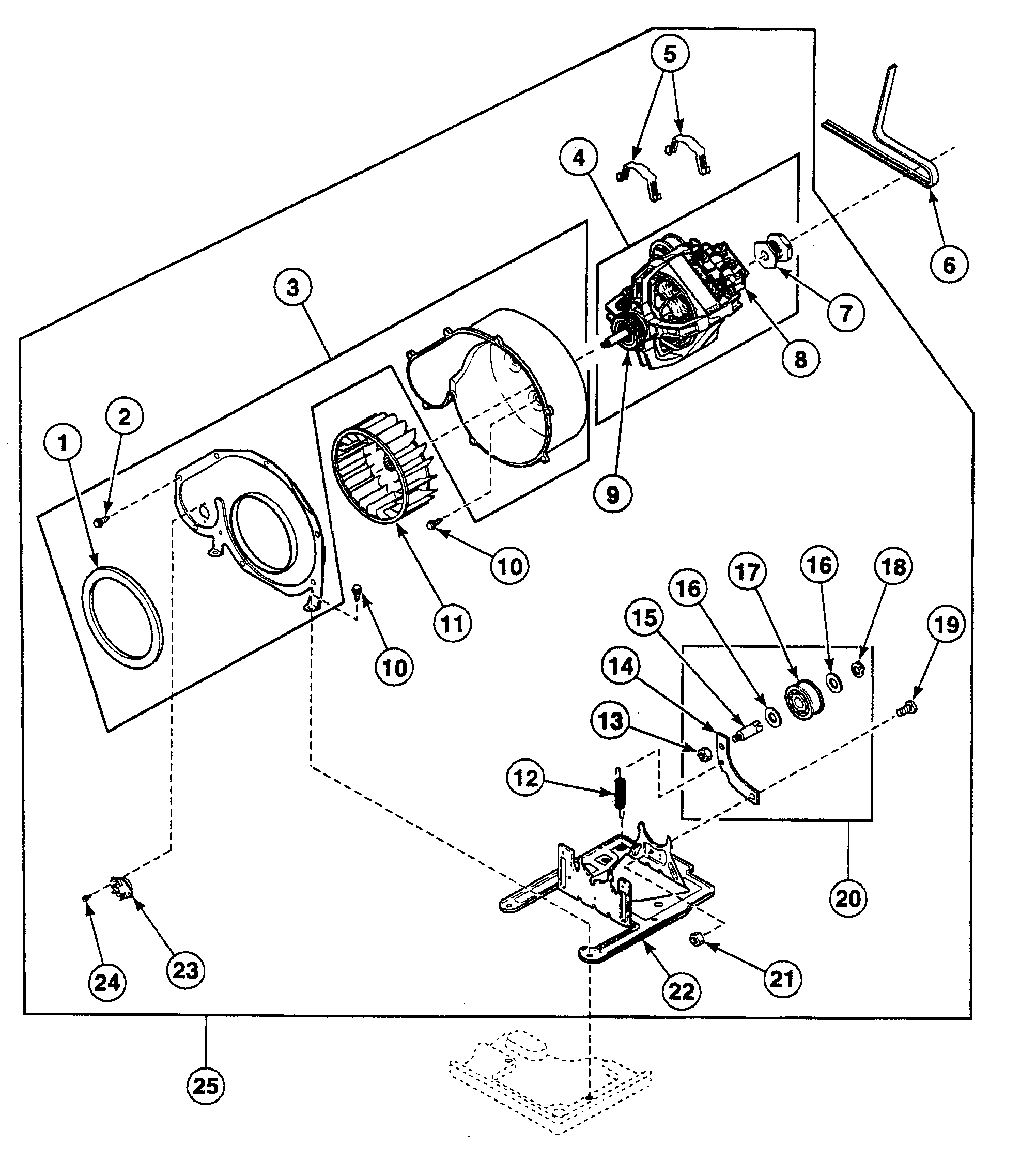

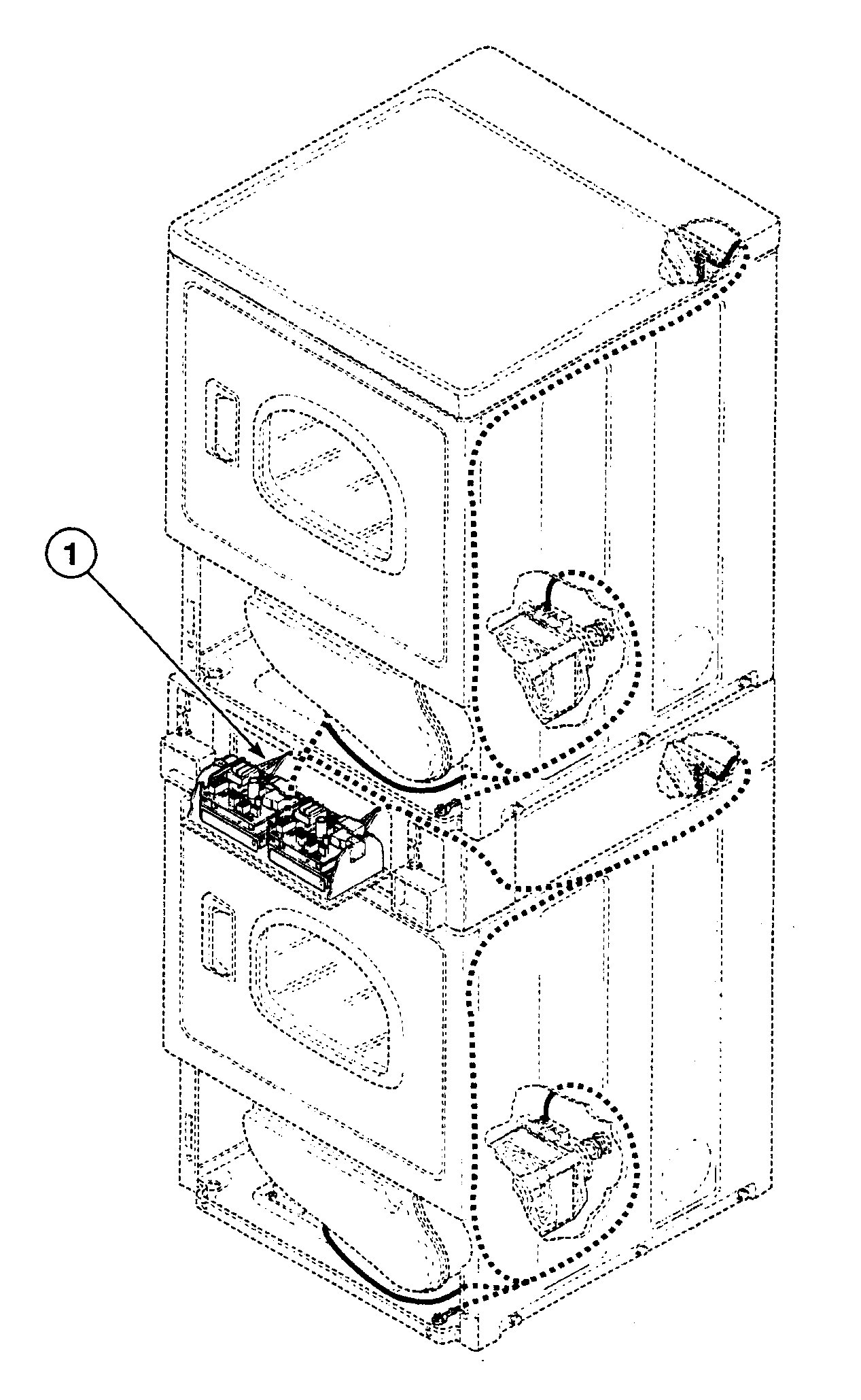

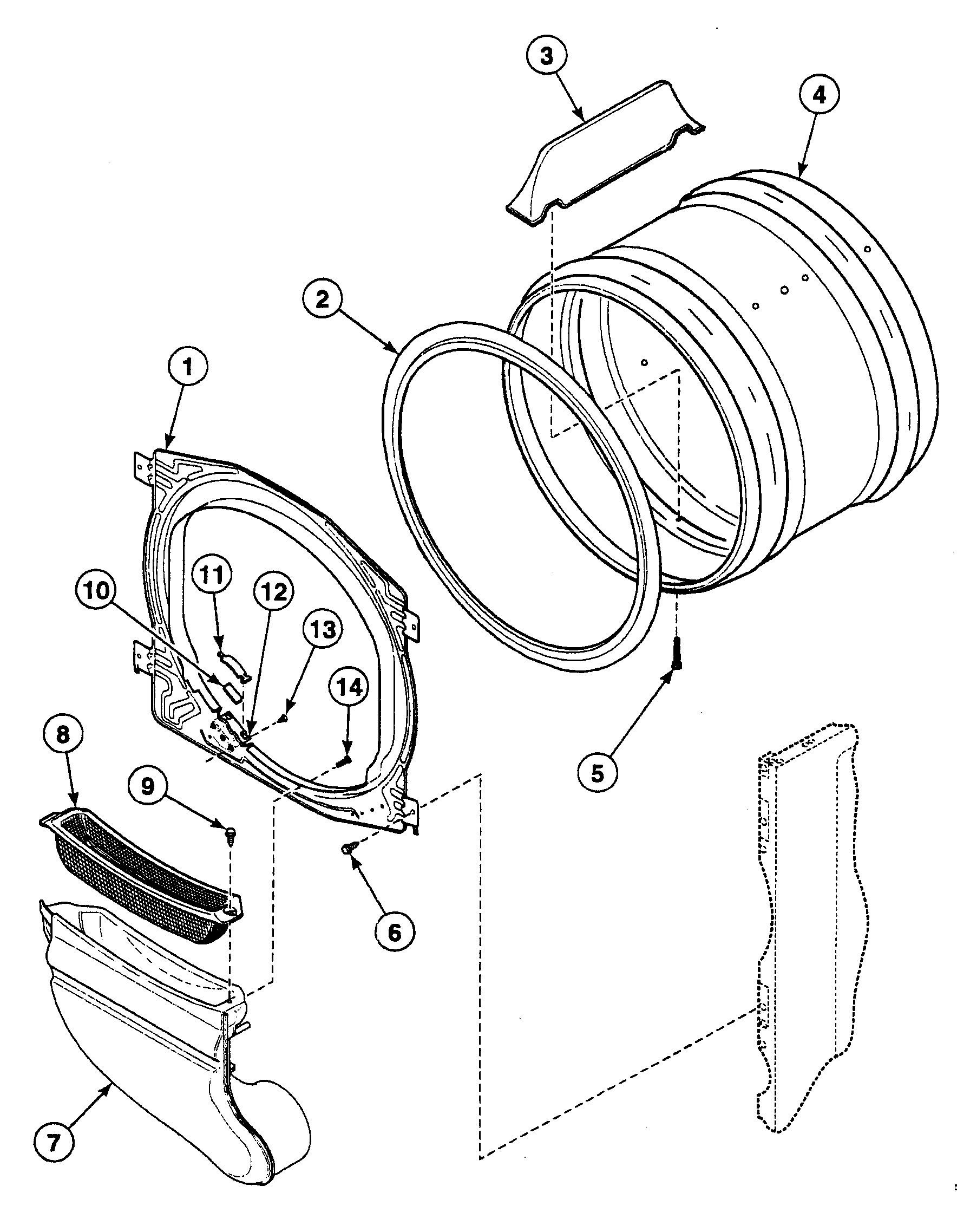

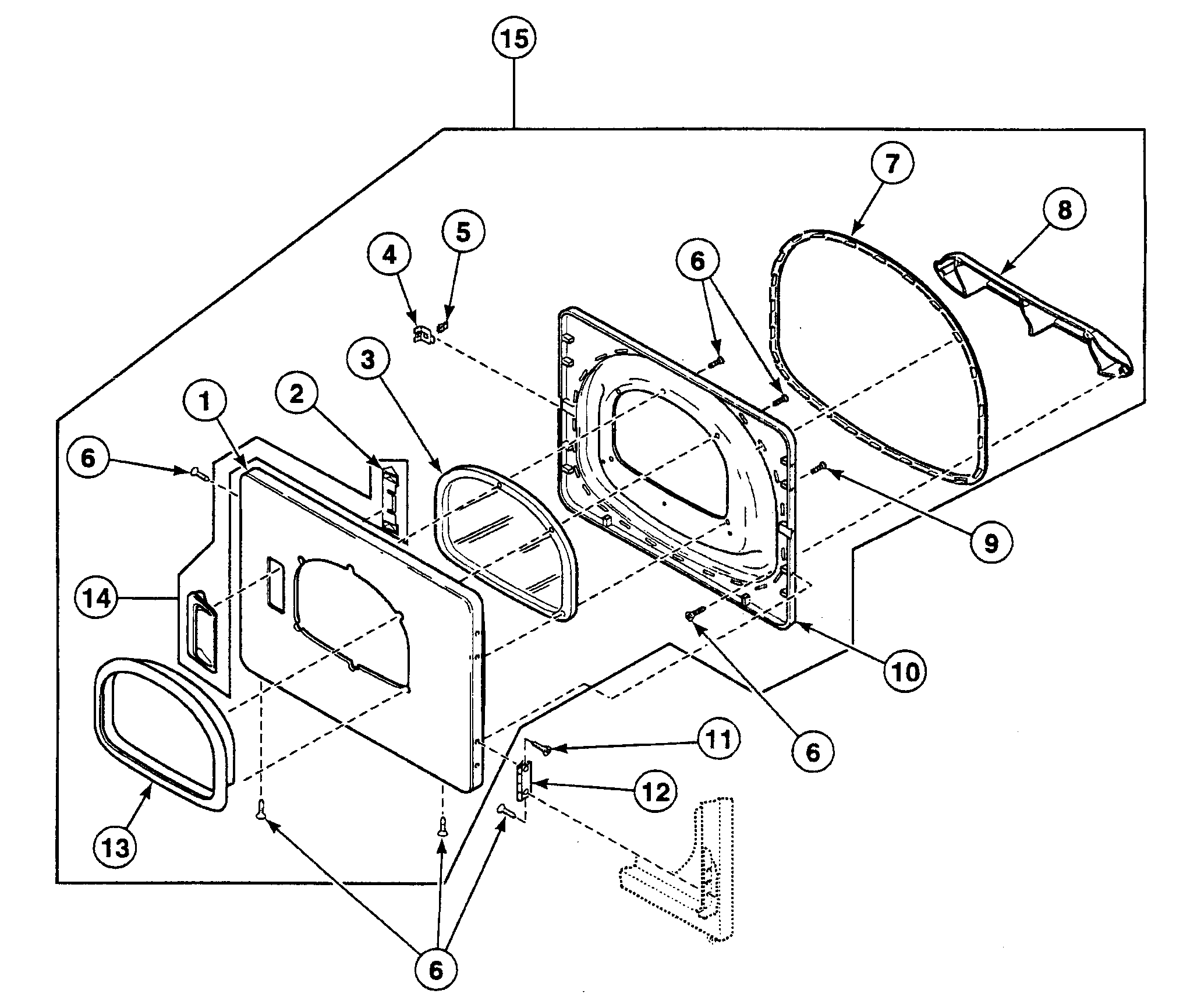

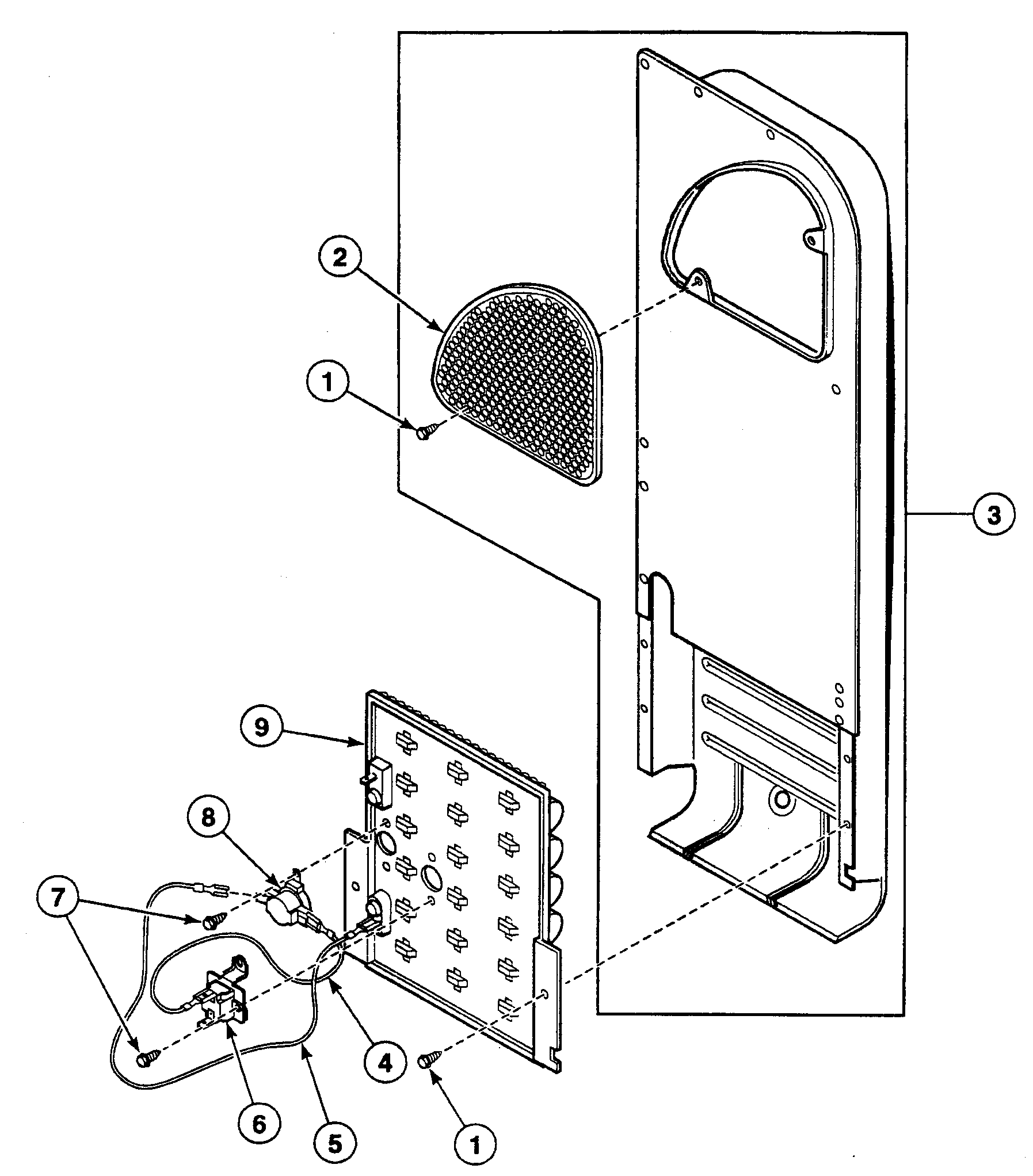

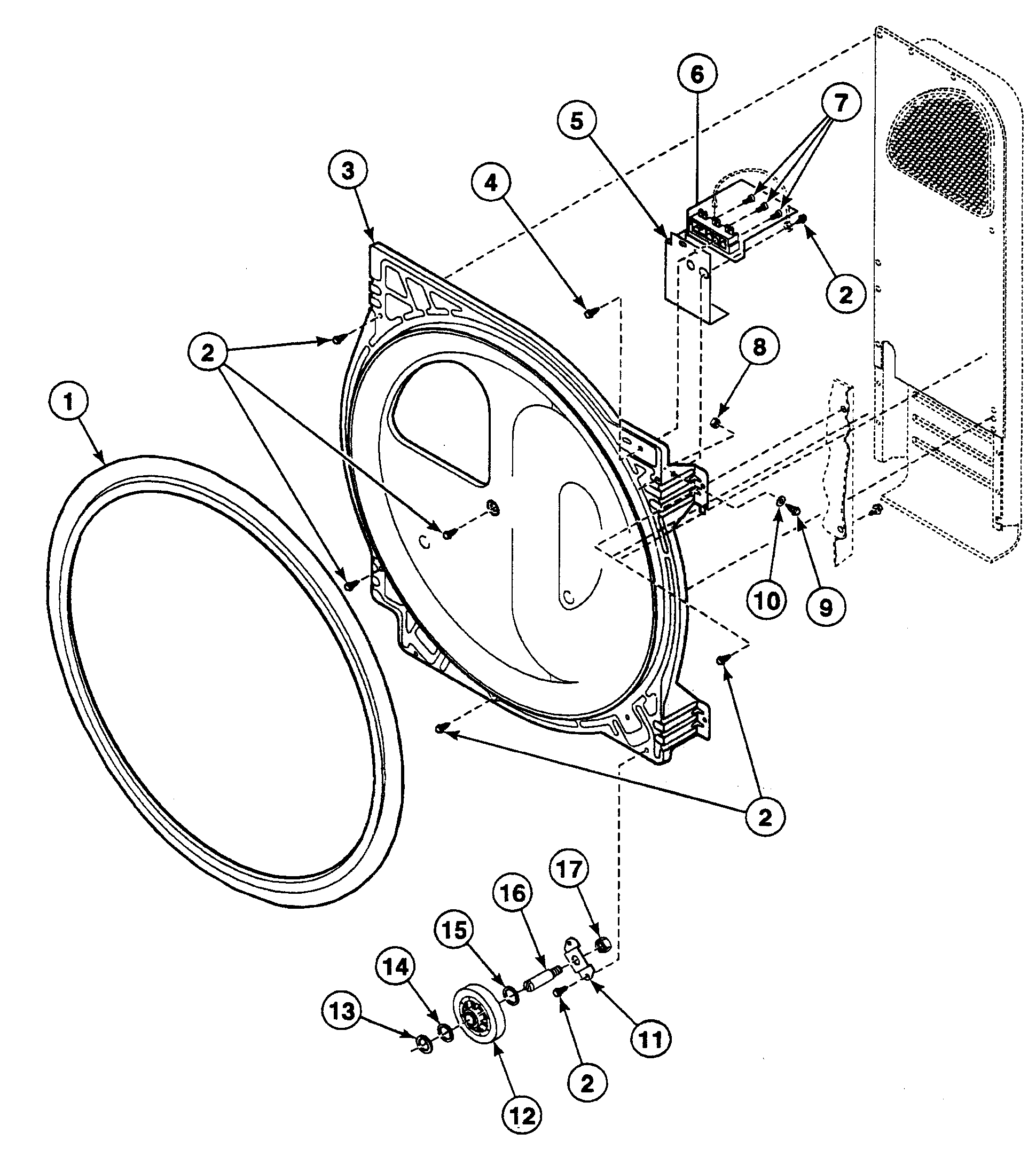

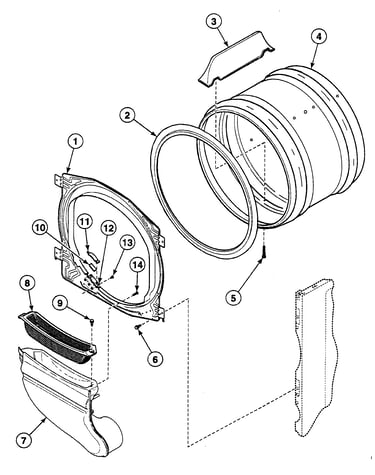

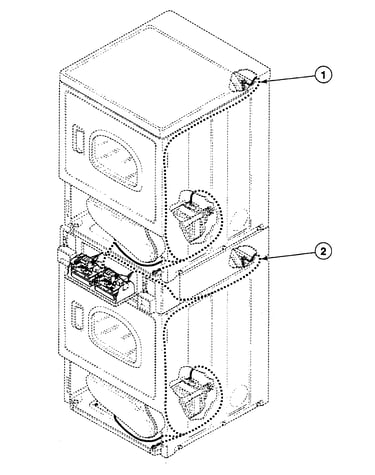

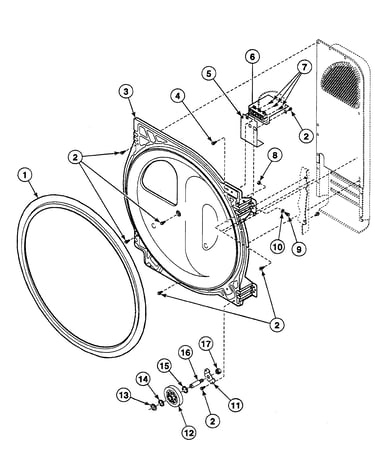

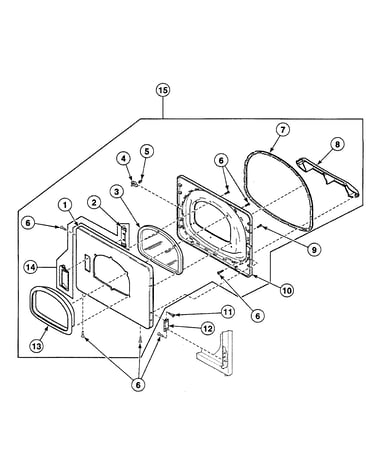

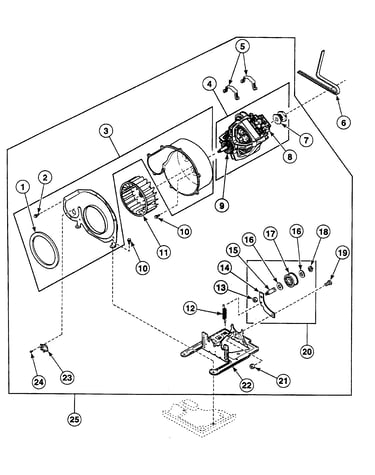

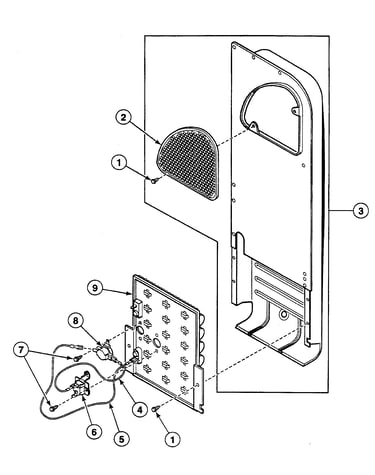

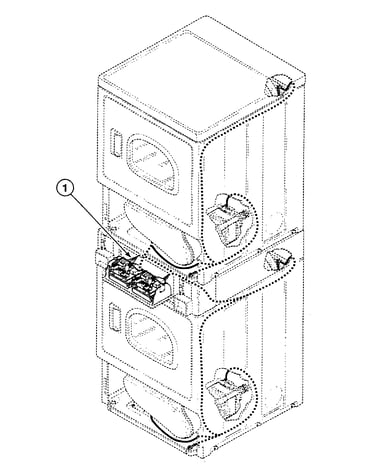

See All Related Diagrams
Part #503688
The manufacturer no longer makes this part, and there's no substitute part
Part #23748

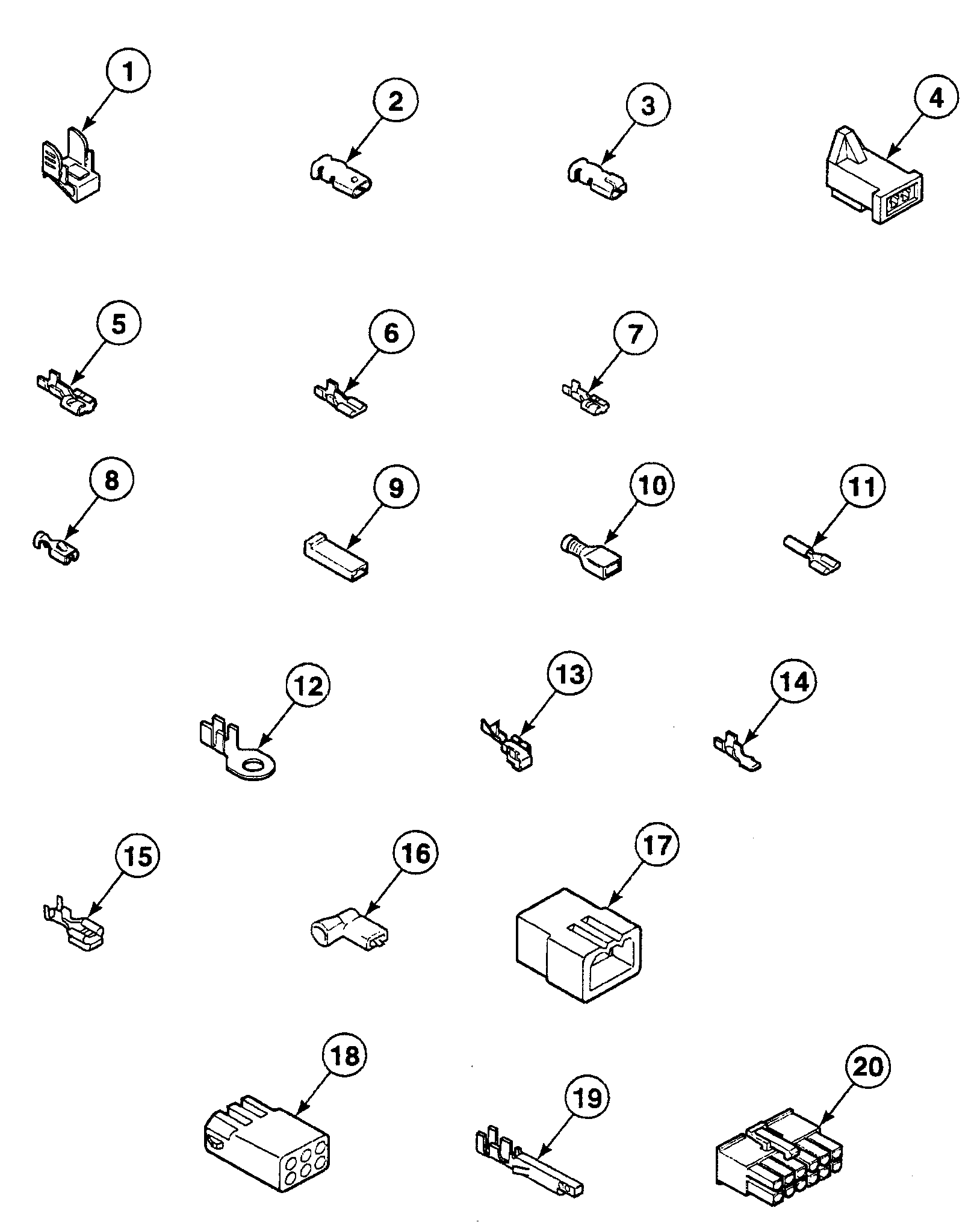

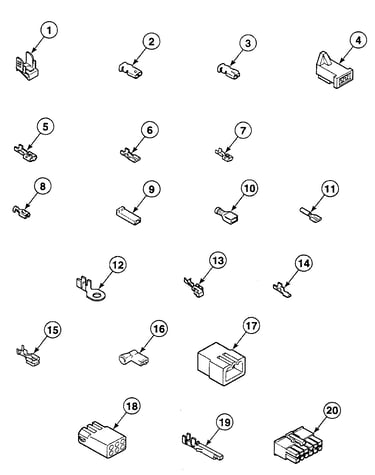

Blocks Diagram
Part #00110
Part #00361

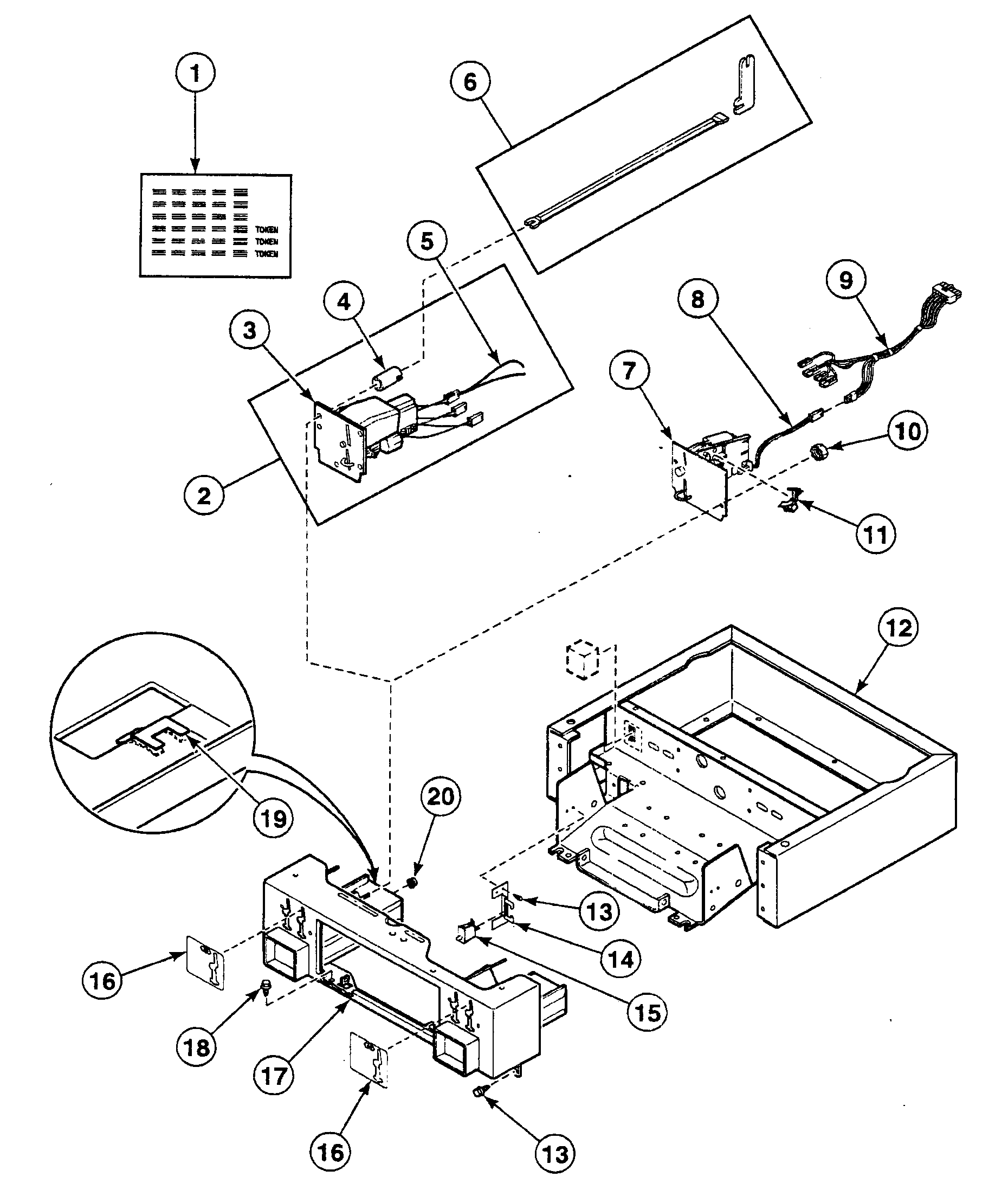

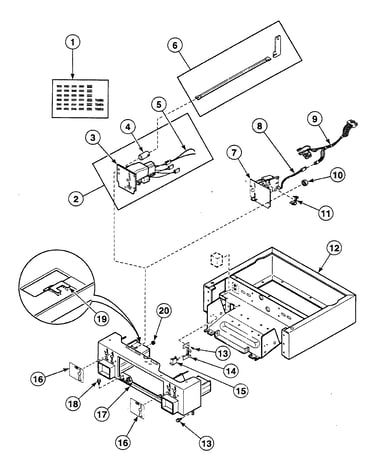

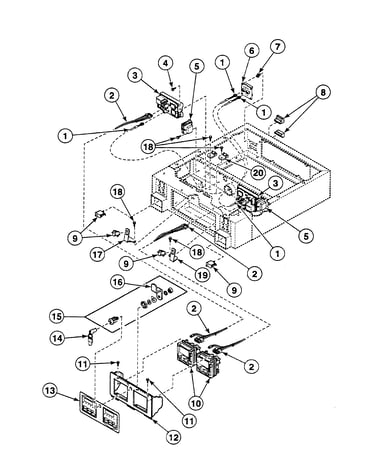

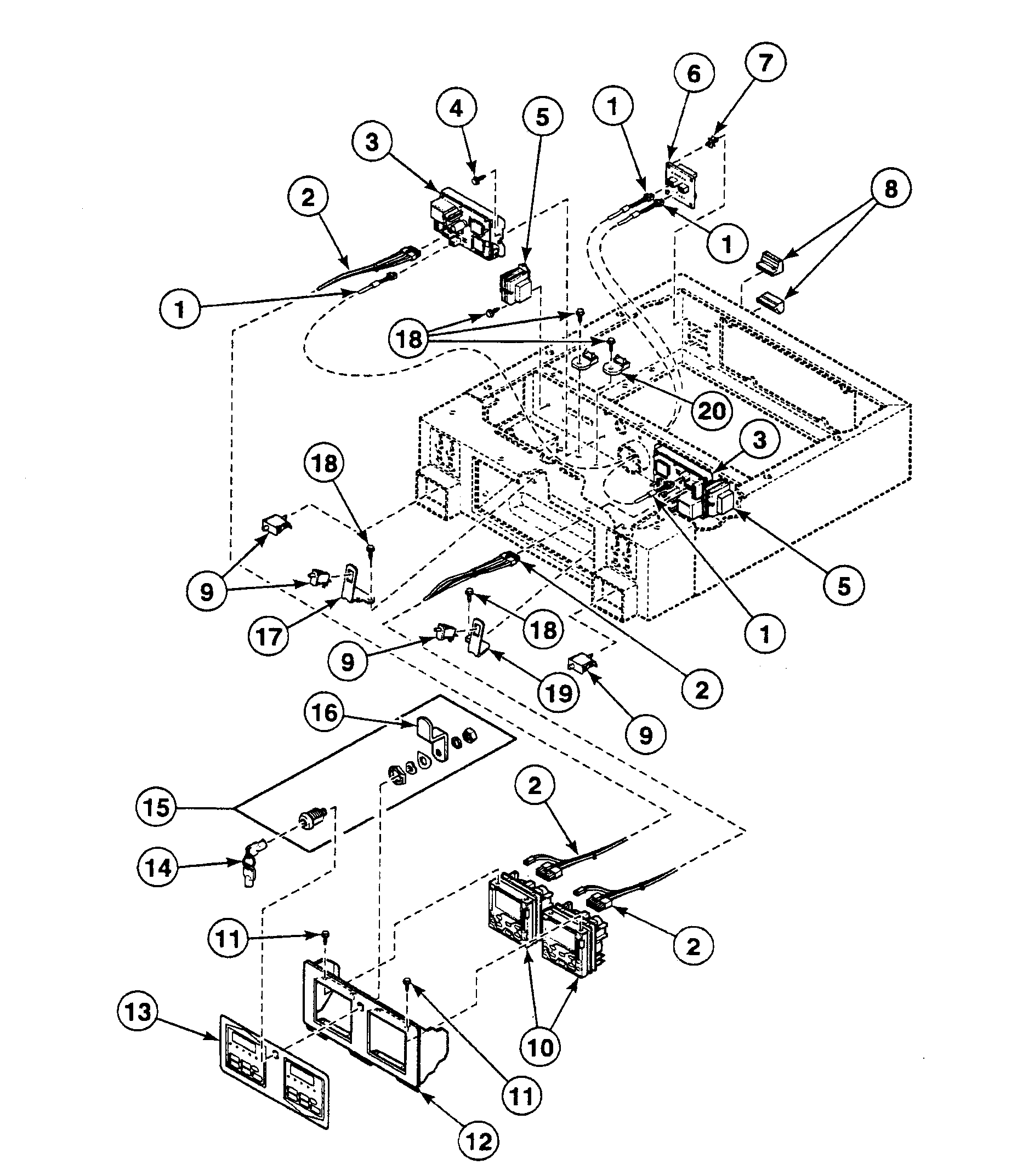

Cabinet control Diagram
Part #200674P

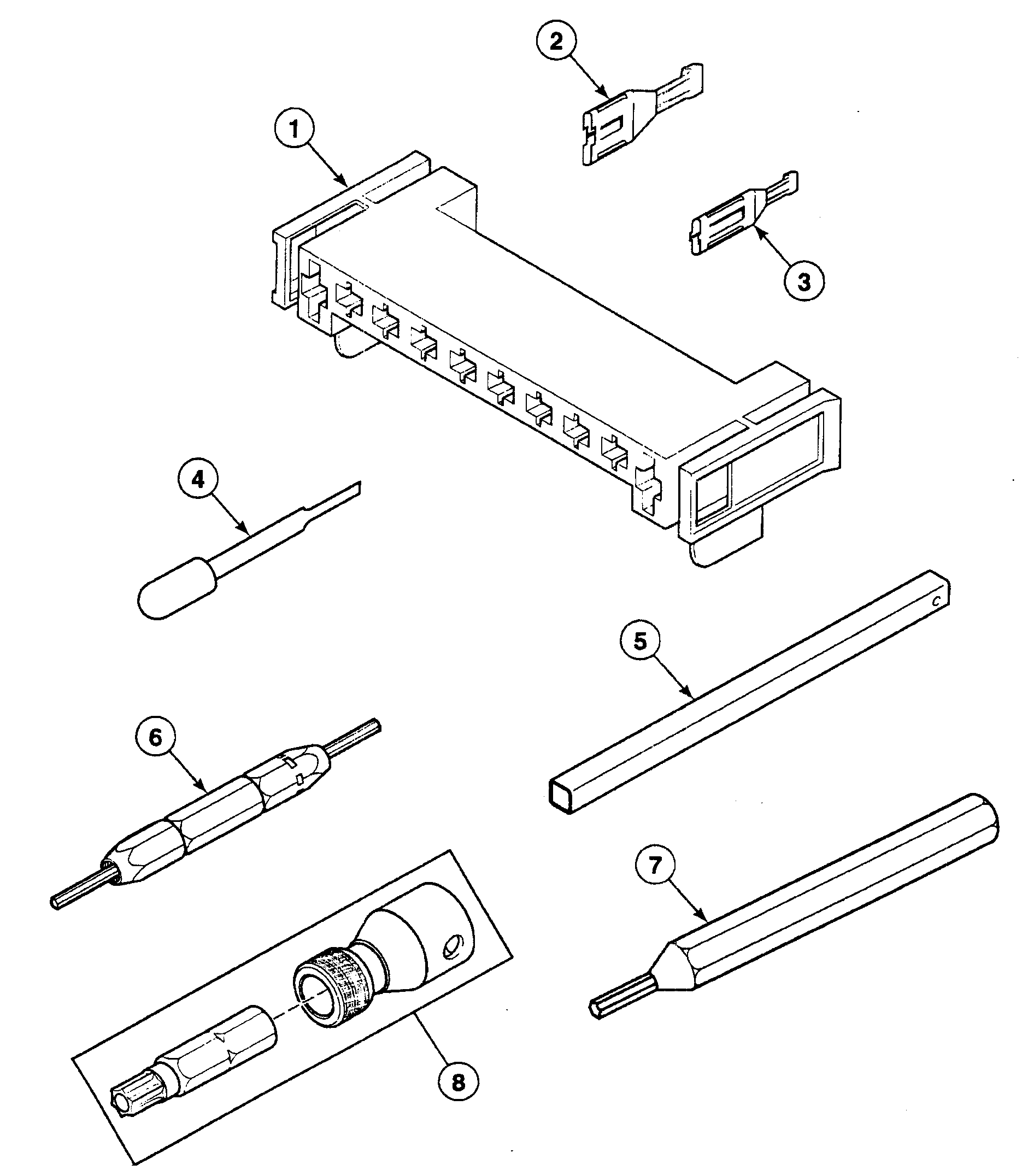

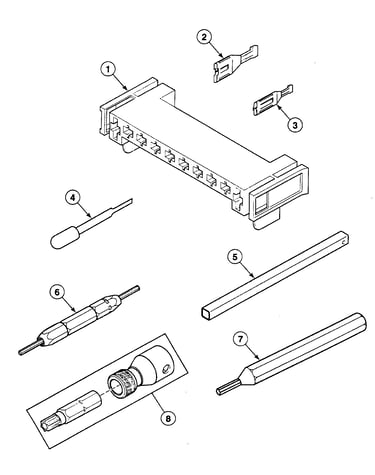

Tools Diagram
Part #282P4

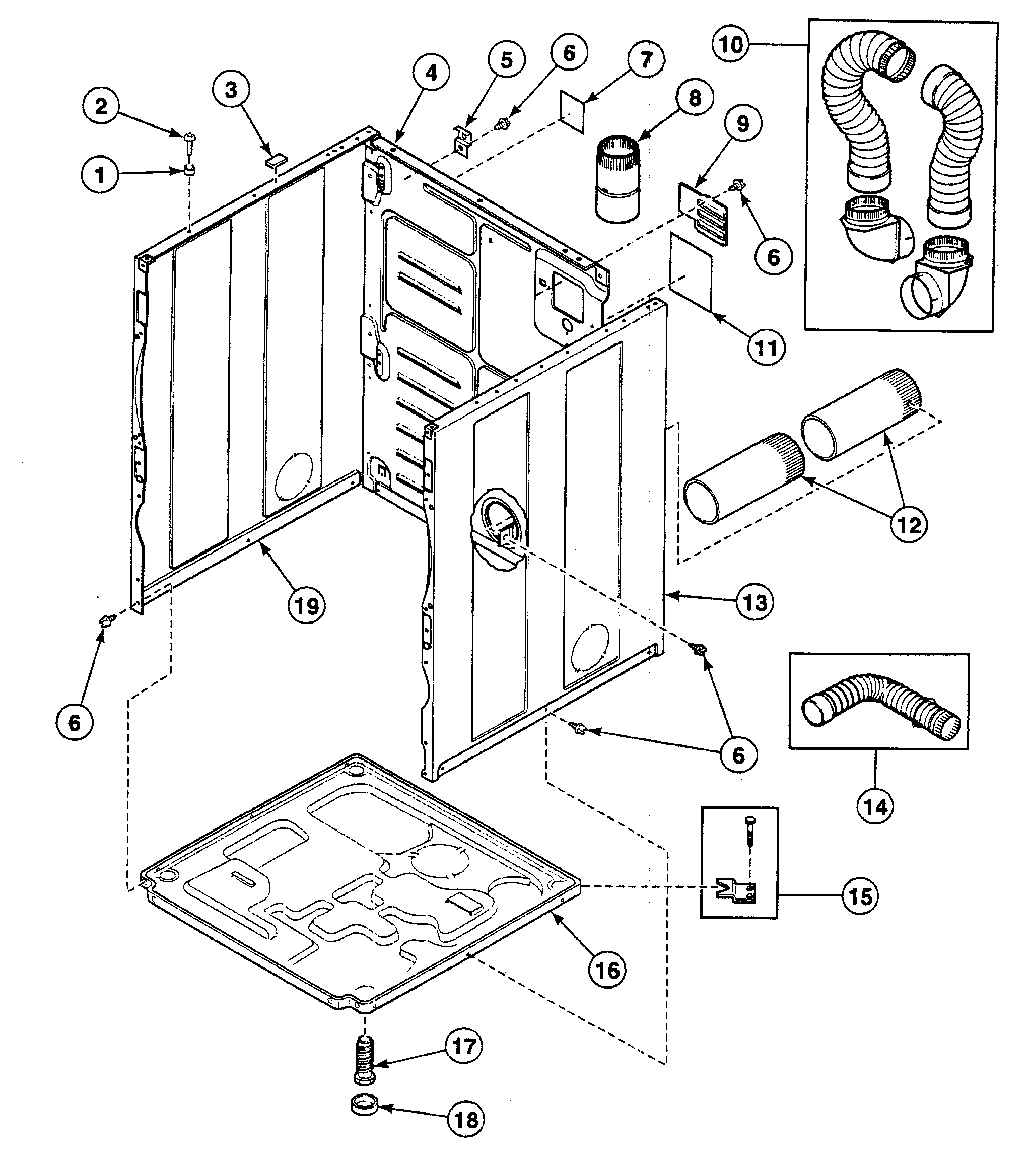

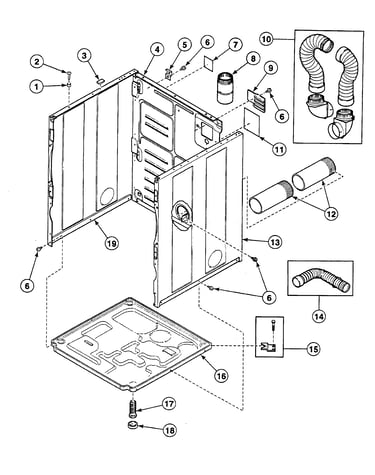

Cabinet Diagram
Part #56128

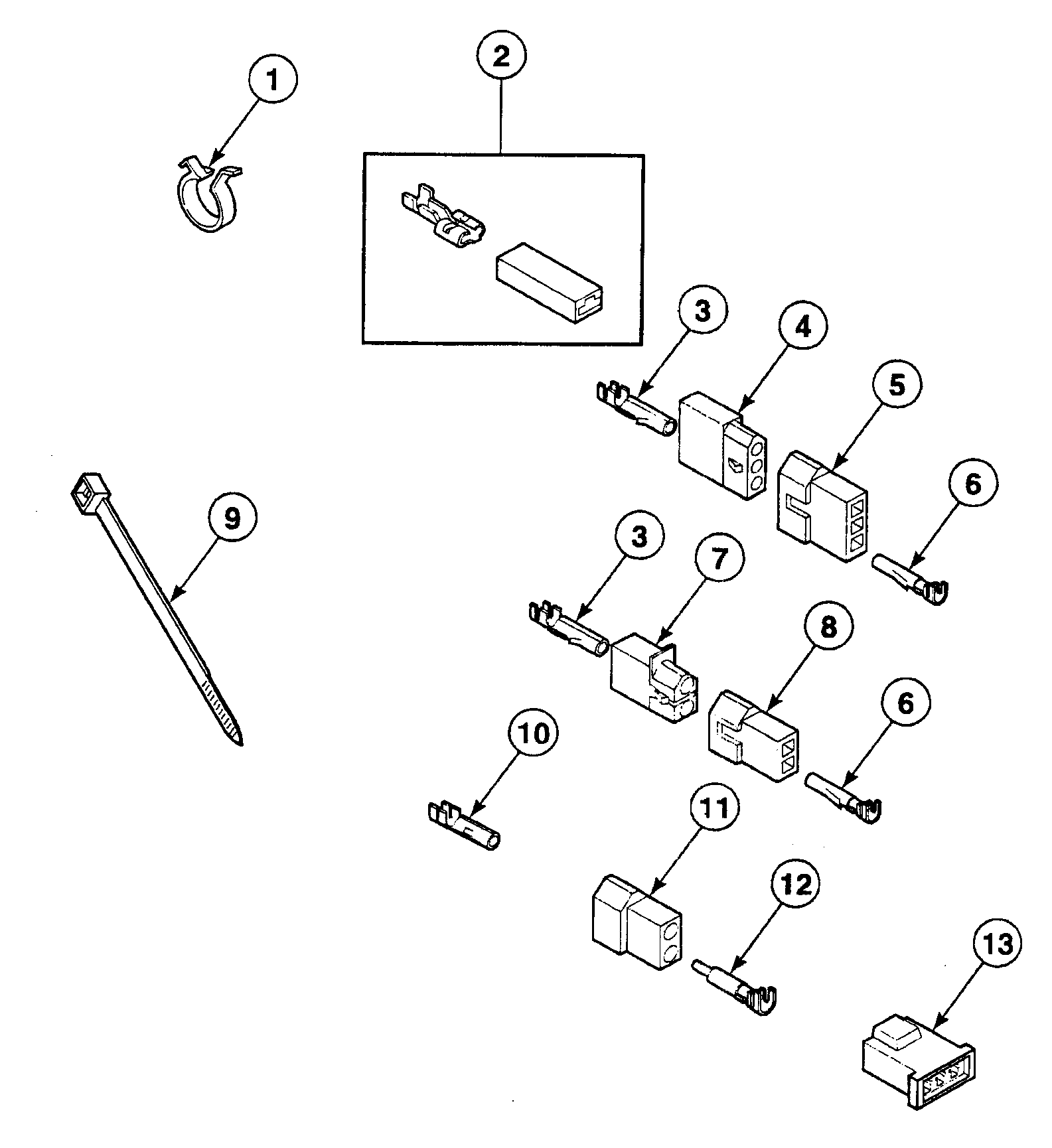

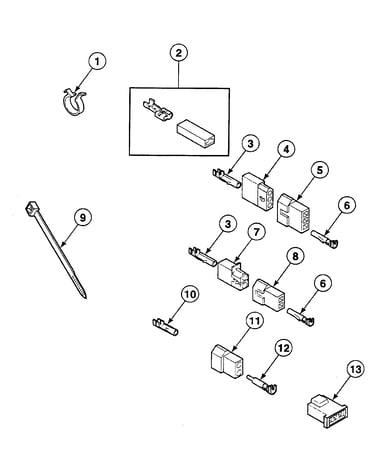

Terminals Diagram
Part #56266

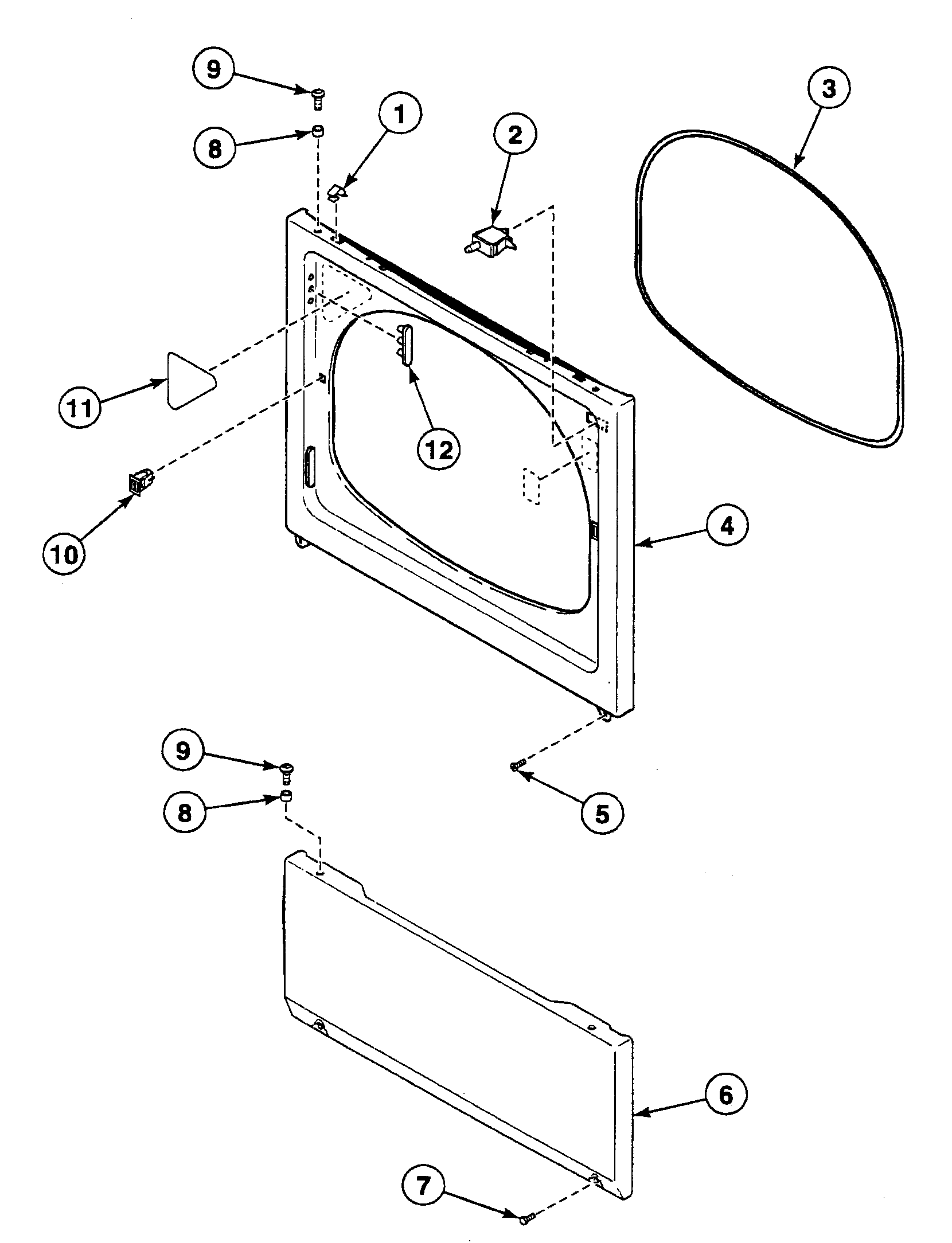

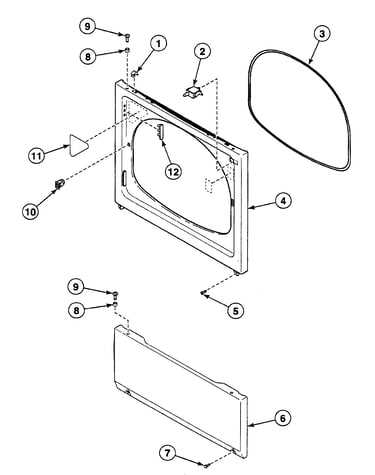

Front panel Diagram
Part #62853

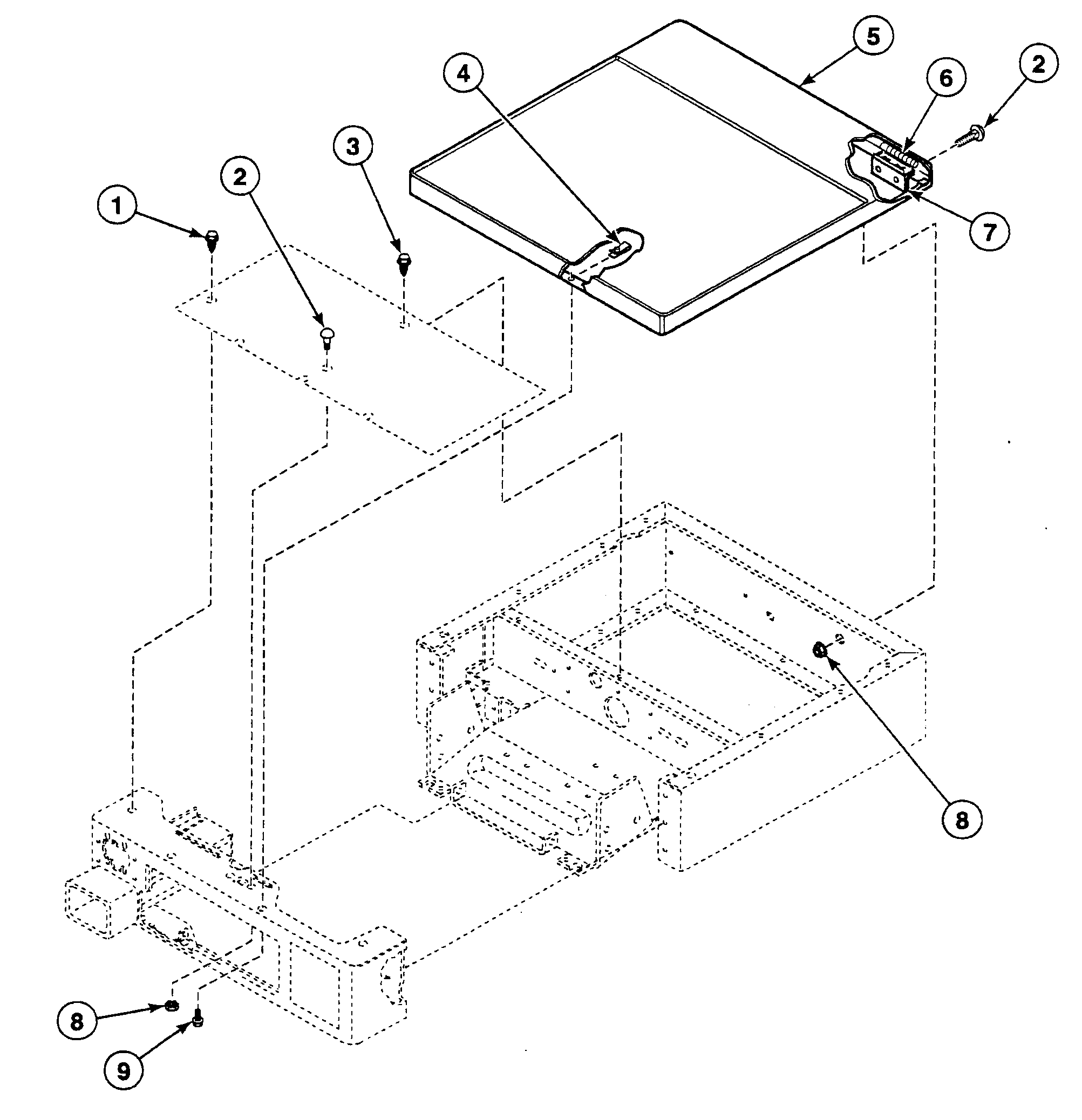

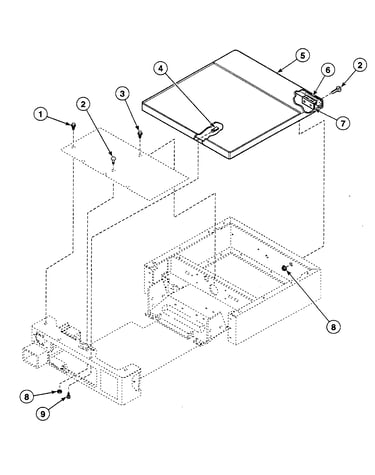

Cabinet top Diagram
Part #29796
