Kenmore 66515113K212 undercounter dishwasher Parts

Your Kenmore dishwasher model number is printed on the appliance’s identification label. On Kenmore models like 66515113K212, we typically find it when you open the door and look along the inner door frame, the top edge of the door, or the tub opening.

Where to look on the dishwasher

Check these spots in order (door open, good lighting):

• Inner door frame (left or right side)
• Top edge of the door (near the latch area)
• Tub opening or tub wall just inside the door
• Behind the lower access panel (kickplate) area
• Side frame of the cabinet opening (if the unit was recently installed)

For diagrams and label-location notes specific to this unit, use the 66515113K212 owner’s manual.

What the model number looks like (and why it matters)

Kenmore dishwasher model numbers are usually a long string of numbers and letters. For parts lookup and troubleshooting, we use the full model exactly as printed, including any suffix.

What to capture	Example	Why we need it
Model number	66515113K212	Ensures parts fit your exact dishwasher
Serial number	(varies)	Helps identify production run details
Brand	Kenmore	Confirms correct parts catalog

Quick tips to read the label correctly

• Write it down exactly; do not add spaces or punctuation
• Take a clear photo straight-on (helps avoid mixing up 0 and O)
• If the label is worn, try a flashlight at an angle to make the print stand out
• If you remove the kickplate to look, restore it securely before running cycles

Why it matters

Kenmore dishwashers can share similar-looking doors and racks across multiple series, but internal parts like the water inlet valve, drain pump, and heating element can vary by model. Using the correct model number prevents ordering the wrong replacement part and saves repair time.

Last updated: February 2026

Yes. We still support Kenmore dishwasher parts, and for Kenmore model 66515113K212 you can replace many common wear items (like the heating element, drain pump, inlet valve, spray arm, and filters) using the model number to match the correct part.

How to make sure you get the right part

Using the full model number is the fastest way to avoid ordering the wrong component, especially because Kenmore dishwashers often share designs with other manufacturers.

• Match parts by the complete model number: 66515113K212
• Compare the part name and part ID, not just a description
• Check whether your symptom points to a water, wash, or drain issue
• Confirm installation and access steps in the 66515113K212 installation guide
• Use the 66515113K212 owner’s manual for cycle and operation checks after a repair

Common parts customers replace on 66515113K212

Here are examples of in-stock parts that commonly solve everyday dishwasher problems:

Symptom	Likely part to check	Example part for this model

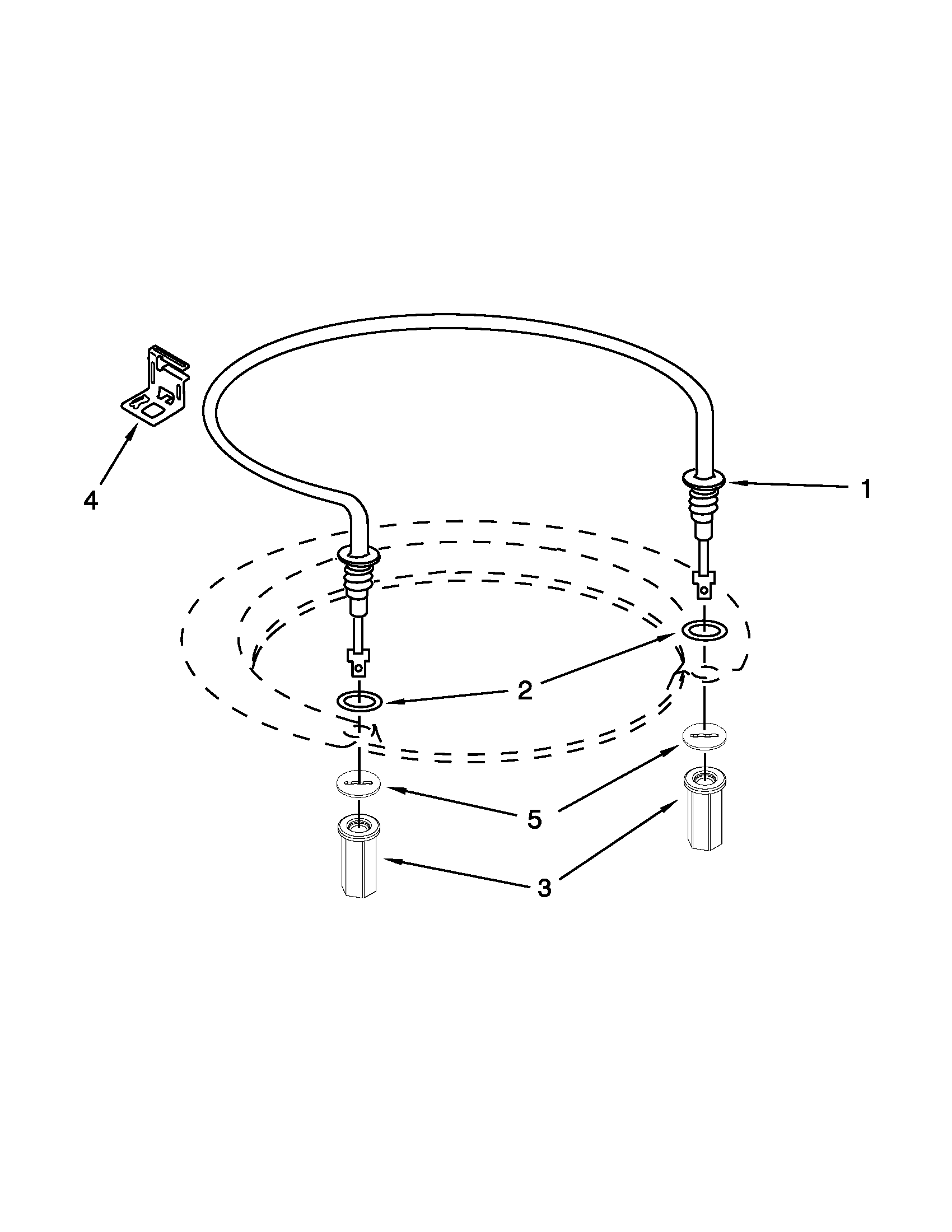

Dishes not drying, water not heating	Heater circuit	Dishwasher heating element W10518394
Dishwasher will not drain	Drain system	Dishwasher drain pump WPW10348269

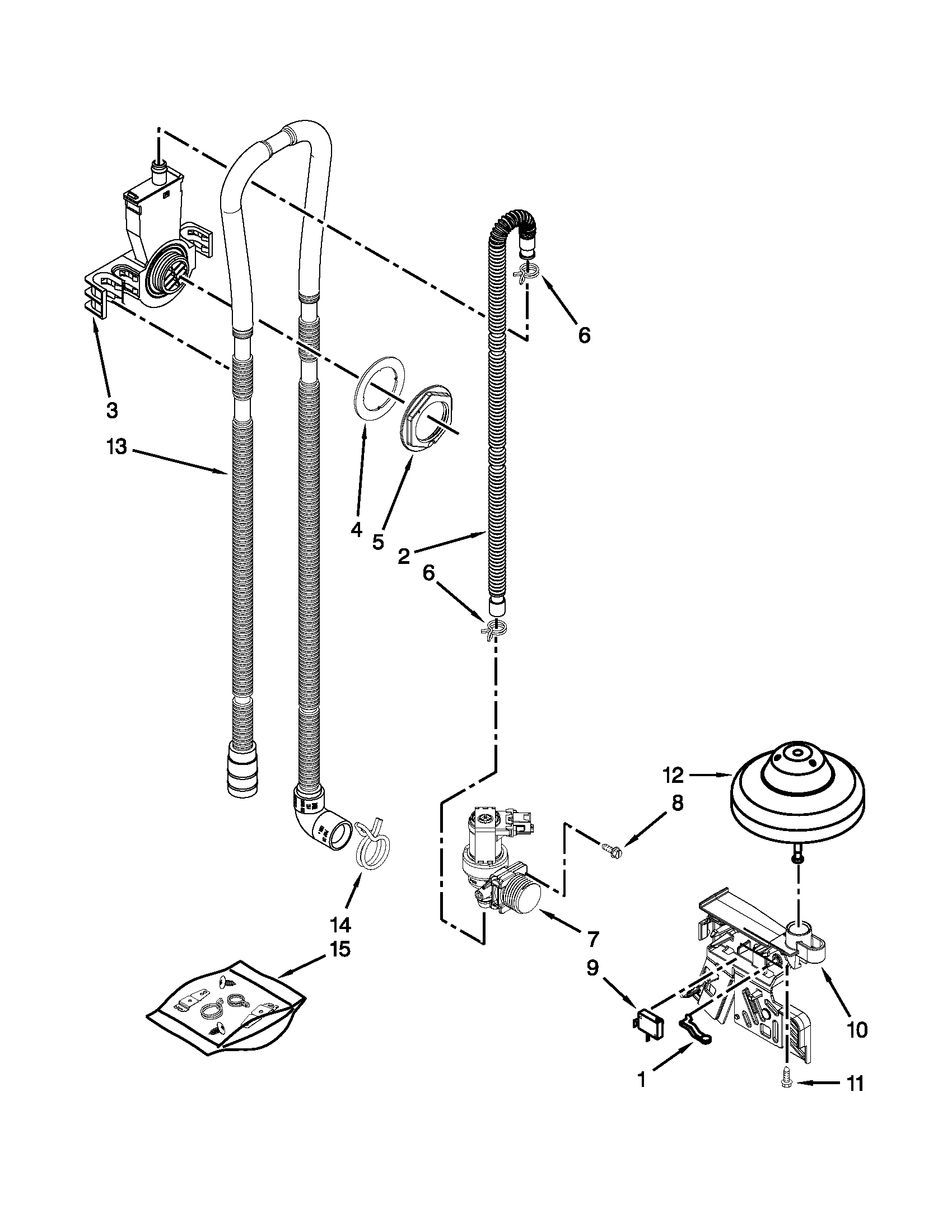

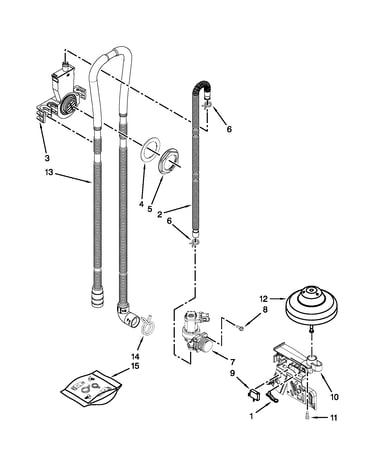

Not filling or fills slowly	Water supply	Dishwasher water inlet valve W11175771
Poor wash, weak spray	Wash system	Dishwasher spray arm WPW10491331
Grity residue, recirculating debris	Filtration	Dishwasher filter WPW10463906

Why it matters

Dishwasher parts are model-specific. Even when two Kenmore units look similar, small differences in the sump, wiring harness, or pump assembly can change the correct replacement. Matching by 66515113K212 helps ensure proper fit, safe operation, and normal wash performance.

Last updated: February 2026

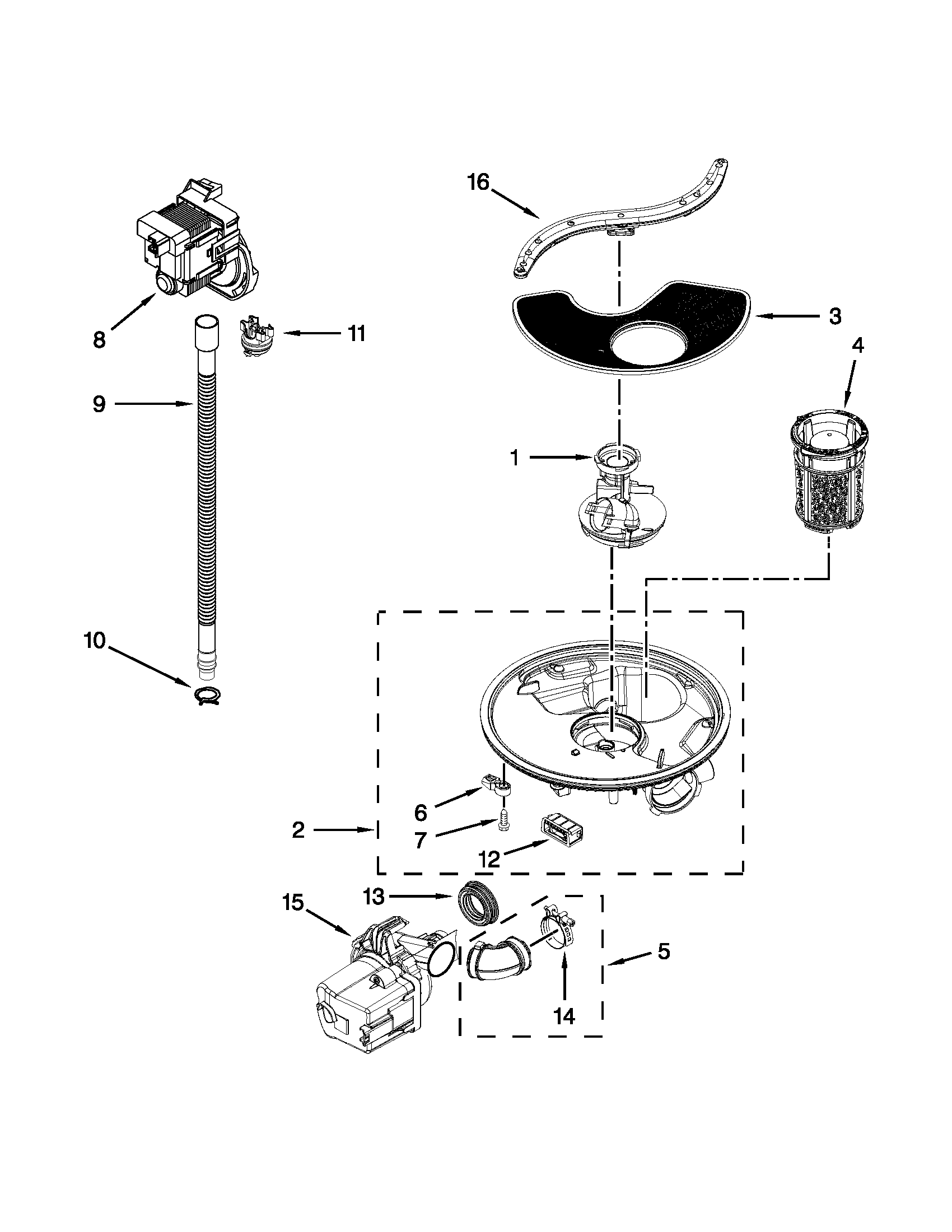

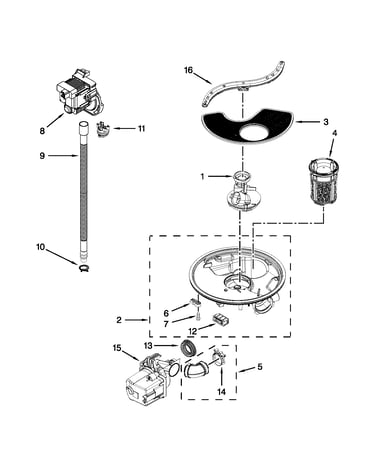

No. On Kenmore dishwasher model 66515113K212, we do not recommend running a cycle without the lower spray arm installed because it disrupts wash pressure and water distribution, leading to poor cleaning and potential pump-area issues. Reinstall the arm or replace it before regular use.

What happens if you run it without the arm

Without the lower spray arm, water is no longer directed across the lower rack and up toward the upper rack, so performance drops quickly.

• Dishes on the lower rack stay dirty because spray coverage is missing
• Water pressure can vent through the open hub, reducing overall wash action
• Debris can circulate and increase the chance of clogs in the sump area
• Cycles can sound different because water is not being “loaded” through the arm
• You can end up chasing symptoms that look like a pump or drain problem

What we recommend for 66515113K212

Use these steps to get back to normal washing results.

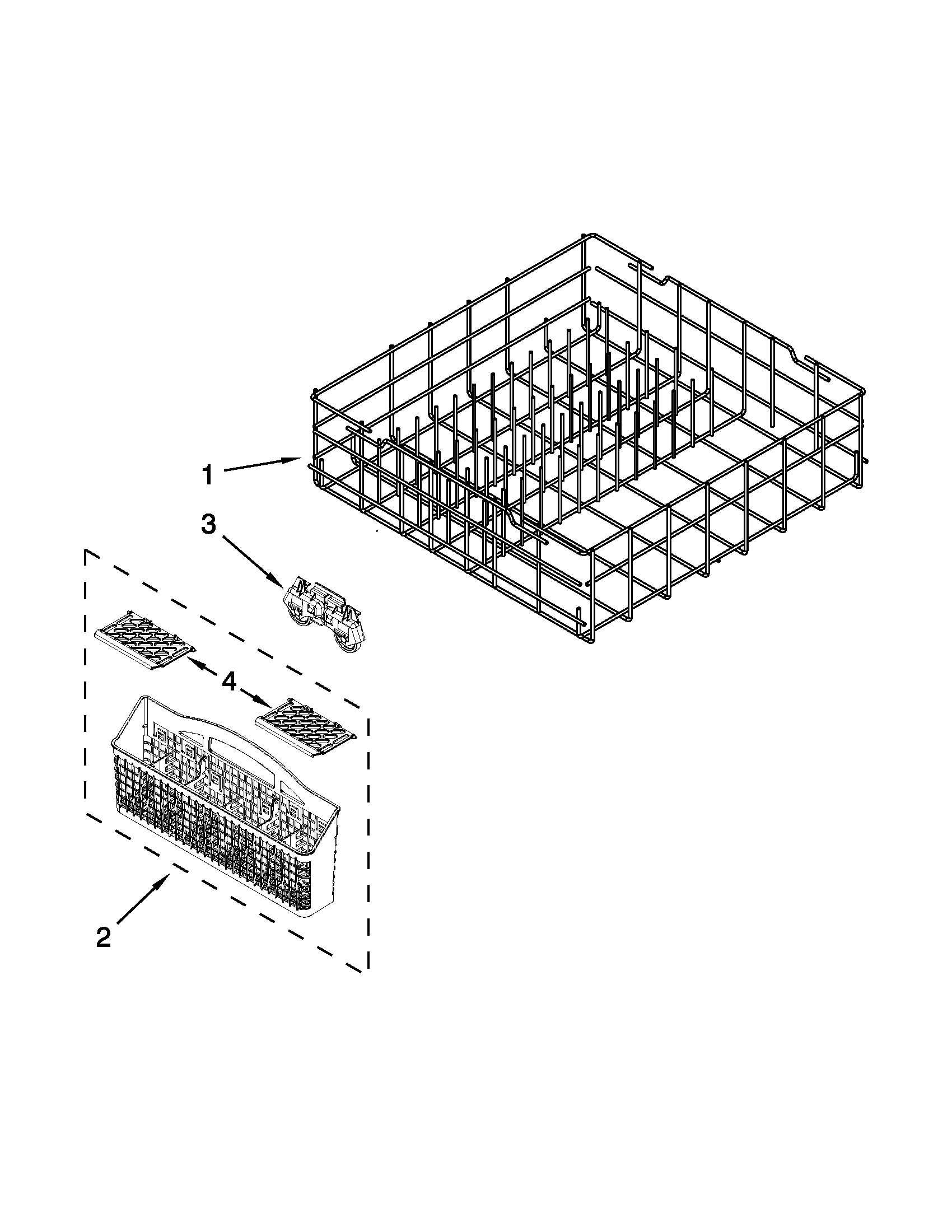

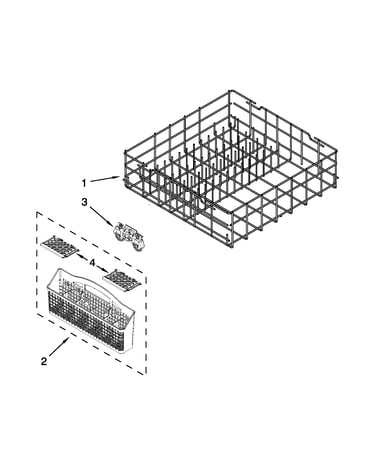

1. Remove the lower rack.
2. Confirm the lower spray arm is seated and spins freely by hand.
3. Clean the filter area and remove any broken plastic pieces.
4. Run a short cycle and listen for steady wash sound (not a hollow spraying sound).

For diagrams and the correct reassembly order, use the 66515113K212 owner’s manual.

Quick troubleshooting: spray arm vs. other causes

If cleaning is poor, the spray arm is common, but it is not the only cause.

Symptom	More likely cause	What to check first
Lower rack not clean	Missing/blocked spray arm	Arm holes, free spin
Standing water after cycle	Drain issue	Drain hose routing, drain pump
Cloudy film	Detergent or water temp	Detergent amount, hot water at sink
Weak wash sound	Circulation restriction	Filter, sump, inlet flow

If you’re also seeing drain problems, the dishwasher drain pump WPW10348269 is a common related part for this model.

Why it matters

The lower spray arm is a core part of the wash system. Keeping it installed and unobstructed helps the circulation pump maintain proper pressure, improves cleaning, and reduces the chance of debris buildup in the sump and filter.

Last updated: February 2026

Yes, repairing a Kenmore undercounter dishwasher model 66515113K212 is usually worth it when the fix is a common wear item (drain pump, inlet valve, heating element) and the total repair cost stays well below the price of a replacement dishwasher; it is especially cost-effective when the unit still runs reliably and only has one clear failure.

Quick rule of thumb (cost vs. value)

We use these practical thresholds when deciding repair vs. replace:

• Repair when the estimate is under 50% of the cost of a comparable new dishwasher.
• Strongly consider replacing when the estimate is over 50%, especially if multiple symptoms are happening.
• Repair first when the problem is isolated to a single part and the tub and door seal are in good shape.

Situation	Usually the better choice	Why
Won’t drain, but otherwise runs	Repair	Often a single-part fix (pump or hose restriction)
Not filling or fills slowly	Repair	Common inlet valve or supply issue
Dishes not drying well	Repair/maintenance	Heating circuit or filter issues are often fixable
Multiple leaks, rust, or recurring failures	Replace	Costs stack up and reliability drops

Common repairs that are typically worth it on 66515113K212

These are frequent, straightforward fixes on many Kenmore dishwashers:

• Replace a failed drain pump: dishwasher drain pump WPW10348269
• Restore heating and drying performance: dishwasher heating element W10518394
• Fix no-fill or weak fill symptoms: dishwasher water inlet valve W11175771
• Improve wash performance by addressing filtration: dishwasher filter W10872845

Before you spend money: do these checks first

The installation instructions include basic “no service call” checks that can save time and money. Use the installation guide to confirm setup and operation checks.

• Verify the door is fully closed and latched
• Check the breaker or house fuse
• Confirm the cycle is set to start (not paused)
• Make sure the water supply is turned on
• Run the shortest cycle and check for water in the tub after a couple minutes

Why it matters

A dishwasher like the Kenmore 66515113K212 is designed for water and energy efficiency, and longer cycles can be normal due to soak and pause periods. Fixing one failed component often restores full cleaning performance without the cost and hassle of replacement.

Last updated: February 2026
