Model #MHW8630HW0 Maytag washer

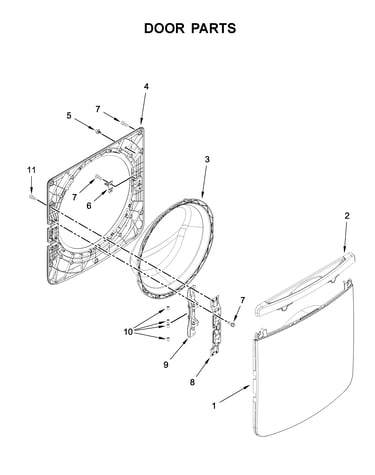

Here are the diagrams and repair parts for Maytag MHW8630HW0 washer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 29 parts

Affresh Washer Cleaner, 3-pack

#NI

Optional parts (not included) Diagram

$12.53

In Stock

Appliance Touch-Up Paint, 0.6-oz (White)

#NI

Optional parts (not included) Diagram

Appliance touch-up paint, 0.6-oz (white)

Part #72017
This item is not returnable
$6.01 |
20% OFF MSRP:$7.50

In Stock

CABINET (CHROME SHADOW)

#17A

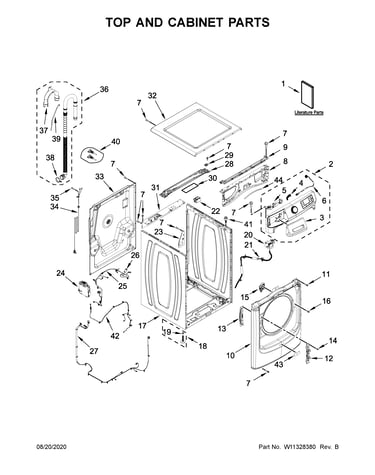

Top and cabinet parts Diagram

Cabinet (chrome shadow)

Part #W11352996
$325.13

In Stock

Clamp

#4

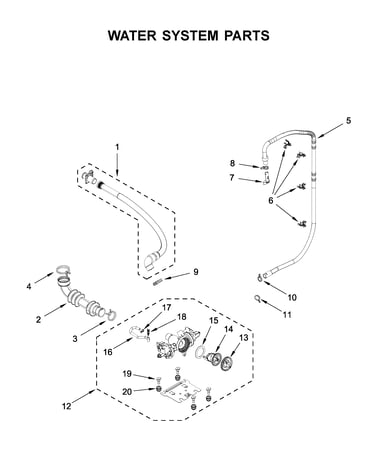

Water system parts Diagram

Clamp

Part #W10273034
This item is not returnable
$6.29

In Stock

Washer Fill Hose Set

#NI

Optional parts (not included) Diagram

Washer fill hose set

Part #8212546RP
$13.01

Back Order

Appliance Hose Clamp

#3

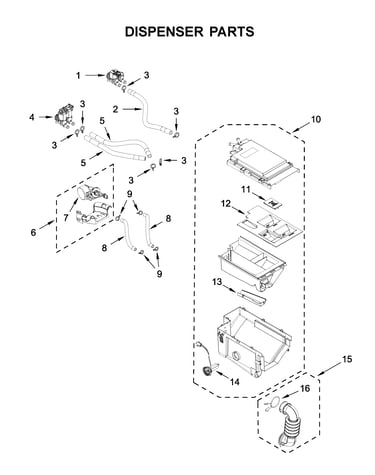

Dispenser parts Diagram

Appliance hose clamp

Part #WP596669
?
Manufacturer substitution
This part replaces W10096851. Substitute parts can look different from the original.
This part replaces W10096851
This item is not returnable
$2.86 |
13% OFF MSRP:$3.29

In Stock

Range Screw

#35

Top and cabinet parts Diagram

Range screw

Part #W10850756
?
Manufacturer substitution
This part replaces W10773242. Substitute parts can look different from the original.
This part replaces W10773242
This item is not returnable
$3.01 |
31% OFF MSRP:$4.37

In Stock

Washer Door Boot

#2

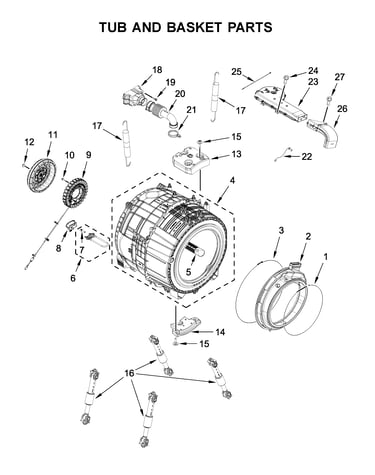

Tub and basket parts Diagram

Washer door boot

Part #W11318722
?
Manufacturer substitution
This part replaces W10912291. Substitute parts can look different from the original.
This part replaces W10912291
$139.38

In Stock

Washer Leveling Leg

#18

Top and cabinet parts Diagram

Washer leveling leg

Part #W10888529
?
Manufacturer substitution
This part replaces W10073890. Substitute parts can look different from the original.
This part replaces W10073890
This item is not returnable
$7.28

In Stock

TANK

#NI

Optional parts (not included) Diagram

Tank

Part #W11318830
?
Manufacturer substitution
This part replaces W11087952. Substitute parts can look different from the original.
This part replaces W11087952
$28.18

In Stock
