Model # LFEF3054TFC Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire LFEF3054TFC electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |

Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

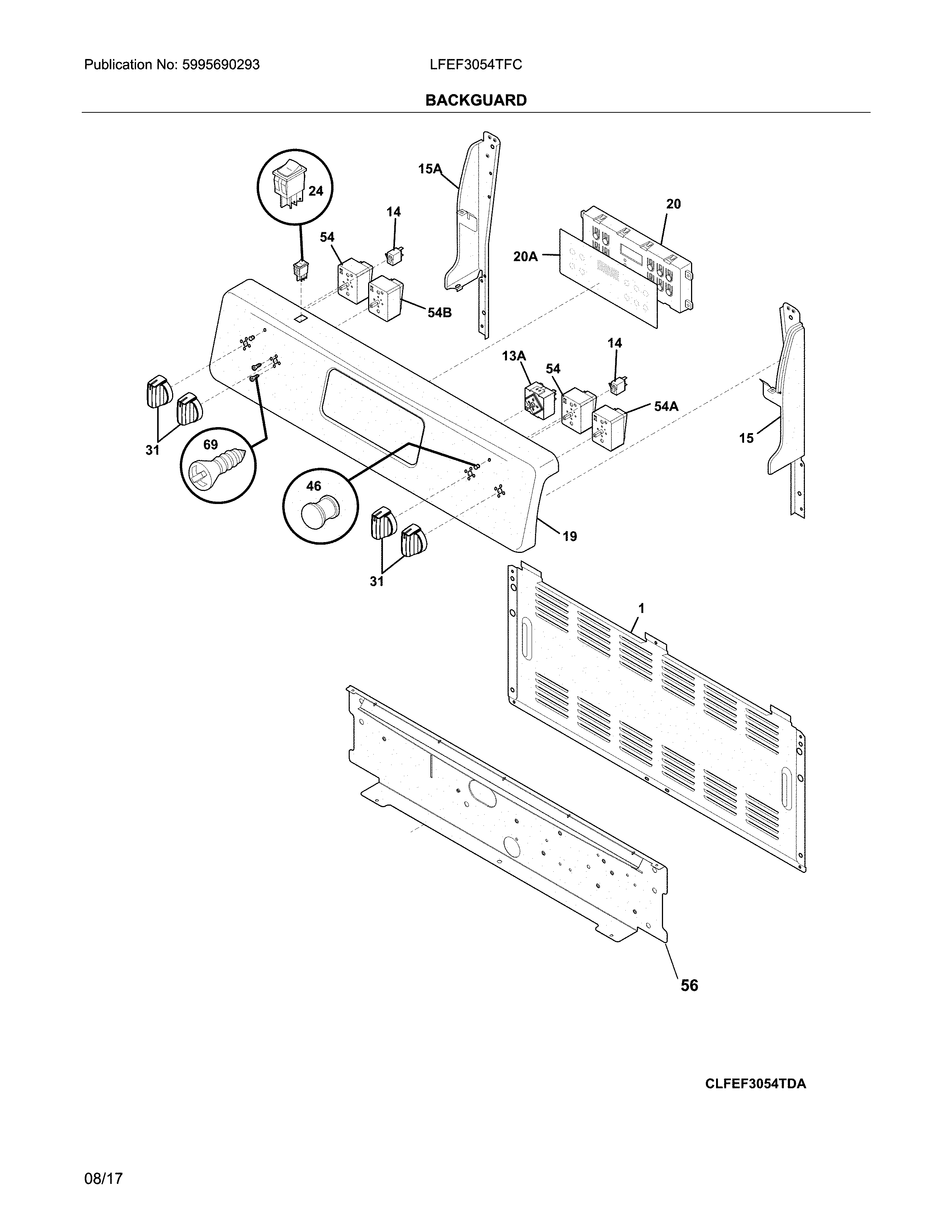

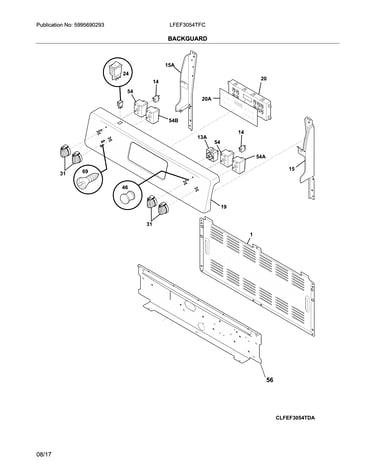

Backgaurd diagram

Range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$37.27
12% OFF Phone Price : $42.27
In Stock
Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

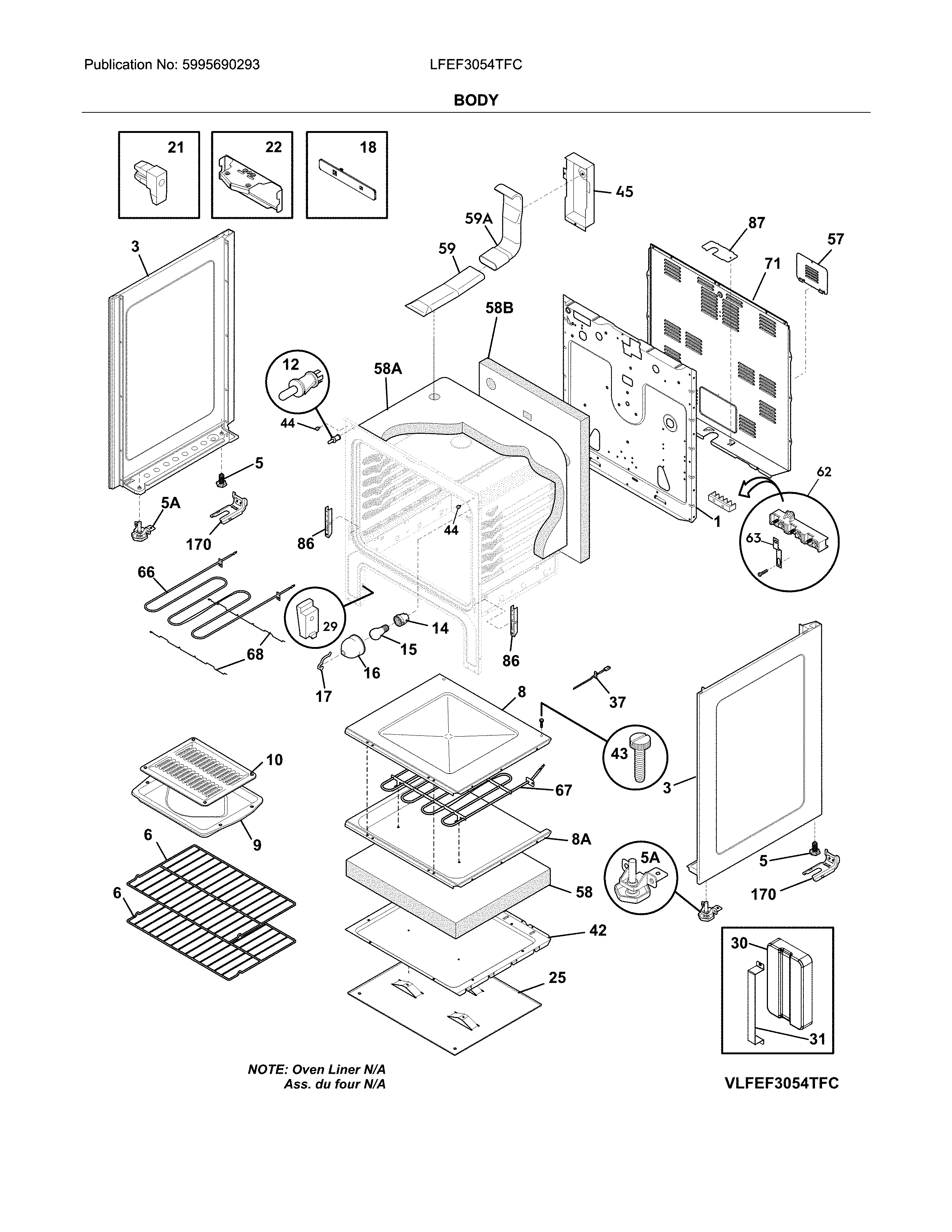

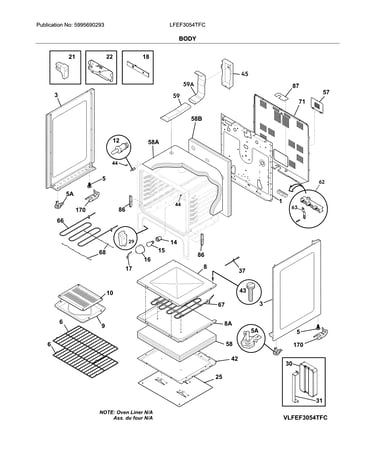

Body diagram

Range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$42.12
23% OFF MSRP : $55.00
In Stock
Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backgaurd diagram

Range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$58.40
8% OFF Phone Price : $63.40
In Stock
Range Surface Element Control Switch (replaces 316238200) 316238201
#54B

Backgaurd diagram

Range surface element control switch (replaces 316238200)

Part #316238201

BEST SELLER
$76.71
10% OFF MSRP : $85.00
In Stock
Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

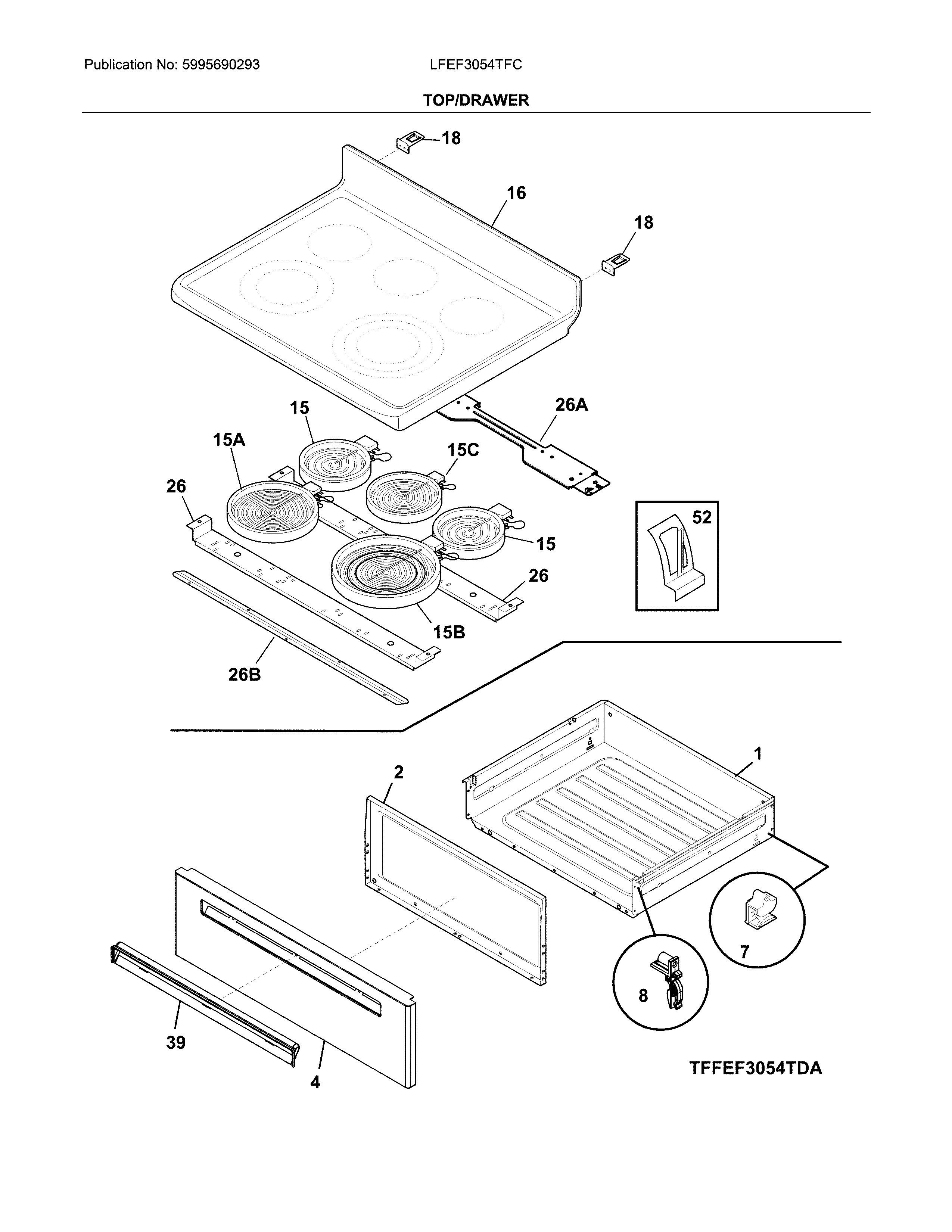

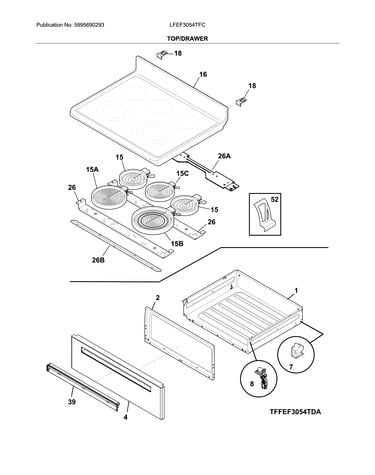

Top/drawer diagram

Range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$138.34
7% OFF Phone Price : $148.34
In Stock
Range Broil Element (replaces 316200600) 316203301
#66

Body diagram

Range broil element (replaces 316200600)

Part #316203301

BEST SELLER
$141.49
12% OFF MSRP : $160.00
In Stock
Range Indicator Light Lens (replaces 316437800) 316557300
#46

Backgaurd diagram

Range indicator light lens (replaces 316437800)

Part #316557300

BEST SELLER
$12.47
14% OFF Phone Price : $14.47
In Stock
Range Oven Bottom Panel 316400601
#8

Body diagram

Range oven bottom panel

Part #316400601

BEST SELLER
$102.62
9% OFF Phone Price : $112.62
In Stock
Range Radiant Surface Element 5304510566
#15B

Top/drawer diagram

Range radiant surface element

Part #5304510566

Replaced by #316291200

?
Manufacturer substitution
This part replaces 5304510566. Substitute parts can look different from the original.
BEST SELLER
$142.16
7% OFF Phone Price : $152.16
In Stock
Range Leveling Leg And Bracket Assembly, Front (replaces 316498900) 5304509869
#5A

Body diagram

Range leveling leg and bracket assembly, front (replaces 316498900)

Part #5304509869

BEST SELLER
This item is not returnable
$5.89
15% OFF Phone Price : $6.89
In Stock
