Craftsman
Front-Engine Lawn Tractor

Model # 917259980 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917259980 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

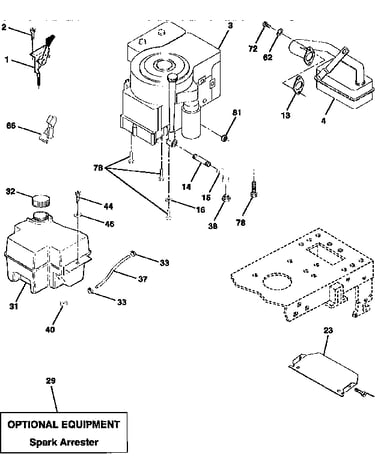

  View engine

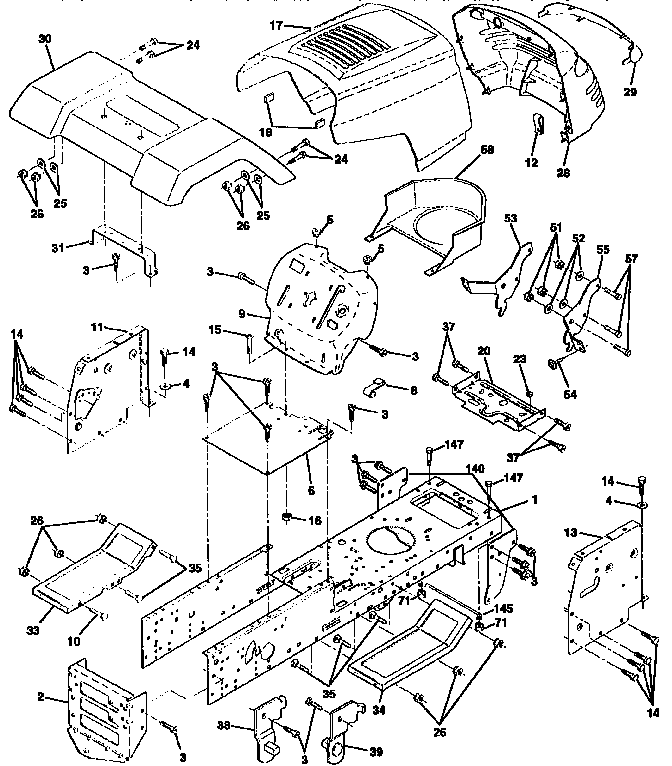

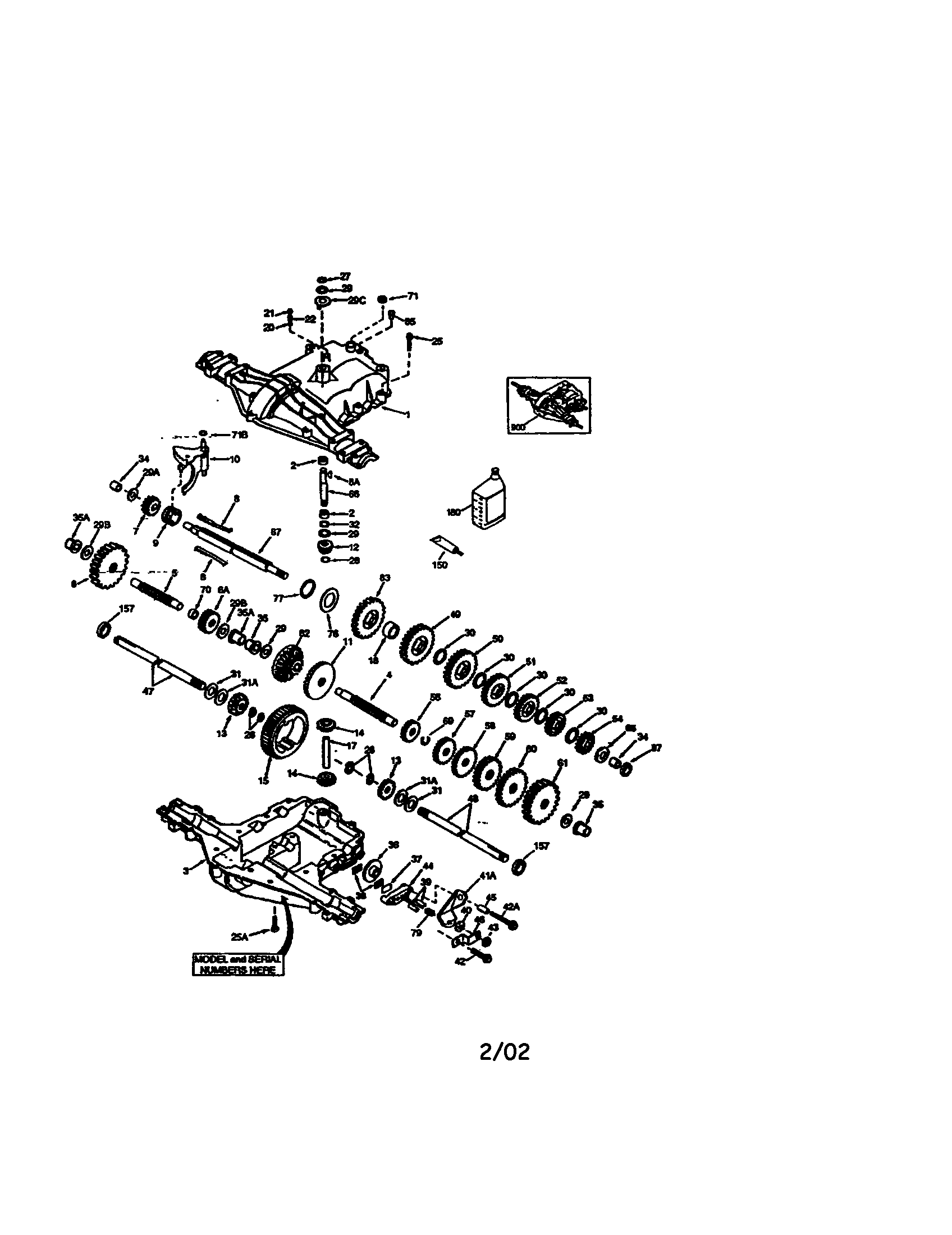

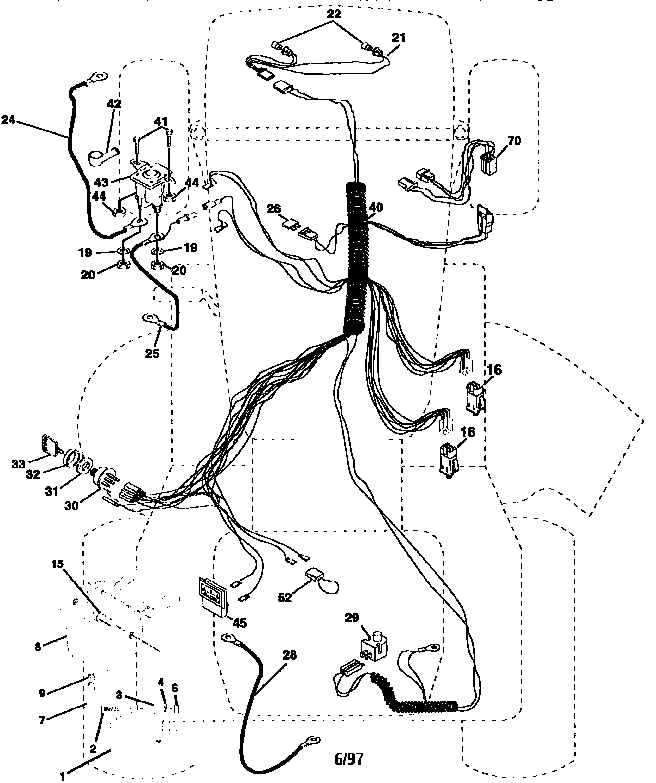

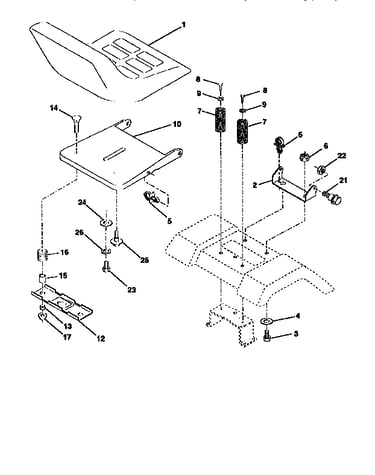

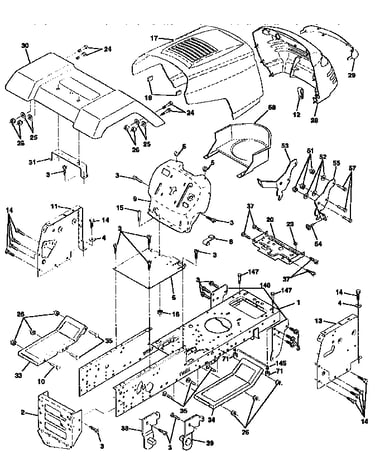

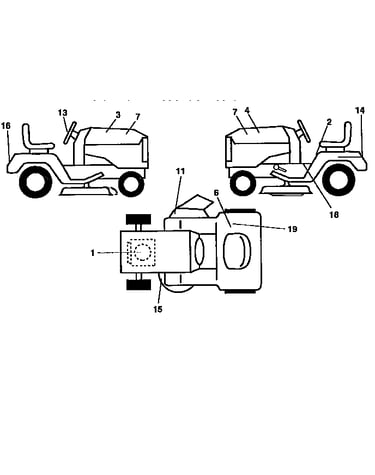

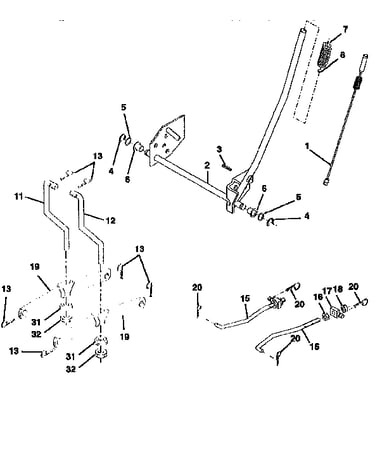

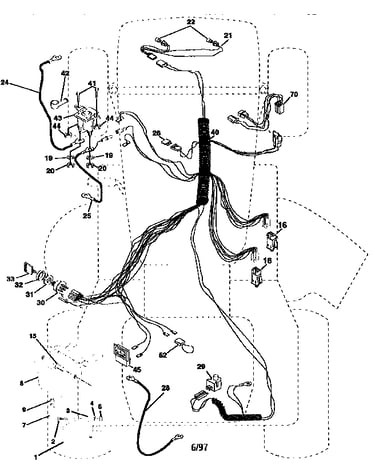

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 506 parts  |
Blade 42" 138498
#11

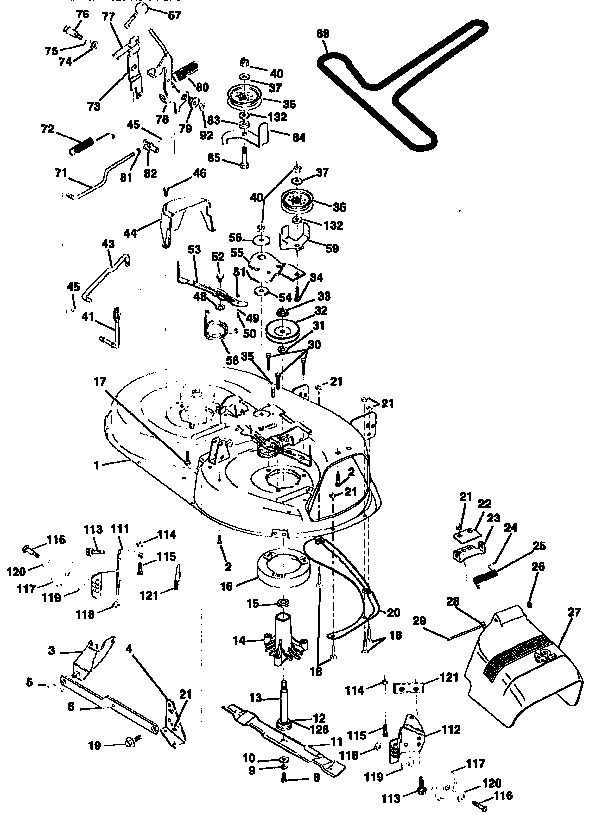

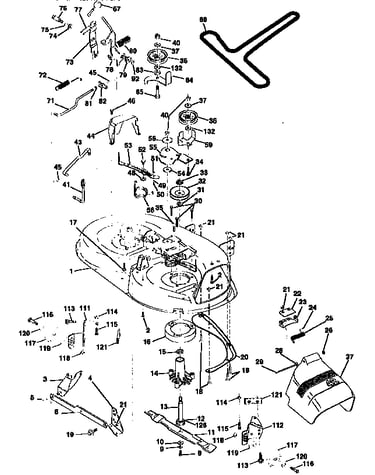

Mower deck diagram

Blade 42"

Part #138498

Replaced by #532138971

?
Manufacturer substitution
This part replaces 138498. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$15.49 |
11% OFF Phone Price : $17.49
In Stock
Hub Cap 104757X
#11

Wheels and tires diagram

Hub cap

Part #104757X

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.51 |
22% OFF Phone Price : $4.51
In Stock
V-belt 130801
#57

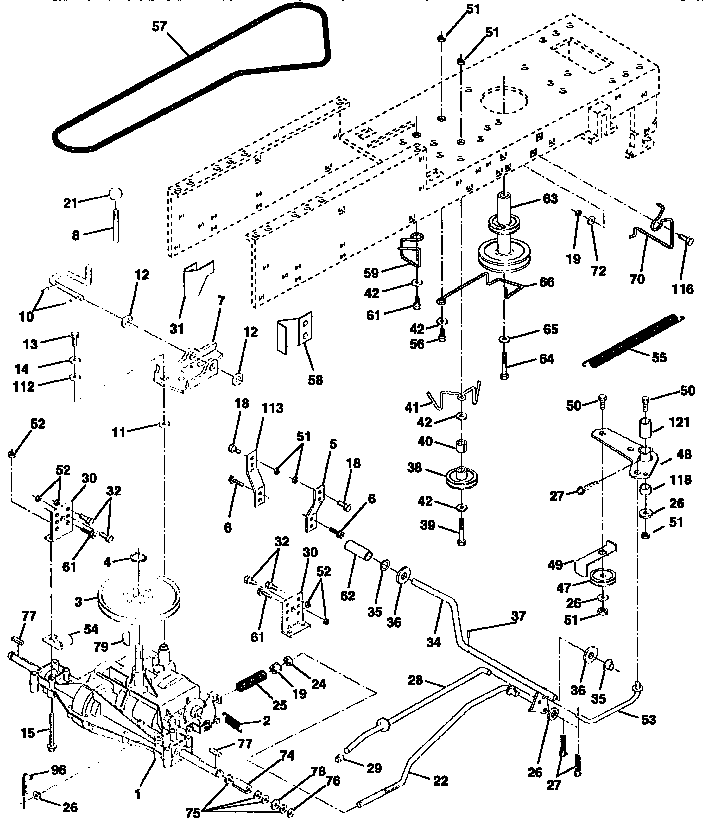

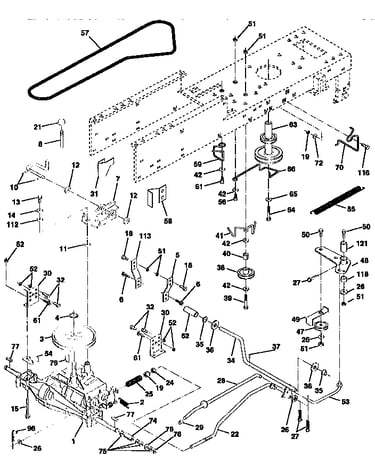

Drive diagram

V-belt

Part #130801

Replaced by #532138255

?
Manufacturer substitution
This part replaces 130801. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$30.89 |
16% OFF Phone Price : $36.89
In Stock
Screw 138776
#30

Mower deck diagram

Screw

Part #138776

Replaced by #584953901

?
Manufacturer substitution
This part replaces 138776. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
In Stock
Husqvarna Lawn Tractor Ring Clip (replaces 5022p, 53212000029, 812000029, 8120000-29) 12000029
Husqvarna lawn tractor ring clip (replaces 5022p, 53212000029, 812000029, 8120000-29)

Part #12000029

BEST SELLER
This item is not returnable
$3.09 |
24% OFF Phone Price : $4.09
In Stock
Lawn Tractor Flat Blade Idler Pulley 131494
#36

Mower deck diagram

Lawn tractor flat blade idler pulley

Part #131494

Replaced by #532173438

?
Manufacturer substitution
This part replaces 131494. Substitute parts can look different from the original.
BEST SELLER
$17.42 |
21% OFF Was : $22.00
Back Order
Axle Assembly 154427
#2

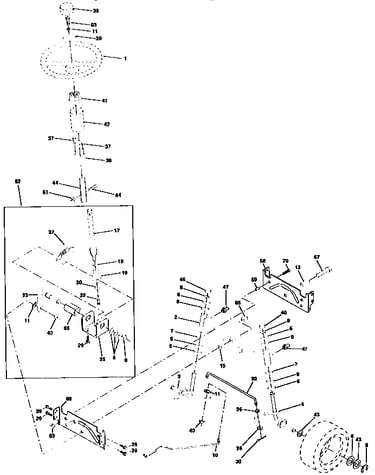

Steering assembly diagram

Axle assembly

Part #154427

Replaced by #531171101

?
Manufacturer substitution
This part replaces 154427. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Lawn Tractor Deflector Shield Hinge Rod 131491
#29

Mower deck diagram

Lawn tractor deflector shield hinge rod

Part #131491

Replaced by #595297001

?
Manufacturer substitution
This part replaces 131491. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.56 |
18% OFF Phone Price : $5.56
In Stock
Lawn Tractor Deflector Shield 130968
#27

Mower deck diagram

Lawn tractor deflector shield

Part #130968

Replaced by #532130968

?
Manufacturer substitution
This part replaces 130968. Substitute parts can look different from the original.
BEST SELLER
$33.50 |
15% OFF Phone Price : $39.50
In Stock
Tire 106222X
#3

Wheels and tires diagram

Tire

Part #106222X

Replaced by #532122073

?
Manufacturer substitution
This part replaces 106222X. Substitute parts can look different from the original.
BEST SELLER
$56.41 |
10% OFF Phone Price : $62.41
In Stock
