Model # WTW7300DC0 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool WTW7300DC0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

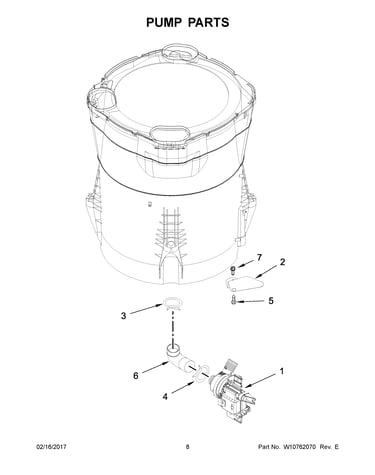

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |

Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699A)
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.56
47% OFF MSRP : $22.00
In Stock
Washer Lid Lock Assembly (replaces W10648012, W10787878)
#14

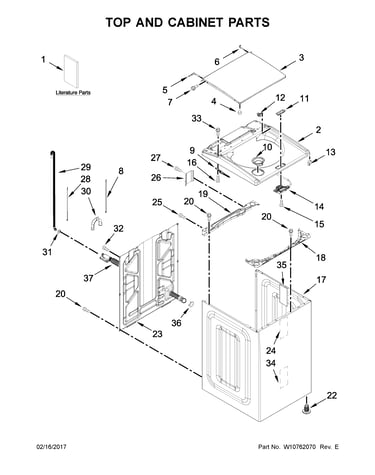

Top and cabinet parts diagram

Washer lid lock assembly

Part #W10787878

Replaced by #W10810403

?
Manufacturer substitution
This part replaces W10787878. Substitute parts can look different from the original.
BEST SELLER
$121.06
8% OFF Phone Price : $131.06
In Stock
Washer Clutch Kit (replaces W10006484, W10006494, W10275082, W10447975, W10905025)
#7

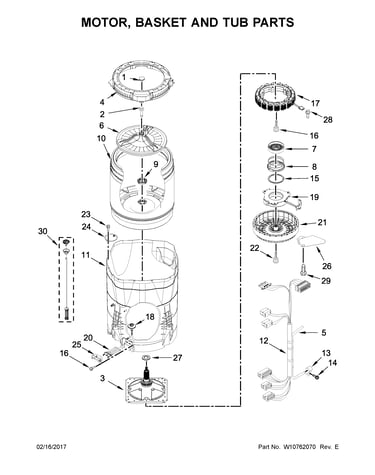

Motor, basket and tub parts diagram

Slider

Part #W10447975

Replaced by #W10734521

?
Manufacturer substitution
This part replaces W10447975. Substitute parts can look different from the original.
BEST SELLER
$32.65
31% OFF MSRP : $47.00
In Stock
Washer Clutch Kit (replaces W10006484, W10006494, W10275082, W10447975, W10905025)
#15

Motor, basket and tub parts diagram

30mm spiral

Part #W10275082

Replaced by #W10734521

?
Manufacturer substitution
This part replaces W10275082. Substitute parts can look different from the original.
BEST SELLER
$32.65
31% OFF MSRP : $47.00
In Stock
Washer Clutch Kit (replaces W10006484, W10006494, W10275082, W10447975, W10905025)
#8

Motor, basket and tub parts diagram

Spring support

Part #W10006494

Replaced by #W10734521

?
Manufacturer substitution
This part replaces W10006494. Substitute parts can look different from the original.
BEST SELLER
$32.65
31% OFF MSRP : $47.00
In Stock
Washer Water Inlet Valve (replaces W10853296, W11096268)
#14

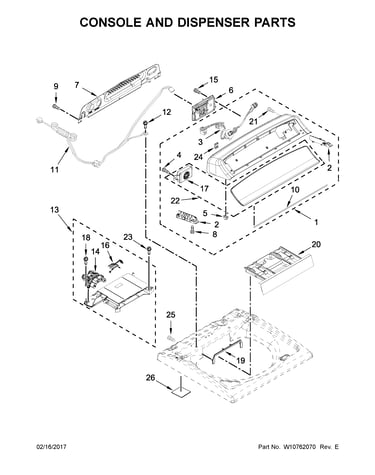

Console and dispenser parts diagram

Washer water valve

Part #W10758829

Replaced by #W11220230

?
Manufacturer substitution
This part replaces W10758829. Substitute parts can look different from the original.
BEST SELLER
$73.70
33% OFF MSRP : $110.00
In Stock
Washer Drain Hose (replaces W10769870, W10826733, W11199768, W11199820, W11249137)
#29

Top and cabinet parts diagram

Washer drain hose

Part #W10221546

Replaced by #W11244231

?
Manufacturer substitution
This part replaces W10221546. Substitute parts can look different from the original.
BEST SELLER
$19.43
37% OFF MSRP : $31.00
In Stock
Washer Suspension Rod Kit (replaces W11027215, W11226784)
#30

Motor, basket and tub parts diagram

Damper assembly, tub suspension (set of 4-includes suspension bushings and suspension balls)

Part #W10901060

Replaced by #W11130359

?
Manufacturer substitution
This part replaces W10901060. Substitute parts can look different from the original.
BEST SELLER
$86.01
28% OFF MSRP : $120.00
In Stock
Washer Water Inlet Valve Wire Harness (replaces W10849300)
#16

Console and dispenser parts diagram

Washer wire harness

Part #W10849300

Replaced by #W11458657

?
Manufacturer substitution
This part replaces W10849300. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.04
33% OFF MSRP : $18.00
In Stock
Appliance Spray Paint (White) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930)
#NI

Optional parts (not included) diagram

Appliance spray paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, a0050702, f94566-010, y057937, y350930)

Part #350930

BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
